• Frequency conversion constant pressure pump

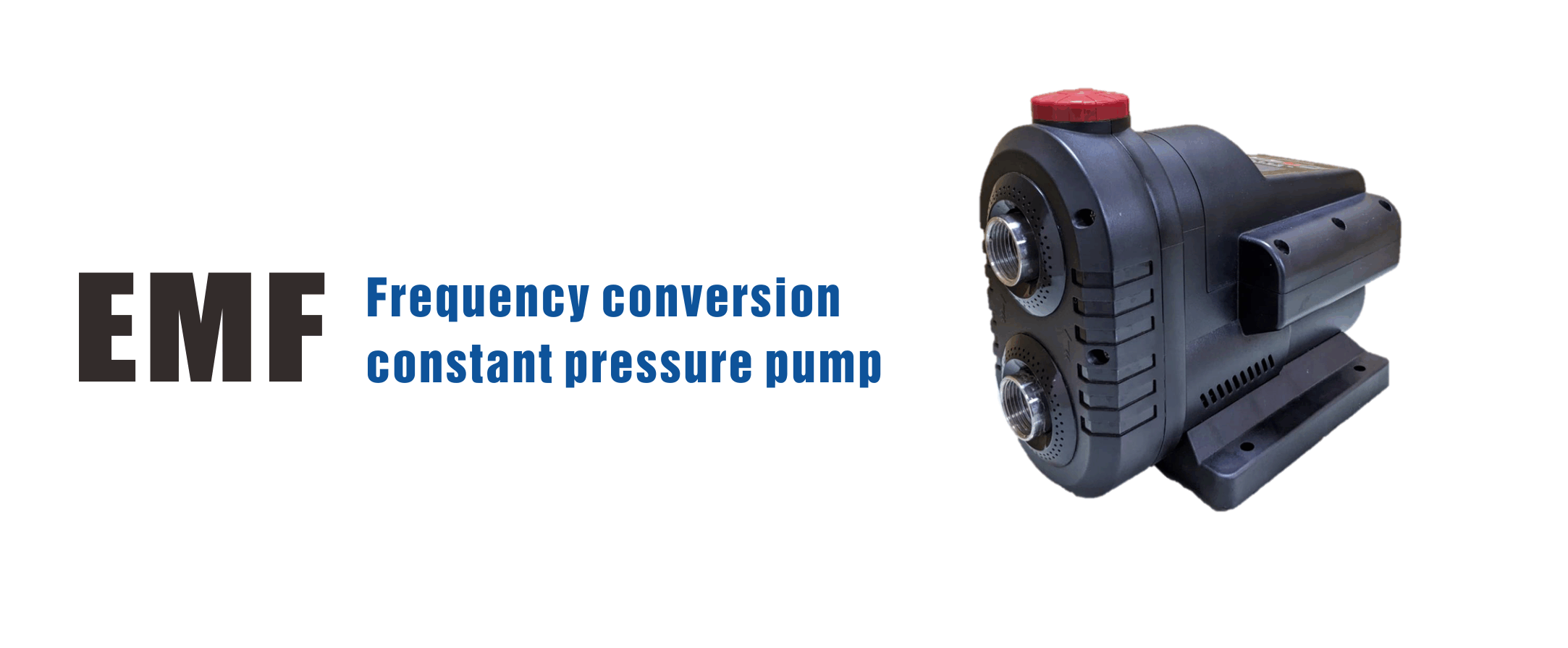

Frequency conversion constant pressure pump

Model : EMF series


● Whole house duct pressurization

● Gardening

● Vegetable shed drainage water supply

● Home car wash booster

● Water heater booster

● Solar boost



● Household water supply pump has a constant pressure control system to maintain constant water pressure

● Water calm sound

● Water shortage protection

● Outdoor rainproof

● LED human-machine interface, easy to operate


● Ambient temperature:MAX.+40°C

● Liquid temperature:0°C~+100°C

● Applicable liquid : clean water




● shell : ABS

● Pump body : stainless steel

● Impeller : stainless steel

● Shaft : 304 welded shaft

● Shaft seal : silicon carbide/graphite

● Waterproof level : IP54

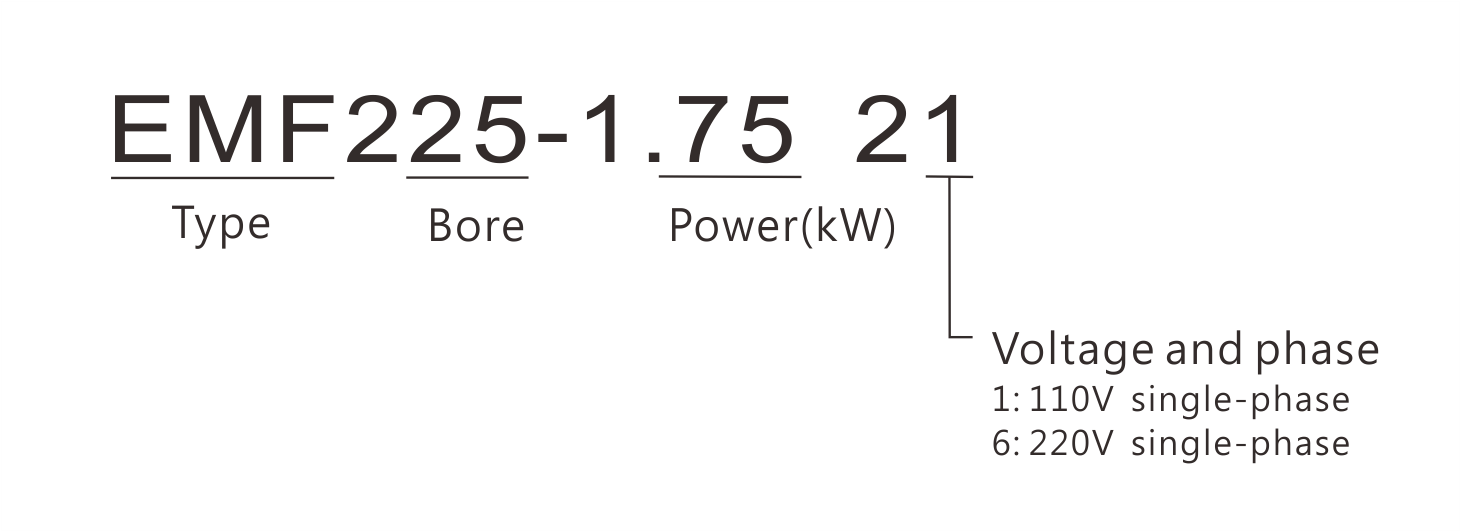

TYPE

POWER

BORE

VOLTAGE

CAPACITY

HEAD

MAX CAPACITY

MAX HEAD

WEIGHT

HP(KW) Inch(mm) V m3/h M m3/h M KG

EMF225-1.75 21

1 (0.75) 1"(25) 110 2 30 4.8 45 6.2

EMF225-1.75 26

1 (0.75) 1"(25) 220 2 30 4.8 45 6.2
