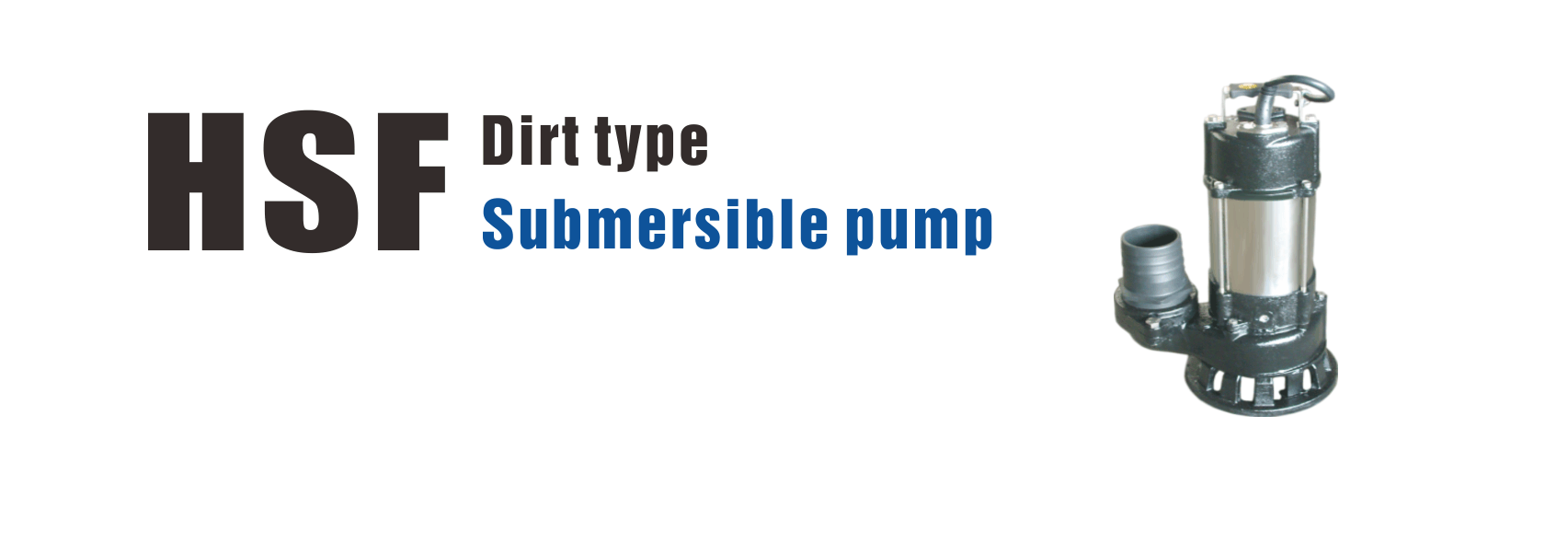

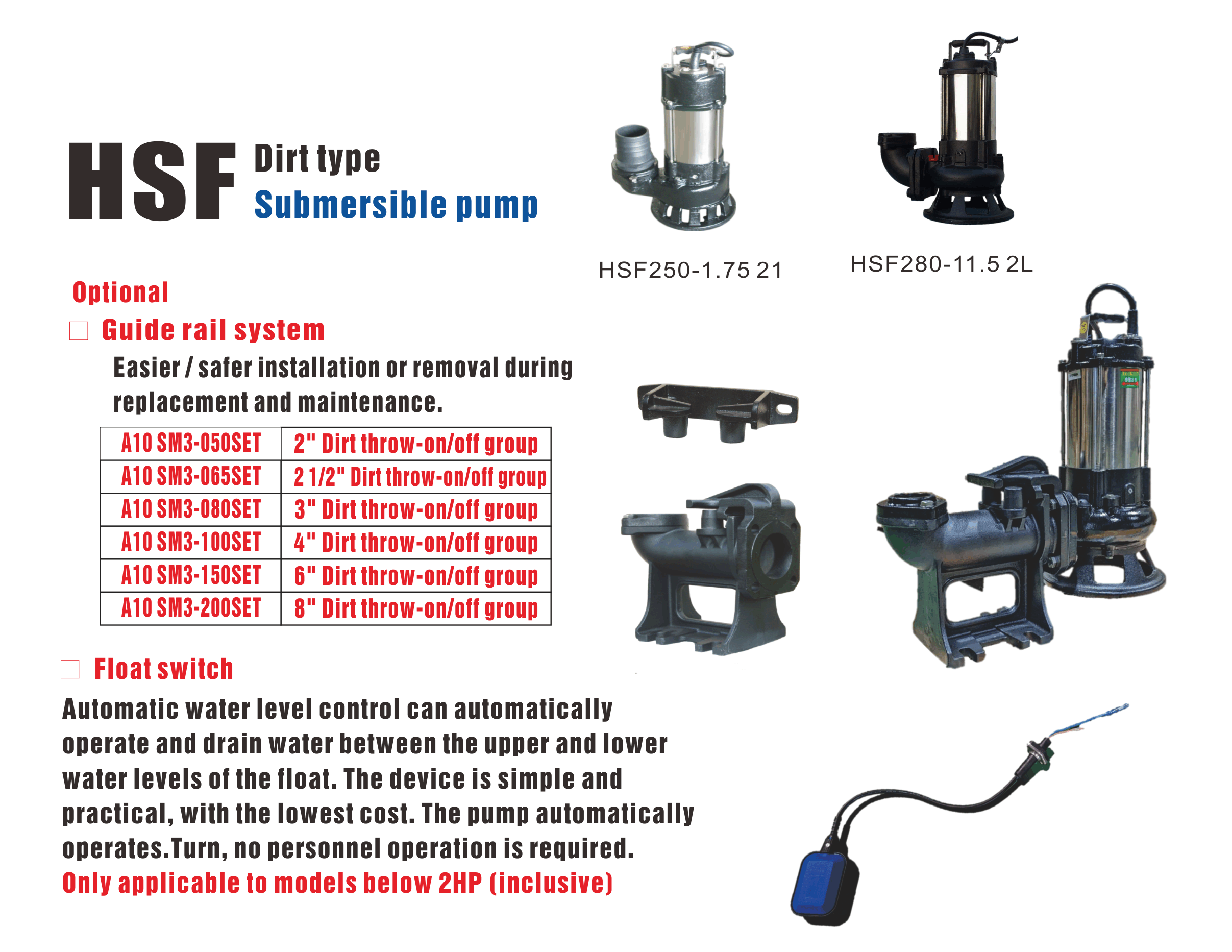

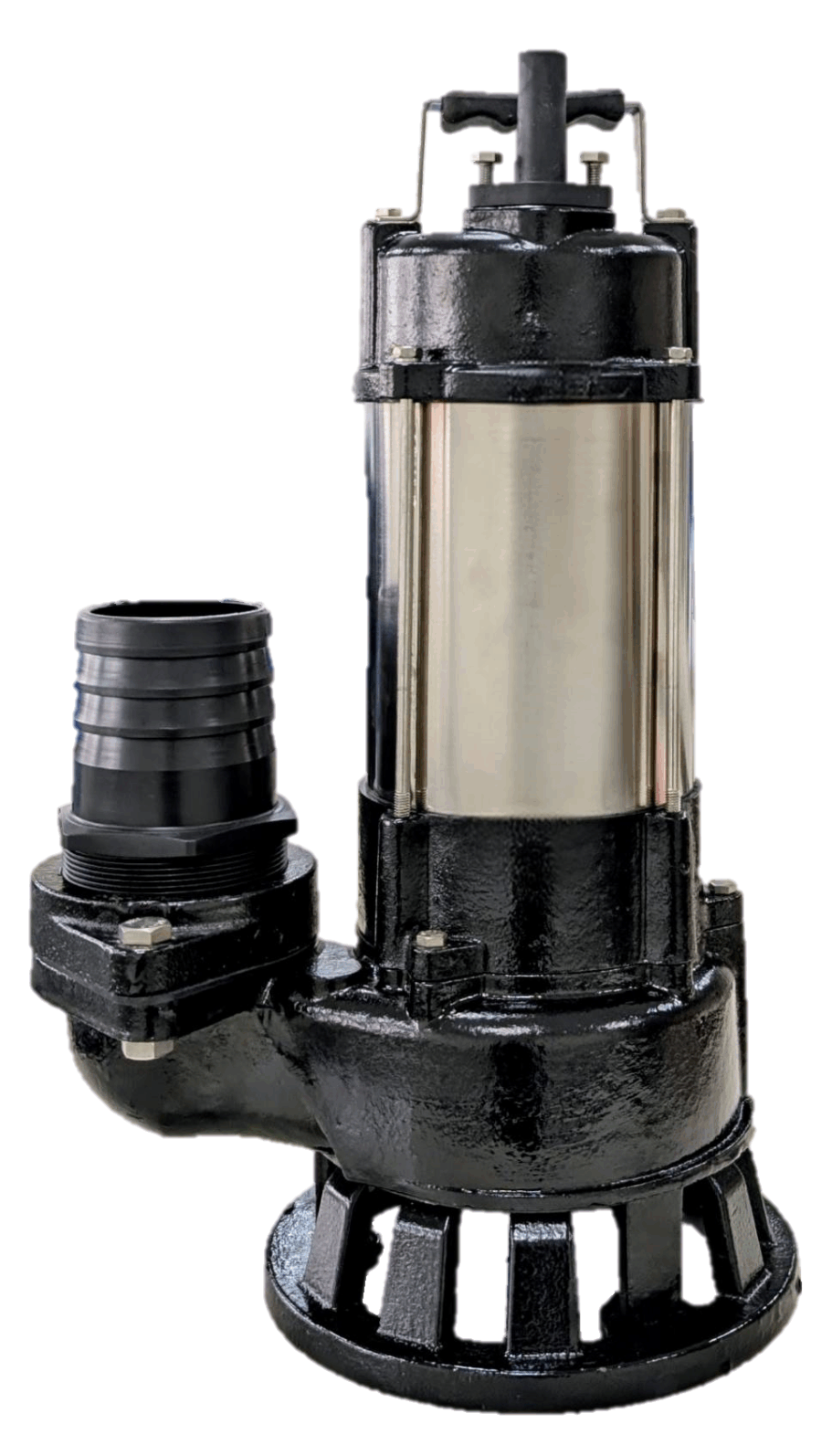

Dirt type submersible pump
● Domestic sewage removal.
● Removal of rainwater accumulation.
● Water supply and drainage in other occasions.
● Animal husbandry, farmland, and pig farm sewage treatment.
● The motor is specially impregnated and dried to ensure optimal insulation of the motor, and the pump's waterproof rating complies with IP68.
● The non-blocking impeller design can maximize the drainage function for sewage with solid or fibrous materials.
● The shaft seal adopts a double-pack SIC silicon carbon steel mechanical shaft seal design.
● The motor is equipped with a temperature controller or motor overload protector to effectively prevent the motor from burning when it is abnormally overloaded.
● Ambient temperature: MAX.+40°C
● Liquid temperature: +4°C~+40°C
● Applicable liquids: domestic sewage, foreign matter sewage, industrial wastewater
● Frequency：50/60Hz
● Motor : 2 Pole - Dry Submersible Motor
● Insulation level: Class B (1-3HP) Class F (above 5HP)
● Waterproof level：IP68
● Protection device : 3∅ motor overload protector / 1∅ 1-2HP thermal protector
● Bearings: deep groove ball bearings
● Shaft seal: double-pack mechanical shaft seal● Impeller: centrifugal semi-open
● Upper cover：FC200
● Motor body：SUS304
● Axis：SUS304
● Shaft seal：SIC/SIC
● Pump body：FC200
● Impeller：FC200
● Cable：VCT
● Pump body：FC200
● Impeller：FC200
● Cable：VCT

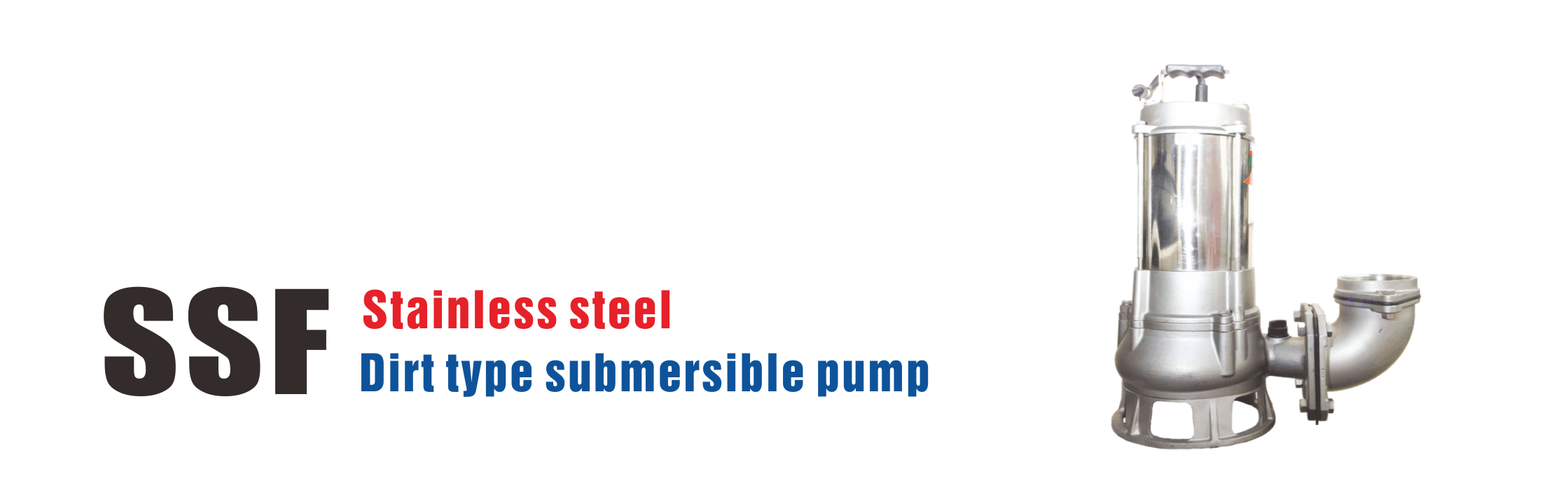

● Wastewater treatment and sewage drainage in petrochemical, dyeing and textile, and electronic industries.
● For lifting and draining corrosive waste liquid.
● Sewage discharge from the iron and steel industry.
● Suitable for pumping and discharging general industrial sewage, sludge and wastewater.
● It adopts a dry motor with built-in overload protection gas and double-set mechanical shaft seal.
● Using the stainless steel lost-wax casting method, the mold has high precision. The product is not prone to sand holes, has good surface smoothness, and has a high sense of value.
● This machine is suitable for waste liquid with weak acid and alkali pH 4~10.
● The O-ring is made of Viton material, which is resistant to water and acid and alkali corrosion.
● Ambient temperature: MAX.+40°C
● Liquid temperature: +4°C~+40°C
● Applicable liquids: Weak acid wastewater, miscellaneous drainage, abnormal wastewater
● Frequency：50/60Hz
● Motor : 2 Pole - Dry Submersible Motor
● Insulation level: Class B (1-3HP) Class F (above 5HP)
● Waterproof level：IP68
● Protection device : 3∅ motor overload protector / 1∅ 1-2HP thermal protector
● Bearings: deep groove ball bearings
● Shaft seal: double-pack mechanical shaft seal
● Impeller: centrifugal semi-open
● Upper cover：SUS316
● Motor body：SUS316
● Axis：SUS316
● Shaft seal：SIC/SIC
● Pump body：SUS316
● Impeller：SUS316
● Urgent：Viton
● Cable：VCT
● Pump body：SUS316
● Impeller：SUS316
● Urgent：Viton
● Cable：VCT

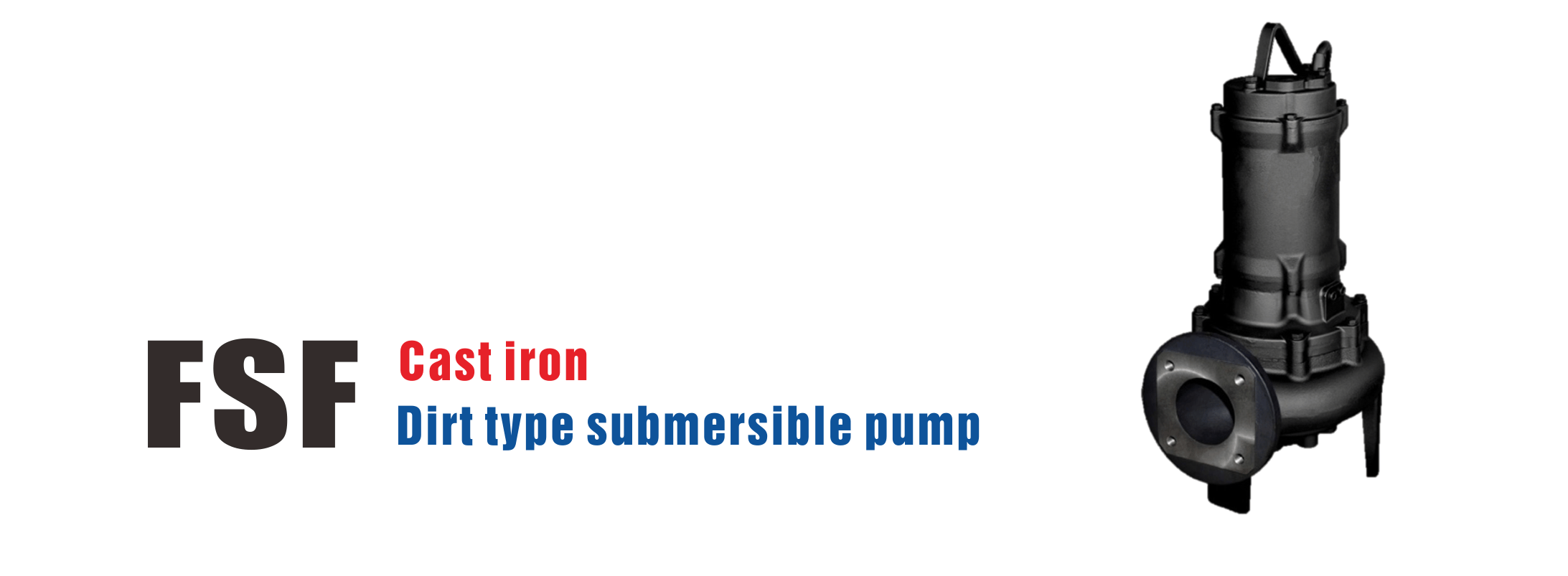

● Sewage and wastewater treatment and discharge from livestock and pig farming, dairy farmers, livestock farm excrement storage tanks, and sewers.
● Sewage discharge from septic tank drainage systems in apartment buildings, food, pulp, leather, dyeing and finishing, steel and other industries.
● Suitable for pumping and discharging general industrial sewage, sludge and waste water.
● The entire shell is made of cast iron, with a sturdy and durable structure and excellent quality and performance.
● The handle above 7.5HP is designed in a triangular shape, which is convenient for hanging operations in the take-off type.
● Adopt mechanical shaft seal produced in cooperation with world famous brands.
● The motor is equipped with an overload protection device.
● Ambient temperature : MAX.+40°C
● Liquid temperature : +4°C~+40°C
● Applicable liquids : Weak acid wastewater, miscellaneous drainage, abnormal wastewater
● Frequency：50/60Hz
● Motor : 2 Pole/4 Pole - Dry Submersible Motor
● Insulation level: Class B (1-3HP) Class F (above 5HP)
● Waterproof level：IP68
● Protection device : 3∅ motor overload protector / MS water detector(15HP)
● Bearings: deep groove ball bearings
● Shaft seal: double-pack mechanical shaft seal
● Impeller: centrifugal semi-open
● Upper cover：FC200
● Motor body：FC200
● Axis：SUS304
● Shaft seal：SIC/SIC
● Pump body：FC200
● Impeller：FC200
● Cable：VCT
● Pump body：FC200
● Impeller：FC200
● Cable：VCT
|

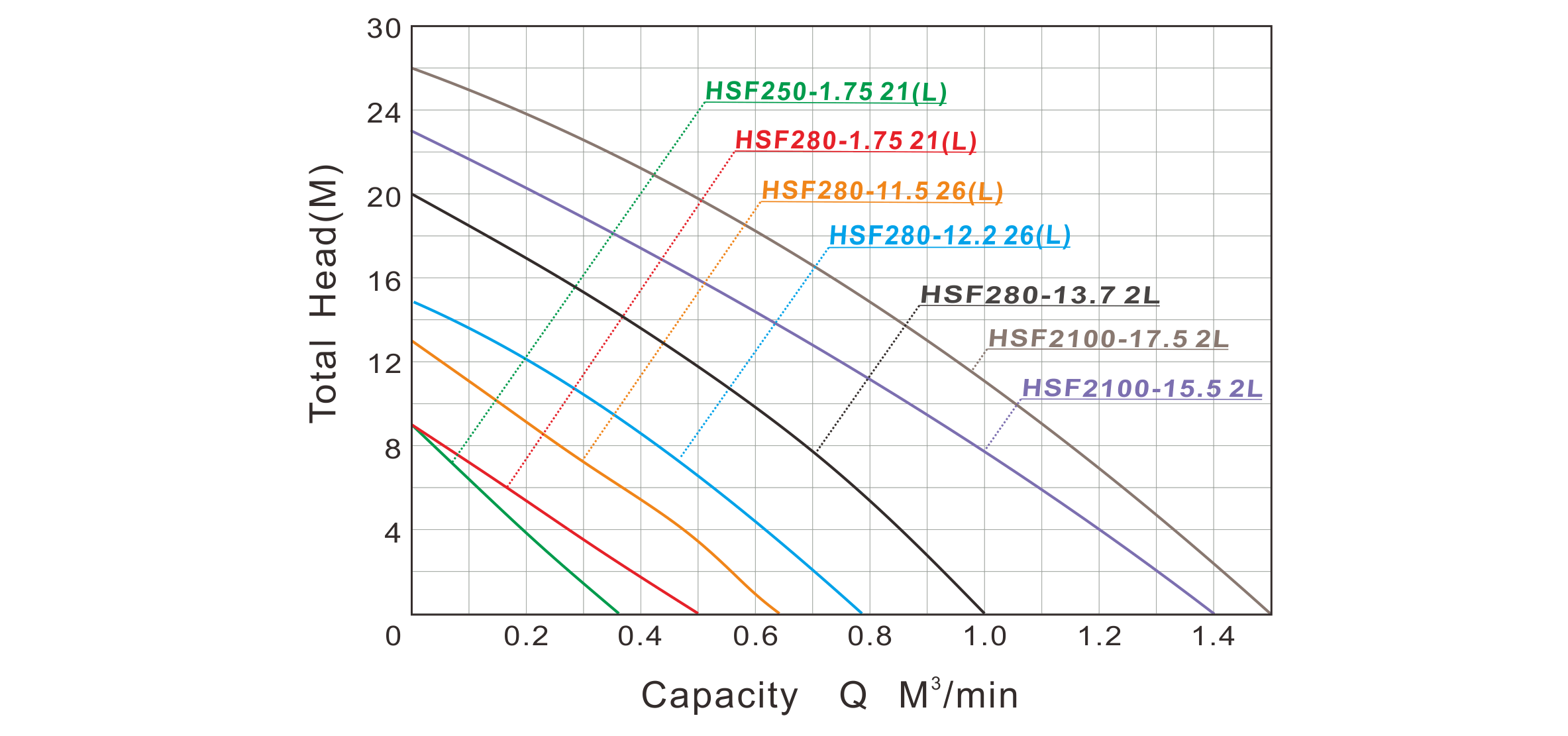

TYPE |
POWER |
BORE |
PHASE |
HEAD |
CAPACITY |
MAX HEAD |
MAX CAPACITY |
WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | KG | |
|
HSF250-1.75 21(L) |
1 (0.75) | 2"（50） | 1 ❘ 3 | 5 | 0.19 | 9 | 0.36 | 23 |
|
HSF280-1.75 21(L) |
1 (0.75) | 3"（80） | 1 ❘ 3 | 5 | 0.30 | 9 | 0.50 | 23 |
|
HSF280-11.5 26(L) |
2 (1.5) | 3"（80） | 1 ❘ 3 | 7 | 0.30 | 13 | 0.64 | 31 |
|
HSF280-12.2 26(L) |
3 (2.2) | 3"（80） | 1 ❘ 3 | 8 | 0.40 | 15 | 0.78 | 40 |
|
HSF280-13.7 2L(O) |
5 (3.7) | 3"（80） | 3 | 10 | 0.60 | 20 | 1.0 | 44 |
|
HSF2100-15.5 2L(O) |
7½(5.5) | 4"（100） | 3 | 11 | 0.80 | 23 | 1.4 | 70 |
|
HSF2100-17.5 2L(O) |
10 (7.5) | 4"（100） | 3 | 14 | 0.80 | 27 | 1.5 | 80 |

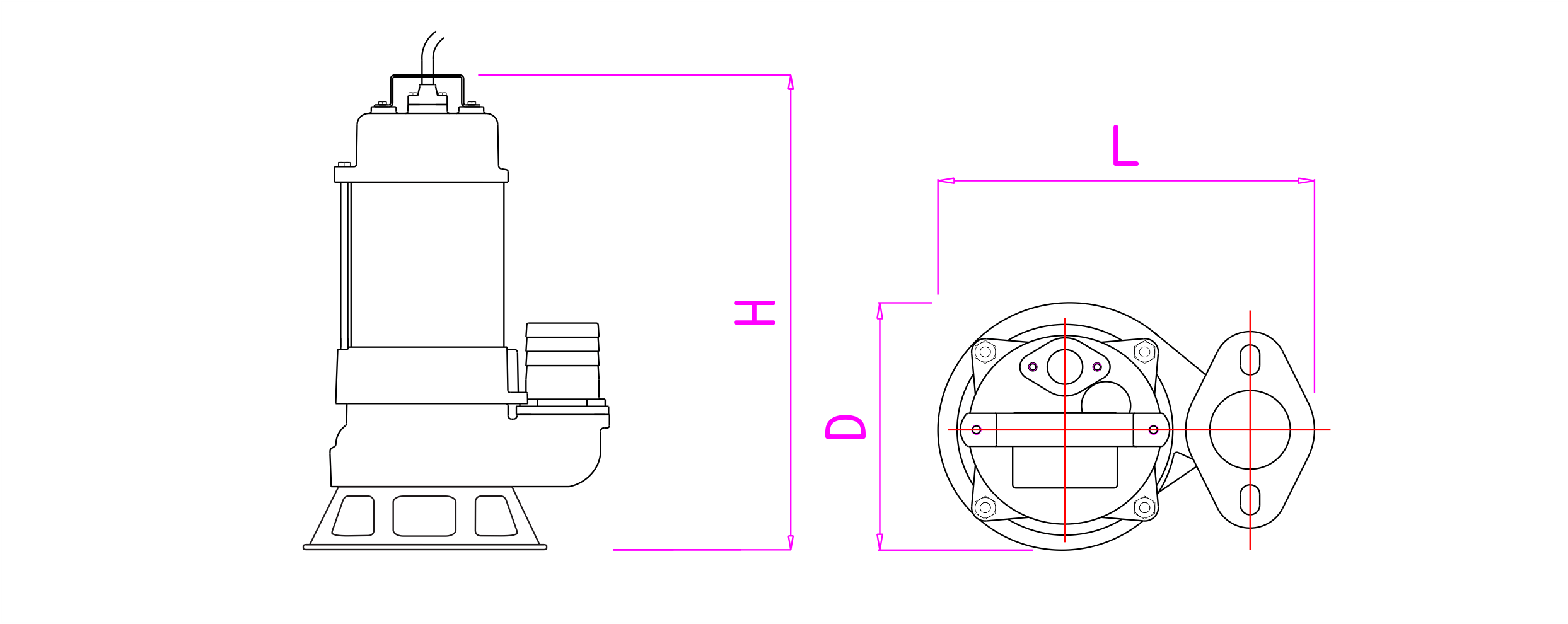

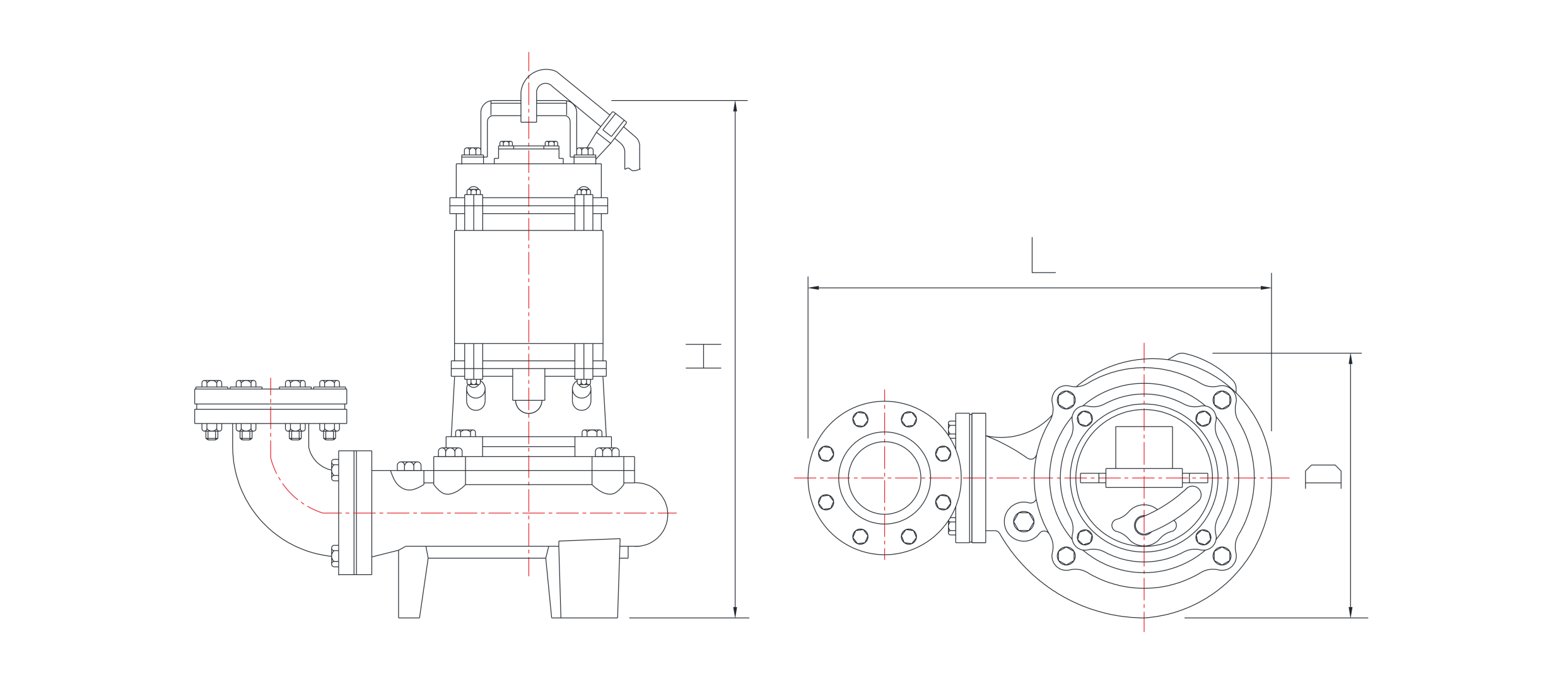

(Unit:mm)
|
TYPE |
L |
D |
H |
TYPE |
L | D | H |
|---|---|---|---|---|---|---|---|
|
HSF250-1.75 21(L) |
255 | 170 | 440 | HSF280-12.2 26 | 390 | 220 | 615 |
|
HSF280-1.75 21(L) |
255 | 170 | 440 | HSF280-12.2 2L | 390 | 220 | 525 |
|
HSF280-11.5 26 |
365 | 210 | 605 | HSF280-13.7 2L | 390 | 220 | 525 |
|
HSF280-11.5 2L |
365 | 210 | 505 | HSF2100-15.5 2L | 550 | 265 | 625 |
| HSF2100-17.5 2L | 550 | 265 | 645 |
|

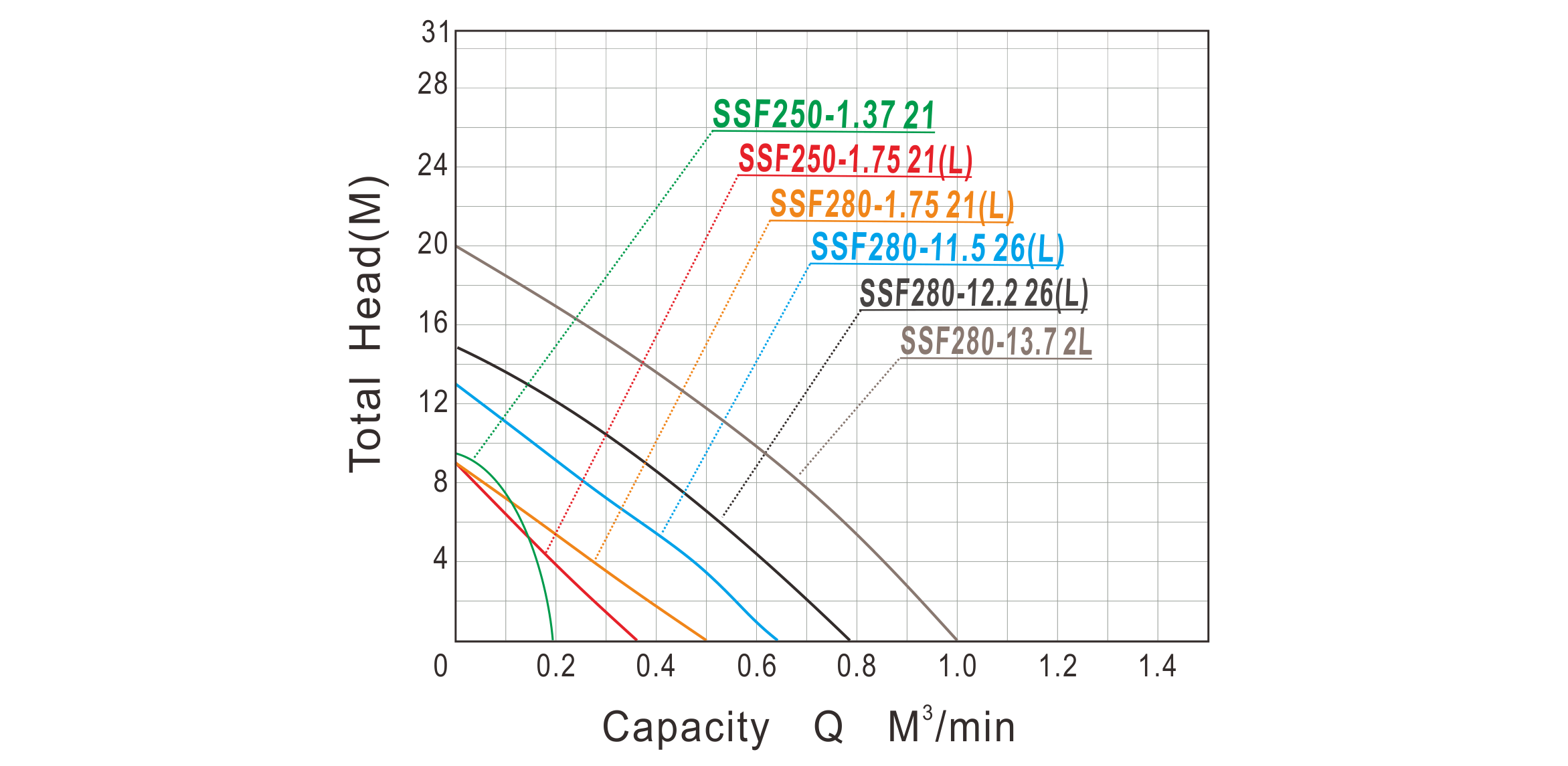

TYPE |
POWER |
BORE |
PHASE |
HEAD |
CAPACITY |
MAX HEAD |
MAX CAPACITY |
WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | KG | |
|
SSF250-1.37 21(6) |
½ (0.37) | 2"（50） | 1 | 5.5 | 0.15 | 9 | 0.17 | 12 |
|
SSF250-1.75 21(6) |
1 (0.75) | 2"（50） | 1 ❘ 3 | 5 | 0.19 | 9 | 0.36 | 16 |
|
SSF280-1.75 21(6) |
1 (0.75) | 3"（80） | 1 ❘ 3 | 5 | 0.30 | 9 | 0.50 | 17 |
|
SSF280-11.5 26(L) |
2 (1.5) | 3"（80） | 1 ❘ 3 | 7 | 0.30 | 13 | 0.64 | 36 |
|
SSF280-12.2 2L(O) |
3 (2.2) | 3"（80） | 3 | 8 | 0.40 | 15 | 0.78 | 42 |
|
SSF280-13.7 2L(O) |
5 (0.75) | 3"（80） | 3 | 10 | 0.60 | 20 | 1.0 | 45 |
(Unit:mm)
|
TYPE |
L |
D |
H |
TYPE |
L | D | H |
|---|---|---|---|---|---|---|---|
|
SSF250-1.37 21(6) |
230 | 170 | 323 | SSF280-11.5 2L | 365 | 210 | 505 |
|
SSF250-1.75 21(6) |
255 | 170 | 440 | SSF280-12.2 26 | 390 | 220 | 615 |
|
SSF280-1.75 21(6) |
255 | 175 | 460 | SSF280-12.2 2L(O) | 420 | 260 | 620 |
|
SSF280-11.5 26 |
365 | 210 | 605 | SSF280-13.7 2L(O) | 390 | 220 | 525 |
|

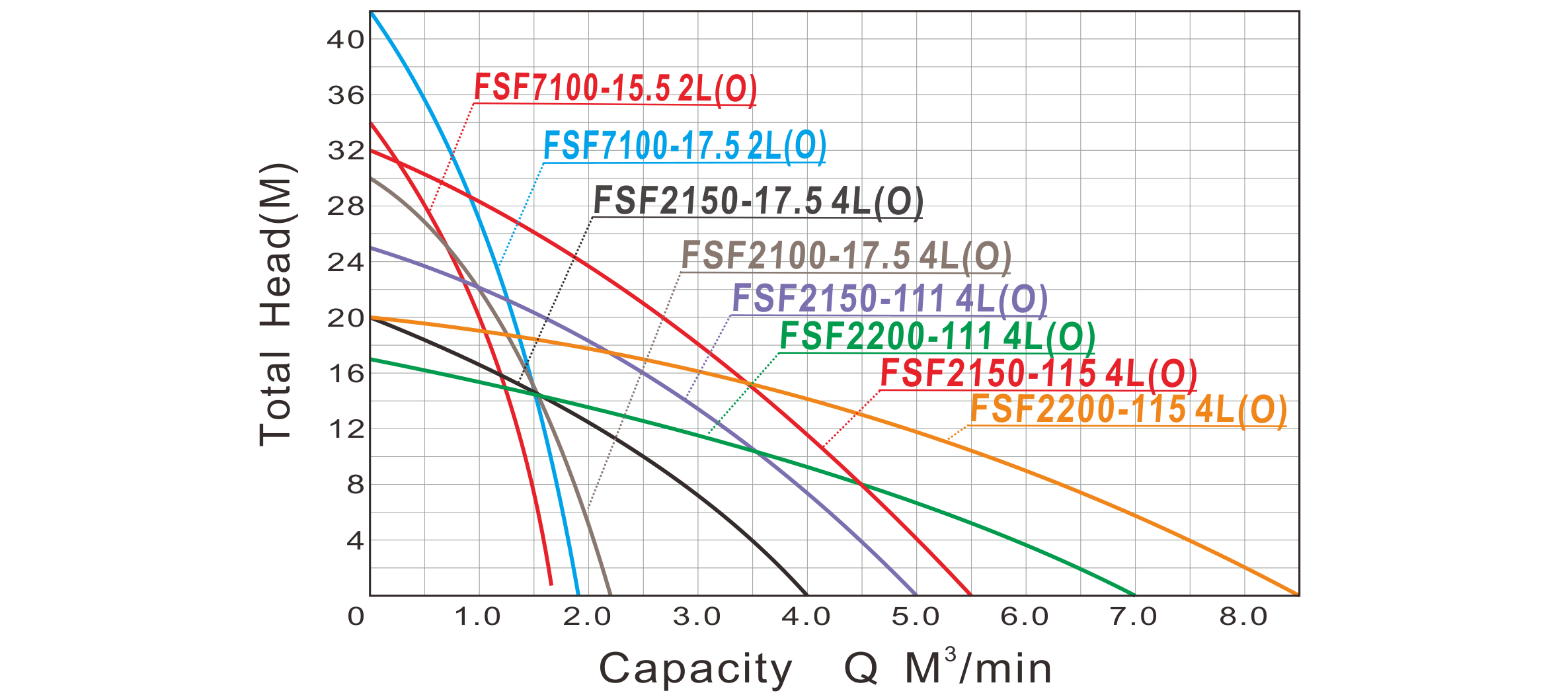

TYPE |
POWER |
BORE |
PHASE |
HEAD |
CAPACITY |
MAX HEAD |
MAX CAPACITY |
WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | KG | |
|
FSF7100-15.5 2L(O) |
7½ (5.5) | 4"（100） | 3 | 20 | 1.0 | 34 | 1.7 | 74 |
|
FSF7100-17.5 2L(O) |
10 (7.5) | 4"（100） | 3 | 27 | 1.0 | 42 | 1.9 | 80 |
|
FSF2100-17.5 4L(O) |
10 (7.5) | 4"（100） | 3 | 22 | 1.0 | 30 | 2.2 | 135 |
|
FSF2150-17.5 4L(O) |
10 (7.5) | 6"（150） | 3 | 10 | 2.5 | 20 | 4.0 | 183 |
|
FSF2150-111 4L(O) |
15 (11) | 6"（150） | 3 | 16 | 2.5 | 25 | 5.0 | 223 |
|
FSF2200-111 4L(O) |
15 (11) | 8"（200） | 3 | 8 | 4.5 | 17 | 7.0 | 223 |
|
FSF2150-115 4L(O) |
20 (15) | 6"（150） | 3 | 21 | 2.5 | 32 | 5.5 | 240 |
|
FSF2200-115 4L(O) |
20 (15) | 8"（200） | 3 | 13 | 4.5 | 20 | 8.5 |
240 |
(Unit:mm)
|
TYPE |
L |
D |
H |
TYPE |
L | D | H |
|---|---|---|---|---|---|---|---|
|
FSF7100-15.5 2L(O) |
596 | 345 | 689 | FSF2150-111 4L(O) | 895 | 477 | 988 |
|
FSF7100-17.5 2L(O) |
596 | 345 | 689 | FSF2200-111 4L(O) | 1045 | 501 | 994 |
|
FSF2100-17.5 4L(O) |
687 | 405 | 816 | FSF2150-115 4L(O) | 895 | 477 | 988 |
|
FSF2150-17.5 4L(O) |
888 | 449 | 870 | FSF2200-115 4L(O) | 1045 | 501 | 994 |
|

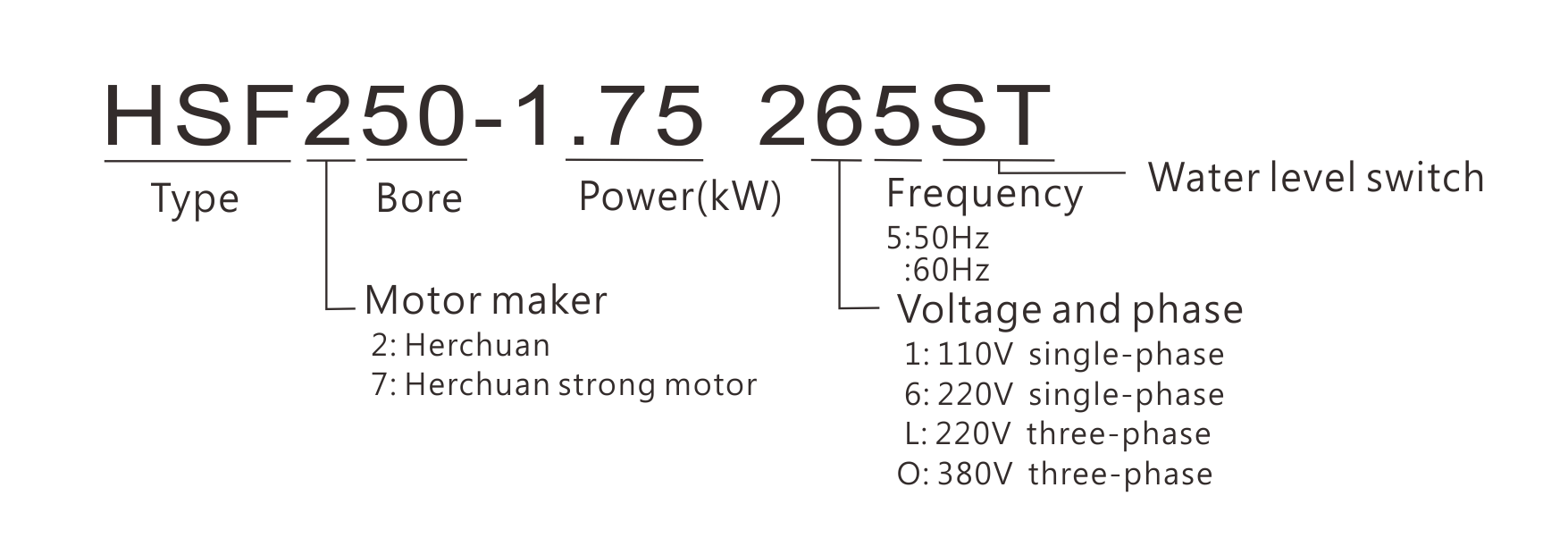

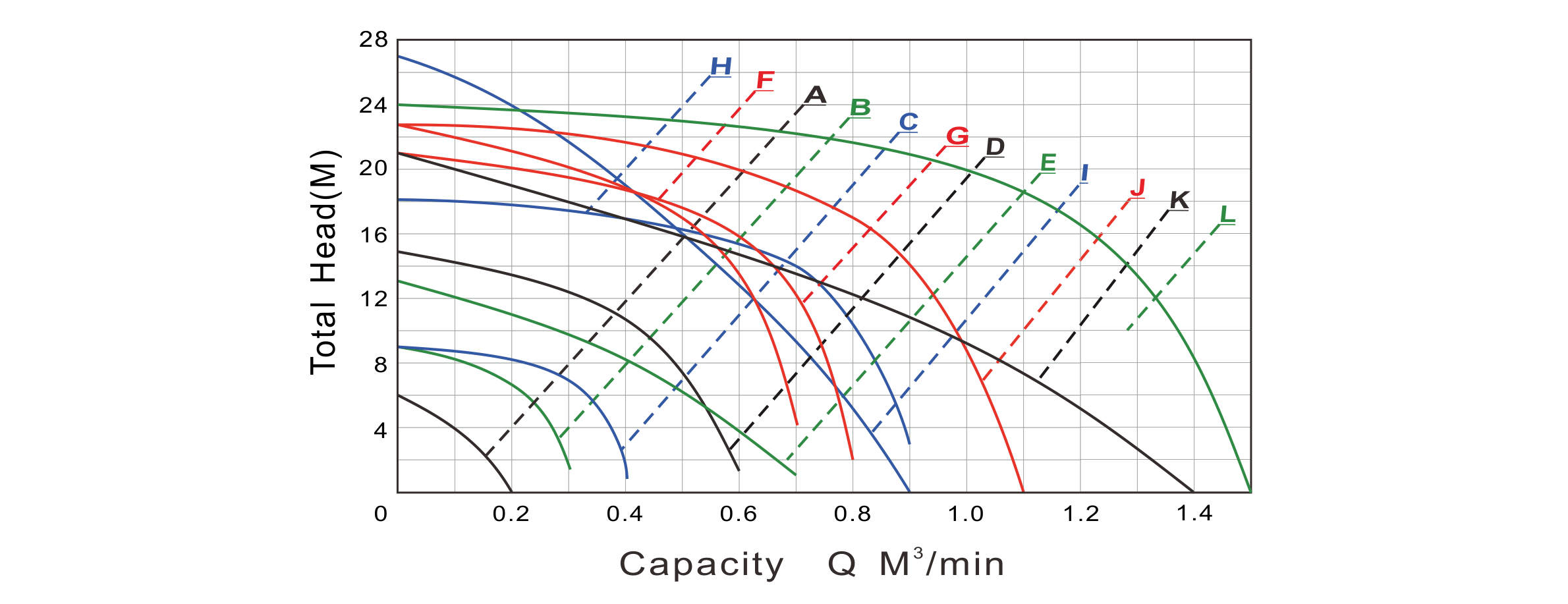

TYPE |
POWER |
BORE |
PHASE |
HEAD |
CAPACITY |
MAX HEAD |
MAX CAPACITY |
WEIGHT |
CODE |
|---|---|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | KG | ||
|
HSF150-1.37 265 |
½(0.37) | 2"（50） | 1 | 4 | 0.10 | 6 | 0.20 | 15 | A |
|
HSF250-1.75 26(O)5 |
1 (0.75) | 2"（50） | 1 ❘ 3 | 7 | 0.20 | 9 | 0.30 | 23 | B |
|
HSF280-1.75 26(O)5 |
1 (0.75) | 3"（80） | 1 ❘ 3 | 7 | 0.30 | 9 | 0.40 | 23 | C |
|
HSF250-11.5 26(O)5 |
2 (1.5) | 2"（50） | 1 ❘ 3 | 11 | 0.40 | 15 | 0.60 | 31 | D |
|
HSF280-11.5 26(O)5 |
2 (1.5) | 3"（80） | 1 ❘ 3 | 8.5 | 0.40 | 13 | 0.70 | 31 | E |
|
HSF250-12.2 26(O)5 |
3 (2.2) | 2"（50） | 1 ❘ 3 | 17 | 0.50 | 23 | 0.70 | 52 | F |
|
HSF280-12.2 26(O)5 |
3 (2.2) | 3"（80） | 1 ❘ 3 | 16 | 0.60 | 21 | 0.80 | 52 | G |
|
HSF2100-12.2 26(O)5 |
3 (2.2) | 4"（100） | 1 ❘ 3 | 14 | 0.70 | 18 | 0.90 | 52 | H |
|
HSF280-13.7 2O5 |
5 (3.7) | 3"（80） | 3 | 16 | 0.50 | 27 | 0.90 | 70 | I |
|
HSF2100-13.7 2O5 |
5 (3.7) | 4"（100） | 3 | 17 | 0.80 | 23 | 1.10 | 70 | J |
|
HSF2100-15.5 2O5 |
7½(5.5) | 4"（100） | 3 | 11 | 0.90 | 21 | 1.4 | 71 | K |
|
HSF2100-17.5 2O5 |
10(7.5) | 4"（100） | 3 | 20 | 1.0 | 24 | 1.5 | 81 | L |
(Unit:mm)
|
TYPE |
L |
D |
H |
TYPE |
L | D | H |
|---|---|---|---|---|---|---|---|
|
HSM150-1.37 265 |
226 | 150 | 410 | HSF250-12.2 2O5 | 390 | 220 | 525 |
|
HSF250-1.75 26(O)5 |
255 | 170 | 440 | HSF280-12.2 2O5 | 390 | 220 | 525 |
|
HSF280-1.75 26(O)5 |
255 | 170 | 440 | HSF2100-12.2 265 | 510 | 220 | 615 |
|
HSF250-11.5 265 |
365 | 210 | 605 | HSF2100-15.5 2O5 | 550 | 265 | 625 |
|
HSF280-11.5 265 |
365 | 210 | 605 | HSF2100-17.5 2O5 | 550 | 265 | 625 |
|
HSF250-11.5 2O5 |
365 | 210 | 505 | HSF280-11.5 2O5 | 365 | 210 | 505 |
|
HSF250-12.2 265 |
390 | 220 | 615 | HSF280-12.2 265 | 390 | 220 | 615 |
|
HSF2100-12.2 2O5 |
510 | 220 | 525 | HSF280-13.7 2O5 | 390 | 220 | 535 |
|
HSF2100-13.7 2O5 |
510 | 220 | 535 |
|
|
|

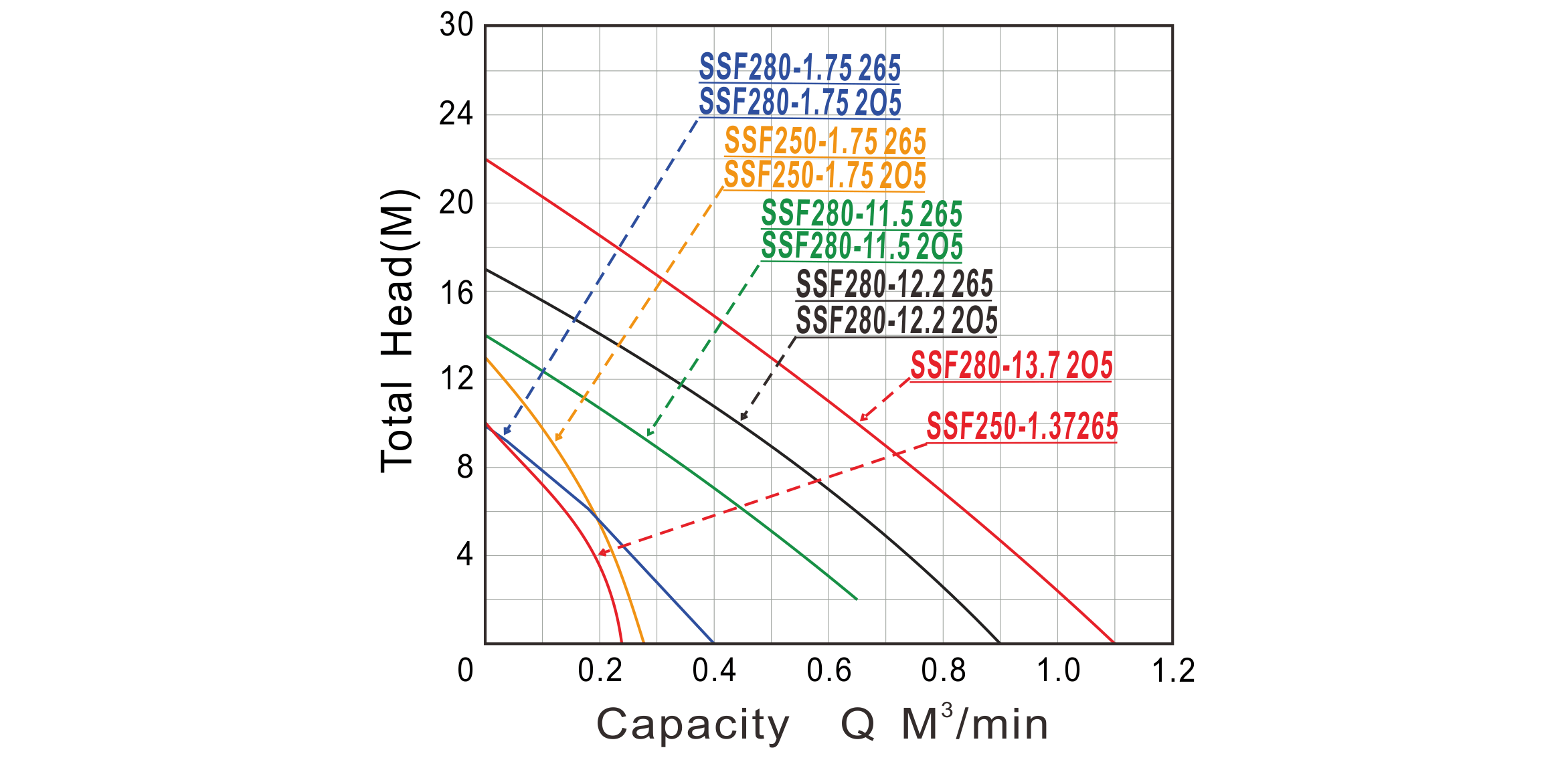

TYPE |
POWER |
BORE |
PHASE |
HEAD |
CAPACITY |
MAX HEAD |
MAX CAPACITY |
WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | KG | |
|
SSF250-1.37 265 |
½(0.37) | 2"（50） | 1 | 8 | 0.14 | 10 | 0.21 | 12 |
|
SSF250-1.75 265 |
1 (0.75) | 2"（50） | 1 | 7 | 0.20 | 9 | 0.30 | 18 |
|
SSF280-1.75 265 |
1 (0.75) | 3"（80） | 1 | 7 | 0.30 | 9 | 0.40 | 18 |
|
SSF280-11.5 265 |
2 (1.5) | 3"（80） | 1 | 10 | 0.50 | 13 | 0.70 | 36 |
|
SSF280-12.2 265 |
3 (2.2) | 3"（80） | 1 | 16 | 0.60 | 21 | 0.80 | 42 |
|
SSF250-1.75 2O5 |
1 (0.75) | 2"（50） | 3 | 7 | 0.20 | 9 | 0.30 | 18 |
|
SSF280-1.75 2O5 |
1 (0.75) | 3"（80） | 3 | 7 | 0.30 | 9 | 0.40 | 18 |
|
SSF280-11.5 2O5 |
2 (1.5) | 3"（80） | 3 | 10 | 0.50 | 13 | 0.70 | 35 |
|
SSF280-12.2 2O5 |
3 (2.2) | 3"（80） | 3 | 16 | 0.60 | 21 | 0.80 | 42 |
|
SSF280-13.7 2O5 |
5 (3.7) | 3"（80） | 3 | 20 | 0.70 | 27 | 0.90 | 45 |
(Unit:mm)
|
TYPE |
L |
D |
H |
TYPE |
L | D | H |
|---|---|---|---|---|---|---|---|
|
SSF250-1.37 265 |
230 | 170 | 323 | SSF280-1.75 2O5 | 255 | 175 | 460 |
|
SSF280-12.2 265 |
390 | 220 | 615 | SSF250-1.75 265 | 255 | 170 | 440 |
|
SSF280-11.5 2O5 |
365 | 210 | 505 | SSF280-1.75 265 | 255 | 175 | 460 |
|
SSF280-11.5 265 |
365 | 210 | 605 | SSF280-12.2 2O5 | 390 | 220 | 525 |
|
SSF280-12.2 2O5 |
390 | 220 | 495 | SSF280-13.7 2O5 | 390 | 220 | 525 |
|
SSF250-1.75 2O5 |
255 | 170 | 440 |
|
|
TYPE |
POWER |
BORE |
PHASE |
HEAD |
CAPACITY |
MAX HEAD |
MAX CAPACITY |
WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | KG | |
|
FSF7100-15.5 2O5 |
7½(5.5) | 4"（100） | 3 | 21.5 | 1.0 | 35 | 1.6 | 95 |
|
FSF7100-17.5 2O5 |
10(7.5) | 4"（100） | 3 | 28 | 1.0 | 38 | 1.8 | 102 |
|
FSF2100-17.5 4O5 |
10(7.5) | 4"（100） | 3 | 13.5 | 1.0 | 28 | 2.5 | 163 |
|
FSF2150-17.5 4O5 |
10(7.5) | 6"（150） | 3 | 15 | 1.5 | 21 | 4.0 | 230 |
|
FSF2150-111 4O5 |
15(11) | 6"（150） | 3 | 15.5 | 2.5 | 24 | 4.2 | 263 |
|
FSF2200-111 4O5 |
15(11) | 8"（200） | 3 | 9.5 | 4.5 | 17 | 6.2 | 277 |
|
FSF2150-115 4O5 |
20(15) | 6"（150） | 3 | 21 | 2.5 | 35 | 4.8 | 190 |
|
FSF2200-115 4O5 |
20(15) | 8"（200） | 3 | 14 | 4.5 | 23 | 7.8 | 285 |
(Unit:mm)
|
TYPE |
L |
D |
H |
TYPE |
L | D | H |
|---|---|---|---|---|---|---|---|
|
FSF7100-15.5 2O5 |
565 | 290 | 689 | FSF7100-17.5 2O5 | 565 | 290 | 689 |
|
FSF2100-17.5 4O5 |
550 | 265 | 625 | FSF2150-17.5 4O5 | 550 | 265 | 625 |
|
FSF2150-111 4O5 |
565 | 290 | 689 | FSF2200-111 4O5 | 565 | 290 | 689 |
|
FSF2150-115 4O5 |
565 | 290 | 689 | FSF2200-115 4O5 | 565 | 290 | 689 |
