• Vertical multi-stage centrifugal pump

Vertical multi-stage centrifugal pump

Model : HMV series



手風琴選單

  • Water supply: water plant filtration and transmission, water plant district water delivery, main pipe pressurization,high-rise building pressurization.
  • Industrial liquid transportation: cooling and air conditioning systems, boiler feed water and condensation systems, machine tool accessories, acids and alkali.
  • Water treatment: ultrafiltration system, reverse osmosis system, distillation system, separator, swimming pool.
  • Industrial pressurization: process water system, cleaning system, high-pressure flushing system, fire protection system.
  • Irrigation: agricultural irrigation, sprinkler irrigation, drip irrigation.

  • The flow-passing parts are made of high-quality stainless steel, and the mechanical seal is made of tungsten carbide.
  • Long service life, resistant to mildly corrosive liquids, clean and hygienic, and high efficiency.
  • Upright structure saves installation space and facilitates maintenance.
  • Low noise operation; multi-stage pump blade design, high conveying head and wear resistance.
  • Stainless steel structure on the liquid contact surface, water is clean and safe.
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: Normal temperature type -15°C~+70°C Heat resistant type +70°C~+120°C
  • Applicable liquids: Non-flammable and explosive liquids that do not contain solid particles or fibers


手風琴選單

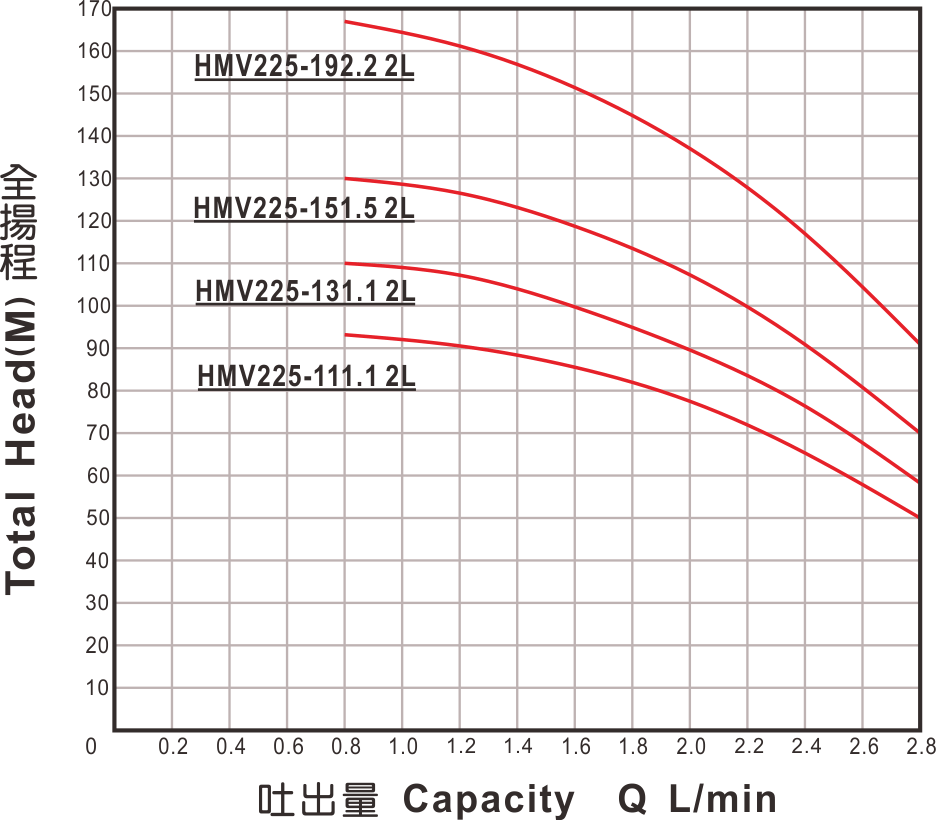

TYPE POWER BORE Q
( m3/h ) 		0.8 1.2 1.6 2.0 2.4 2.8 WEIGHT
HP(KW) Inch(mm) KG
HMV225-111.1 2L 1½ (1.1) 1" (25) H (m) 93 91 86 78 66 50 30
HMV225-131.1 2L 1½ (1.1) 1" (25) 110 108 100 90 77 58 31
HMV225-151.5 2L 2 (1.5) 1" (25) 130 127 119 108 92 70 40
HMV225-192.2 2L 3 (2.2) 1" (25) 167 162 152 138 118 91 44

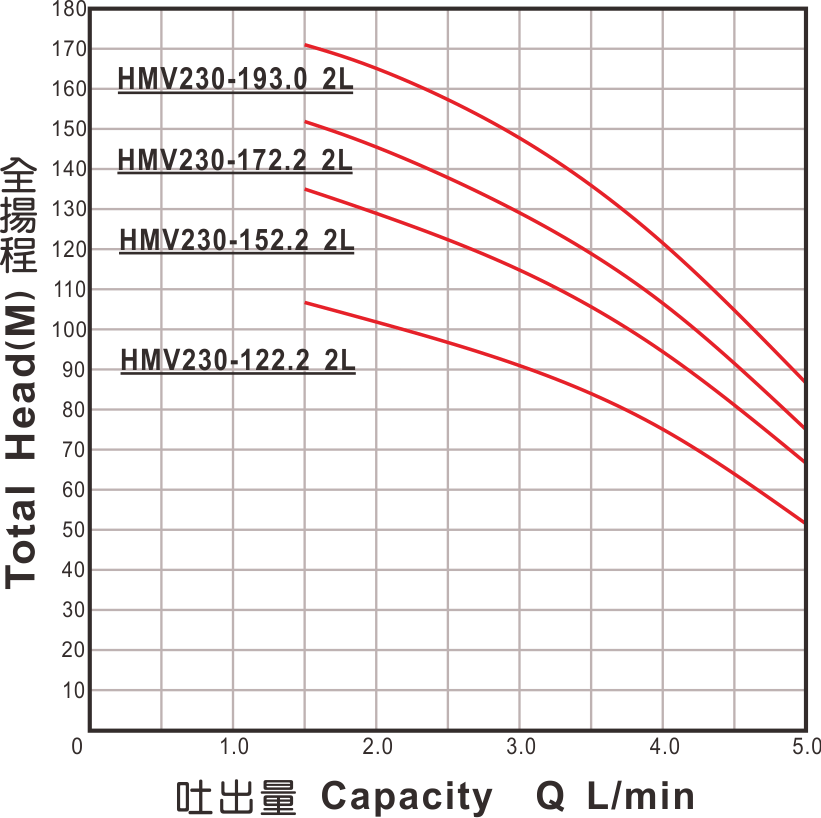

TYPE POWER BORE Q
( m3/h ) 		1.5 2.0 3.0 4.0 5.0 WEIGHT
HP(KW) Inch(mm) KG
HMV230-122.2 2L 3 (2.2) 1¼" (30) H (m) 107 102 92 77 52 42
HMV230-152.2 2L 3 (2.2) 1¼" (30) 134 129 116 96 67 43
HMV230-172.2 2L 3 (2.2) 1¼" (30) 152 146 130 108 75 44
HMV230-193.0 2L 4 (3.0) 1¼" (30) 171 166 149 123 87 52

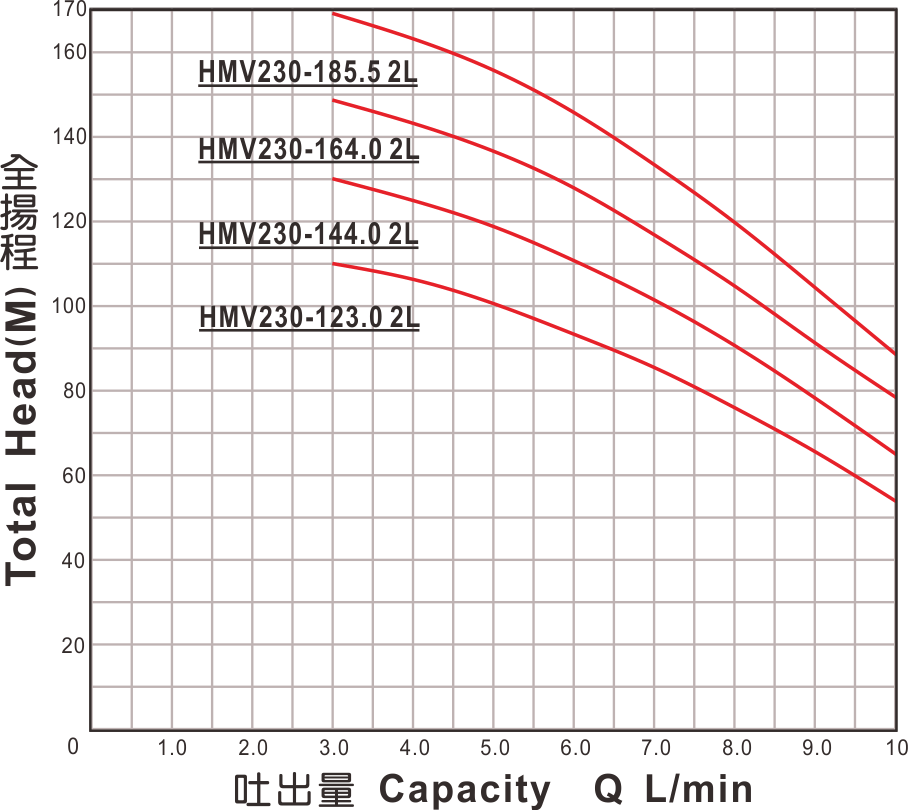

TYPE POWER BORE Q
( m3/h ) 		3.0 4.0 5.0 6.0 7.0 8.0 9.0 10 WEIGHT
HP(KW) Inch(mm) KG
HMV230-123.0 2L 4 (3.0) 1¼" (30) H (m) 110 107 101 93 86 76 66 54 51
HMV230-144.0 2L 5½ (4.0) 1¼"(30) 130 125 119 111 102 91 78 65 55
HMV230-164.0 2L 5½ (4.0) 1¼" (30) 148 143 137 128 117 105 91 78 56
HMV230-185.5 2L 7½ (5.5) 1¼" (30) 169 163 156 146 133 120 104 88 77
TYPE POWER BORE Q
( m3/h ) 		6.0 8.0 10 12 14 WEIGHT
HP(KW) Inch(mm) KG
HMV240-95.5 2L 7½ (5.5) 1½" (40) H (m) 131 127 118 106 90 95
HMV240-127.5 2L 10 (7.5) 1½" (40) 177 170 158 141 121 107
HMV240-1411 2L 15 (11) 1½" (40) 208 201 189 168 144 146
HMV240-1611 2L 15 (11) 1½" (40) 238 228 213 191 163 148

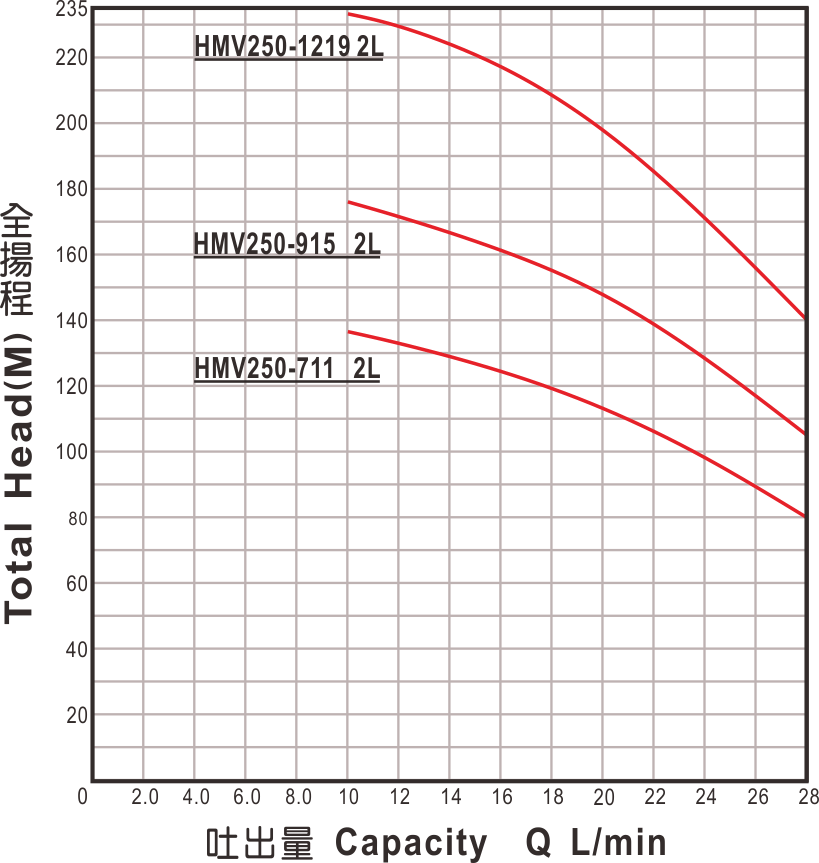

TYPE POWER BORE Q
( m3/h ) 		10 12 16 20 24 28 WEIGHT
HP(KW) Inch(mm) KG
HMV250-711 2L 15 (11) 2" (50) H (m) 137 133 125 114 99 80 145
HMV250-915 2L 20 (15) 2" (50) 176 172 162 149 129 105 158
HMV250-1219 2L 25 (19) 2" (50) 233 230 218 199 172 140 188

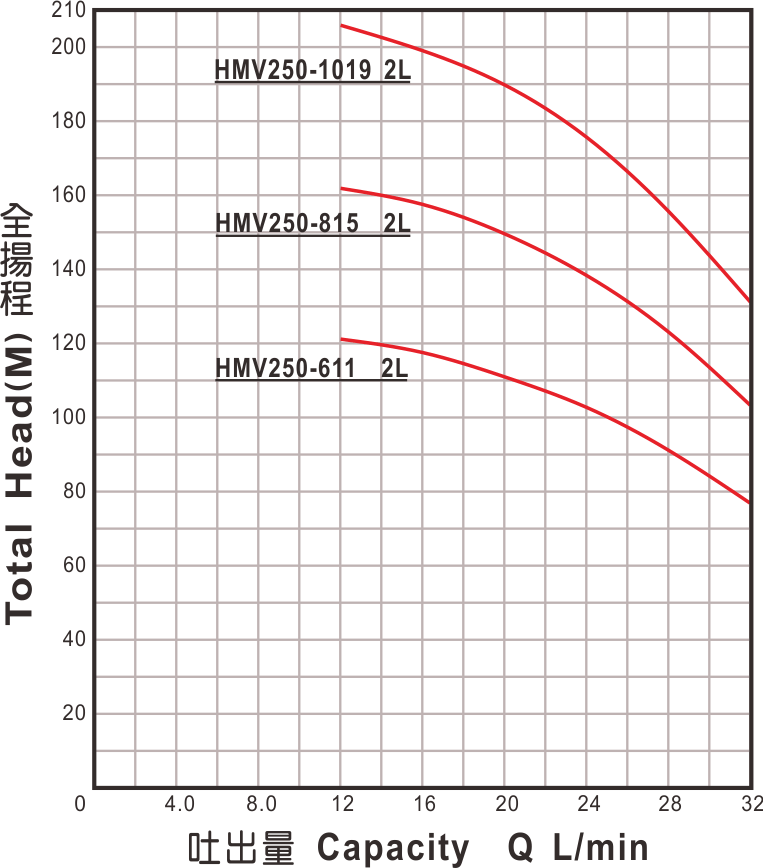

TYPE POWER BORE Q
( m3/h ) 		12 16 20 24 28 32 WEIGHT
HP(KW) Inch(mm) KG
HMV250-611 2L 15 (11) 2" (50) H (m) 121 118 111 103 92 77 144
HMV250-815 2L 20 (15) 2" (50) 162 158 150 139 124 103 157
HMV250-1019 2L 25 (19) 2" (50) 206 199 191 177 157 131 185

TYPE POWER BORE Q
( m3/h ) 		1.0 1.2 1.6 2.0 2.4 2.8 3.2 3.5 WEIGHT
HP(KW) Inch(mm) KG
SMV225-111.1 2O5 1½ (1.1) 1" (25) H (m) 95 92 86 79 70 61 51 41 29
SMV225-131.5 2O5 2 (1.5) 1" (25) 112 110 102 94 85 73 61 48 33
SMV225-151.5 2O5 2 (1.5) 1" (25) 130 126 119 108 96 86 69 56 35
SMV225-182.2 2O5 3 (2.2) 1" (25) 157 153 144 132 117 104 87 72 39
SMV225-222.2 2O5 3 (2.2) 1" (25) 192 187 175 160 143 135 105 85 43

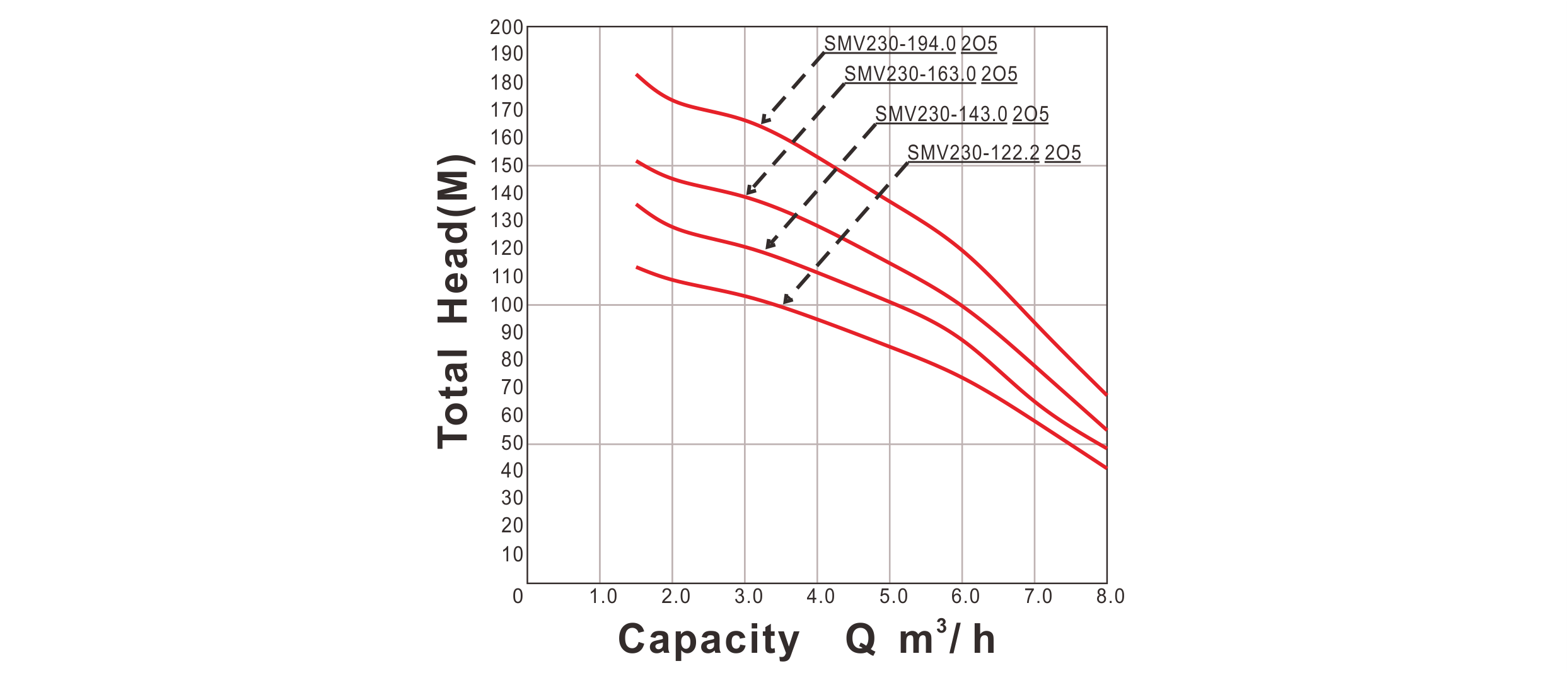

TYPE POWER BORE Q
( m3/h ) 		1.5 2.0 3.0 4.0 5.0 6.0 7.0 8.0 WEIGHT
HP(KW) Inch(mm) KG
SMV230-122.2 2O5 3 (2.2) 1 ¼" (30) H (m) 114 108 104 95 85 75 58 41 29
SMV230-143.0 2O5 4 (3.0) 1 ¼" (30) 136 126 122 112 104 89 68 48 44
SMV230-163.0 2O5 4 (3.0) 1 ¼" (30) 152 144 140 129 115 101 78 55 48
SMV230-194.0 2O5 5 (4.0) 1 ¼" (30) 183 171 168 153 137 122 93 67 51
TYPE POWER BORE Q
( m3/h ) 		5.0 6.0 7.0 8.0 9.0 10 11 12 WEIGHT
HP(KW) Inch(mm) KG
SMV240-124.0 2O5 5 (4.0) 1½" (40) H (m) 124 120 116 111 104 92 87 78 68
SMV240-145.5 2O5 7½ (5.5) 1½" (40) 145 141 136 130 122 113 102 92 91
SMV240-165.5 2O5 7½ (5.5) 1½" (40) 166 161 156 148 139 130 118 106 93
SMV240-187.5 2O5 10 (7.5) 1½" (40) 187 182 175 167 157 146 134 120 99

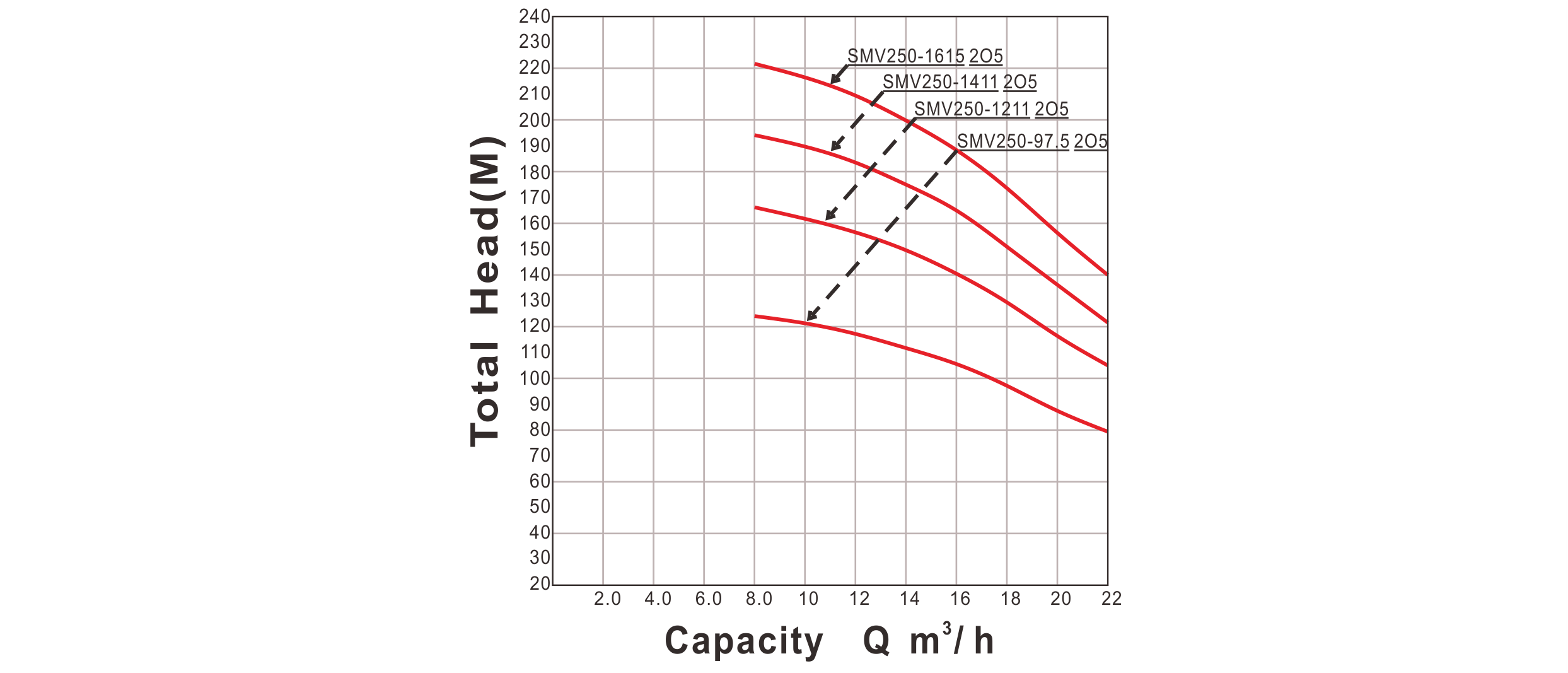

TYPE POWER BORE Q
( m3/h ) 		8.0 10 12 14 16 18 20 22 WEIGHT
HP(KW) Inch(mm) KG
SMV250-97.5 2O5 10 (7.5) 2" (50) H (m) 124 122 118 112 106 98 87 79 94
SMV250-1211 2O5 15 (11) 2" (50) 166 162 157 150 141 130 116 105 130
SMV250-1411 2O5 15 (11) 2" (50) 194 190 184 175 166 152 136 122 133
SMV250-1615 2O5 20 (15) 2" (50) 222 217 210 200 189 174 156 140 148

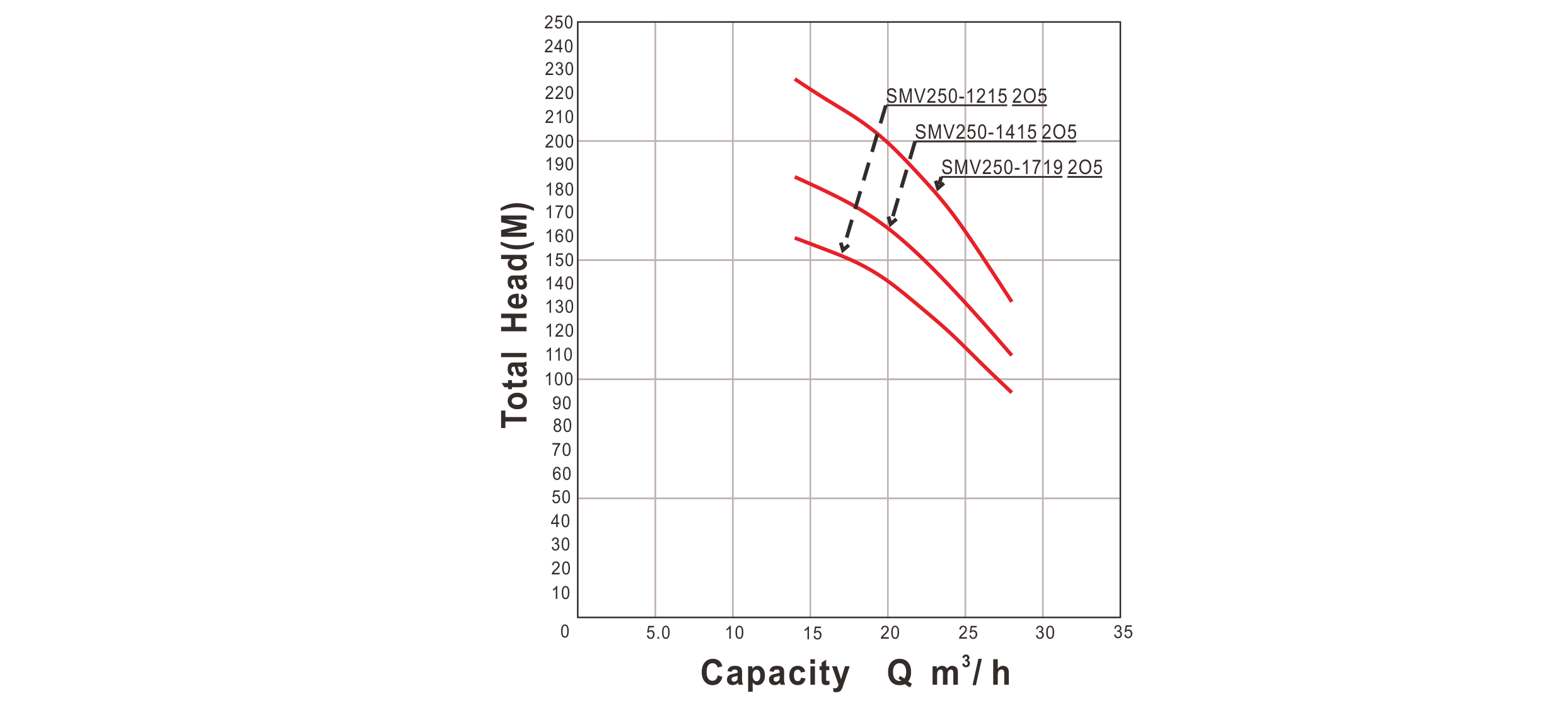

TYPE POWER BORE Q
( m3/h ) 		14 16 18 20 22 24 26 28 WEIGHT
HP(KW) Inch(mm) KG
SMV250-1215 2O5 20 (15) 2" (50) H (m) 159 154 149 142 131 120 107 94 144
SMV250-1415 2O5 20 (15) 2" (50) 185 179 173 164 153 139 125 110 147
SMV250-1719 2O5 20 (15) 2" (50) 226 218 210 200 186 172 153 133 161

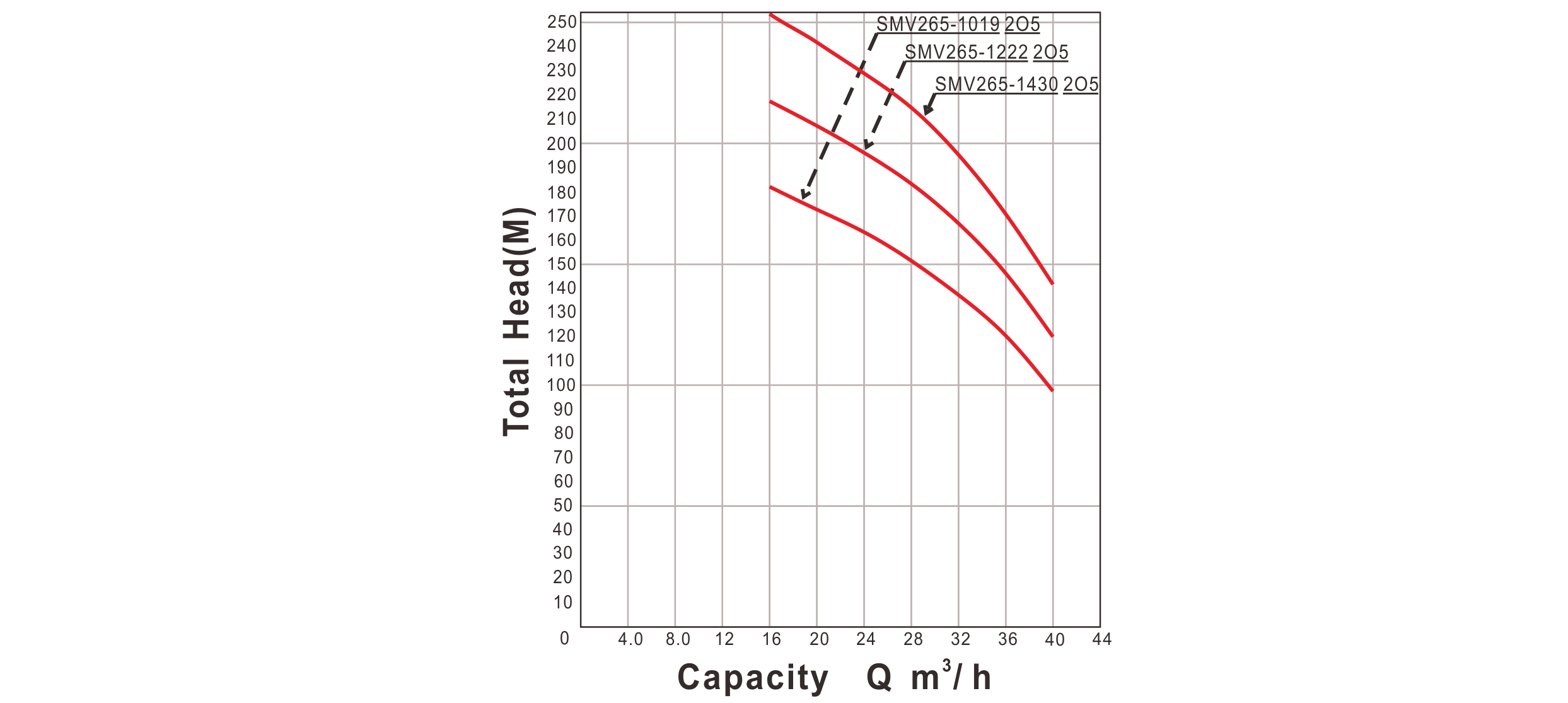

TYPE POWER BORE Q
( m3/h ) 		16 20 24 28 32 36 40 WEIGHT
HP(KW) Inch(mm) KG
SMV265-1019 2O5 25 (19) 2½"(65) H (m) 182 173 164 152 138 122 98 222
SMV265-1222 2O5 30 (22) 2½"(65) 218 208 196 184 167 147 120 263
SMV265-1430 2O5 40 (30) 2½"(65) 255 242 229 216 196 172 142 331

手風琴選單

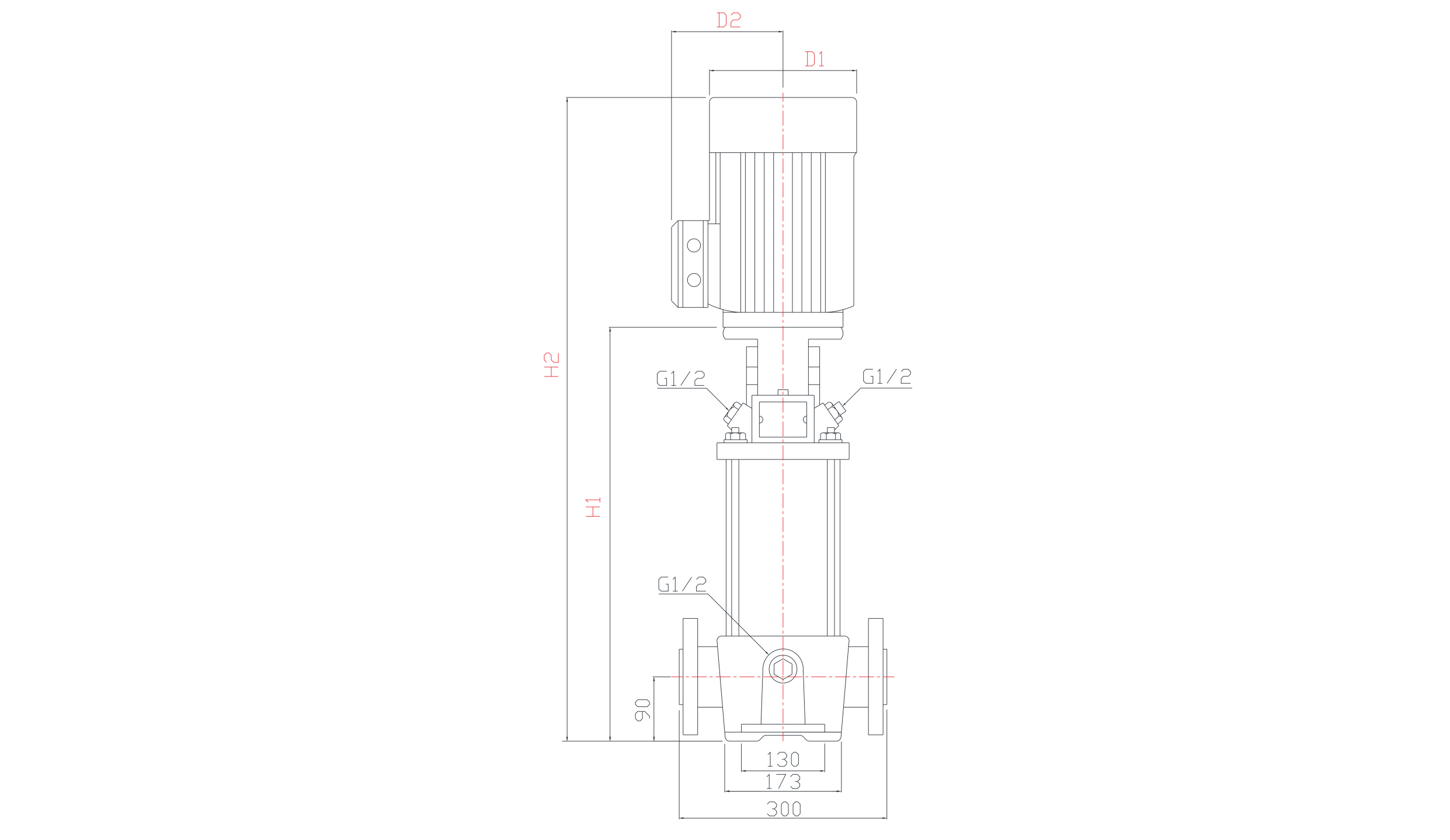

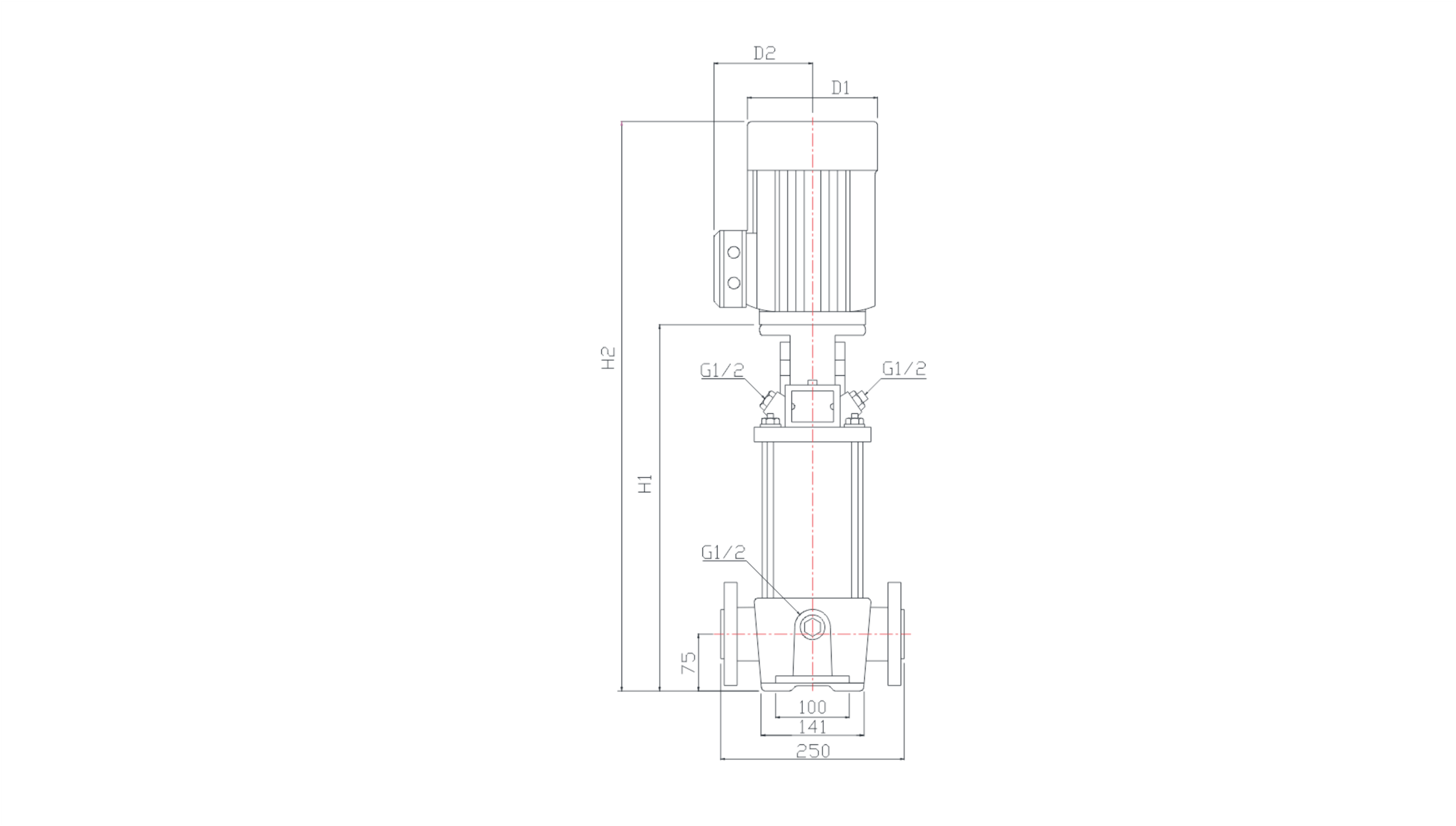

TYPE H1 H2 D1 D2
HMV225-111.1 2L 429 664 141 115
HMV225-131.1 2L 465 700 141 115
HMV225-151.5 2L 517 808 177 141
HMV225-182.2 2L 589 880 177 141
HMV230-122.2 2L 463 754 177 141
HMV230-152.2 2L 517 808 177 141
HMV230-172.2 2L 553 844 177 141
HMV230-193.0 2L 593 909 197 147

TYPE H1 H2 D1 D2
HMV230-123.0 2L 575 891 197 147
HMV230-144.0 2L 629 955 220 161
HMV230-164.0 2L 683 1009 220 161
HMV230-185.5 2L 767 1129 235 197
HMV240-95.5 2L 610 972 235 197
HMV240-127.5 2L 700 1098 235 197
HMV240-1411 2L 837 1342 318 245
HMV230-1611 2L 897 1402 318 245

TYPE H1 H2 D1 D2
HMV250-711 2L 754 1259 318 245
HMV250-915 2L 844 1354 318 245
HMV250-1219 2L 979 1529 318 245
HMV250-611 2L 709 1214 318 245
HMV250-815 2L 799 1309 318 245
HMV250-1019 2L 889 1439 318 245

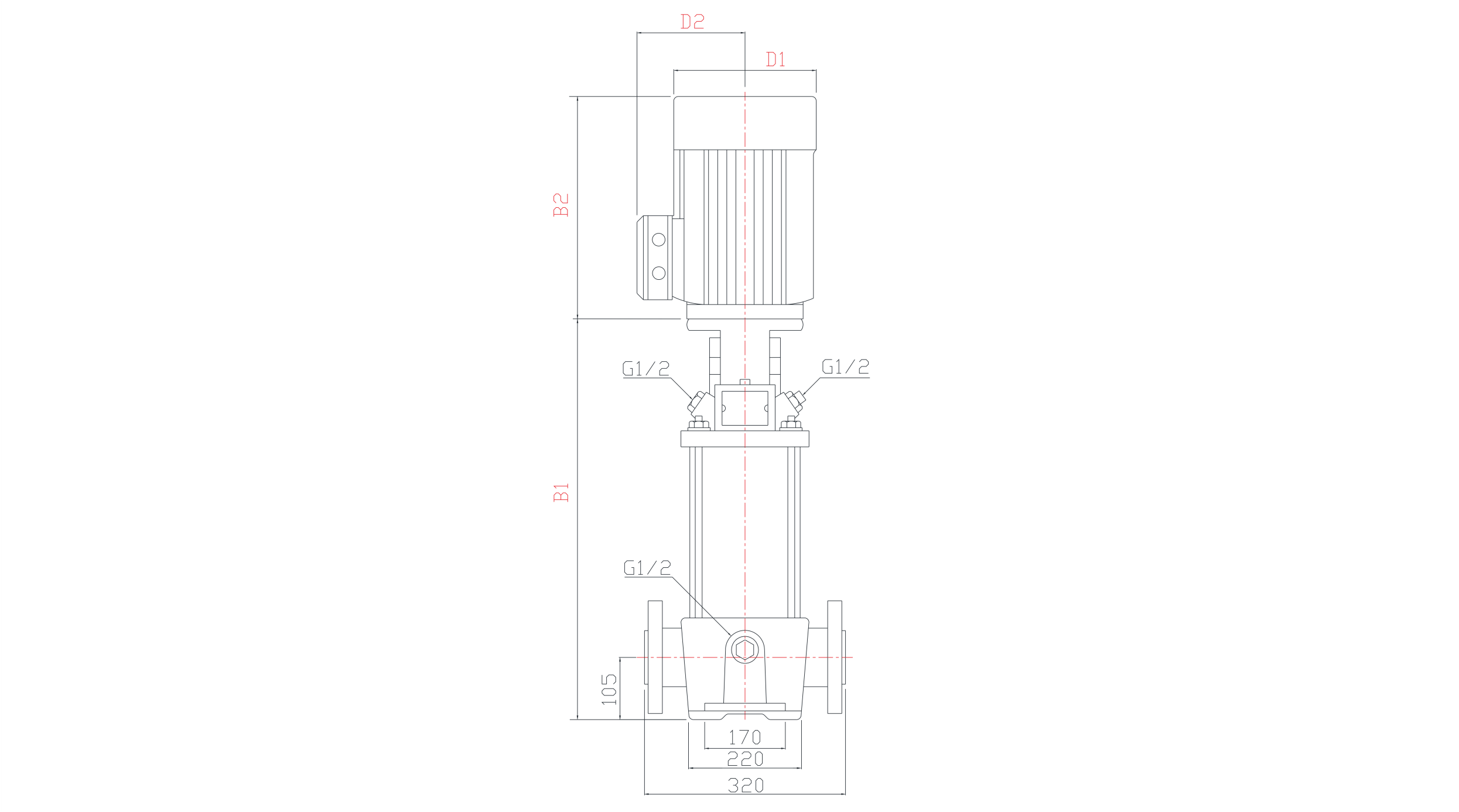

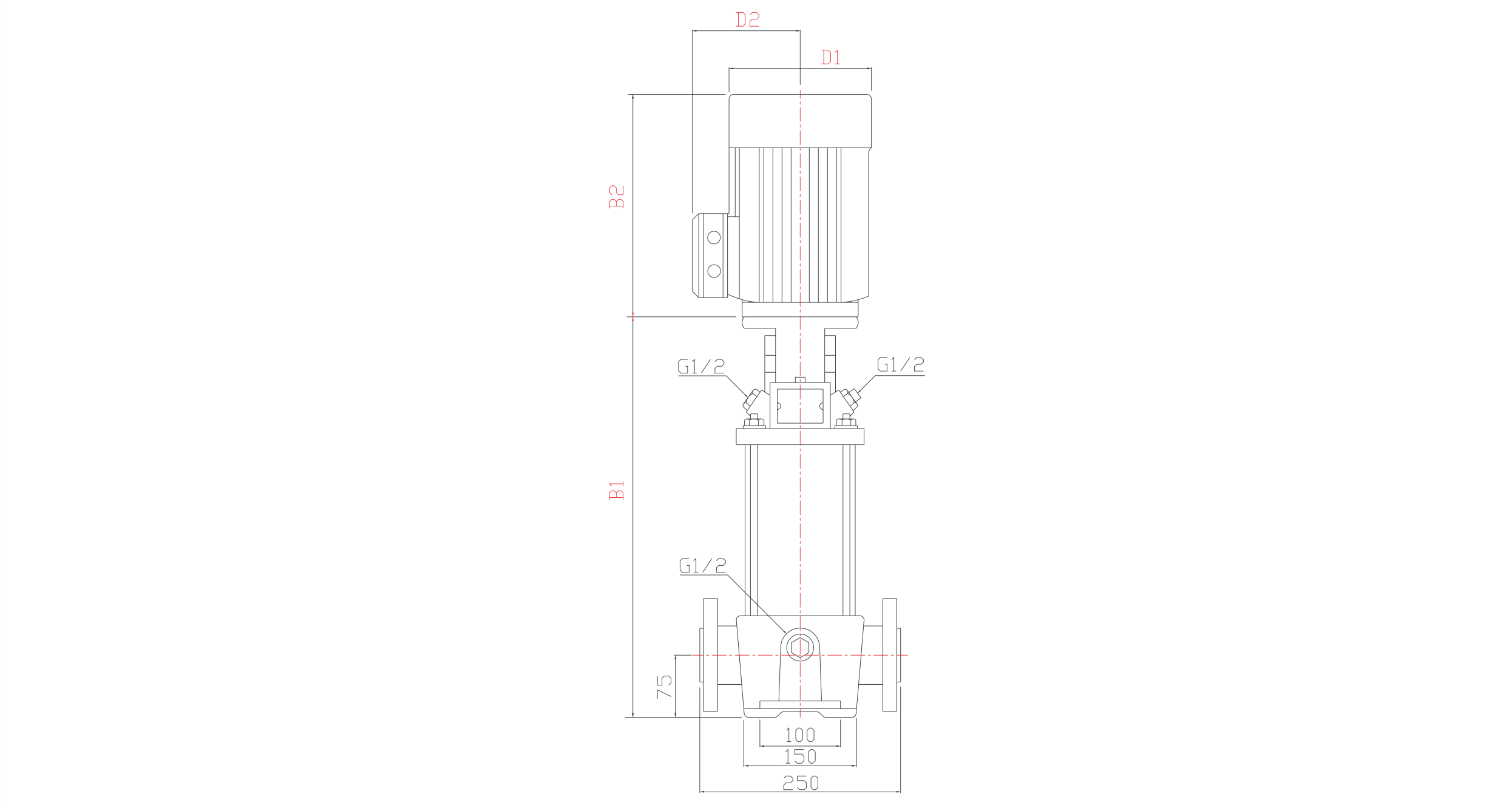

TYPE B1 B2 B1+B2 D1 D2
SMV225-111.1 2O5 428 245 673 170 142
SMV225-131.5 2O5 480 290 770 190 155
SMV225-151.5 2O5 516 290 806 190 155
SMV225-182.2 2O5 570 290 860 190 155
SMV225-222.2 2O5 642 290 932 190 155
SMV230-122.2 2O5 570 290 860 190 155
SMV230-143.0 2O5 628 315 943 197 165
SMV230-163.0 2O5 682 315 997 197 165
SMV230-194.0 2O5 763 335 1098 230 188


TYPE B1 B2 B1+B2 D1 D2
SMV240-124.0 2O5 687 372 1059 230 188
SMV240-145.5 2O5 779 391 1170 260 208
SMV240-165.5 2O5 839 391 1230 260 208
SMV240-187.5 2O5 899 391 1290 260 208
SMV250-97.5 2O5 764 390 1155 260 208
SMV250-1211 2O5 976 464 1440 330 255
SMV250-1411 2O5 1066 464 1530 330 255
SMV250-1615 2O5 1156 478 1634 330 255
    TYPE B1 B2 B1+B2 D1 D2
    SMV250-1215 2O5 976 478 1454 330 255
    SMV250-1415 2O5 1060 478 1544 330 255
    SMV250-1719 2O5 1201 478 1679 330 255
    SMV265-1019 2O5 1240 550 1790 330 255
    SMV265-1222 2O5 1380 590 1970 360 285
    SMV265-1430 2O5 1520 660 2180 400 310
