High Efficiency Electronic Pressure Booster Pump
Model :
HQA series
-
Suitable for conveying clean water without impurities. General applications include:
- Apartment
- Residential water supply
- Automatic boosting system
- Pumping system
- Drinking water system
- Sprinkler system
- When using water, the press will run automatically when the faucet is opened. It operates quietly and maintains a stable water flow with a large water output.It won't be big or small suddenly, and the pressurizer will stop automatically when the water is turned off.
- This pump is designed with computer control circuit.
- This pump has a built-in protection switch.
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+40°C
- Inlet pressure: needs to be less than the pressure switch activation value
- Inlet pressure: must be less than the pressure switch start value
- Installation: The water tower needs to be 0.5m higher than the pump

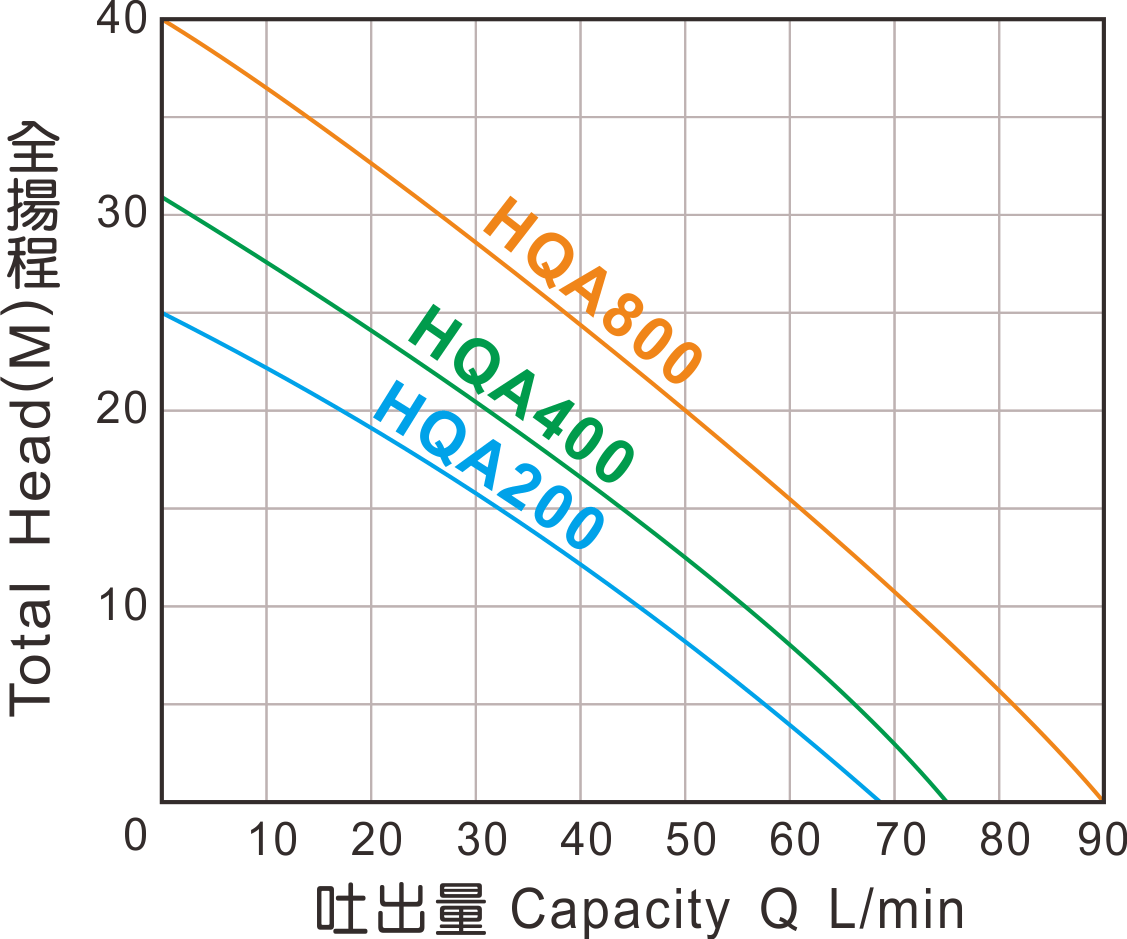

| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT | SERIES |
|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | ||
| HQA220-3.18 2S | ¼ (0.18) |
¾" (20) |
1 | 68 | 25 | 8 | HQA200 |
| HQA225-3.37 2S | ½ (0.37) | 1" (25) | 1 | 75 | 31 | 9 | HQA400 |
| HQA225-3.75 2S | 1 (0.75) | 1" (25) | 1 | 90 | 40 | 10 | HQA800 |
111
| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | MAX AMPS | SERIES |
|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | ||
| HQA220-3.18 2S | ¼ (0.18) |
¾" (20) |
1 | 68 | 25 | 8 | HQA200 |
| HQA225-3.37 2S | ½ (0.37) | 1" (25) | 1 | 75 | 31 | 9 | HQA400 |
| HQA225-3.75 2S | 1 (0.75) | 1" (25) | 1 | 90 | 40 | 10 | HQA800 |
