Stainless steel gear pressure pump (with stainless steel pressure barrel)
Model :
HCC series
- General household use of water
- Well water extraction
- mountain spring water
- catering industry
- Water spray cooling device
- Automatic water supply for buildings
- water tower
- Use water equipment
- This model has special water flow design and excellent liquid transportation.
- The motor is equipped with a protective device to prevent the motor from burning.
- Automatically pressurizes water supply when using water, and automatically stops operation when no water is used.
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+80°C
- Applicable liquid: clean water; or non-corrosive, solid-particle-free liquid with properties close to water.
- Suction lift : Max.6m
- Suction lift: It must be less than the set pressure of the pressure switch (ON).
| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT |
|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | |
| HCC220-1.37 2S | ½(0.37) | ¾"(20) | 1 | 56 | 35 | 12 |
| HCC225-1.37 2S | ½(0.37) | 1"(25) | 1 | 56 | 35 | 12 |
| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT |
|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | |
| HCC220-1.37 265 | ½(0.37) | ¾"(20) | 1 | 45 | 36 | 12 |
| HCC225-1.37 265 | ½(0.37) | 1"(25) | 1 | 45 | 36 | 12 |

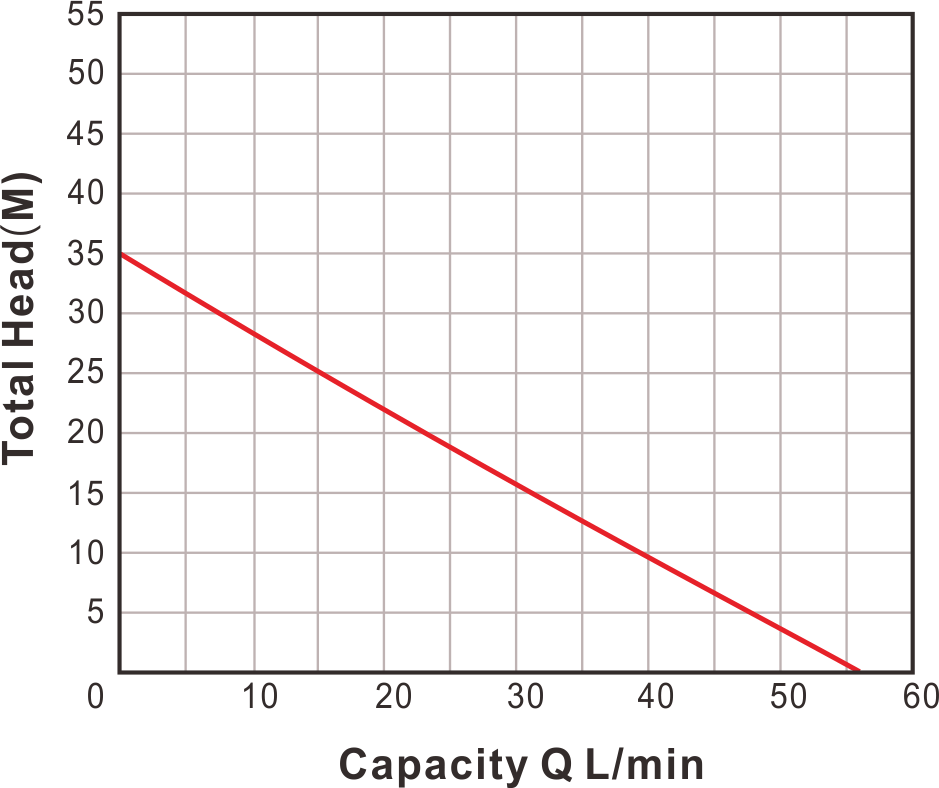

(HCC220-1.37 2S)

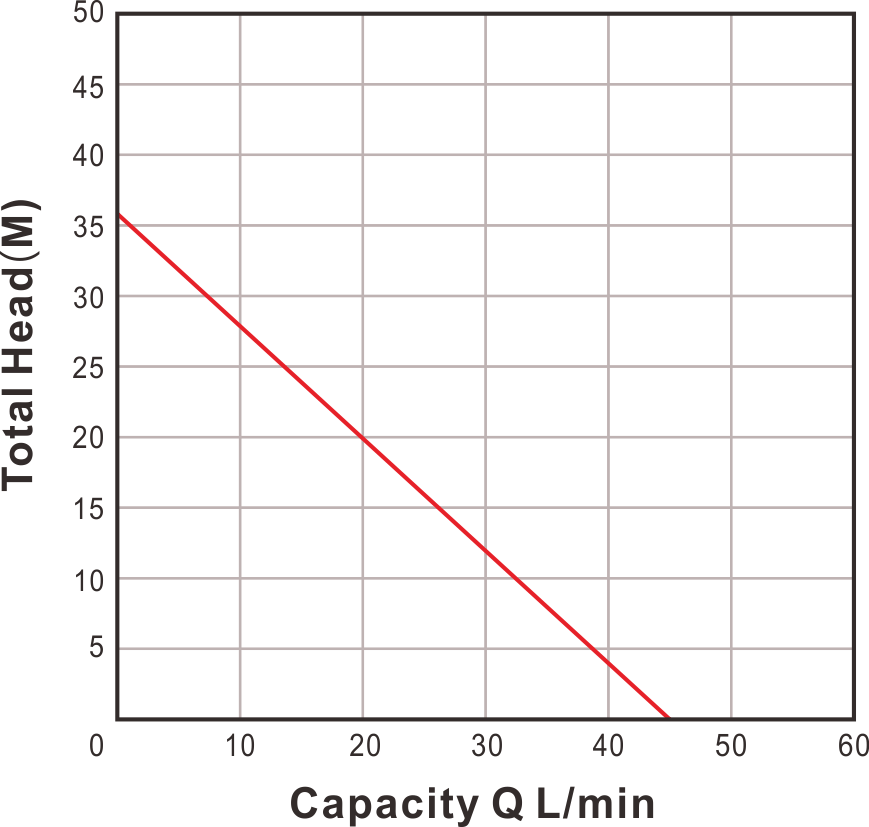

(HCC220-1.37 265)
