Gear type pressure pump (with stainless steel pressure barrel)
Model :
HCB series
- General household use of water
- Well water extraction
- mountain spring water
- catering industry
- Water spray cooling device
- Automatic water supply for buildings
- water tower
- Use water equipment
- This model has special water flow design and excellent liquid transportation.
- The motor is equipped with a protective device to prevent the motor from burning.
- Automatically pressurizes water supply when using water, and automatically stops operation when no water is used.
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+40°C
- Applicable liquid: clean water; or non-corrosive, solid-particle-free liquid with properties close to water.
- Suction lift : Max.6m
- Suction lift: It must be less than the set pressure of the pressure switch (ON).
111
| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT |
|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | |

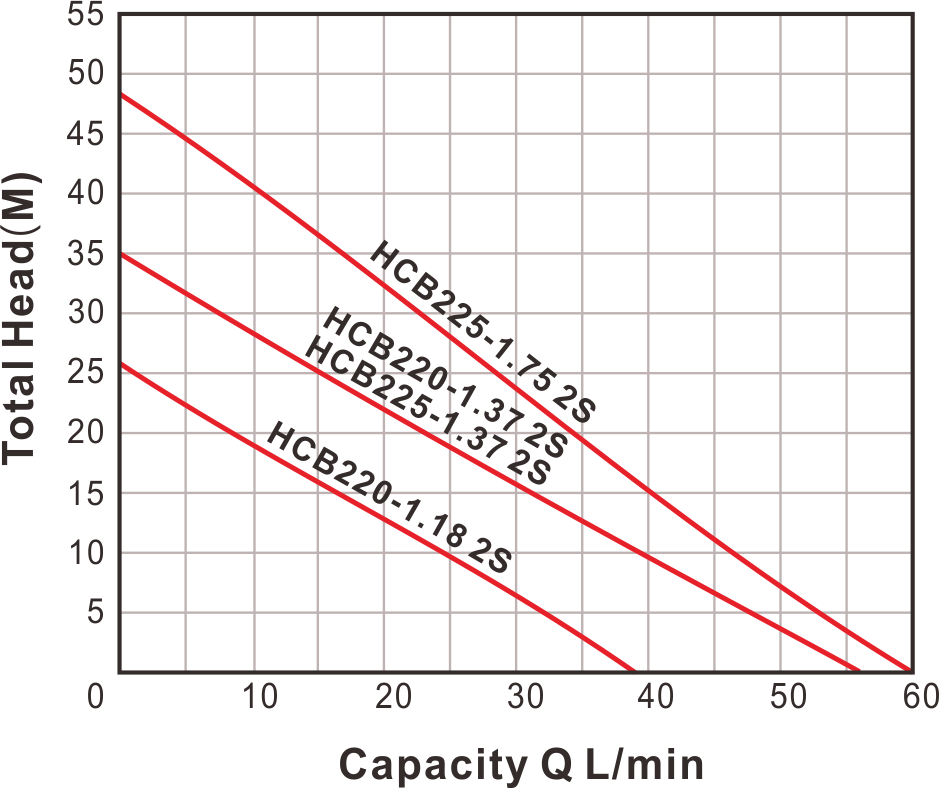

| HCB220-1.18 2S | ¼(0.18) | ¾”(20) | 1 | 39 | 26 | 9.5 |
| HCB220-1.37 2S | ½(0.37) | ¾”(20) | 1 | 56 | 35 | 12 |
| HCB225-1.37 2S | ½(0.37) | 1”(25) | 1 | 56 | 35 | 12 |
| HCB225-1.75 2S | 1 (0.75) | 1"(25) | 1 | 60 | 48 | 19.5 |
| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT |
|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | |

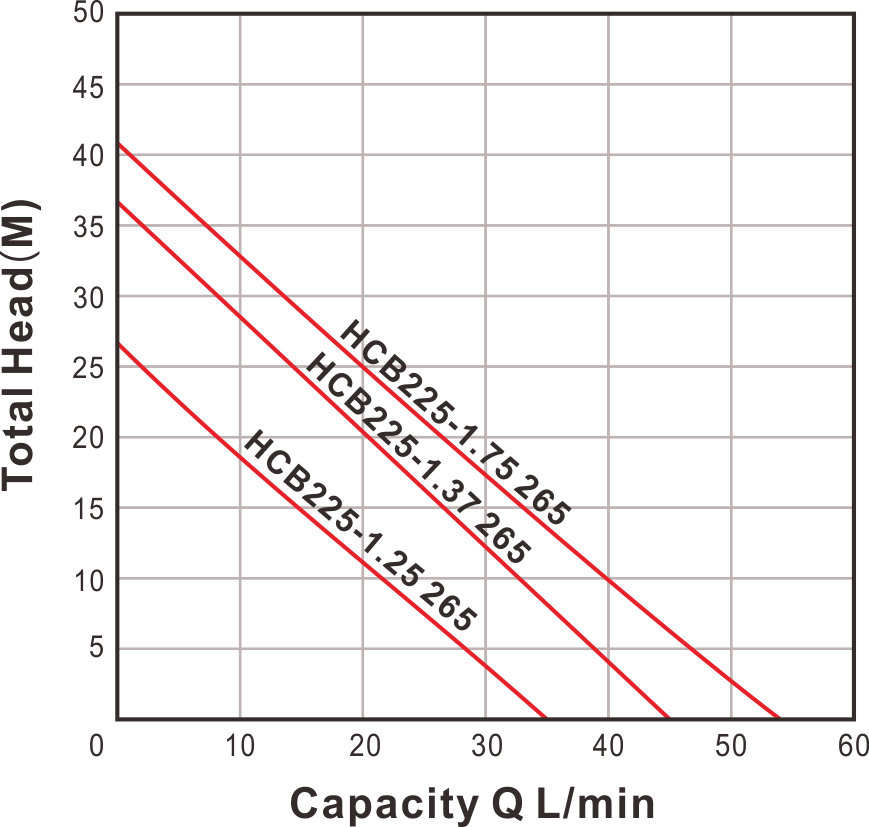

| HCA225-1.25 265 | ⅓(0.25) | 1"(25) | 1 | 35 | 26 | 9.5 |
| HCA225-1.37 265 | ½(0.37) | 1"(25) | 1 | 45 | 36 | 12 |
| HCA225-1.75 265 | 1 (0.75) | 1”(25) | 1 | 54 | 41 | 19.5 |
| TYPE | A | B | C | D | E | F | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|---|
| HCA220-1.18 2S | 100 | 190 | 90 | 130 | 100 | 185 | 410 | 65 | 45 | 250 |
| HCA220-1.37 2S | 100 | 195 | 90 | 135 | 100 | 200 | 410 | 65 | 45 | 265 |
| HCA225-1.37 2S | 100 | 195 | 90 | 135 | 100 | 200 | 410 | 65 | 45 | 265 |
| HCA225-1.75 2S | 130 | 205 | 115 | 145 | 115 | 175 | 445 | 120 | 45 | 305 |
| TYPE | A | B | C | D | E | F | H | I | J | L |
|---|---|---|---|---|---|---|---|---|---|---|
| HCB225-1.25 265 | 100 | 195 | 90 | 160 | 100 | 185 | 375 | 65 | 45 | 250 |
| HCB225-1.37 265 | 100 | 195 | 90 | 135 | 100 | 200 | 400 | 65 | 45 | 265 |
| HCB225-1.75 265 | 130 | 205 | 115 | 145 | 115 | 175 | 415 | 120 | 45 | 305 |
