Cast iron type sewage type submersible pump
Model :
FSF series
FSF Cast iron Submersible Sewage Pump
- Sewage and wastewater treatment and discharge from livestock and pig farming, dairy farmers, livestock farm excrement storage tanks, and sewers.
- Sewage discharge from septic tank drainage systems in apartment buildings, food, pulp, leather, dyeing and finishing, steel and other industries.
- Suitable for pumping and discharging general industrial sewage, sludge and waste water.
- The entire shell is made of cast iron, with a sturdy and durable structure and excellent quality and performance.
- The handle above 7.5HP is designed in a triangular shape, which is convenient for hanging operations in the take-off type.
- Adopt mechanical shaft seal produced in cooperation with world famous brands.
- The motor is equipped with an overload protection device.
- Ambient temperature : MAX.+40°C
- Liquid temperature : +4°C~+40°C
- Applicable liquids : Weak acid wastewater, miscellaneous drainage, abnormal wastewater
- Frequency：50/60Hz
- Motor : 2 Pole/4 Pole - Dry Submersible Motor
- Insulation level: Class B (1-3HP) Class F (above 5HP)
- Waterproof level：IP68
- Protection device : 3∅ motor overload protector / MS water detector(15HP)
- Bearings: deep groove ball bearings
- Shaft seal: double-pack mechanical shaft seal
- Impeller: centrifugal semi-open
- Upper cover：FC200
- Motor body：FC200
- Axis：SUS304
- Shaft seal：SIC/SIC
- Pump body：FC200
- Impeller：FC200
- Cable：VCT

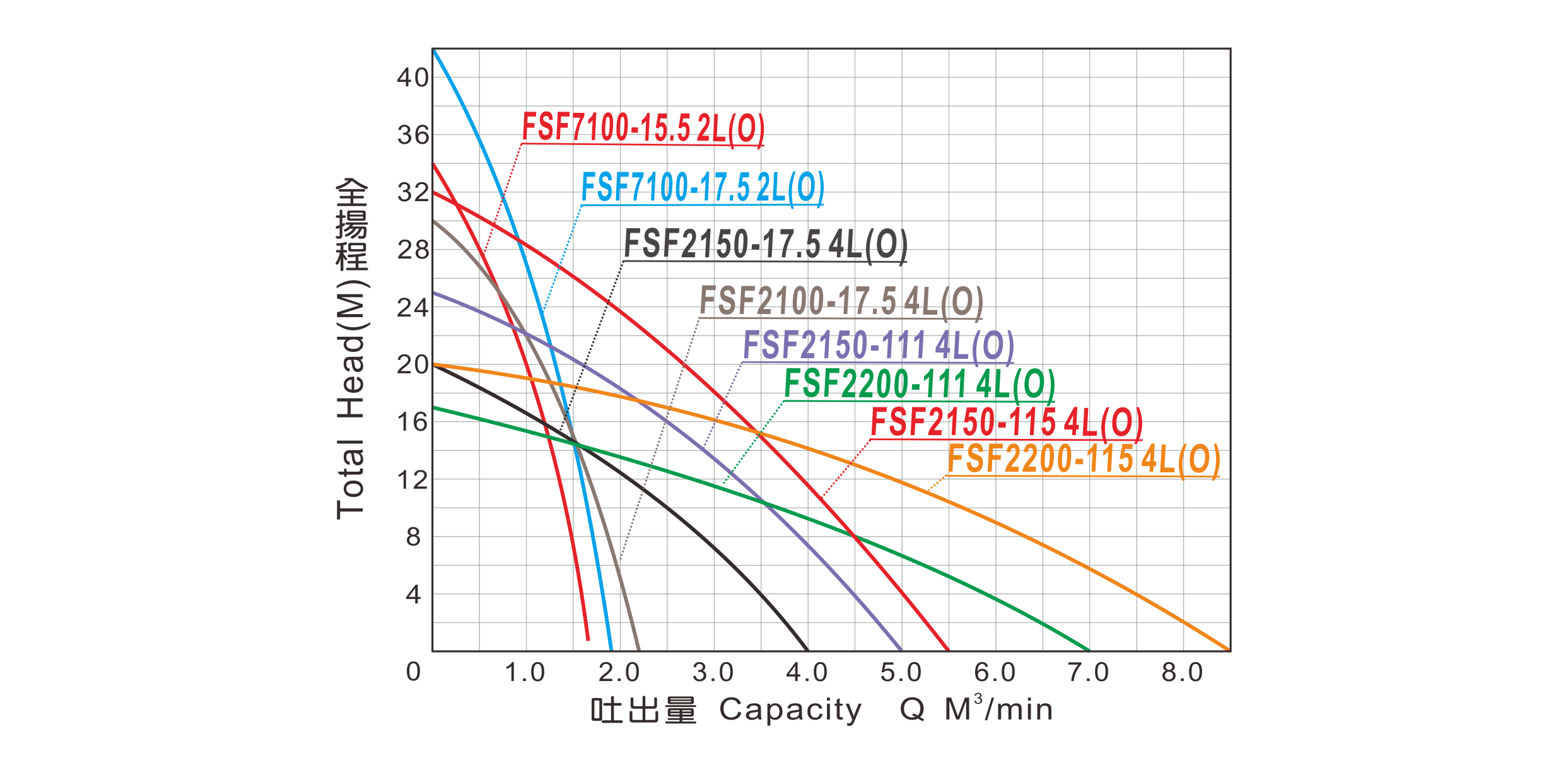

| TYPE | POWER | DISCHARGE | PHASE | HEAD | CAPACITY | MAX HEAD | MAX CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | Kg | |
| FSM7100-15.5 2L(O) | 7½ (5.5) | 4" (100) | 3 | 20 | 1.0 | 35 | 1.7 | 74 |
| FSM7100-17.5 2L(O) | 10 (7.5) | 4" (100) | 3 | 27 | 1.0 | 42 | 1.8 | 80 |
| FSF2100-17.5 4L(O) | 10 (7.5) | 4" (100) | 3 | 22 | 1.0 | 30 | 2.2 | 135 |
| FSF2150-17.5 4L(O) | 10 (7.5) | 6" (150) | 3 | 10 | 2.5 | 20 | 4.0 | 183 |
| FSF2150-111 4L(O) | 15 (11) | 6" (150) | 3 | 16 | 2.5 | 25 | 5.0 | 223 |
| FSF2200-111 4L(O) | 15 (11) | 8" (200) | 3 | 8 | 4.5 | 17 | 7.0 | 223 |
| FSF2150-115 4L(O) | 20 (15) | 6" (150) | 3 | 21 | 2.5 | 32 | 5.5 | 240 |
| FSF2200-115 4L(O) | 20 (15) | 8" (200) | 3 | 13 | 4.5 | 20 | 8.5 | 240 |
| TYPE | POWER | DISCHARGE | PHASE | HEAD | CAPACITY | MAX HEAD | MAX CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | Kg | |
| FSF7100-15.5 2O5 | 7½ (5.5) | 4" (100) | 3 | 21.5 | 1.0 | 35 | 1.6 | 95 |
| FSF7100-17.5 2O5 | 10 (7.5) | 4" (100) | 3 | 28 | 1.0 | 38 | 1.8 | 102 |
| FSF2100-17.5 4O5 | 10 (7.5) | 4" (100) | 3 | 13.5 | 1.0 | 28 | 2.5 | 163 |
| FSF2150-17.5 4O5 | 10 (7.5) | 6" (150) | 3 | 15 | 1.5 | 21 | 4.0 | 230 |
| FSF2150-111 4O5 | 15 (11) | 6" (150) | 3 | 15.5 | 2.5 | 24 | 4.2 | 263 |
| FSF2200-111 4O5 | 15 (11) | 8" (200) | 3 | 9.5 | 4.5 | 17 | 6.2 | 277 |
| FSF2150-115 4O5 | 20 (15) | 6" (150) | 3 | 21 | 2.5 | 35 | 4.8 | 190 |
| FSF2200-115 4O5 | 20 (15) | 8" (200) | 3 | 14 | 4.5 | 23 | 7.8 | 285 |
| TYPE | L | D | H |
|---|---|---|---|
| FSF7100-15.5 2L(O) | 596 | 345 | 689 |
| FSF7100-17.5 2L(O) | 596 | 345 | 689 |
| FSF2100-17.5 4L(O) | 687 | 405 | 816 |
| FSF2150-17.5 4L(O) | 888 | 449 | 870 |
| FSF2150-111 4L(O) | 895 | 477 | 988 |
| FSF2200-111 4L(O) | 1045 | 501 | 994 |
| FSF2150-115 4L(O) | 895 | 477 | 988 |
| FSF2200-115 4L(O) | 1045 | 501 | 994 |
| TYPE | PHASE | L | D | H |
|---|---|---|---|---|
| FSF2100-17.5 4O5 | 3 | 550 | 265 | 625 |
| FSF2150-17.5 4O5 | 3 | 550 | 265 | 625 |
| FSF2150-111 4O5 | 3 | 565 | 290 | 689 |
| FSF2200-111 4O5 | 3 | 565 | 290 | 689 |
| FSF2150-115 4O5 | 3 | 565 | 290 | 689 |
| FSF2200-115 4O5 | 3 | 565 | 290 | 689 |
