Cast iron submersible pump
Model :
FSM series

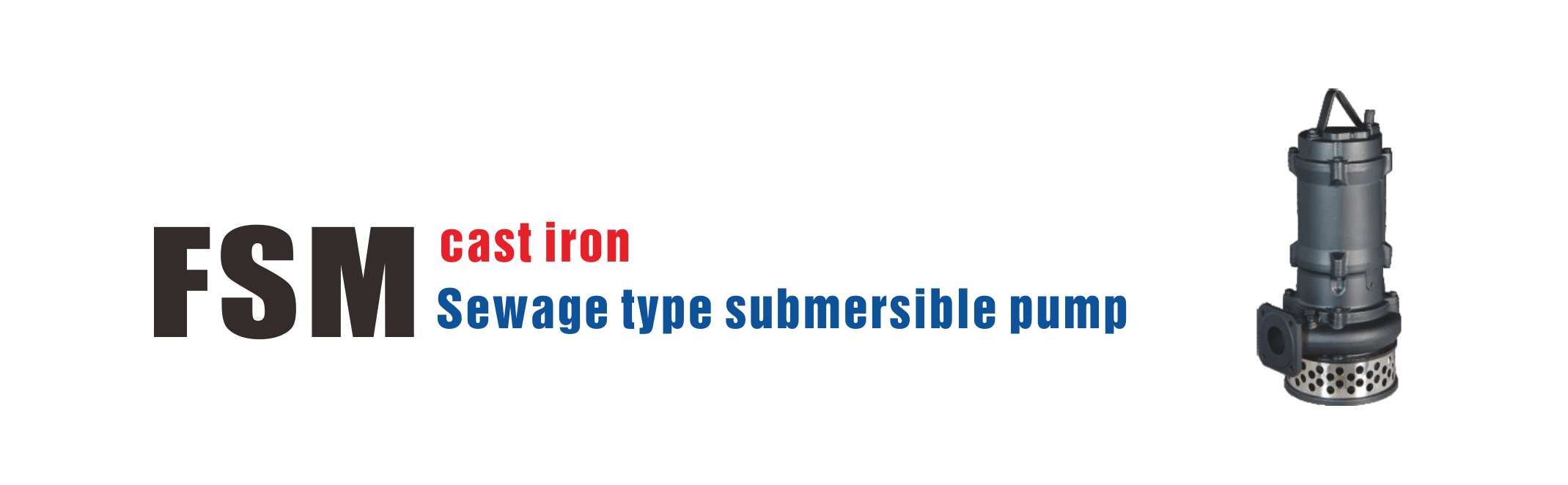

FSM Cast iron Submersible Wastewater Pump
- Sewage and wastewater treatment and discharge from livestock and pig farming, dairy farmers, livestock farm excrement storage tanks, and sewers.
- Sewage discharge from septic tank drainage systems in apartment buildings, food, pulp, leather, dyeing and finishing, steel and other industries.
- Suitable for pumping and discharging general industrial sewage, sludge and waste water.
- The entire shell is made of cast iron, with a sturdy and durable structure and excellent quality and performance.
- The handle above 7.5HP is designed in a triangular shape, which is convenient for hanging operations in the take-off type.
- Adopt mechanical shaft seal produced in cooperation with world famous brands.
- The motor is equipped with an overload protection device.
- Ambient temperature : MAX.+40°C
- Liquid temperature : +4°C~+40°C
- Applicable liquids : Weak acid wastewater, miscellaneous drainage, abnormal wastewater
- Frequency：50/60Hz
- Motor : 2 Pole/4 Pole - Dry Submersible Motor
- Insulation level: Class B (1-3HP) Class F (above 5HP)
- Waterproof level：IP68
- Protection device : 3∅ motor overload protector / MS water detector(15HP)
- Bearings: deep groove ball bearings
- Shaft seal: double-pack mechanical shaft seal
- Impeller: centrifugal semi-open
- Upper cover：FC200
- Motor body：FC200
- Axis：SUS304
- Shaft seal：SIC/SIC
- Pump body：FC200
- Impeller：FC200
- Cable：VCT

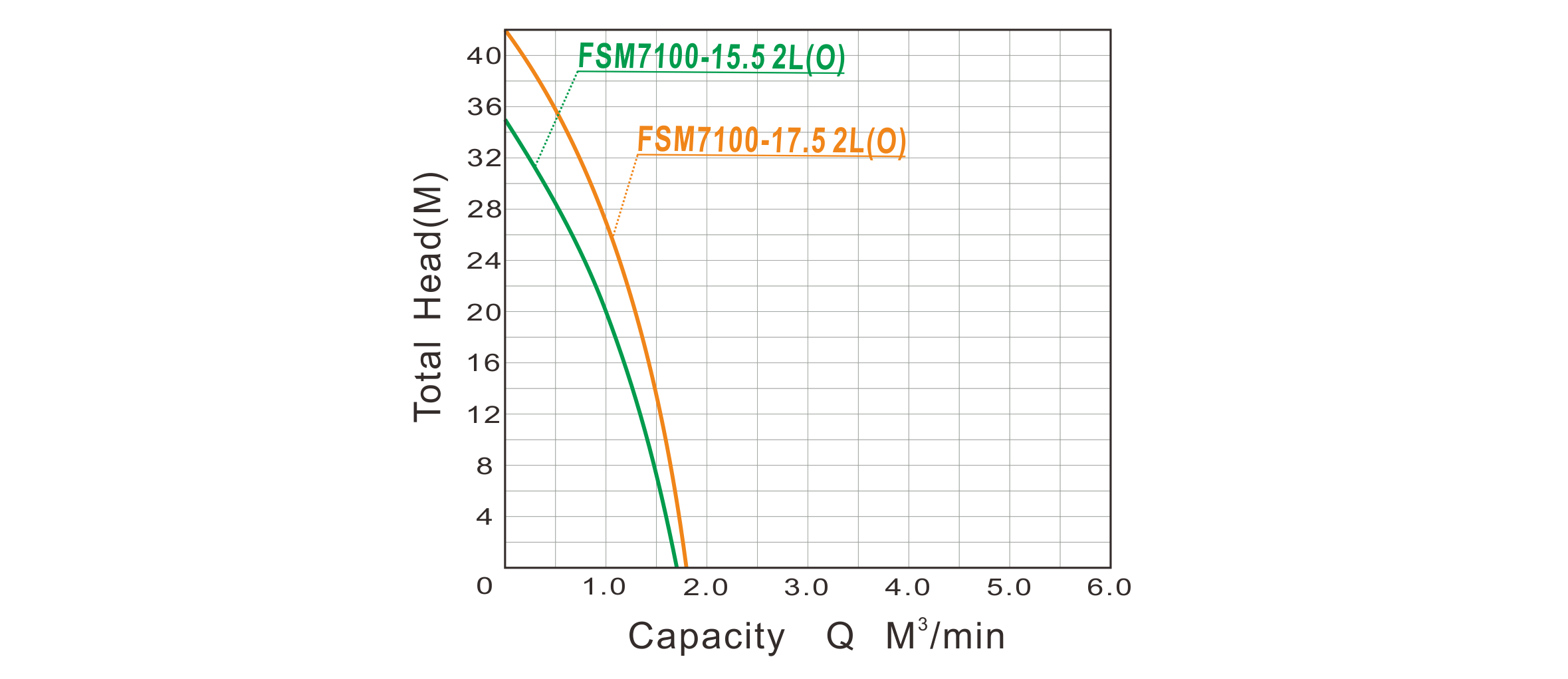

| TYPE | POWER | BORE | PHASE | HEAD | CAPACITY | MAX HEAD | MAX CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | Kg | |
| FSM7100-15.5 2L(O) | 7½ (5.5) | 4" (100) | 3 | 20 | 1.0 | 35 | 1.7 | 74 |
| FSM7100-17.5 2L(O) |
10 (7.5) |
4" (100) | 3 | 27 | 1.0 | 42 | 1.8 | 80 |

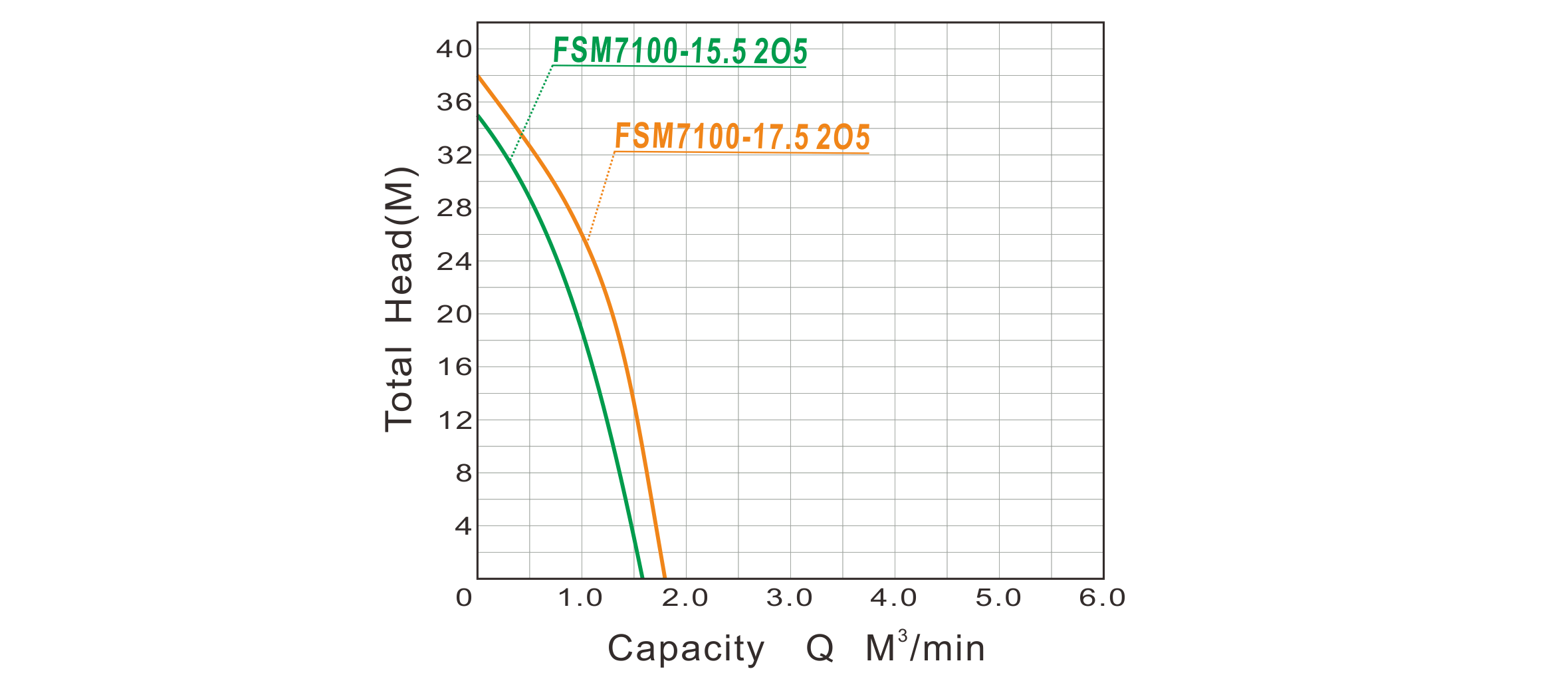

| TYPE | POWER | BORE | PHASE | HEAD | CAPACITY | MAX HEAD | MAX CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | Kg | |
| FSM7100-15.5 2O5 | 7½ (5.5) | 4" (100) | 3 | 23 | 0.8 | 35 | 1.6 | 95 |
| FSM7100-17.5 2O5 | 10 (7.5) | 4" (100) | 3 | 26 | 1.0 | 38 | 1.8 | 102 |
| TYPE | PHASE | L | D | H |
|---|---|---|---|---|
| FSM7100-15.5 2L(O) | 3 | 565 | 283 | 689 |
| FSM7100-17.5 2L(O) | 3 | 565 | 283 | 689 |
| TYPE | PHASE | L | D | H |
|---|---|---|---|---|
| FSM7100-15.5 2O5 | 3 | 565 | 290 | 689 |
| FSM7100-17.5 2O5 | 3 | 565 | 290 | 689 |
