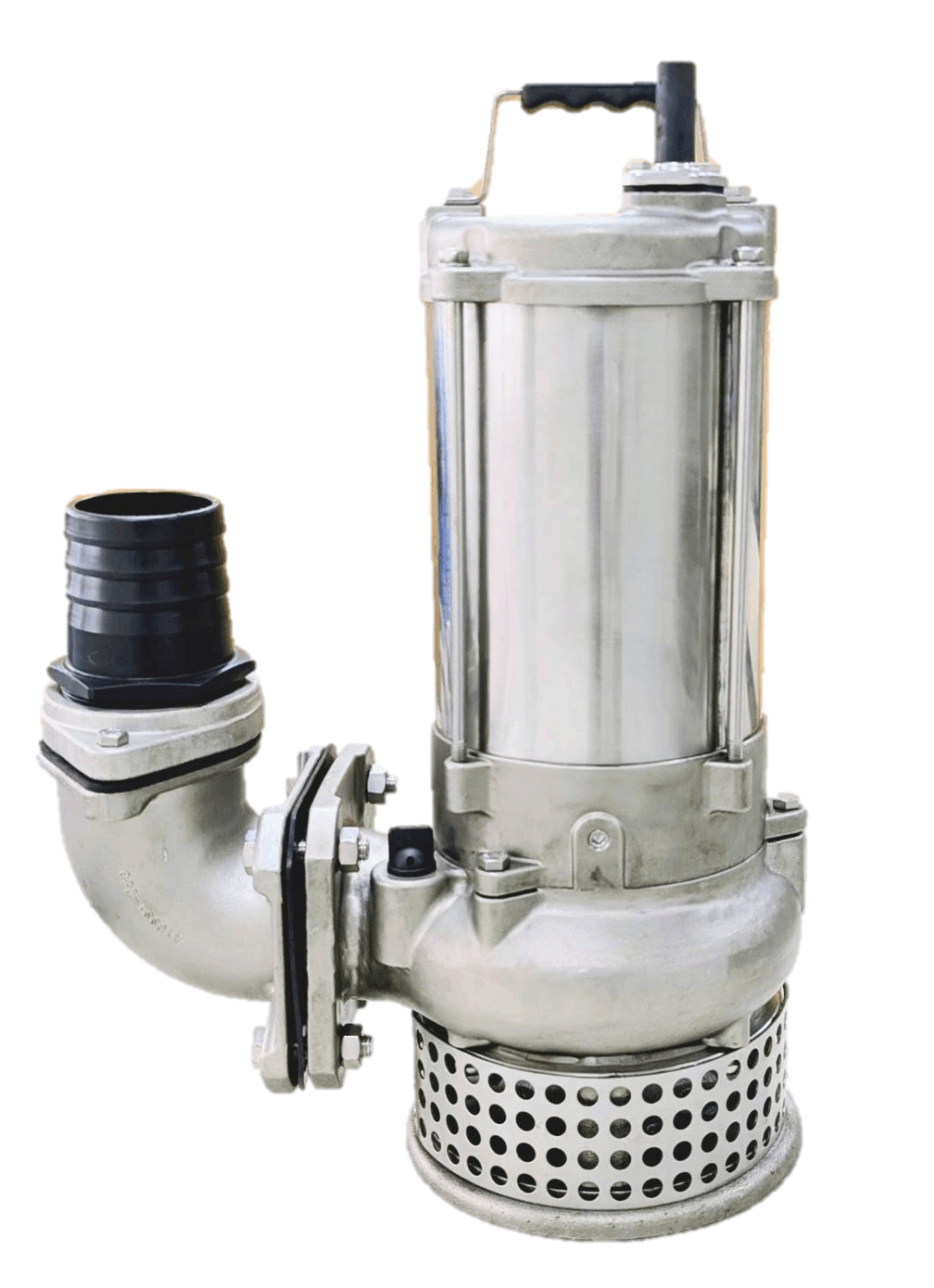

• Stainless steel sewage type submersible pump

Stainless steel sewage type submersible pump

Model : SSM series


手風琴選單


  • Wastewater treatment and sewage drainage in petrochemical, dyeing and textile, and electronic industries.
  • For lifting and draining corrosive waste liquid.
  • Sewage discharge from the iron and steel industry.
  • Suitable for pumping and discharging general industrial sewage, sludge and wastewater.

  • It adopts a dry motor with built-in overload protection gas and double-set mechanical shaft seal.
  • Using the stainless steel lost-wax casting method, the mold has high precision. The product is not prone to sand holes, has good surface smoothness, and has a high sense of value.
  • This machine is suitable for waste liquid with weak acid and alkali pH 4~10.
  • The O-ring is made of Viton material, which is resistant to water and acid and alkali corrosion.
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: +4°C~+40°C
  • Applicable liquids: Weak acid wastewater, miscellaneous drainage, abnormal wastewater
  • Frequency：50/60Hz
  • Motor : 2 Pole - Dry Submersible Motor
  • Insulation level: Class B (1-3HP) Class F (above 5HP)
  • Waterproof level：IP68
  • Protection device : 3∅ motor overload protector / 1∅ 1-2HP thermal protector
  • Bearings: deep groove ball bearings
  • Shaft seal: double-pack mechanical shaft seal
  • Impeller: centrifugal semi-open
  • Upper cover：SUS316
  • Motor body：SUS316
  • Axis：SUS316
  • Shaft seal：SIC/SIC
  • Pump body：SUS316
  • Impeller：SUS316
  • Urgent：Viton
  • Cable：VCT

手風琴選單

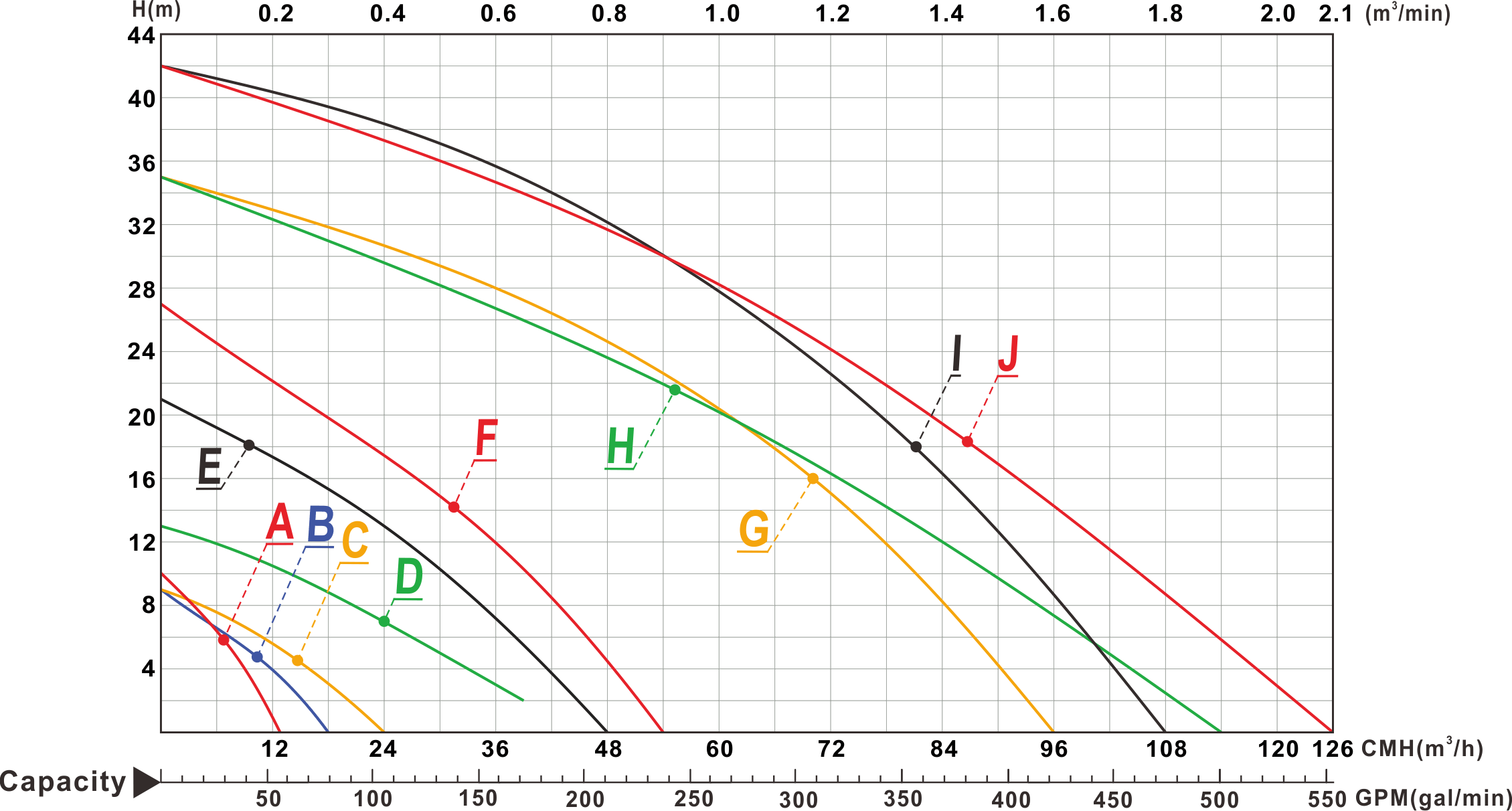

TYPE POWER BORE PHASE HEAD CAPACITY MAX HEAD MAX CAPACITY WEIGHT
HP(kW) Inch(mm) ∅ M M³/min M M³/min Kg
SSM150-1.37 21(6) ½ (0.37) 2" (50) 1 7 0.15 9 0.17 12
SSM250-1.75 21(6) 1 (0.75)
 2" (50) 1 7 0.20 14 0.35 16
SSM280-1.75 21(6) 1 (0.75) 3" (80)
 1 / 3 6 0.31 10 0.64 17
SSM250-11.5 26(L) 2 (1.5) 2" (50) 1 / 3 8 0.26 16 0.48 31
SSM280-11.5 26(L) 2 (1.5) 3" (80) 1 / 3 6 0.28 15 0.57 31
SSM250-12.2 26(L) 3 (2.2) 4" (100) 1 / 3 11 0.30 22 0.55 40
SSM280-12.2 26(L) 3 (2.2) 3" (80) 1 / 3 11 0.35 22 0.65 40
SSM2100-12.2 26(L) 3 (2.2) 4" (100) 1 / 3 10 0.40 21 0.70 40
SSM280-13.7 2L(O) 5 (3.7) 3" (80) 3 14 0.50 28 0.80 44
SSM2100-13.7 2L(O) 5 (3.7) 4" (100) 3 13 0.70 26 1.0 44


TYPE POWER BORE PHASE HEAD CAPACITY MAX HEAD MAX CAPACITY WEIGHT
HP(kW) Inch(mm) ∅ M M³/min M M³/min Kg
SSM150-1.37 265 ½ (0.37) 2" (50) 1 8 0.14 10 0.21 12
SSM250-1.75 265 1 (0.75)
 2" (50) 1 7 0.20 9 0.30 18
SSM280-1.75 265 1 (0.75) 3" (80)
 1 7 0.30 9 0.40 18
SSM280-11.5 265 2 (1.5) 3" (80) 1 10 0.50 13 0.70 36
SSM280-12.2 265 3 (2.2) 3" (80) 1 16 0.60 21 0.80 42
SSM250-1.75 2O5 1 (0.75) 2" (50) 3 7 0.20 9 0.30 18
SSM280-1.75 2O5 1 (0.75) 3" (80) 3 7 0.30 9 0.40 18
SSM280-11.5 2O5 2 (1.5) 3" (80) 3 10 0.50 13 0.70 35
SSM280-12.2 2O5 3 (2.2) 3" (80) 3 16 0.60 21 0.80 42
SSM280-13.7 2O5 5 (3.7) 3" (80) 3 20 0.70 27 0.90 45


手風琴選單
TYPE PHASE A B C D E F G H L
SSM150-1.37 21(6) 1 55 95 330 130 100 - - 385 220
SSM250-1.75 21(L) 1 / 3 85 110 375 165 130 - - 435 245
SSM280-1.75 21(L) 1 / 3 90 140 400 170 130 - - 460 280
SSM280-11.5 26 1 115 155 540 175 205 80 220 605 355
SSM280-11.5 2L 3 115 155 440 175 205 80 220 505 355
SSM280-12.2 26 1 110 140 520 205 200 80 240 580 380
SSM280-12.2 2L 3 110 140 435 205 200 80 240 495 380
SSM2100-12.2 2L 3 110 140 435 205 285 87 240 495 375
SSM280-13.7 2L 3 110 135 455 210 190 80 240 510 370
SSM2100-13.7 2L 3 110 135 455 210 275 87 240 510 375
SSM2100-15.5 2L 3 125 180 545 210 300 87 275 620 405
SSM2100-17.5 2L 3 125 180 560 260 300 87 305 640 440


TYPE PHASE A B C D E F G H L
SSM150-1.37 265 1 55 95 330 130 100 - - 385 220
SSM730-1.75 265 1 55 80 345 140 80 - - 400 230
SSM250-1.75 26(O)5 1 / 3 85 110 375 165 130 - - 435 245
SSM280-1.75 26(O)5 1 / 3 90 140 400 170 130 - - 460 280
SSM280-11.5 265 1 115 155 540 175 205 80 220 605 355
SSM280-11.5 2O5 3 115 155 440 175 205 80 220 505 355
SSM280-12.2 265 1 110 140 520 205 200 80 240 580 380
SSM280-12.2 2O5 3 110 140 435 205 200 80 240 495 380
SSM2100-12.2 2O5 3 110 140 435 205 285 87 240 495 375
SSM280-13.7 2O5 3 110 135 455 210 190 80 240 510 370
SSM2100-13.7 2O5 3 110 135 455 210 275 87 240 510 375
SSM2100-15.5 2O5 3 125 180 545 210 300 87 275 620 405
SSM2100-17.5 2O5 3 125 180 560 260 300 87 305 640 440
