Plastic Steel Gear Pump
Model :
UCP series
- Well water extraction
- Water Tower
- Catering industry
- Water spray cooling device
- Automatic water supply for buildings
- Spring water
- Use water equipment
- This model has special water flow design and excellent liquid transportation.
- The motor is equipped with a protective device to prevent the motor from burning.
- Suction lift:Max.6m
- Ambient temperature: MAX.+40°C
- Liquid temperature: +4°C~+40°C
- Applicable liquid: clean water; or non-corrosive, solid-particle-free liquid with properties close to water

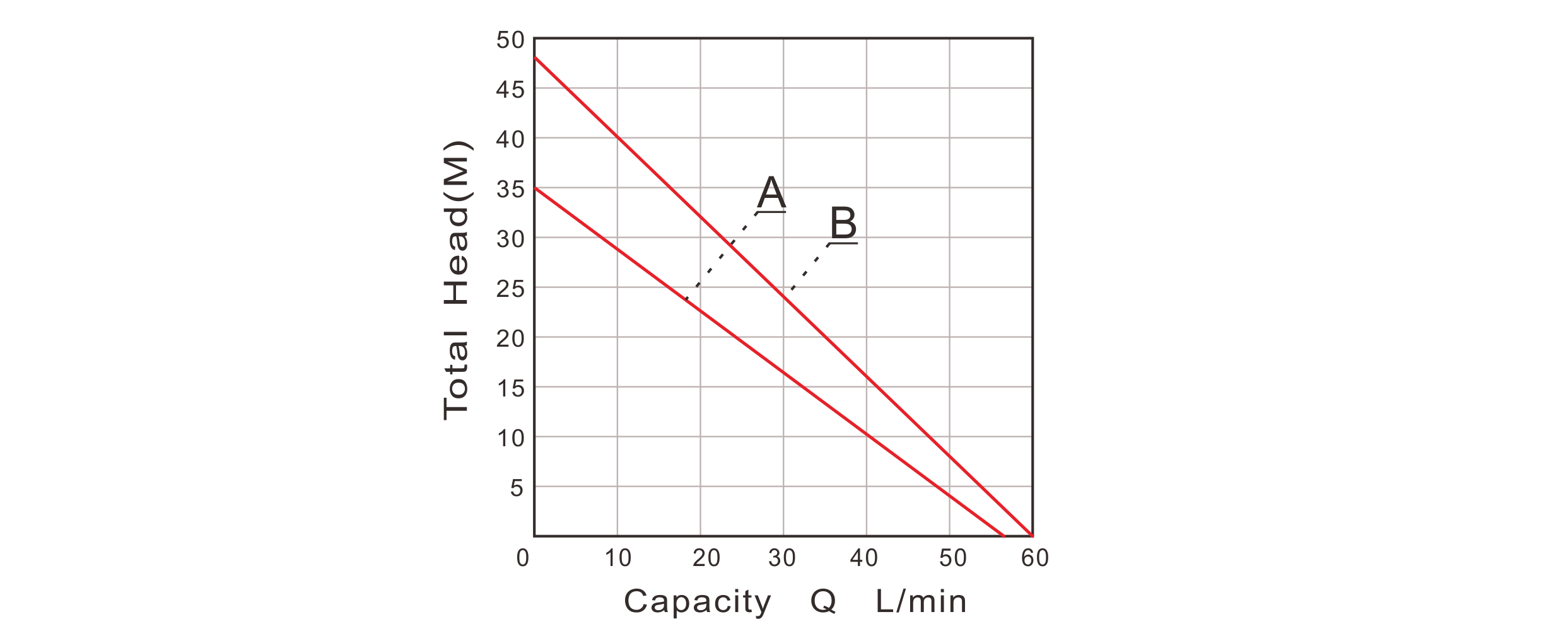

| 型號 | 馬力 | 口徑 | 相數 | 最大水量 | 最大揚程 | 重量 | 曲線代碼 |
|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | ||
| UCP220-1.37 2S | ½(0.37) | ¾”(20) | 1 | 56 | 35 | 9.5 | A |
| UCP225-1.37 2S | ½(0.37) | 1”(25) | 1 | 56 | 35 | 9.5 | A |
