• Variable Frequency Horizontal Multistage Pump

Variable Frequency Horizontal Multistage Pump

Model : EMH series

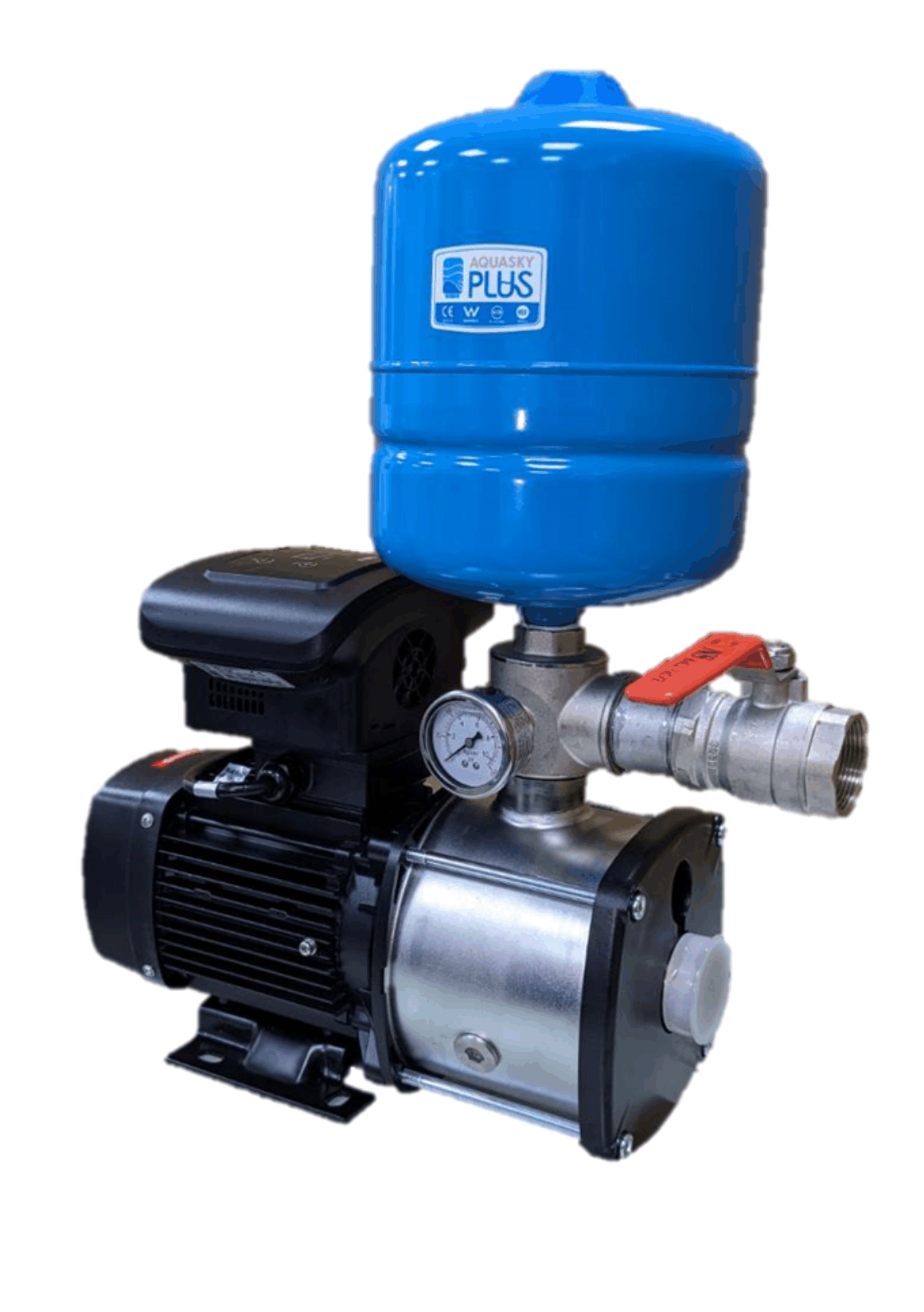

EMC Variable Frequency Horizontal Multistage Pump


  • Apartment
  • Residential
  • Villa water supply
  • Industrial water supply
  • RO water treatment
  • Supermarket
  • Water supply and pressurization (drinking water and water containing trace amounts of chlorine)

  • Water shortage protection - When running without water, the inverter will automatically stop power supply.
  • Constant pressure and stable pressure - the pressure will not be higher than the pressure setting value during use, and the pressure can be maintained within a constant pressure range and will not fluctuate.
  • Extend pipeline life - slow start and slow stop, no water hammer.
  • Water safety - the main liquid contact surface is made of stainless steel to ensure clean water (no rust).
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: Standard shaft seal temperature resistant +4°C~+40°C / Heat resistant shaft seal +4°C~+80°C
  • Working pressure: max.+1.0Mpa
  • Applicable liquids:
  • Clean, non-flammable and explosive liquids that do not contain solid particles or fibers.
  • Transports mineral water, soft water, pure water, edible vegetable oil and other light chemical media.
  • When the density or viscosity of the conveyed liquid is greater than water, a high- power motor must be used.
  • Take water under positive pressure (water source is higher than the pump). If the water tank (water source) is lower than the pump, the suction height should not exceed 3M, and a check valve must be installed.
手風琴選單


TYPE POWER DISCHARGE PHASE CAPACITY HEAD PRESSURE

CURVE
CODES

HP(kW) Inch(mm) ∅ m3/h m Kg/cm2

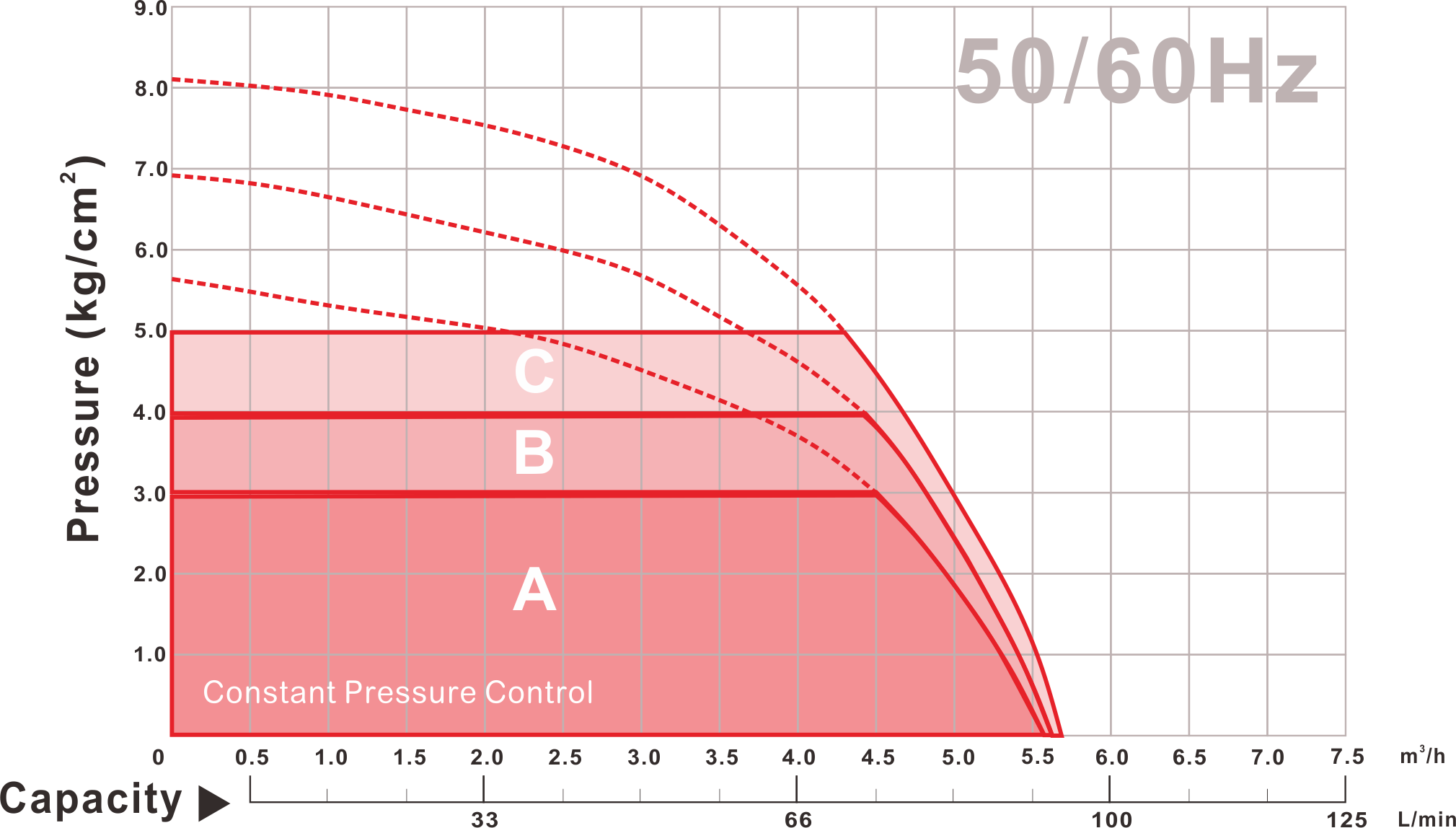

EMH225-4.75 26 1 (0.75) 1" / 1" 1 3 44 3.0 A
EMH225-51.0 26 1¼ (1.0) 1" / 1" 1 3 59 4.0 B
EMH225-61.3 26 1¾ (1.3) 1" / 1" 1 3 68 5.0 C



TYPE POWER DISCHARGE PHASE CAPACITY HEAD PRESSURE CURVE
CODES
HP(kW) Inch(mm) ∅  m3/h
 m Kg/cm2
EMH230-2.75 26 1 (0.75) 1" / 1" 1 5 21 2.0 D
EMH230-31.0 26 1¼ (1.0) 1.2" / 1" 1 5 31.5 3.0 E
EMH230-41.0 26 1¼ (1.0) 1.2" / 1" 1 5 42 4.0 F
EMH230-51.85 26 2½ (1.85) 1.2" / 1" 1 5
 52.5 5.0 G

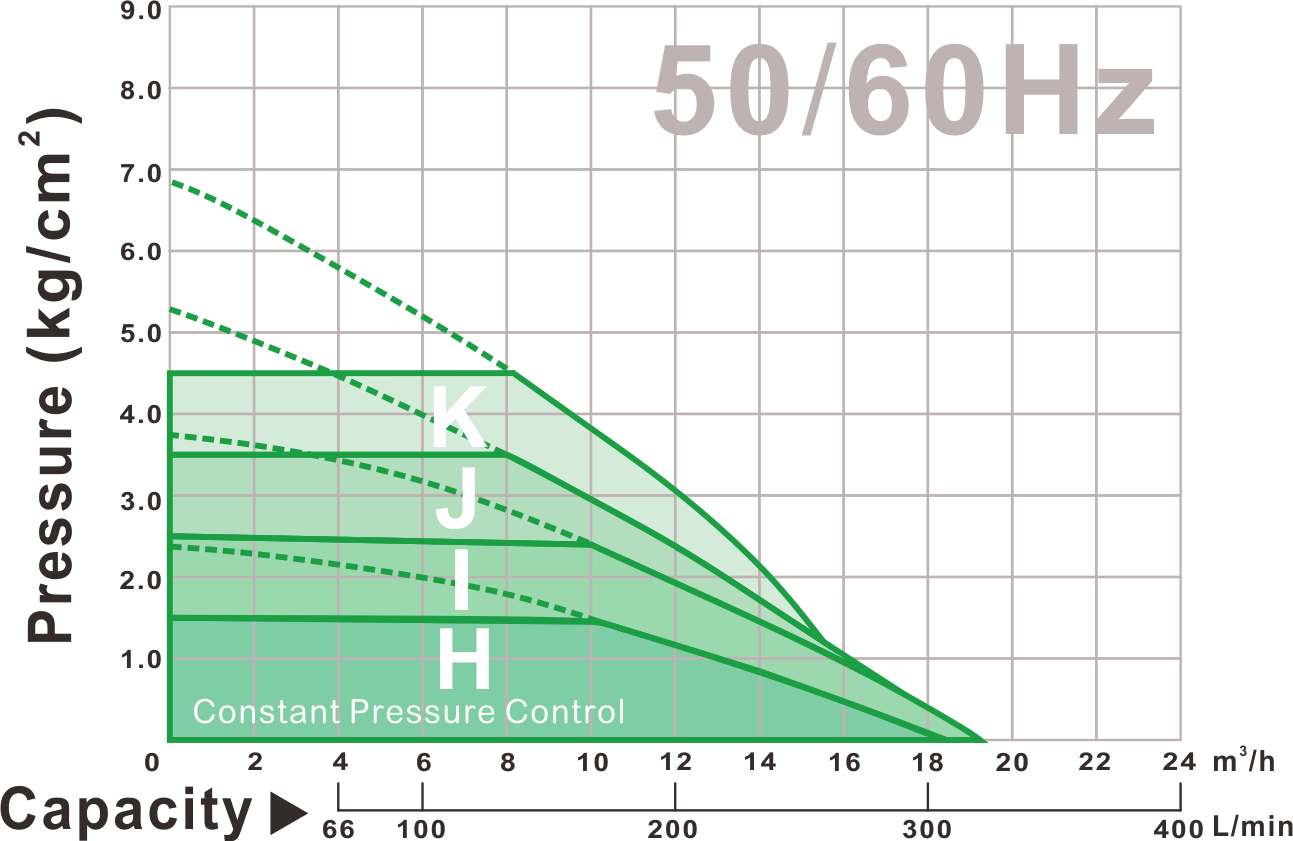

TYPE POWER DISCHARGE PHASE CAPACITY HEAD PRESSURE CURVE
CODES
HP(kW) Inch(mm) ∅ m3/h m Kg/cm2
EMH240-11.0 26 1¼ (1.0) 1.5" / 1.5" 3 8 18 1.5 H
EMH240-21.5 26M 2 (1.5) 1.5" / 1.5" 1 / 3 8 28 2.5 I
EMH240-21.85 26 2½ (1.85) 1.5" / 1.5" 3 8 36 3.5 J
EMH240-32.2 26M 3 (2.2) 1.5" / 1.5" 3 8
 46 4.5 K

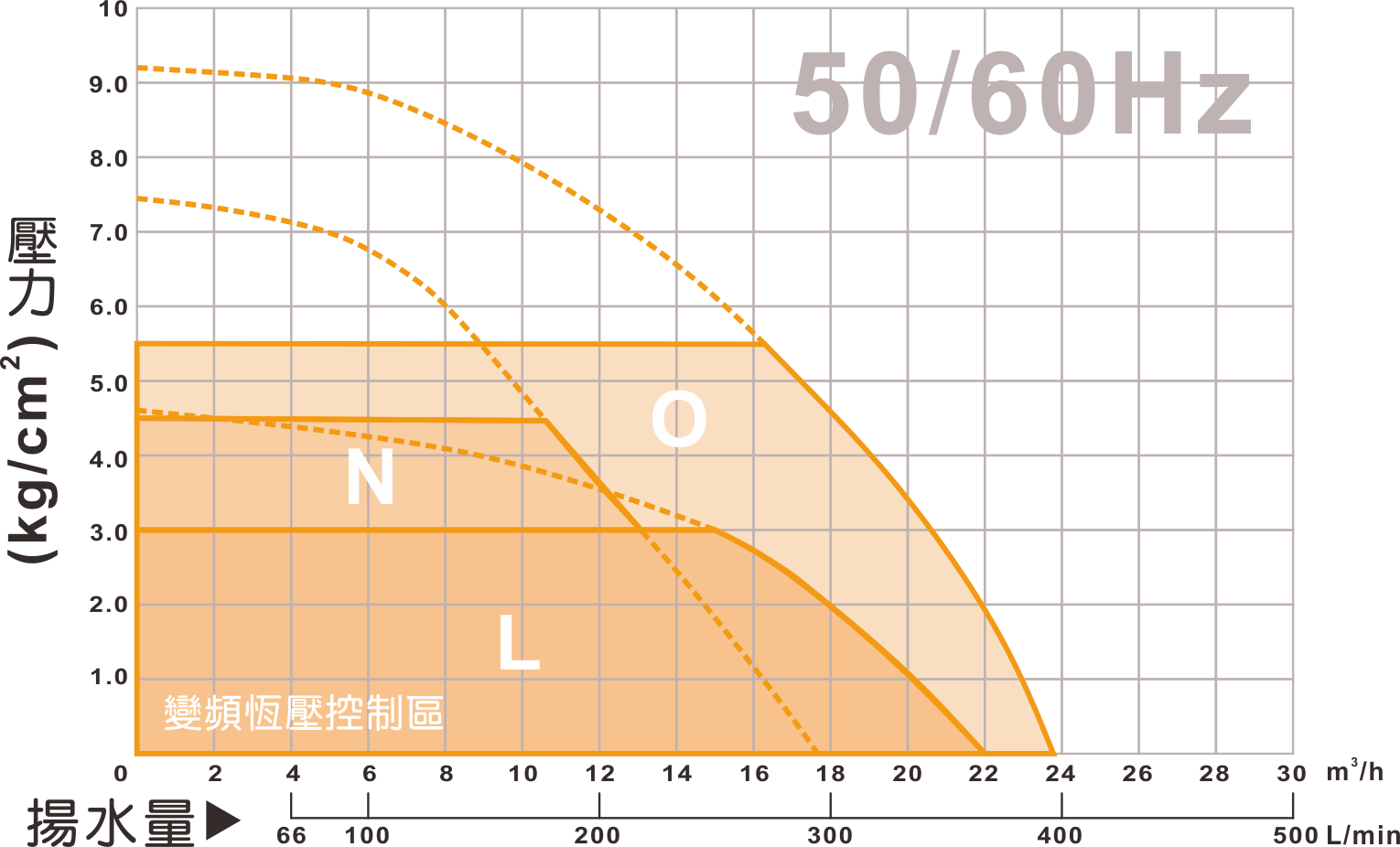

TYPE POWER DISCHARGE PHASE CAPACITY HEAD PRESSURE CURVE
CODES
HP(kW) Inch(mm) ∅ m3/h m Kg/cm2
EMH240-22.2 26 3 (2.2) 1.5" / 1.5" 1 10 38 3.0 L
EMH240-33.0 2O 4 (3.0) 1.5" / 1.5" 3 8 60 4.5 N
EMH240-44.0 2O 5½ (4.0) 1.5" / 1.5" 3 10 80 5.5 O




TYPE POWER DISCHARGE PHASE CAPACITY HEAD PRESSURE CURVE
CODES
HP(kW) Inch(mm) ∅ m3/h m Kg/cm2

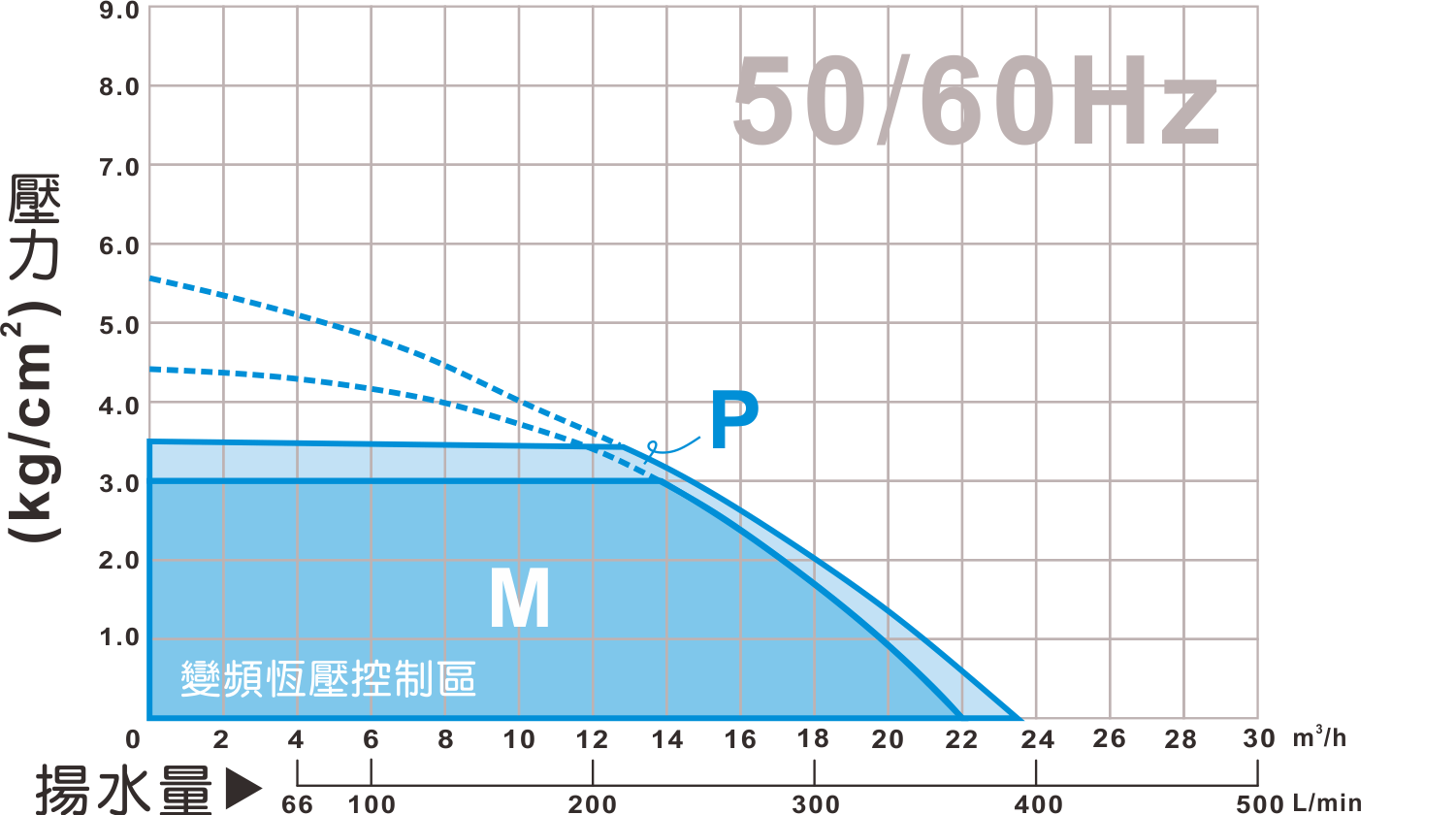

EMH240-22.2 26M 3 (2.2) 1.5" / 1.5" 1 12 34 3.5 M
EMH240-23.0 2O 4 (3.0) 1.5" / 1.5" 3 12 36 3.0 P





TYPE POWER DISCHARGE PHASE CAPACITY HEAD PRESSURE CURVE
CODES
HP(kW) Inch(mm) ∅ m3/h m Kg/cm2

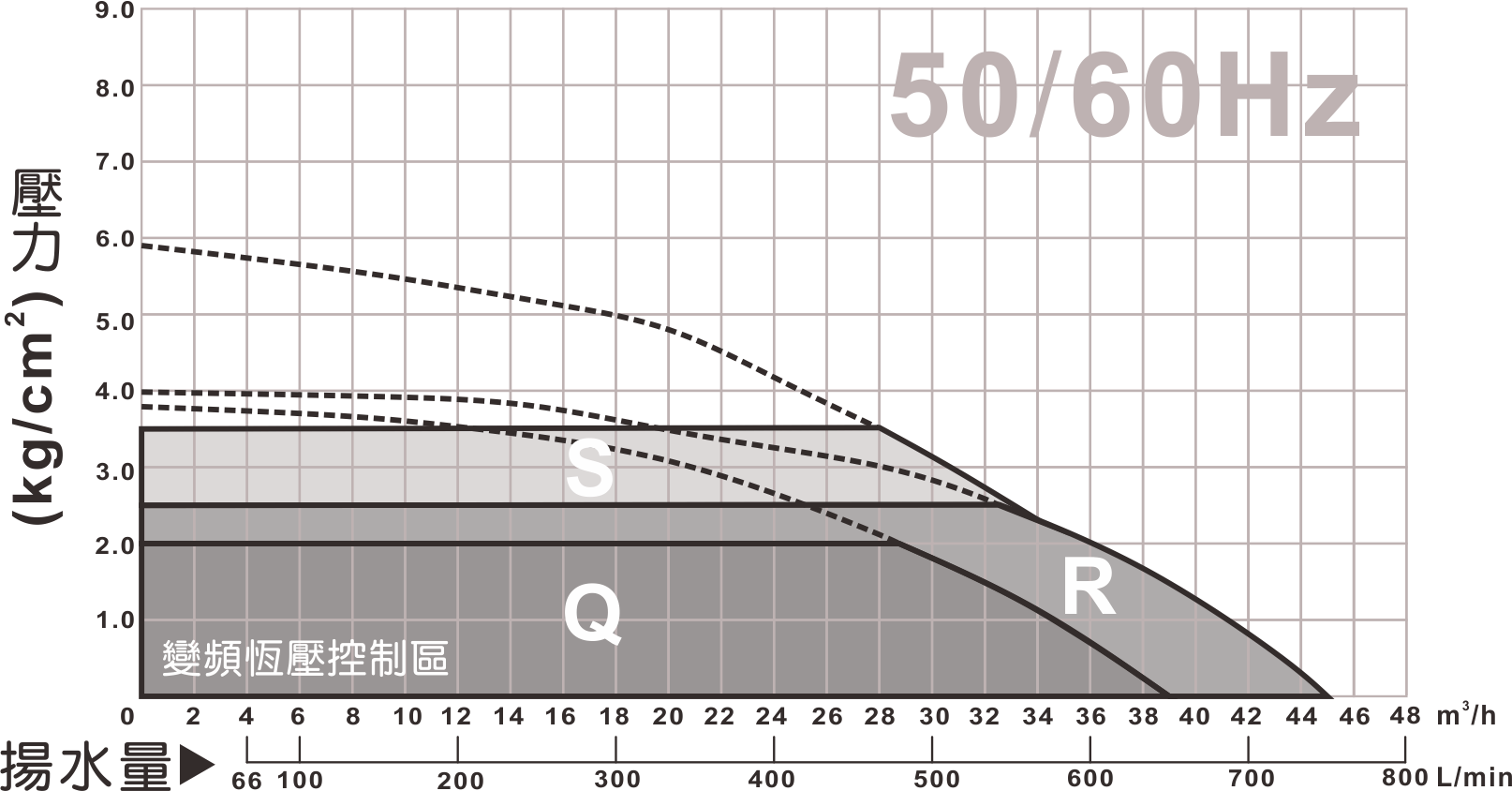

EMH250-23.0 2O 4 (3.0) 2" / 2" 3 16 33 2.0 Q
EMH250-34.0 2O 5½ (4.0) 2" / 2" 3 16 52 2.5 R
EMH250-24.0 2O 5½ (4.0) 2" / 2" 3 20 34 3.5 S

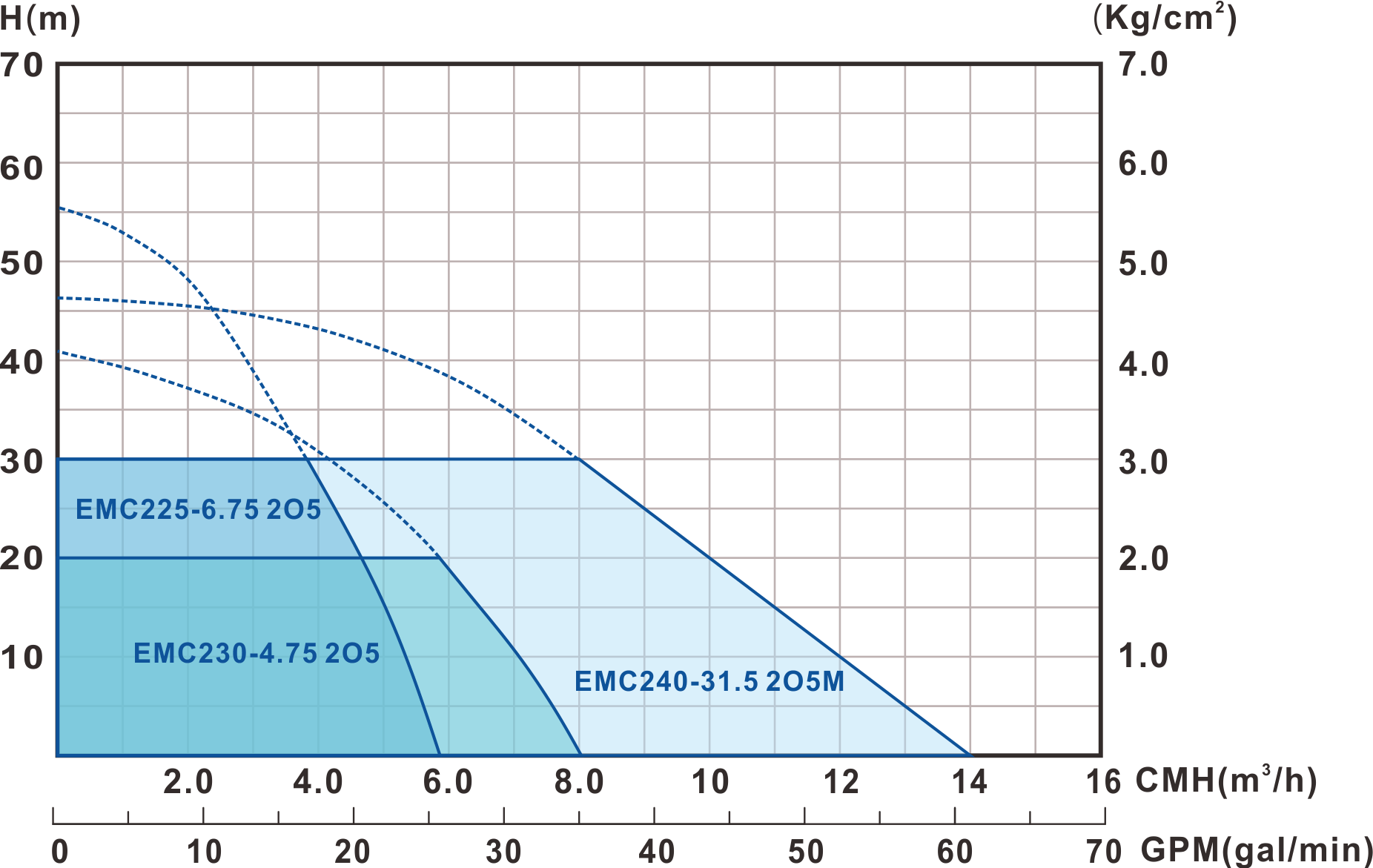

TYPE POWER DISCHAGE PHASE CAPACITY HEAD PRESSURE
HP(kW) Inch(mm) ∅ m3/h m Kg/cm2
EMC225-6.75 2O5 1 (0.75) 1" / 1" 3 3.0 38 3.0
EMC230-4.75 2O5 1 (0.75) 1.2" / 1" 3 4.0 31 2.0
EMC240-31.5 2O5M 2 (1.5) 1.5" / 1.5" 3 8.0 30 3.0


TYPE POWER DISCHARGE PHASE CAPACITY HEAD PRESSURE
HP(kW) Inch(mm) ∅ m3/h m Kg/cm2

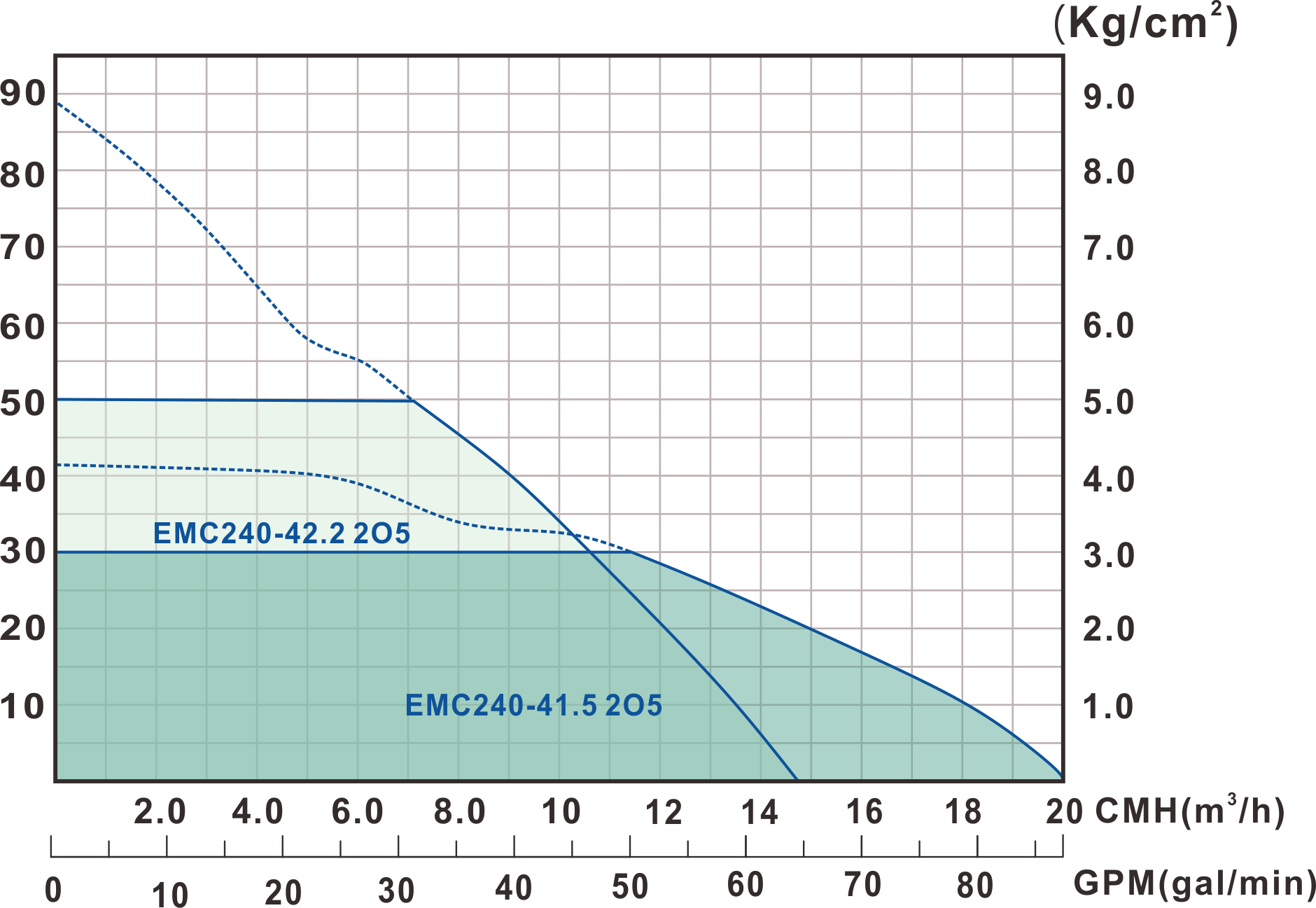

EMC240-41.5 2O5 2 (1.5) 1.5" / 1.5" 3 8.0 34 3.0
EMC240-42.2 2O5 3 (2.2) 1.5" / 1.5" 3 8.0 45 5.0


手風琴選單

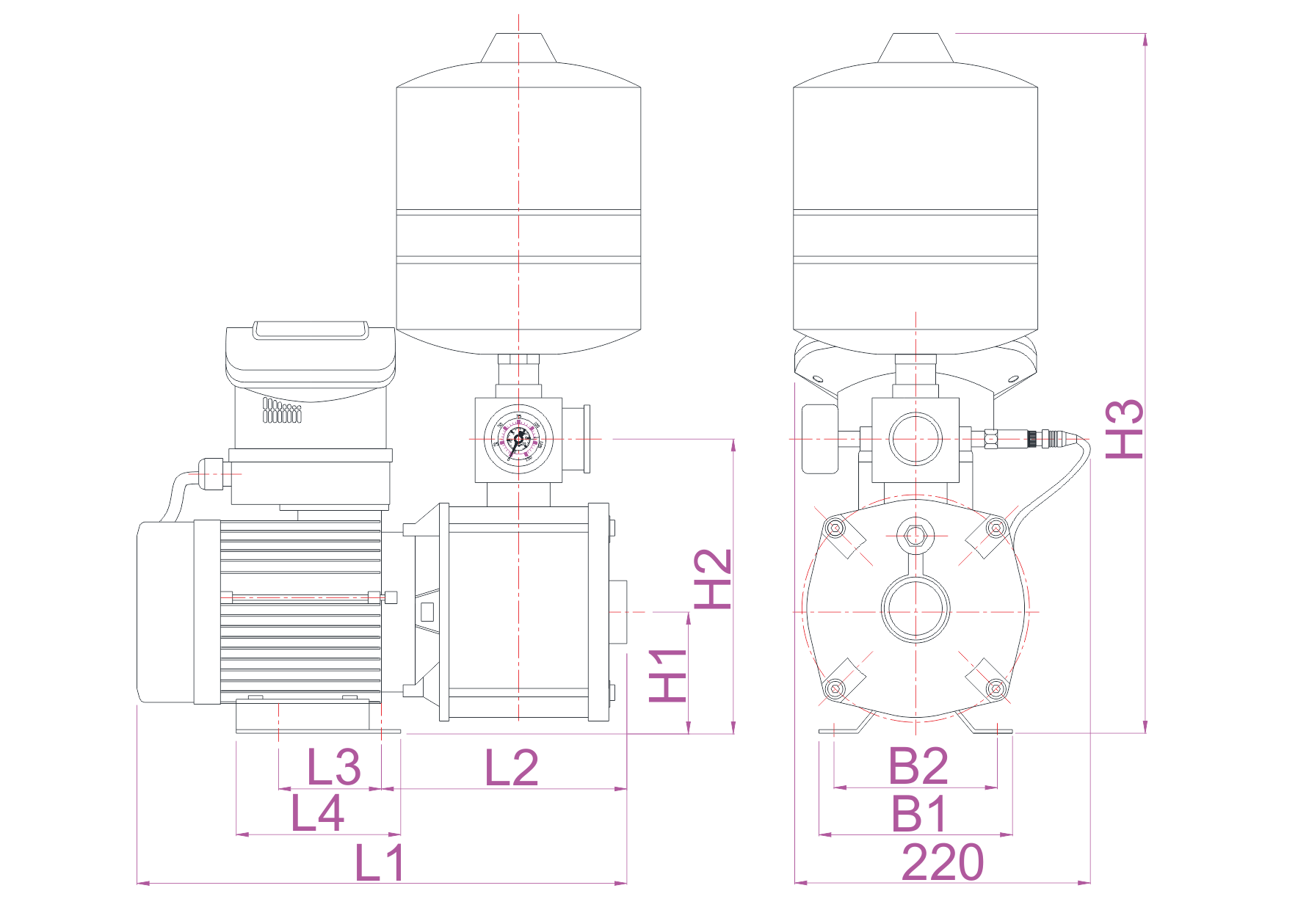

TYPE B1 B2 L1 L2 L3 L4 H1 H2 H3
EMH225-4.75 26 158 125 365 149 96 155 75 185 415
EMH230-2.75 26 158 125 347 131 96 155 75 189 419

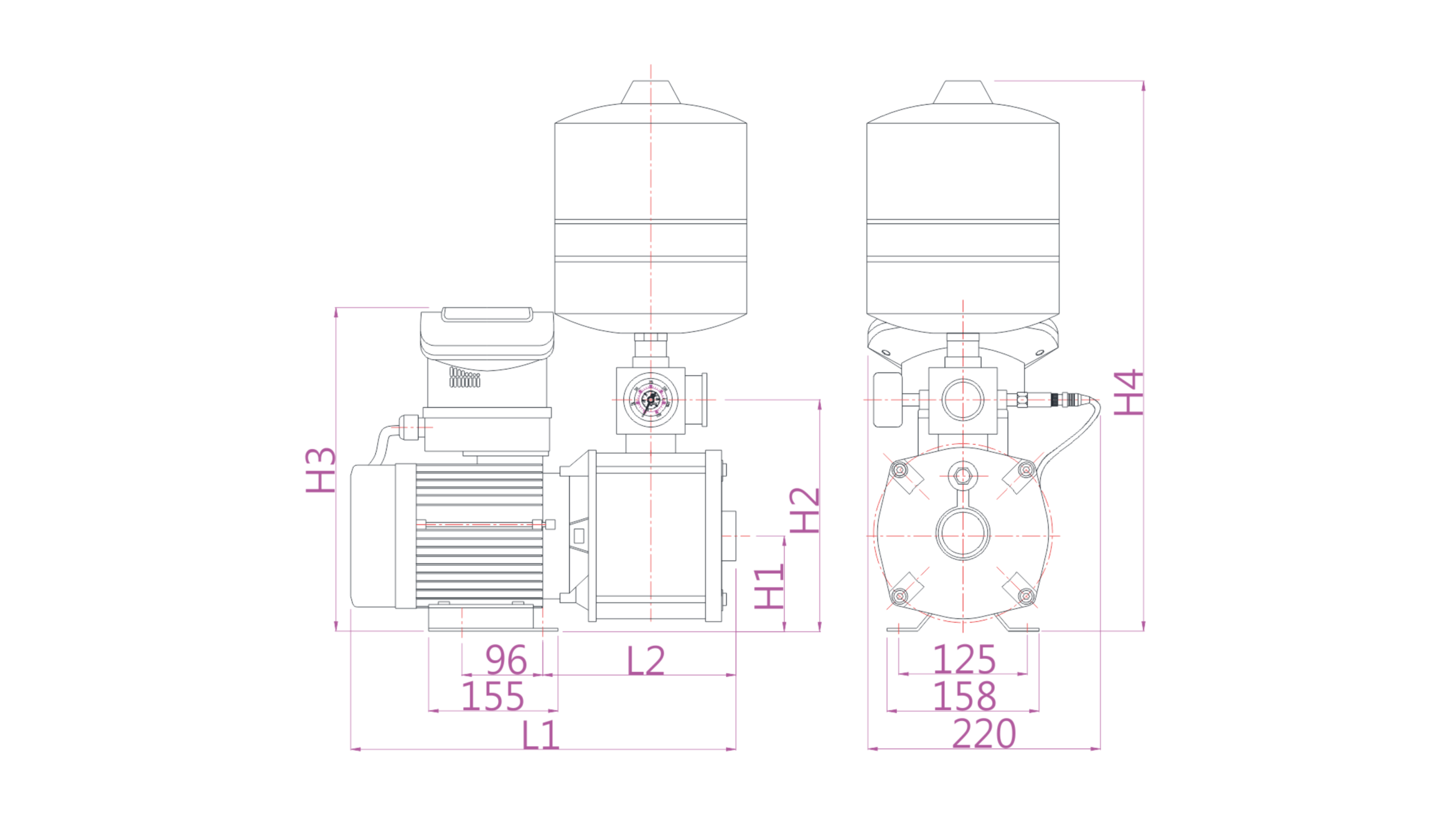

TYPE L1 L2 H1 H2 H3 H4
EMC225-6.75 2O5 416 203 75 183 292 420
EMC230-4.75 2O5 360 145 75 179 288 416
EMC240-31.5 2O5M 408 200 100 208 321 520
EMC240-42.2 2O5 438 230 100 208 321 520
EMC240-41.5 2O5 438 230 100 208 321 520

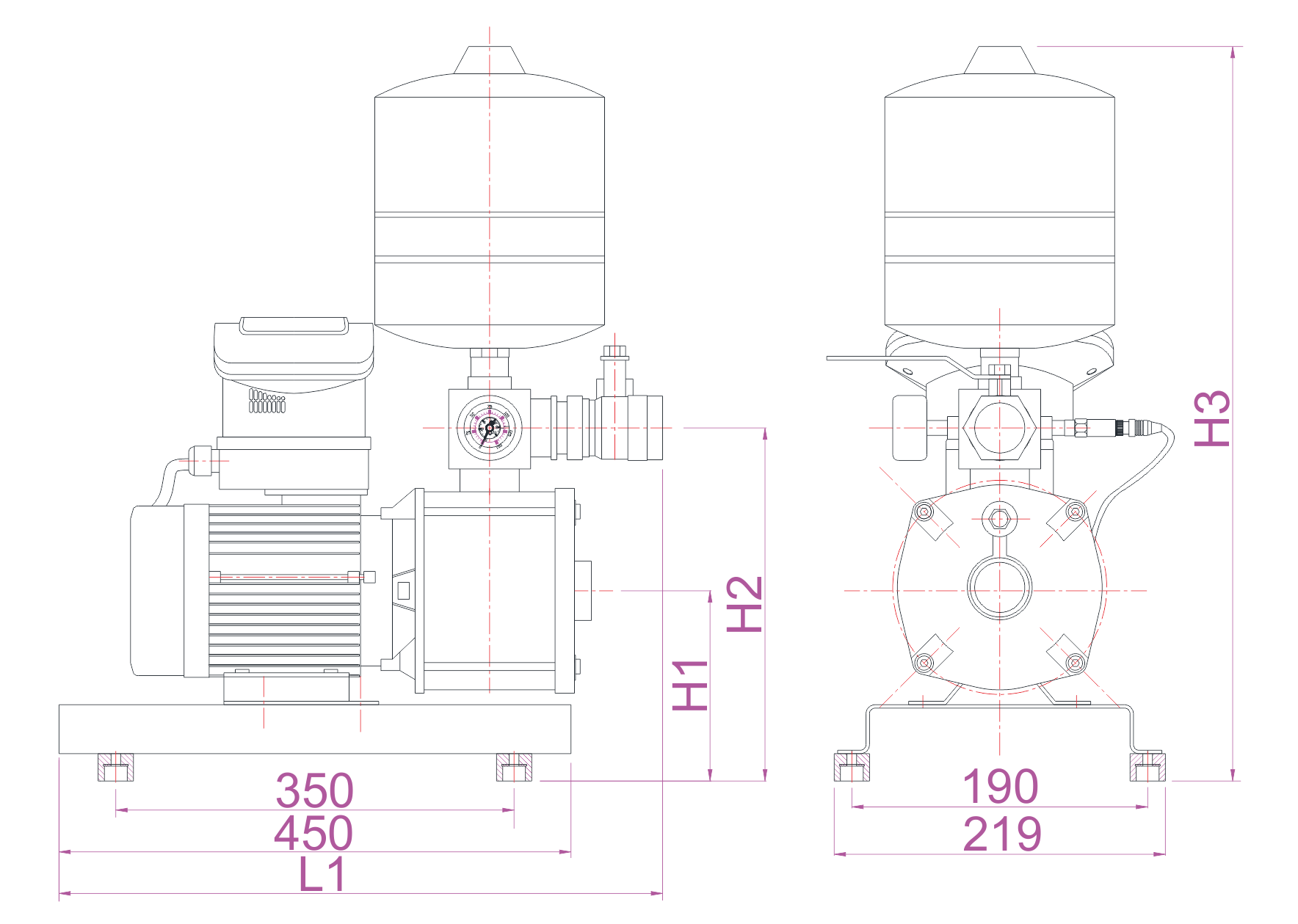

TYPE L1 H1 H2 H3
EMH225-51.0 26 515 142 261 602
EMH225-61.3 26 578 157 276 617
EMH230-31.0 26 479 142 257 598
EMH230-41.0 26 497 142 257 598
EMH230-51.85 26 547 157 272 589
EMH240-11.0 26 525 167 304 640
EMH240-21.5 26M 540 167 304 645
EMH240-21.85 26 540 167 304 645
EMH240-32.2 26M 540 167 304 645
EMH240-22.2 26 540 167 304 640
EMH240-22.2 26M 540 167 304 645
