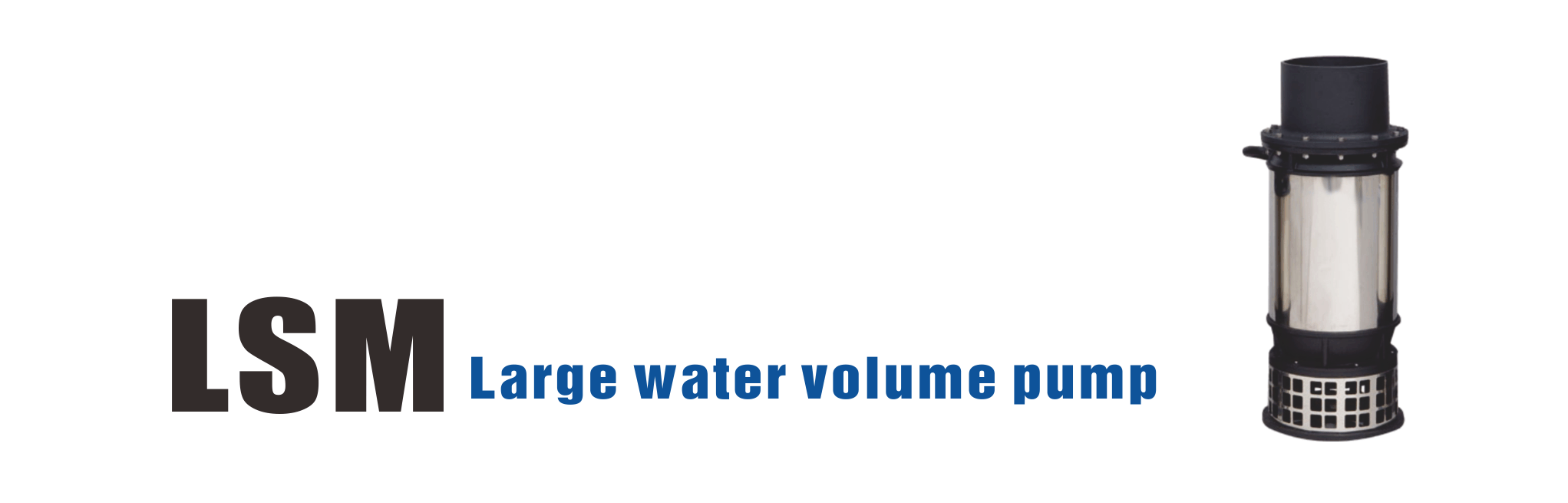

Submersible Large Volume Pump
Model :
LSM series
LSM Submersible Large Volume Pump
- Aquaculture fisheries
- Agricultural irrigation
- Flooding relief in low-lying areas
- Water for landscape waterfalls
- Best equipment for water conservancy projects
- Large water supply and drainage for other purposes
- The pump has a solid structure, a dry motor, a double-set mechanical shaft seal, and is waterproof.
- Impeller diversion device, smooth water flow, can be used for long-term operation
- Waterproof cable base, pump waterproof grade meets IP68
- Light weight, easy to operate and convenient for maintenance
- Axial flow and diagonal flow impeller designs, low lift and large water volume, power saving, and economical benefits
- The cast iron parts of the pump are treated with high-solid spray paint to extend the product life.
- Ambient temperature : MAX.+40°C
- Liquid temperature : +4°C~+40°C
- Applicable liquids : agricultural irrigation, fresh water for breeding, river water
- Frequency : 60Hz
- Motor : 4-pole - Dry submersible motor
- Insulation level : F level (7.5~20HP)
- Waterproof level : IP68
- Bearing : deep groove ball bearing
- Shaft seal : double-pack mechanical shaft seal
- Impeller : axial flow type (oblique flow type: 15~20HP)
- Upper cover : FC200
- Motor body : SUS304
- Axis : SUS304
- Shaft seal : SiC/SiC
- Pump body : FC200
- Impeller : ALBC3 (aluminum bronze)
- O ring : NBR
- Cable : VCT

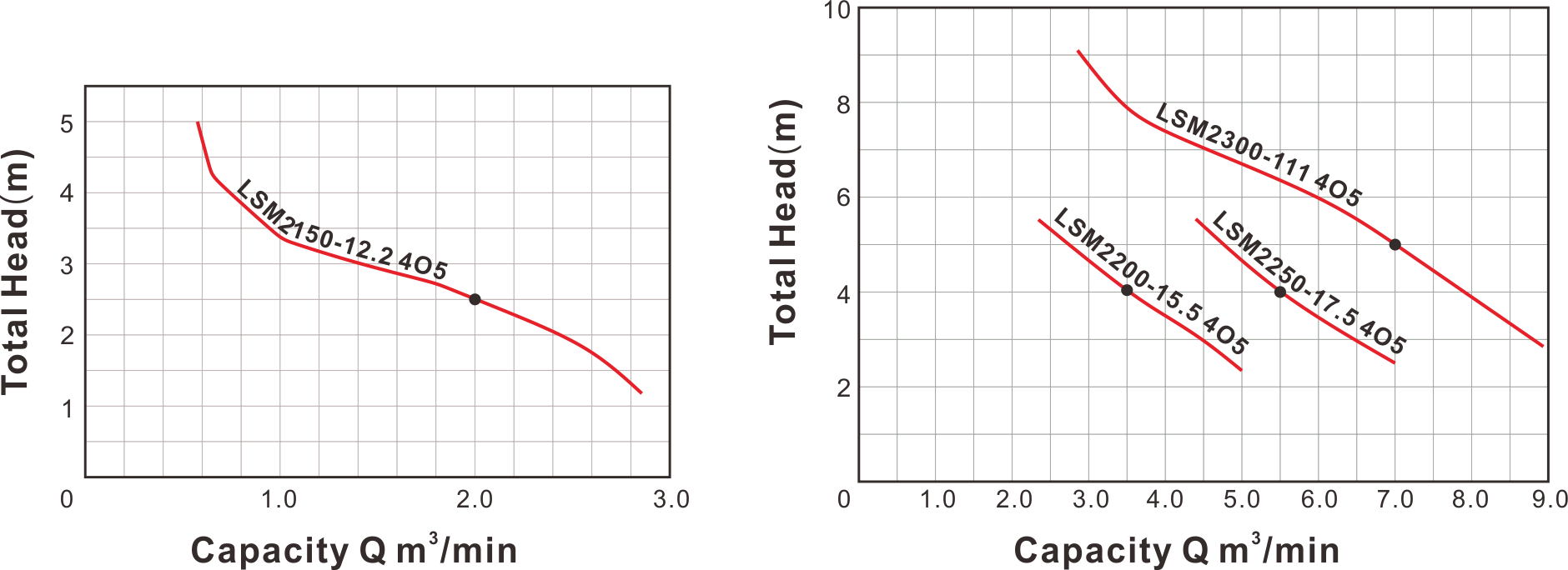

| TYPE | POWER | DISCHARGE | PHASE | HEAD | CAPACITY | MAX HEAD | MAX CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | Kg | |
| LSM2150-12.2 4O | 3 (2.2) | 6" (150) | 3 | 3.3 | 2 | 4.5 | 3 | 52 |
| LSM2200-15.5 4O |
7½ (0.75) |
8" (200) | 3 | 4.5 | 4 | 5.5 | 5.5 | 119 |
| LSM2250-17.5 4O | 10 (7.5) |
10" (250) |
3 | 4 | 5.5 | 5.5 | 6 | 162 |
| LSM2300-111 4O | 15 (11) | 12" (300) | 3 | 4.5 | 7 | 6 | 8 | 201 |
| LSM2300-115 4O | 20 (15) | 12" (300) | 3 | 6 | 8 | 8 | 9.5 | 273 |

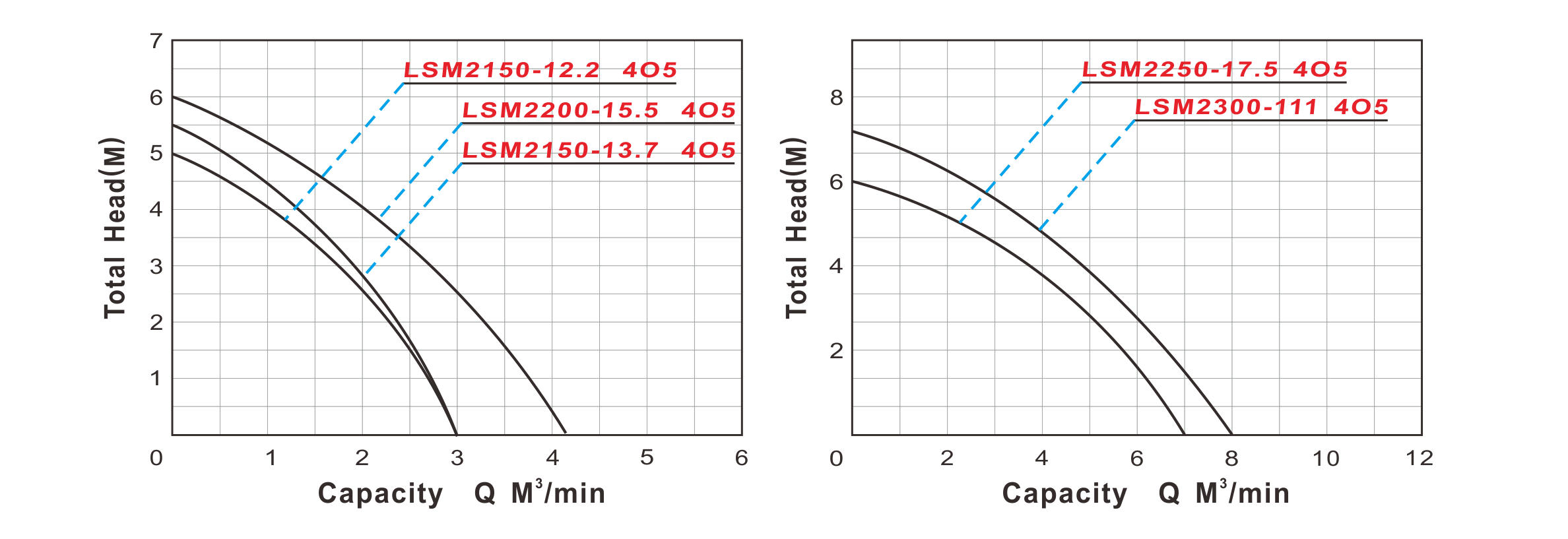

| TYPE | POWER | DISCHARGE | PHASE | HEAD | CAPACITY | MAX HEAD | MAX CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | m | m³/min | m | m³/min | Kg | |
| LSM2150-12.2 4O5 | 3 (2.2) | 6" (150) | 3 | 2.5 | 2 | 5 | 3 | 52 |
| LSM2200-15.5 4O5 |
7½ (0.75) |
8" (200) | 3 | 4 | 3.5 | 6 | 4.2 | 116 |
| LSM2250-17.5 4O5 | 10 (7.5) |
10" (250) |
3 | 4 | 5.5 | 6 | 7 | 157 |
| LSM2300-111 4O5 | 15 (11) | 12" (300) | 3 | 4.5 | 7 | 7 | 8 | 201 |
| TYPE | A | L |
|---|---|---|
| LSM2150-12.2 4O | 285 | 597 |
| LSM2200-15.5 4O | 340 | 923 |
| LSM2250-17.5 4O | 380 | 1015 |
| LSM2300-111 4O | 430 | 1077 |
| LSM2300-115 4O | 430 | 1080 |
| TYPE | A | L |
|---|---|---|
| LSM2150-12.2 4O5 | 285 | 597 |
| LSM2200-15.5 4O5 | 340 | 923 |
| LSM2250-17.5 4O5 | 380 | 1015 |
| LSM2300-111 4O5 | 430 | 1077 |
