• Sewage type submersible pump

Sewage type submersible pump

Model : HSM series


手風琴選單


  • The underground wastewater and discharge water of the building are pumped and transported.
  • Suitable for general water drainage and general drainage of buildings and fortifications.
  • Water supply and drainage in other occasions.
  • Discharge of horticulture water, fishing grounds, farmland and other accumulated water.

  • The motor is specially impregnated and dried to ensure optimal insulation of the motor, and the pump's waterproof rating complies with IP68.
  • The pump is light in weight, small in size, and easy to install and move.
  • The shaft seal adopts a double-pack SIC silicon carbon steel mechanical shaft seal design.
  • The motor is equipped with a temperature controller or motor overload protector to effectively prevent the motor from burning when it is abnormally overloaded.
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: +4°C~+40°C
  • Applicable liquids: Domestic sewage, foreign matter sewage, industrial wastewater
  • Frequency：50/60Hz
  • Motor : 2 Pole - Dry Submersible Motor
  • Insulation level: Class B (1-3HP) Class F (above 5HP)
  • Waterproof level：IP68
  • Protection device : 3∅ motor overload protector / 1∅ 1-2HP thermal protector
  • Bearings: deep groove ball bearings
  • Shaft seal: double-pack mechanical shaft seal
  • Impeller: centrifugal semi-open
  • Upper cover：FC200
  • Motor body：SUS304
  • Axis：SUS304
  • Shaft seal：SIC/SIC
  • Pump body：FC200
  • Impeller：FC200
  • Cable：VCT

手風琴選單

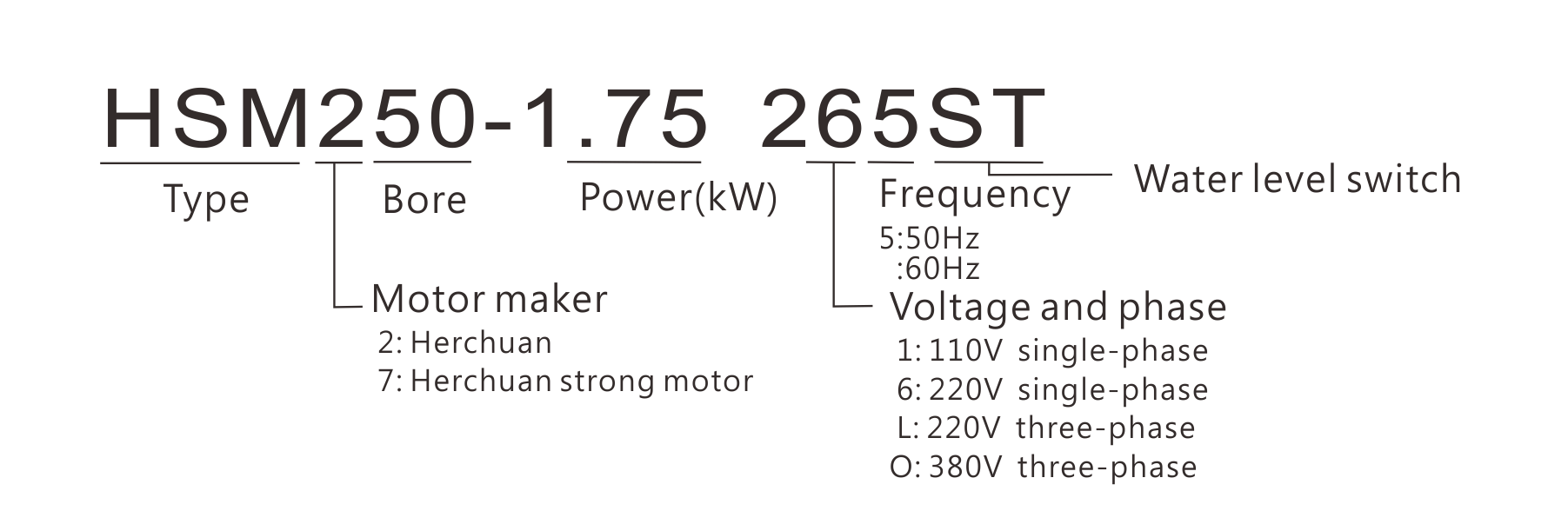

TYPE POWER BORE PHASE HEAD CAPACITY MAX HEAD MAX CAPACITY WEIGHT
HP(kW) Inch(mm) ∅ M M³/min M M³/min Kg
HSM150-1.37 21 ½ (0.37) 2" (50) 1 5 0.13 8 0.24 15
HSM250-1.75 21(L) 1 (0.75)
 2" (50) 1 / 3 11 0.16 17.5 0.34 23
HSM280-1.75 21(L) 1 (0.75) 3" (80)
 1 / 3 6 0.30 10 0.64 23
HSM250-11.5 26(L) 2 (1.5) 2" (50) 1 / 3 8 0.26 16 0.48 31
HSM280-11.5 26(L) 2 (1.5) 3" (80) 1 / 3 6 0.28 15 0.57 31
HSM250-12.2 26(L) 3 (2.2) 4" (100) 1 / 3 11 0.30 22 0.55 40
HSM280-12.2 26(L) 3 (2.2) 3" (80) 1 / 3 11 0.35 22 0.65 40
HSM2100-12.2 26(L) 3 (2.2) 4" (100) 1 / 3 10 0.40 21 0.70 40
HSM280-13.7 2L(O) 5 (3.7) 3" (80) 3 14 0.50 28 0.80 44
HSM2100-13.7 2L(O) 5 (3.7) 4" (100) 3 13 0.70 26 1.0 44
HSM2100-15.5 2L(O) 7½ (5.5) 4" (100) 3 11 0.80 23 1.4 70
HSM2100-17.5 21(O) 10 (7.5) 4" (100) 3 14 0.80 27 1.5 80

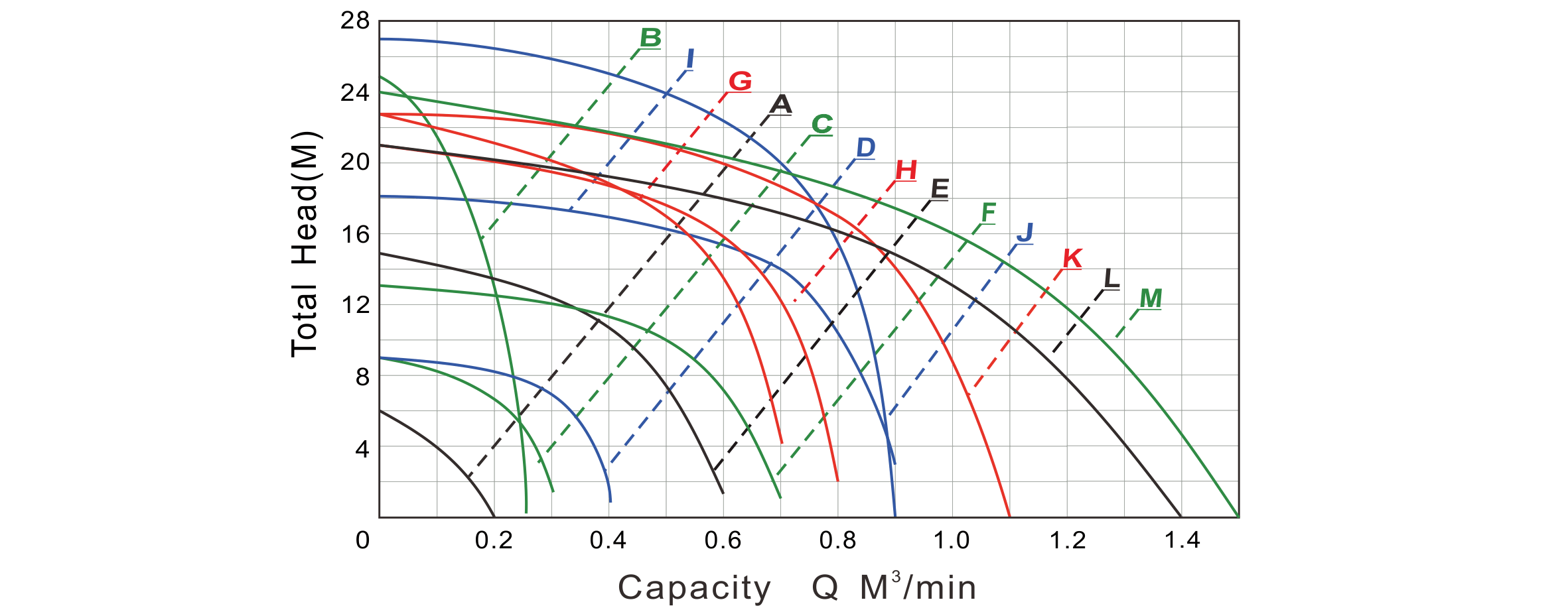

TYPE POWER BORE PHASE HEAD CAPACITY MAX HEAD MAX CAPACITY WEIGHT CODE
HP(kW) Inch(mm) ∅ M M³/min M M³/min Kg
HSM150-1.37 265 ½ (0.37) 2" (50) 1 4 0.10 6 0.20 15 A
HSM730-1.75 265 1 (0.75) 1¼" (30) 1 18 0.15 25 0.25 20 B
HSM250-1.75 265 1 (0.75) 2" (50) 1 / 3 7 0.20 9 0.30 23 C
HSM280-1.75 265 1 (0.75) 3" (80) 1 / 3 7 0.30 9 0.40 23 D
HSM250-11.5 265 2 (1.5) 2" (50) 1 / 3 11 0.40 15 0.60 31 E
HSM280-11.5 265 2 (1.5) 3" (80) 1 / 3 10 0.50 13 0.70 31 F
HSM250-12.2 2O5 3 (2.2) 2" (50) 1 / 3 17 0.50 23 0.70 52 G
HSM280-12.2 2O5 3 (2.2) 3" (80) 1 / 3 16 0.60 21 0.80 52 H
HSM2100-12.2 2O5 3 (2.2) 4" (100) 3 14 0.70 18 0.90 52 I
HSM280-13.7 2O5 5 (3.7) 3" (80) 3 20 0.70 27 0.90 70 J
HSM2100-13.7 2O5 5 (3.7) 4" (100) 3 17 0.80 23 1.10 70 K
HSM2100-15.5 2O5 7½ (5.5) 4" (100) 3 15 0.90 21 1.4 71 L
HSM2100-17.5 2O5 10 (7.5) 4" (100) 3 16 1.0 24 1.5 81 M



手風琴選單

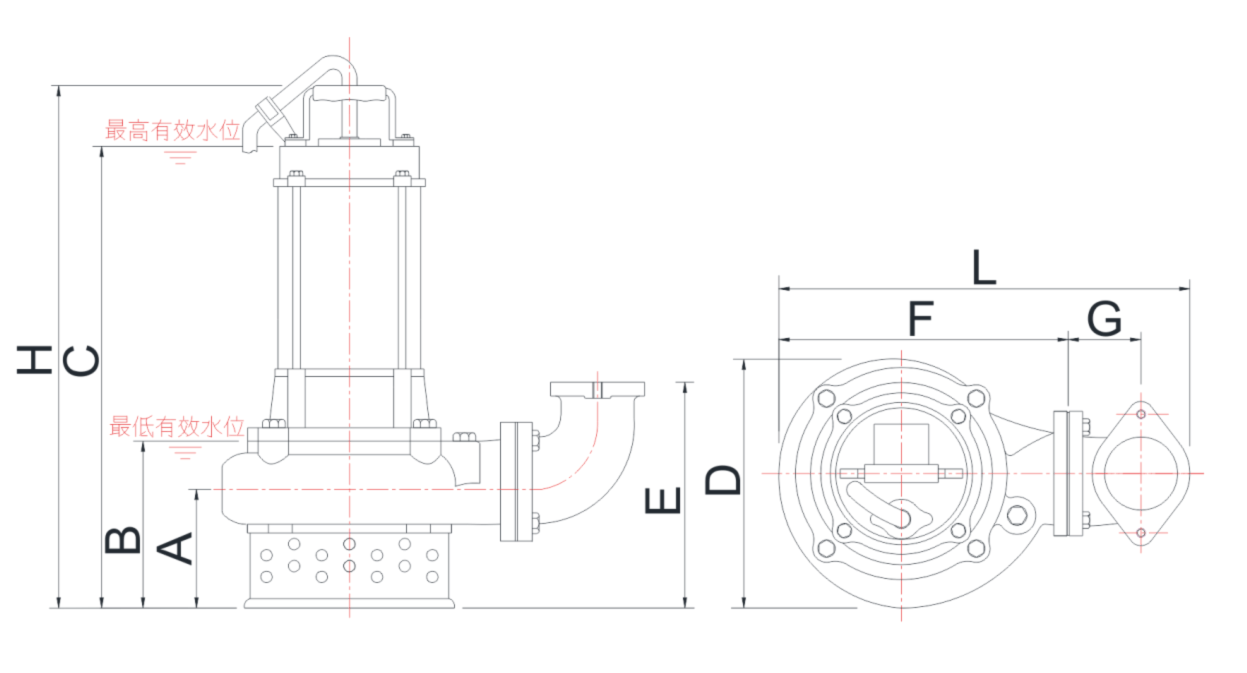

TYPE PHASE A B C D E F G H L
HSM150-1.37 21(6) 1 55 95 330 130 100 - - 385 220
HSM250-1.75 21(L) 1 / 3 85 110 375 165 130 - - 435 245
HSM280-1.75 21(L) 1 / 3 90 140 400 170 130 - - 460 280
HSM280-11.5 26 1 115 155 540 175 205 80 220 605 355
HSM280-11.5 2L 3 115 155 440 175 205 80 220 505 355
HSM280-12.2 26 1 110 140 520 205 200 80 240 580 380
HSM280-12.2 2L 3 110 140 435 205 200 80 240 495 380
HSM2100-12.2 2L 3 110 140 435 205 285 87 240 495 375
HSM280-13.7 2L 3 110 135 455 210 190 80 240 510 370
HSM2100-13.7 2L 3 110 135 455 210 275 87 240 510 375
HSM2100-15.5 2L 3 125 180 545 210 300 87 275 620 405
HSM2100-17.5 2L 3 125 180 560 260 300 87 305 640 440


TYPE PHASE A B C D E F G H L
HSM150-1.37 265 1 55 95 330 130 100 - - 385 220
HSM730-1.75 265 1 55 80 345 140 80 - - 400 230
HSM250-1.75 26(O)5 1 / 3 85 110 375 165 130 - - 435 245
HSM280-1.75 26(O)5 1 / 3 90 140 400 170 130 - - 460 280
HSM280-11.5 265 1 115 155 540 175 205 80 220 605 355
HSM280-11.5 2O5 3 115 155 440 175 205 80 220 505 355
HSM280-12.2 265 1 110 140 520 205 200 80 240 580 380
HSM280-12.2 2O5 3 110 140 435 205 200 80 240 495 380
HSM2100-12.2 2O5 3 110 140 435 205 285 87 240 495 375
HSM280-13.7 2O5 3 110 135 455 210 190 80 240 510 370
HSM2100-13.7 2O5 3 110 135 455 210 275 87 240 510 375
HSM2100-15.5 2O5 3 125 180 545 210 300 87 275 620 405
HSM2100-17.5 2O5 3 125 180 560 260 300 87 305 640 440
