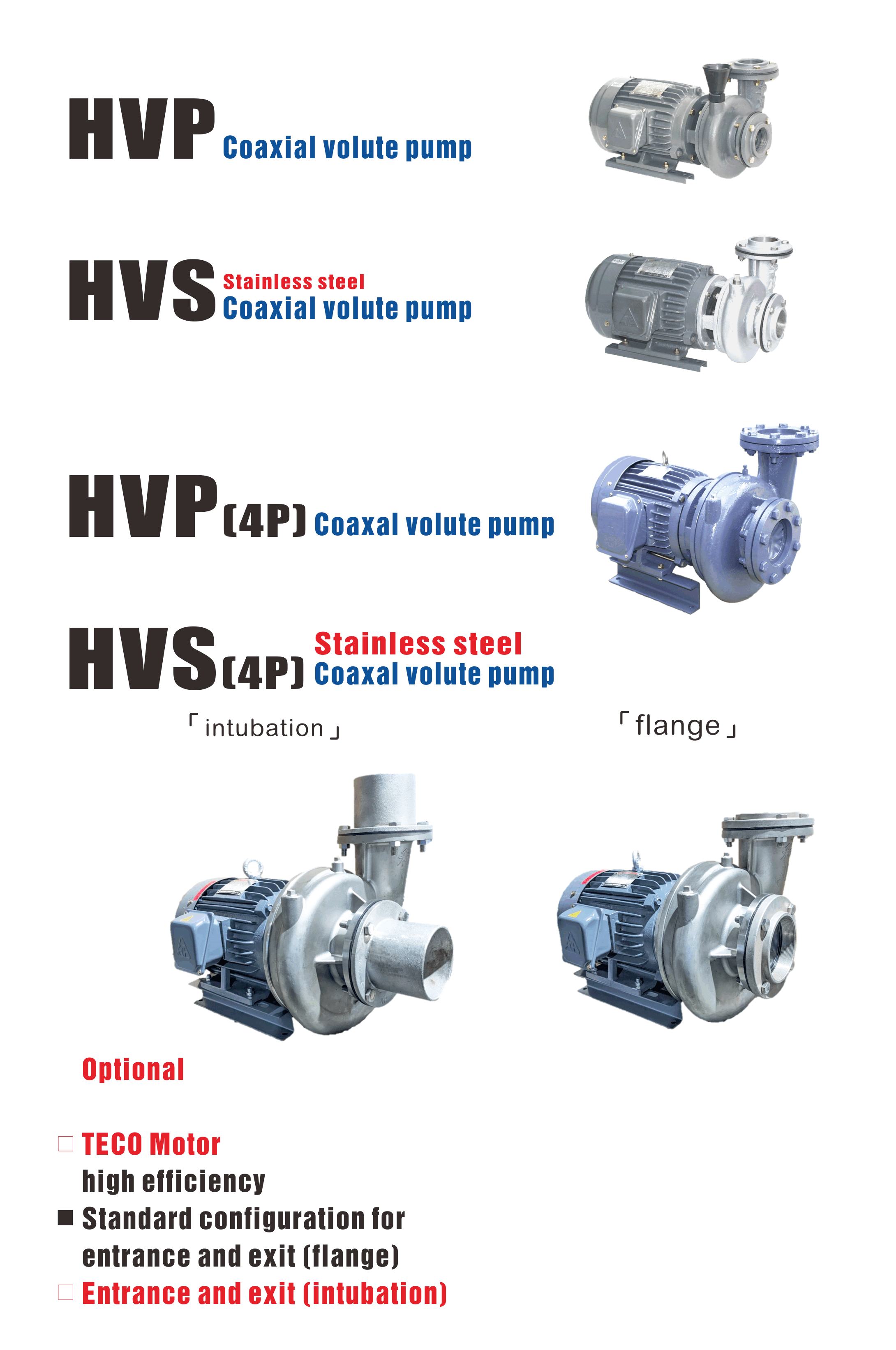

Coaxal Volute Pump

Model : HVP series



手風琴選單
  • building
  • School
  • Hospital
  • Amusement park
  • Various types of air conditioning systems
  • General water pumping
  • Circulating water system
  • Industrial water equipment

  • This model is compact and strong, does not take up space, and has good water absorption performance.
  • Solid ideal fluid design enables high-efficiency water supply and large water pumping volume.
  • Teco and Hechuan motors are quiet and quiet, especially suitable for various types of hospitals, school office buildings and places where silence is required.
  • Ambient temperature：MAX.+40°C
  • Liquid temperature：+4°C~+40°C
  • Applicable liquids: It is better to transport clean water; or liquids with no chemical substances, no solid particles, and properties close to water.
手風琴選單


TYPE POWER BORE MAX CAPACITY MAX HEAD WEIGHT CURVE CODE
HP(KW) Inch(mm) L/min M Kg
HVP225-1.37 2 ½(0.37) 1" (25) 120 13 23 1
HVP240-1.75 2 1 (0.75) 1½"(40) 270 15 24 2
HVP240-11.5 2 2 (1.5) 1½"(40) 340 21 32 3
HVP250-11.5 2 2 (1.5) 2" (50) 360 17 32 4
HVP250-12.2 2 3 (2.2) 2" (50) 400 28 36 5
HVP265-12.2 2 3 (2.2) 2½" (65) 840 25 36 6
HVP280-12.2 2 3 (2.2) 3" (80) 870 25 51 7
HVP250-13.7 2 5 (3.7) 2" (50) 395 41 51 8
HVP265-13.7 2 5 (3.7) 2½" (65) 570 35 51 9
HVP280-13.7 2 5 (3.7) 3" (80) 1200 28 51 10
HVP250-15.5 2 7½(5.5) 2" (50) 441 45 90 11
HVP280-15.5 2 7½(5.5) 3" (80) 1150 38 90 12


TYPE POWER BORE MAX CAPACITY MAX HEAD WEIGHT CURVE CODE
HP(KW) Inch(mm) L/min M Kg
HVP2100-15.5 2 7½(5.5) 4" (100) 1870 25 90 13
HVP250-17.5 2 10 (7.5) 2" (50) 423 57 140 14
HVP280-17.5 2 10 (7.5) 3"(80) 1140 45 140 15
HVP2100-17.5 2 10 (7.5) 4" (100) 1980 35 140 16
HVP280-111 2 15 (11) 3" (80) 1225 73 180 17
HVP2100-111 2 15 (11) 4" (100) 2070 47 180 18
HVP2125-111 2 15 (11) 5" (125) 2990 26 180 19

TYPE POWER BORE MAX CAPACITY MAX HEAD WEIGHT CURVE CODE
HP(KW) Inch(mm) L/min M Kg
HVP280-13.7 4 5 (3.7) 3" (80) 1015 17 82 0
HVP2100-13.7 4 5 (3.7) 4" (100) 1285 15 82 1
HVP2100-15.5 4 7½ (5.5) 4" (100) 1834 18 124 2
HVP2100-17.5 4 10 (7.5) 4" (100) 1978 22 138 3
HVP2125-17.5 4 10 (7.5) 5" (125) 2045 25 150 4
HVP2100-111 4 15 (11) 4" (100) 1826 29 175 5
HVP2125-111 4 15 (11) 5" (125) 2446 36 185 6
HVP2150-111 4 15 (11) 6" (150) 3265 33 190 7
HVP2125-115 4 20 (15) 5" (125) 2650 41 210 8
HVP2150-115 4 20 (15) 6" (150) 3420 37 220 9
HVP2125-119 4 25 (19) 5" (125) 2865 50 260 10
HVP2150-119 4 25 (19) 6" (150) 3355 42 270 11
HVP2200-119 4 25 (19) 8" (200) 4500 29 280 12
HVP2125-122 4 30 (22) 5" (125) 3000 57 290 13
HVP2150-122 4 30 (22) 6" (150) 3500 49 310 14
HVP2200-122 4 30 (22) 8" (200) 4800 37 320 15
HVP2200-130 4 40 (30) 8" (200) 5700 42 410 16

2750rpm 3 phases 2P (Unit:L/min)
TYPE HP BORE 5M 10M 15M 20M 25M 30M 35M 40M 45M 50M 55M 60M 65M 70M 75M
HVP340-1.75 2O5 1 1½" (40)
 160 20 - - - - - - - - - - - - -
HVP340-11.5 2O5 2 1½" (40) 280 250 170 70 - - - - - - - - - - -
HVP350-11.5 2O5 2 2" (50) 390 300 170 - - - - - - - - - - - -
HVP350-12.2 2O5 3 2"(50) 300 290 200 160 - - - - - - - - - - -
HVP365-12.2 2O5 3 2½"(65) 480 330 100 - - - - - - - - - - - -
HVP380-12.2 2O5 3 3"(80) 570 410 150 - - - - - - - - - - - -
HVP380-13.7 2O5 5 3"(80) 630 600 580 480 270 - - - - - - - - - -
HVP380-15.5 2O5 7½ 3"(80) 630 600 580 550 450 370 330 - - - - - - - -
HVP3100-15.5 2O5 7½ 4"(100) 1470 1260 970 600 - - - - - - - - - - -
HVP380-17.5 2O5 10 3"(80) 650 630 610 590 570 560 450 370 230 - - - - - -
HVP3100-17.5 2O5 10 4"(100) 1660 1470 1130 870 410 - - - - - - - - - -
HVP380-111 2O5 15 3"(80) - - 845 840 835 830 825 820 650 455 275 - - - -
HVP3100-111 2O5 15 4"(100) 1880 1820 1700 1510 1330 1110 670 - - - - - - - -
HVP3125-111 2O5 15 5"(125) 2540 2130 1820 1290 220 - - - - - - - - - -
HVP380-115 2O5 20 3"(80) - - 910 905 895 885 845 820 650 455 275 - - - -
HVP3100-115 2O5 20 4"(100) 2320 2220 2130 1970 1760 1510 1260 910 - - - - - - -
HVP3125-115 2O5 20 5"(125) 2800 2690 2320 1880 1360 780 - - - - - - - - -
HVP380-119 2O5 25 3"(80) 920 910 900 890 885 865 845 835 820 820 440 440 - - -
HVP3100-119 2O5 25 4"(100) 1680 1660 1650 1640 1580 1510 1330 1130 950 750 390 - - - -
HVP3125-119 2O5 25 5"(125) - - 3220 3050 2640 2200 1620 790 - - - - - - -
HVP3150-119 2O5 25 6"(150) 3790 3740 3430 3110 2750 1970 - - - - - - - - -
HVP3100-122 2O5 30 4"(100) 1620 1580 1560 1540 1470 1360 1330 1290 1230 880 630 - - - -
HVP3125-122 2O5 30 5"(125) - 3340 3280 3110 2880 2460 2060 1340 500 - - - - - -
HVP3150-122 2O5 30 6"(150) 4040 3770 3490 3190 2830 2170 1160 - - - - - - - -
HVP3100-130 2O5 40 4"(100) 1780 1740 1720 1700 1690 1680 1660 1640 1620 1150 750 500 - - -
HVP3125-130 2O5 40 5"(125) - 3950 3910 3875 3600 2600 2000 1500 - - - - - - -
HVP3150-130 2O5 40 6"(150) 4670 4530 4210 3870 3340 2750 1930 - - - - - - - -
HVP3100-137 2O5 50 4"(100) 1820 1760 1700 1700 1680 1680 1620 1620 1560 1560 1540 1540 1360 1070 610
HVP3125-137 2O5 50 5"(125) 4240 4190 4170 4150 4110 3970 3190 2440 1360 - - - - - -
HVP3150-137 2O5 50 6"(150) 4310 4240 4220 4170 4140 3970 3580 3050 2410 - - - - - -
2750rpm 1 phase 2P (Unit:L/min)
TYPE HP BORE 5M 10M 15M 20M 25M 30M 35M 40M 45M 50M 55M 60M 65M 70M 75M
HVP340-1.75 265 1 1½" (40)
 160 20 - - - - - - - - - - - - -
HVP340-11.5 265 2 1½" (40) 280 250 170 70 - - - - - - - - - - -
HVP350-11.5 265 2 2" (50) 390 300 170 - - - - - - - - - - - -
HVP350-12.2 265 3 2"(50) 300 290 200 160 - - - - - - - - - - -
HVP380-12.2 265 3 3"(80) 570 410 150 - - - - - - - - - - - -
1450rpm 3 phases 4P (Unit:L/min)
TYPE HP BORE 5M 10M 15M 20M 25M 30M 35M 40M 45M 50M 55M 60M 65M 70M 75M
HVP380-13.7 4O5 5 3" (80)
 720 620 425 - - - - - - - - - - - -
HVP3100-15.5 4O5 7½ 4" (100) 1630 1330 800 - - - - - - - - - - - -
HVP3100-17.5 4O5 10 4" (100) 1840 1670 1440 1120 - - - - - - - - - - -
HVP3100-111 4O5 15 4"(100) 1735 1735 1735 1640 1200 - - - - - - - - - -
HVP3125-111 4O5 15 5"(125) 1960 1840 1720 1400 920 - - - - - - - - - -
HVP3150-111 4O5 15 6"(150) 2605 2480 2270 - - - - - - - - - - - -
HVP3125-115 4O5 20 5"(125) 2640 2480 2320 2000 1360 - - - - - - - - - -
HVP3150-115 4O5 20 6"(150) 3510 3480 3160 2580 - - - - - - - - - - -
HVP3125-119 4O5 25 5"(125) 3600 3360 2960 2480 2080 1840 1200 - - - - - - - -
HVP3150-119 4O5 25 6"(150) 3560 3560 3480 3190 2290 - - - - - - - - - -
HVP3200-119 4O5 25 8"(200) 4000 3600 3360 2960 2320 - - - - - - - - - -
HVP3150-122 4O5 30 6"(150) 3560 3560 3640 3190 2505 - - - - - - - - - -
HVP3200-122 4O5 30 8"(200) 6005 5285 4455 3910 - - - - - - - - - - -
HVP3150-130 4O5 40 6"(150) 4480 4320 4160 3840 3040 - - - - - - - - - -
HVP3200-130 4O5 40 8"(200) 6040 5800 5280 4485 3280 - - - - - - - - - -
HVP3200-137 4O5 50 8"(200) 6480 6160 5760 5200 4240 2880 - - - - - - - - -
手風琴選單



TYPE A B C D E F H I J K L
HVP225-1.37 2 79 260
 85 95 110 206 202 230 ∅80X4-∅9 50 340
HVP240-1.75 2 79 265 90 95 125 206 202 230 ∅80X4-∅9 50 360
HVP240-11.5 2 83 315 100 120 140 206 238 230 ∅100X4-∅10 60 405
HVP250-11.5 2 83 315 100 120 140 206 238 230 ∅100X4-∅11 60 405
HVP250-12.2 2 83.5 330 100 130 140 206 252 230 ∅125X4-∅13 75 430
HVP265-12.2 2 83.5 325 105 130 140 206 255 230 ∅125X4-∅13 75 430
HVP280-12.2 2 83.5 325 105 130 140 206 255 230 ∅125X4-∅13 75 430
HVP280-12.2 2 104 360 130 130 140 206 285 230 ∅125X4-∅13 75 480
HVP250-13.7 2 104 360 130 130 190 265 285 300 ∅125X4-∅13 75 480
HVP265-13.7 2 104 360 130 130 190 265 285 300 ∅125X4-∅13 75 480
HVP280-13.7 2 104 360 130 130 190 265 295 300 ∅125X4-∅13 75 480
HVP250-15.5 2 104 410 155 145 205 265 310 300 ∅125X4-∅13 75 520
HVP280-15.5 2 104 410 155 145 205 265 310 300 ∅125X4-∅13
 75 520
HVP2100-15.5 2 110 430 155 170 220 265 330 300 ∅155X4-∅17
 91 540
HVP250-17.5 2 134 470 170 150 210 276 350 300 ∅125X4-∅13
 90 585
HVP280-17.5 2 134 470 170 150 210 276 350 300 ∅150X8-∅17
 90 585
HVP2100-17.5 2 134 420 210 130 215 300 375 350 ∅175X8-∅19 95 560
HVP280-111 2 134 485 220 150 250 350 420 400 ∅150X8-∅19 92 680
HVP2100-111 2 131 510 220 180 250 350 410 400 ∅175X8-∅19 105 710
HVP2125-111 2 131 510 220 180 250 350 395 400 ∅210X8-∅19 125 710
HVP2100-115 2 131 510 235 180 250 350 405 400 ∅175X8-∅19 105 710


TYPE A B C D E F H I J L
HVP280-13.7 4 140 422
 182 112 190 250 362 300 83 509
HVP2100-15.5 4 160 450 202 151 216 300 395 350 100 584
HVP2100-17.5 4 160 484 202 170 216 250 422 300 100 614
HVP2125-17.5 4 160 484 202 170 216 250 422 300 100 614
HVP2100-111 4 160 529 230 166 254 350 450 400 100 707
HVP2125-111 4
 160 548 230 166 254 350 450 400 95 727
HVP2150-111 4 172 575 230 176 254 350 470 400 120 753
HVP2125-115 4 160 541 230 187 254 350 470 400 95 757
HVP2150-115 4 172 568 230 198 254 350 470 400 120 793
HVP2125-119 4 235 676 280 173 279 450 520 500 107 854
HVP2150-119 4 206 647 280 185 279 450 560 500 206 865
HVP2200-119 4 220 686 280 192 279 450 560 500 135 897
HVP2125-122 4 235 676 280 174 279 450 560 500 107 854
HVP2150-122 4 235 676 280 174 279 450 560 500 107 854
HVP2200-122 4 220 686 280 192 279 450 560 500 135 897
HVP2200-130 4 220 690 280 207 279 450 560 500 135 936
手風琴選單
TYPE A B C D E F H I J L
HVP340-1.75 265 70 265 96 167 125 206 218 230 47 355
HVP340-11.5 265 85 295 106 178 140 237 253 260 62 413
HVP350-11.5 265 85 295 106 178 140 237 253 260 62 413
HVP350-12.2 265 91 306 106 178 140 237 260 260 72 410
HVP365-12.2 265 91 306 106 178 140 237 260 260 72 410
HVP380-13.7 2O5 91 348 138 236 190 264 312 300 72 480
HVP380-15.5 2O5 91 348 158 236 220 264 312 300 78 548
HVP380-17.5 2O5 123 416 158 277 216 264 366 300 78 548
HVP3100-17.5 2O5 123 437 158 284 216 264 366 300 90 556
HVP380-111 2O5 129 454 230 124 270 348 401 400 98 680
HVP3100-111 2O5 129 475 230 137 270 348 401 400 77 705
HVP3125-111 2O5 138 520 230 140 230 348 428 400 90 714
HVP380-115 2O5 123 454 230 124 230 348 388 400 98 680
HVP3100-115 2O5 129 475 230 137 270 348 401 400 77 705
HVP3125-115 2O5 138 520 230 140 230 348 428 400 90 714
HVP380-119 2O5 171 532 230 182 230 460 430 500 98 790
HVP3100-119 2O5 171 532 230 182 230 460 430 500 98 790
HVP3125-119 2O5 165 480 210 157 225 250 555 450 95 920
HVP3150-119 2O5 129 532 230 140 230 460 430 500 98 825
HVP3100-122 2O5 171 532 250 155 250 460 455 500 92 795
HVP3125-122 2O5 160 480 241 185 276 350 622 450 100 920
HVP3150-122 2O5 165 532 250 155 250 460 538 500 137 855
HVP3100-130 2O5 171 712 270 155 270 460 470 450 92 860
HVP3125-130 2O5 165 480 262 292 302 350 555 450 110 920
HVP3150-130 2O5 165 712 270 160 270 460 548 500 137 875
HVP3100-137 2O5 165 680 300 205 320 490 555 550 120 985
HVP3125-137 2O5 165 680 300 205 320 490 555 550 120 985
HVP3150-137 2O5 162 680 300 205 320 490 555 550 120 985



TYPE A B C D E F H I J L
HVP380-13.7 4O5 140 422
 182 112 190 250 362 300 83 509
HVP3100-15.5 4O5 160 490 202 151 216 250 422 300 100 584
HVP3100-17.5 4O5 160 484 202 170 216 250 422 300 100 614
HVP3100-111 4O5 160 529 230 166 254 350 450 400 100 707
HVP3125-111 4O5 160 548 230 166 254 350 450 400 95 727
HVP3150-111 4O5 172 575 230 176 254 350 470 400 120 753
HVP3125-115 4O5 160 541 230 187 254 350 470 400 95 757
HVP3150-115 4O5 172 568 230 198 254 350 470 400 120 793
HVP3125-119 4O5 235 676 280 173 279 450 520 500 107 854
HVP3150-119 4O5 206 647 280 185 279 450 560 500 206 865
HVP3200-119 4O5 220 686 280 192 279 450 560 500 135 897
HVP3150-122 4O5 235 676 280 174 279 450 560 500 107 854
HVP3200-122 4O5 220 686 280 192 279 450 560 500 135 897
HVP3150-130 4O5 220 660 280 207 279 450 550 500 110 875
HVP3200-130 4O5 220 690 280 207 279 450 560 500 135 936
HVP3200-137 4O5 253 700 300 180 320 600 622 650 150 970
