• Hot water type electronic pressure pump

Hot water type electronic pressure pump

Model : EQH series

手風琴選單
    Suitable for conveying clean water without impurities. General applications include:
  • Apartment
  • Residential water supply
  • Automatic boosting system
  • Pumping system
  • Drinking water system
  • Sprinkler system

  • When using water, the press will run automatically when the faucet is opened. It operates quietly and maintains a stable water flow with a large water output.It won't be big or small suddenly, and the pressurizer will stop automatically when the water is turned off.
  • This pump is designed with computer control circuit.
  • This pump has a built-in protection switch.
  • Ambient temperature：MAX.+40°C
  • Liquid temperature：+4°C~+80°C
  • Inlet pressure: needs to be less than the pressure switch activation value
  • Inlet pressure: must be less than the pressure switch start value
  • Installation: The water tower needs to be 0.5m higher than the pump


手風琴選單

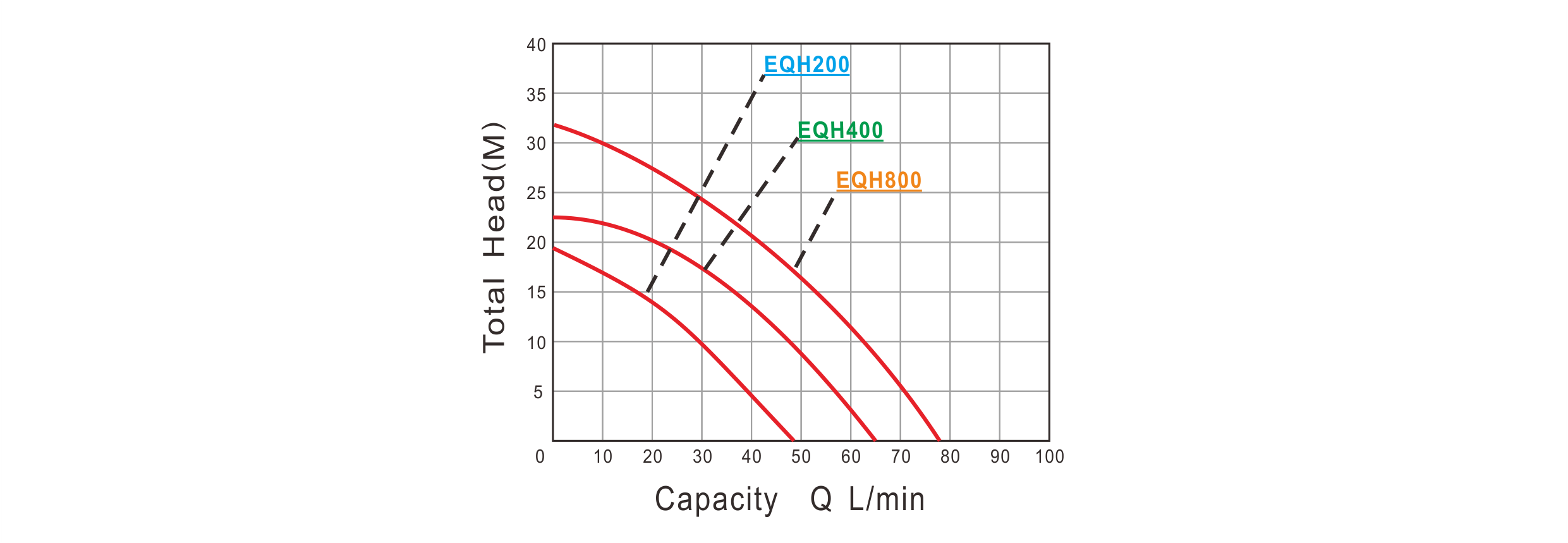

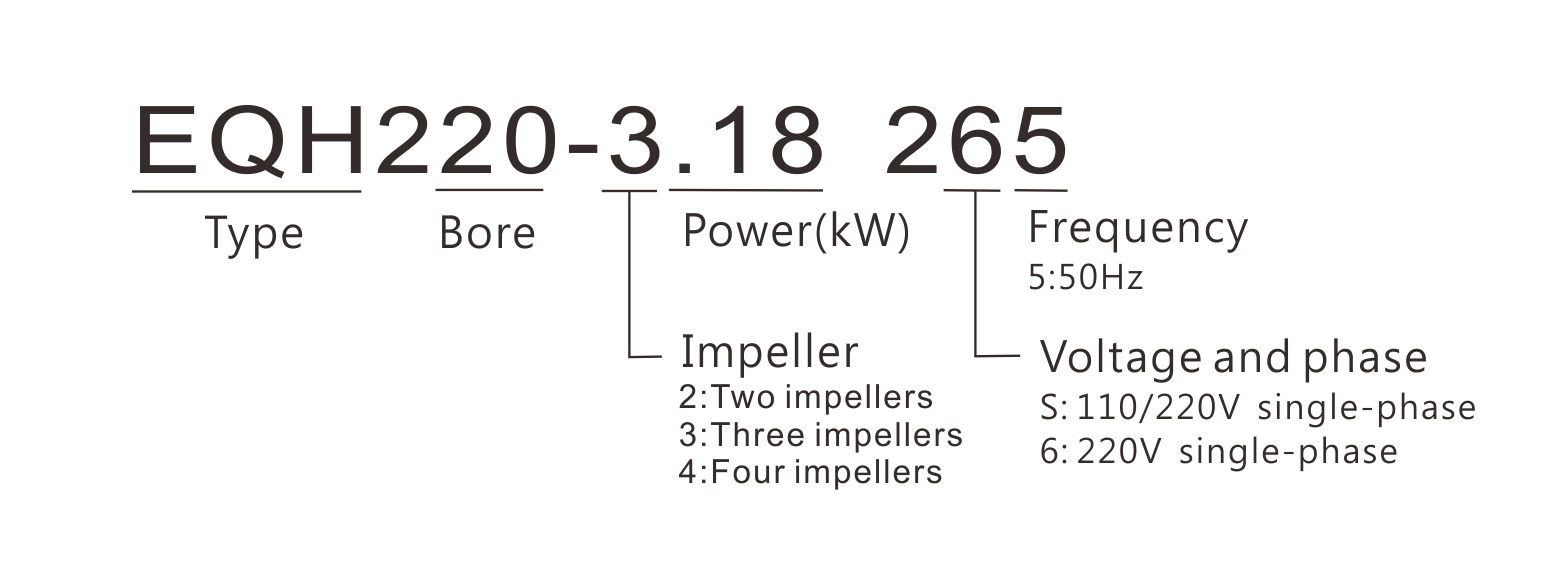

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT SERIES
HP(KW) Inch(mm) ∅ L/min M KG
EQH220-2.18 2S ¼ (0.18) ¾" (20)
 1 55 22 8 EQH200
EQH225-2.37 2S ½ (0.37) 1" (25) 1 70 26 9 EQH400
EQH225-3.75 2S 1 (0.75) 1" (25) 1 85 35 10.5 EQAH800

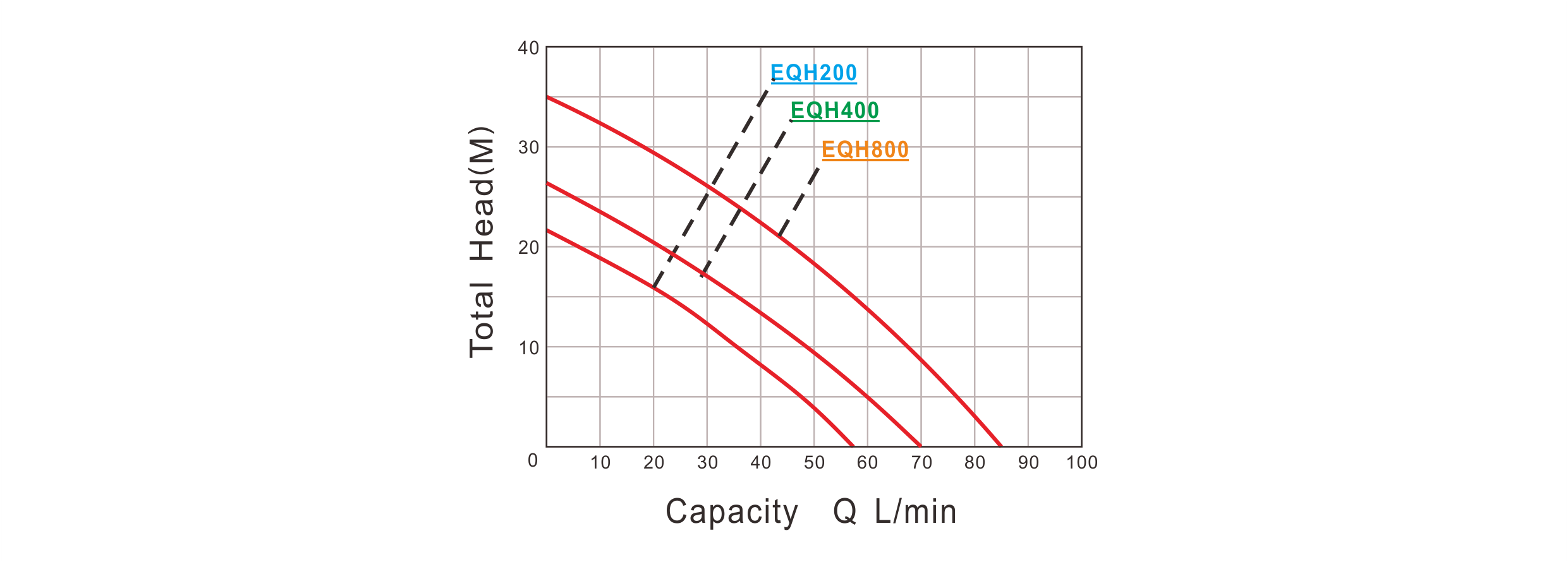

TYPE POWER BORE VOLTAGE MAX CAPACITY MAX HEAD MAX AMPS SERIES
HP(KW) Inch(mm) V L/min M A
EQH220-3.18 265 ¼ (0.18) ¾" (20)
 220-240 19 22 2.0 EQH200
EQH225-3.37 265 ½ (0.37) 1" (25) 220-240 23 26 2.6 EQH400
EQH225-4.75 265 1 (0.75) 1" (25) 220-240 85 35 3.8 EQH800
手風琴選單

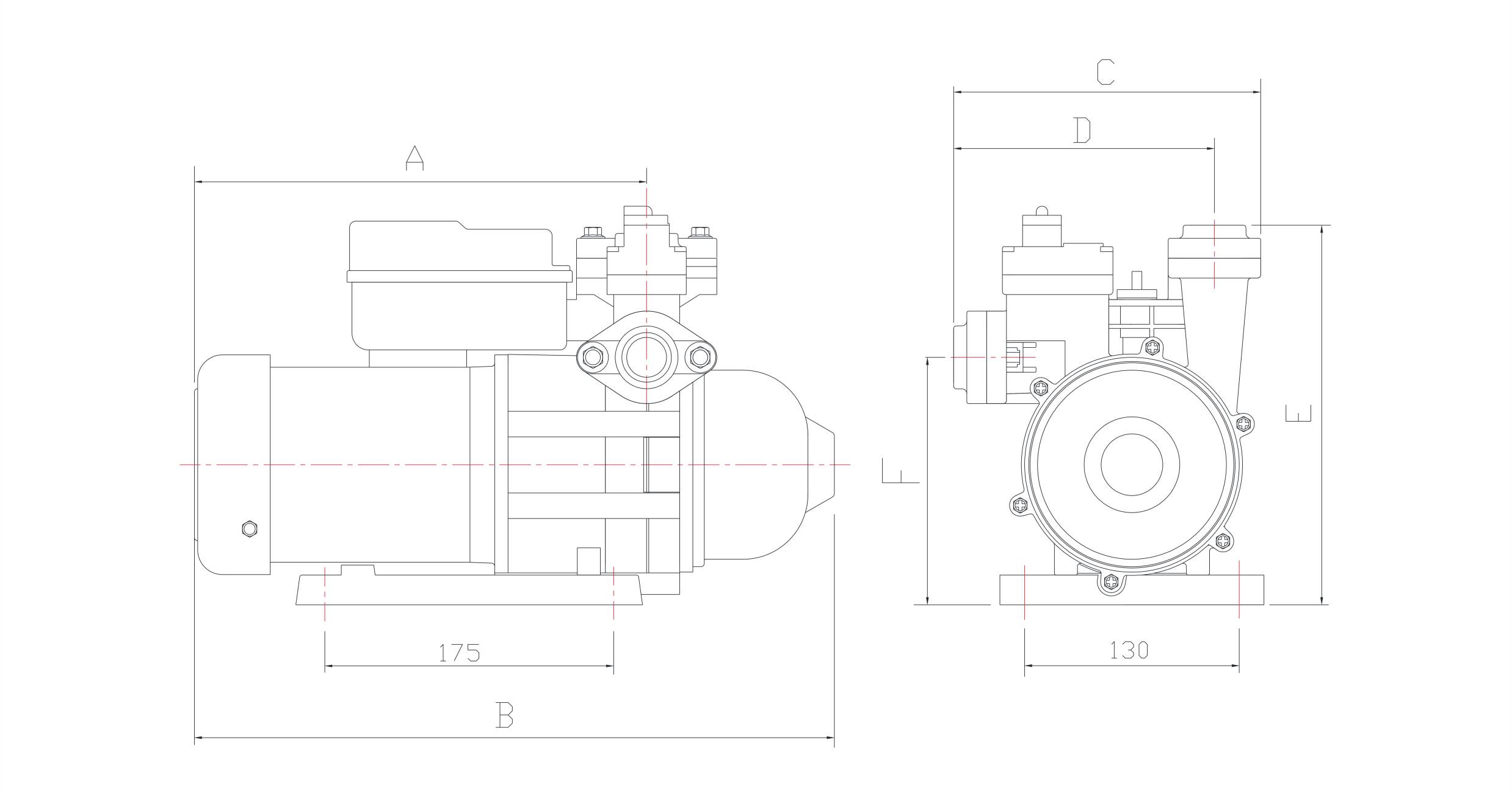

TYPE A B C D E F
EQH220-2.18 2S 260 375 185 158 230 151
EQH225-2.37 2S 260 375 185 158 230 151
EQH225-3.75 2S 285 400 185 158 230 151


TYPE A B C D E F
EQH220-3.18 265 280 400 185 158 230 151
EQH225-3.37 265 280 400 185 158 230 151
EQH225-4.75 265 330 450 185 158 230 151
