pipeline booster pump
Model :
PBP/PBS series
- This pump is suitable for hot and cold water pressurized circulation below 110 degrees. Especially the water heater (natural gas) due to insufficient water pressure If there is difficulty in ignition or unstable water pressure, installing this pump can completely solve the problem.
- This pump is suitable for hot and cold water pressurized circulation below 110 degrees. Especially the water heater (natural gas) due to insufficient water pressure If there is difficulty in ignition or unstable water pressure, installing this pump can completely solve the problem.
- When the tap water pressure is too low, pressurize the water supply.
- Low-pressure household washing machine water supply package.
- Boiler water circulation pressurization.
- Liquid pressurized circulation of industrial equipment.
-
This pump uses a stainless steel shielding sleeve to completely isolate water from the coil windings, eliminating the need for mechanical seals, thus completely Solve the problem of water pump; adopt high hardness stainless steel rotating shaft, graphite bearing, direct water circulation between stator and rotorring, which can be used for both cooling and bearing lubrication, and completely solves the noise problem; built-in automatic opening It is more convenient to install and use.
- home booster
- Quiet and low noise
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+110°C
- Applicable liquid: clean water
| TYPE | POWER | BORE | VOLTAGE | MAX CAPACITY | MAX HEAD |
|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | V | L/min | M | |
| PBP212-1.12 21(6) | ⅙ (0.12) |
½”（12） |
110-220 | 40 | 9 |

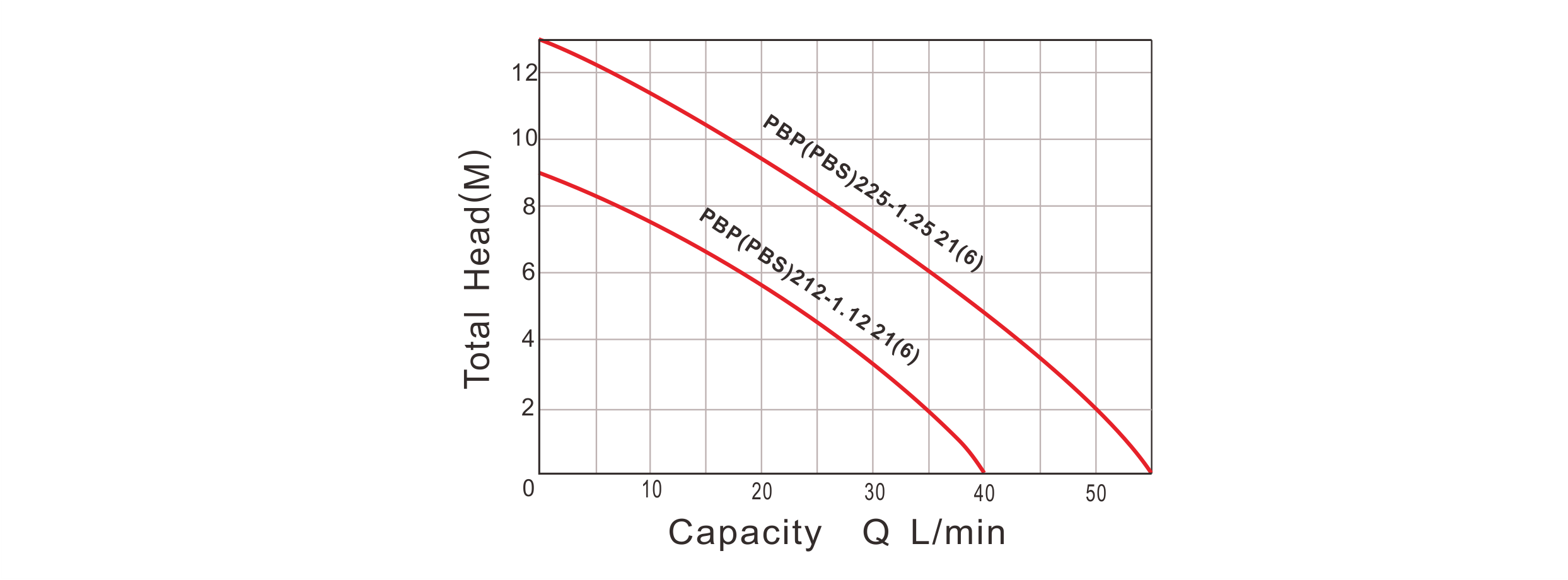

| PBP225-1.25 21(6) | ⅓ (0.25) | 1" (25) | 110-220 | 55 | 13 |
| TYPE | POWER | BORE | VOLTAGE | MAX CAPACITY | MAX HEAD |
|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | V | L/min | M | |
| PBP212-1.12 265 | ⅙ (0.12) |
½”（12） |
220-240 | 40 | 9 |

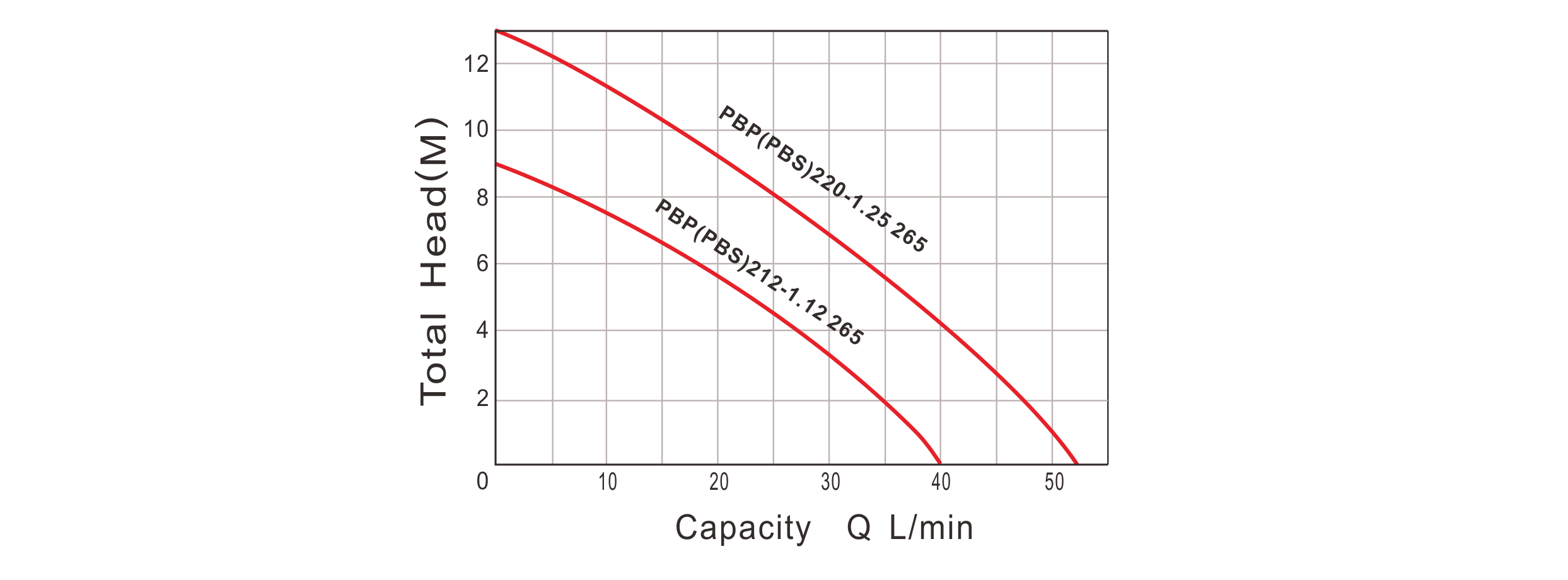

| PBP220-1.25 265 | ⅓ (0.25) | ¾"（20） | 220-240 | 55 | 13 |
