Jet pressure pump

Model : HJP series


手風琴選單 手風琴選單
  • General household use of water
  • Well water extraction
  • water tower
  • catering industry
  • sprinkler system
  • Automatic water supply to the building
  • mountain spring water
  • Use water equipment

  • Exquisite shape, small size, easy to install.
  • It can be equipped with automatic induction power-off device "no water power-off", pressurized barrel and automatic start-up pumping device, and there is no concern about gear noise.
  • The internal parts of the pump are made of plastic steel and #304 stainless steel pump casing. There are no problems such as copper chlorination and cast iron rust. It has the longest life and is pollution-free.
  • The Hechuan jet pump adopts the "jet" method to self-prime and guide well water. It has super strong water absorption capacity and can pump water deeper and deeper than ordinary gear pumps.And the amount of water is large, so it is the best weapon when there is no rain for a long time.
  • Ambient temperature：MAX.+40°C
  • Liquid temperature：+4°C~+40°C
  • Applicable liquid: clean water; or liquid without brine or solid particles that has properties close to water
  • Suction lift : Max.9.5m


手風琴選單

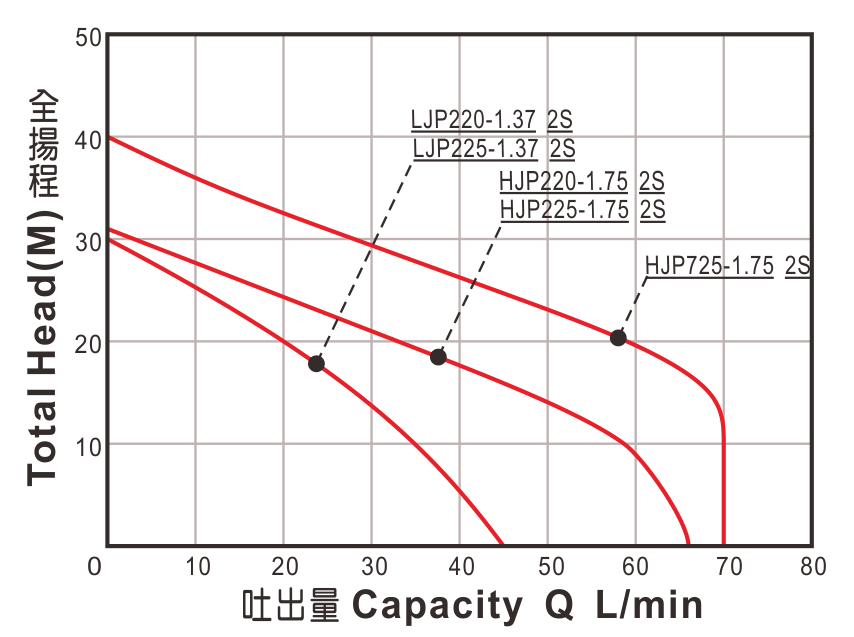

型號 馬力 口徑 相數 最大水量 最大揚程 重量
HP(KW) Inch(mm) ∅ L/min M KG
LJP220-1.37 2S ½(0.37) ¾”(20) 1 45 30 8.5
LJP225-1.37 2S ½(0.37) 1”(25) 1 45 30 8.5
LJP220-1.75 2S 1 (0.75) ¾”(20) 1 66 31 14
LJP225-1.75 2S 1 (0.75) 1”(25) 1 66 31 14
HJP725-1.75 2S 1 (0.75) 1”(25) 1 70 40 17

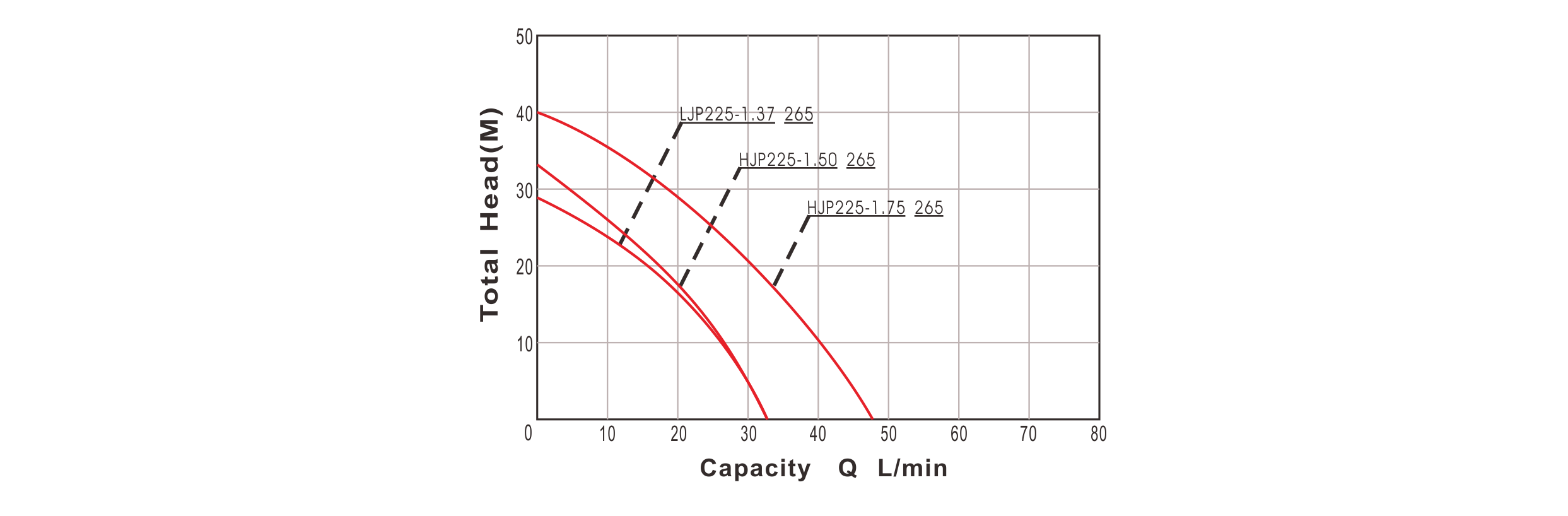

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT
HP(KW) Inch(mm) ∅ L/min M KG
LJP220-1.37 265 ½(0.37) ¾”(20) 1 32 29 8.5
HJP225-1.50 265 ⅔(0.5) 1”(25) 1 32 33 14
HJP225-1.75 265 1 (0.75) 1"（25） 1 47 40 17
手風琴選單

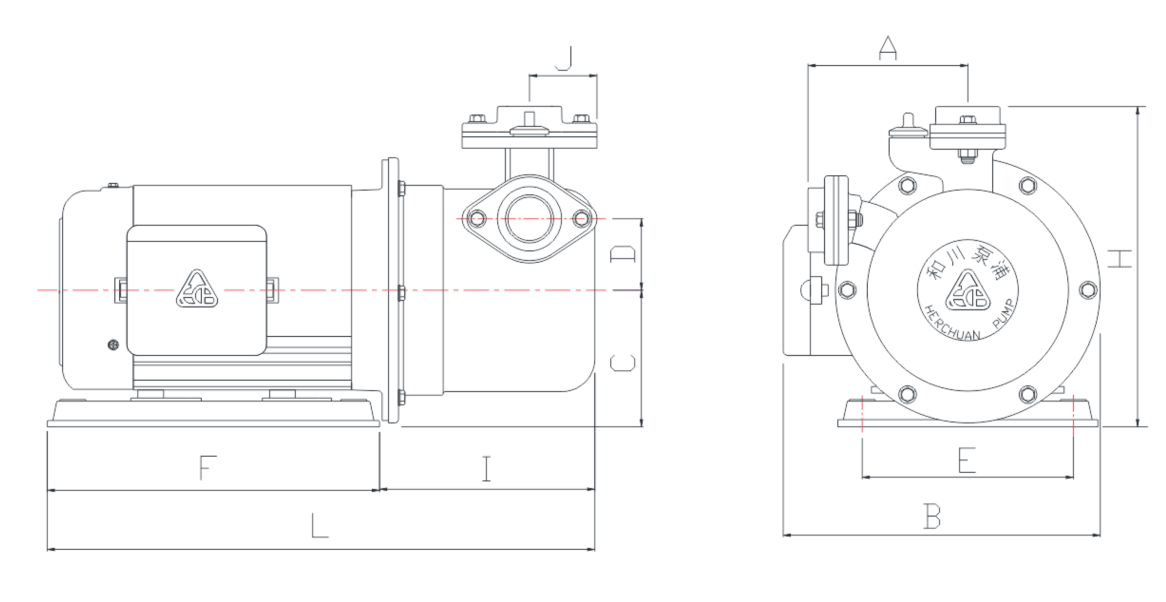

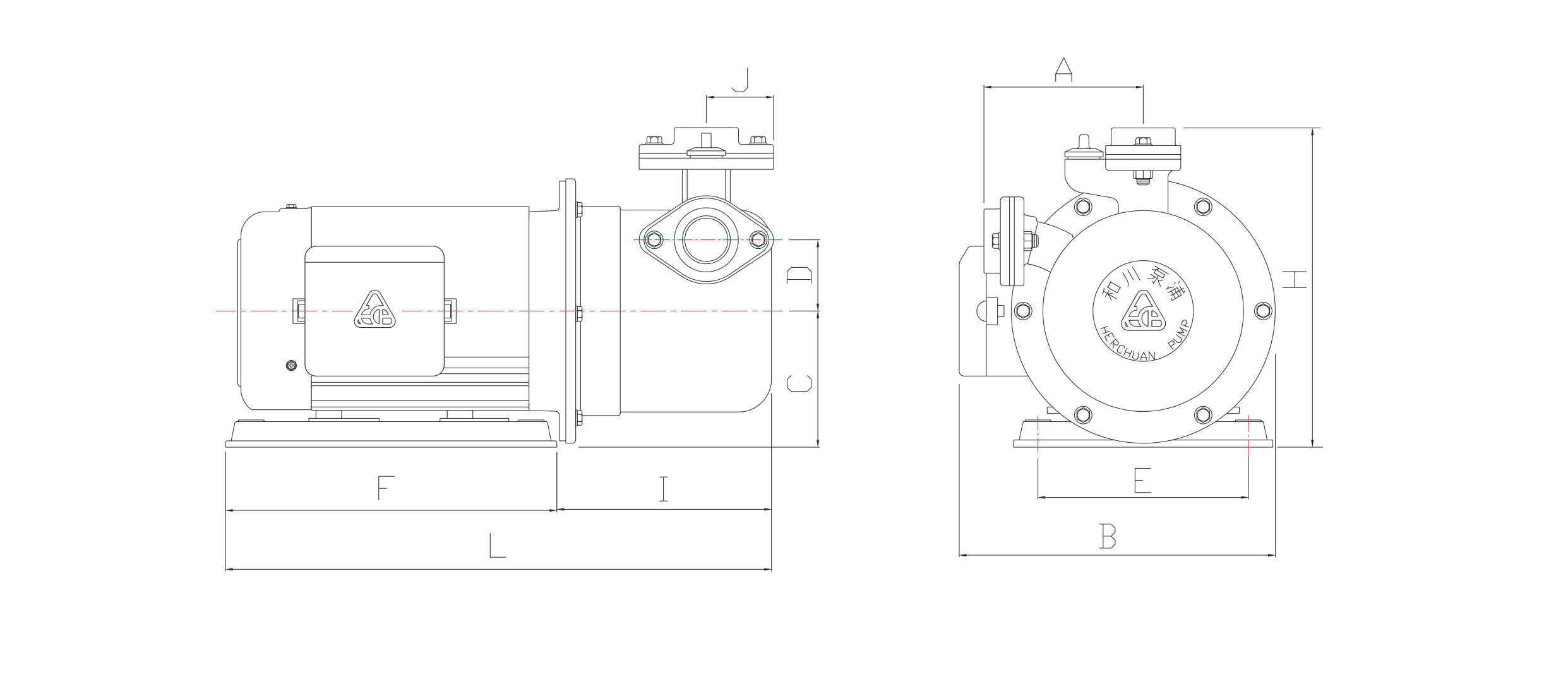

TYPE A B C D E F H I J L
LJP220-1.37 2S 100 190 70 45 130 210 195 130 45 345
LJP225-1.37 2S 100 190 70 45 130 210 195 130 45 345
HJP220-1.75 2S 100 210 70 45 130 210 190 130 45 345
HJP225-175 2S 100 210 70 45 130 210 190 130 45 345
HJP725-1.75 2S 100 215 120 45 145 172 205 185 45 345

TYPE A B C D E F H I J L
LJP225-1.37 265 100 196 90 45 130 207 195 135 45 345
HJP225-1.50 265 100 205 95 45 130 207 195 135 45 345
HJP225-1.75 265 100 232 120 45 110 120 205 187 45 375
