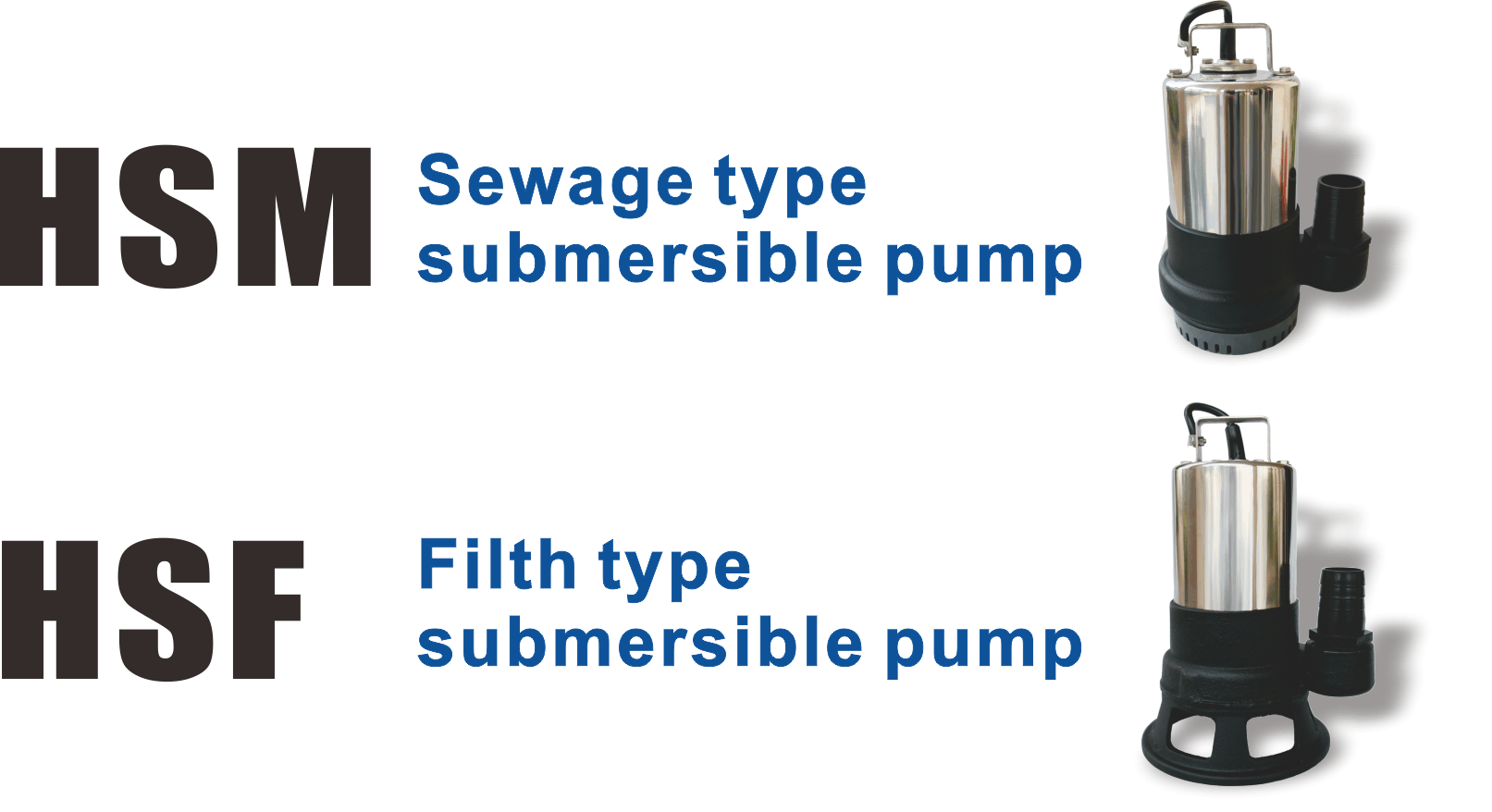

Convenient submersible pump
Model :
HSM/HSF series
- General household, building basement drainage, sewer drainage, temporary water pumping in various occasions.
- Drainage for animal husbandry and water for agricultural irrigation.
- Pond drainage, lawn sprinkler irrigation sump drainage, gardening fountain water supply.
- Golf course sump drainage, swimming pool drainage, car wash, parking lot sump drainage.
- Functional sewage and wastewater discharge from septic tanks, ponds, institutions and communities.
- Slightly acidic and weakly alkaline wastewater discharged from pig farming and other livestock industries.
- Small factories and general operational wastewater are recycled or discharged by pumping.
- Lightweight, energy-saving and low noise.
- Adopt mechanical shaft seal produced in cooperation with world famous brands.
- The motor is equipped with a temperature protection device.
- National patent, patent number: M311773.
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+40°C
- Applicable liquid: pool water/clean water/stagnant water/fresh water
| TYPE | POWER | BORE | PHASE | HEAD | CAPACITY | MAX HEAD | MAX CAPACITY | WEIGHT |
|---|---|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | M | M³/min | M | M³/min | KG | |
| HSM240-1.25 21(6) | ⅓(0.25) | 1½”（40） | 1 | 4 | 0.10 | 8 | 0.11 | 9 |
| HSM250-1.37 21(6) | ½(0.37) | 2“( 50 ) | 1 | 6 | 0.11 | 10 | 0.17 | 12 |
| HSF250-1.37 21(6) | ½( 0.37 ) | 2“( 50 ) | 1 | 6 | 0.11 | 10 | 0.17 | 12 |
- Frequency：50/60Hz
- Motor：2P-Dry type underwater motor
- Insulation class：B
- waterproof level：IP68
- Protection device : motor thermal protector
- Bearings : deep groove ball bearings
- Shaft seal : single set mechanical shaft seal
- centrifugal semi-open
- Motor body：SUS304
- Axis：SUS410
- Shaft seal：SIC/SIC
- Pump body：FC200
- Impeller：FC200
- Cable：VCT
| 型號 | L | D | H |
|---|---|---|---|
| HSM240-1.25 21(6) | 185 | 140 | 276 |
| HSM250-1.37 21(6) | 220 | 150 | 292 |
| HSF250-1.37 21(6) | 230 | 170 | 323 |
| 型號 | L | D | H |
|---|---|---|---|
| HSM240-1.25 265 | 185 | 140 | 276 |
| HSM250-1.37 265 | 220 | 150 | 292 |
| HSF250-1.37 265 | 230 | 170 | 323 |
