• Self-priming pump
  • Self-priming pump
  • Self-priming pump

Self-priming pump

Model : HSP series

手風琴選單
  • Construction project
  • Underground building shrinkage project
  • Farm water conservancy project
  • Pig house wastewater removal
  • Sewage discharge
  • Water removal
  • Water well extraction
  • Industrial wastewater treatment
  • Cultivation water circulation
  • Sewerage project
  • Environmental protection project
  • Johkasou

  • Semi-open impeller, suitable for conveying sludge and preventing clogging.
  • The pump body is designed with an anti-reverse check valve to prevent cavitation.
  • Land-based pump with self-priming capability.
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: +4°C~+40°C
  • Applicable liquids: sewage mud, well water (fine sand) and non-corrosive liquids Before starting for the first time, as long as the pump chamber and water inlet pipe are filled with water, and a check valve is installed at the end of the pipe, water will enter the pump during operation.A low-pressure zone is formed at the end, and there is no need to fill the pump chamber and water inlet pipe with water when starting again.
手風琴選單

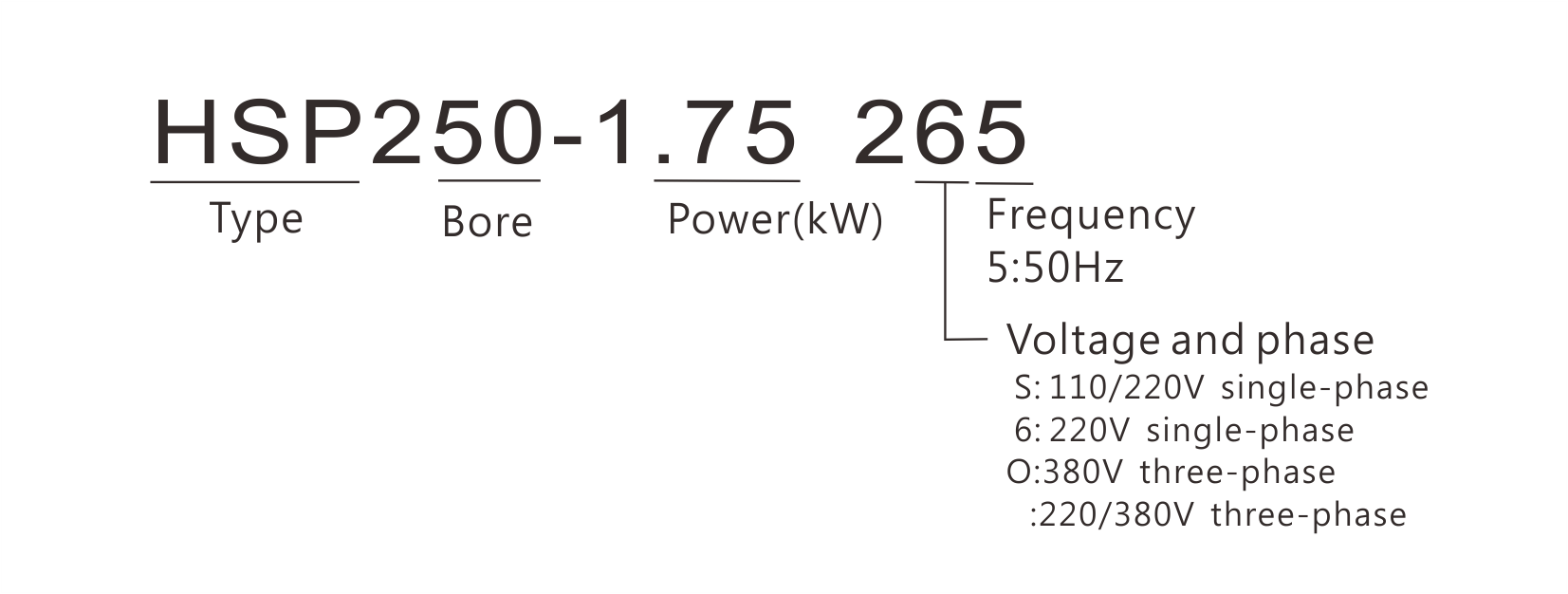

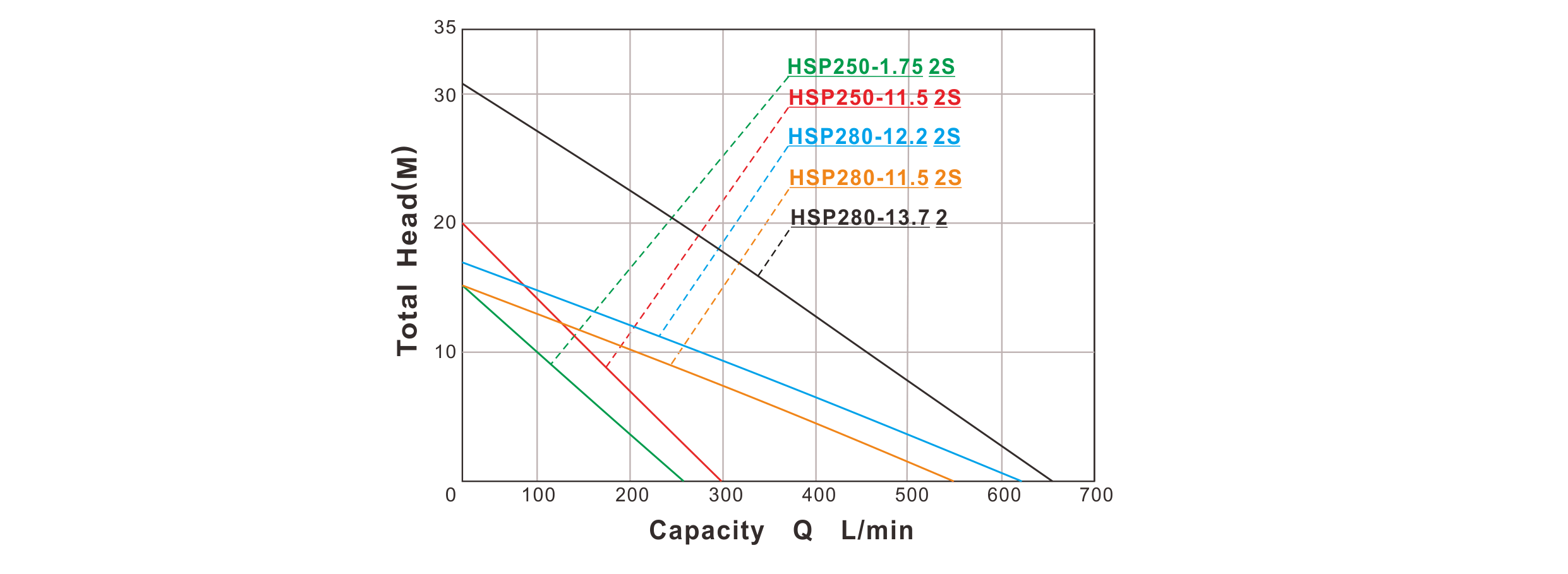

型號 馬力 口徑 相數 最大水量 最大揚程 重量
HP(KW) Inch(mm) ∅ L/min M KG
HSP250-1.75 2S 1 (0.75) 2" (50)
 1   ❘   3 264 15 38
HSP250-11.5 2S 2 (1.5) 2" (50) 1   ❘   3  298 20 42
HSP280-11.5 2S 2 (1.5) 3" (80) 1   ❘   3 545 15 45
HSP280-12.2 2S 3 (2.2) 3" (80) 1   ❘   3
 618 17 50
HSP280-13.7 2 5 (3.7) 3" (80) 1 652 31 60

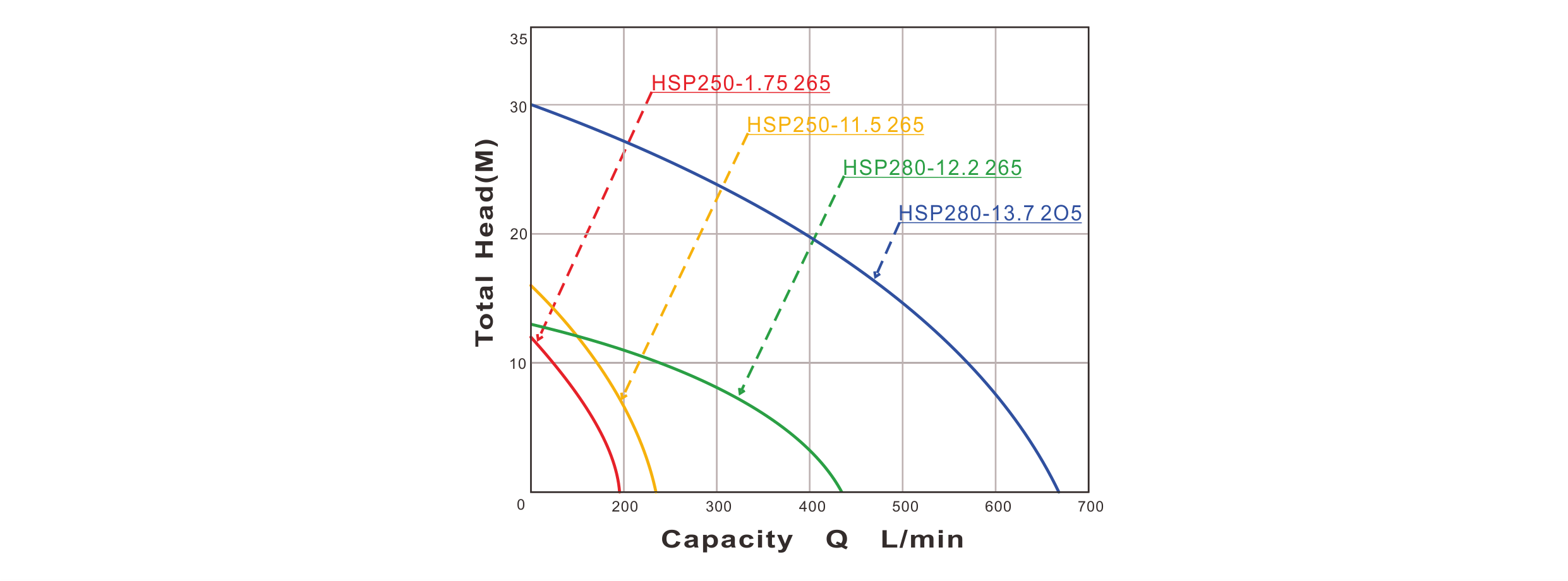

TYPE POWER BORE VOLTAGE MAX CAPACITY MAX HEAD WEIGHT
HP(KW) Inch(mm) V L/min M KG
HSP250-1.75 265 1 (0.75) 2" (50)
 200-240 193 12 38
HSP250-11.5 265 2 (1.5) 2" (50) 200-240 233 16 42
HSP280-12.2 265 3 (2.2) 3" (80) 200-240 432 13 50
HSP280-13.7 2O5 5 (3.7) 3" (80) 380-480 663 30 60
手風琴選單

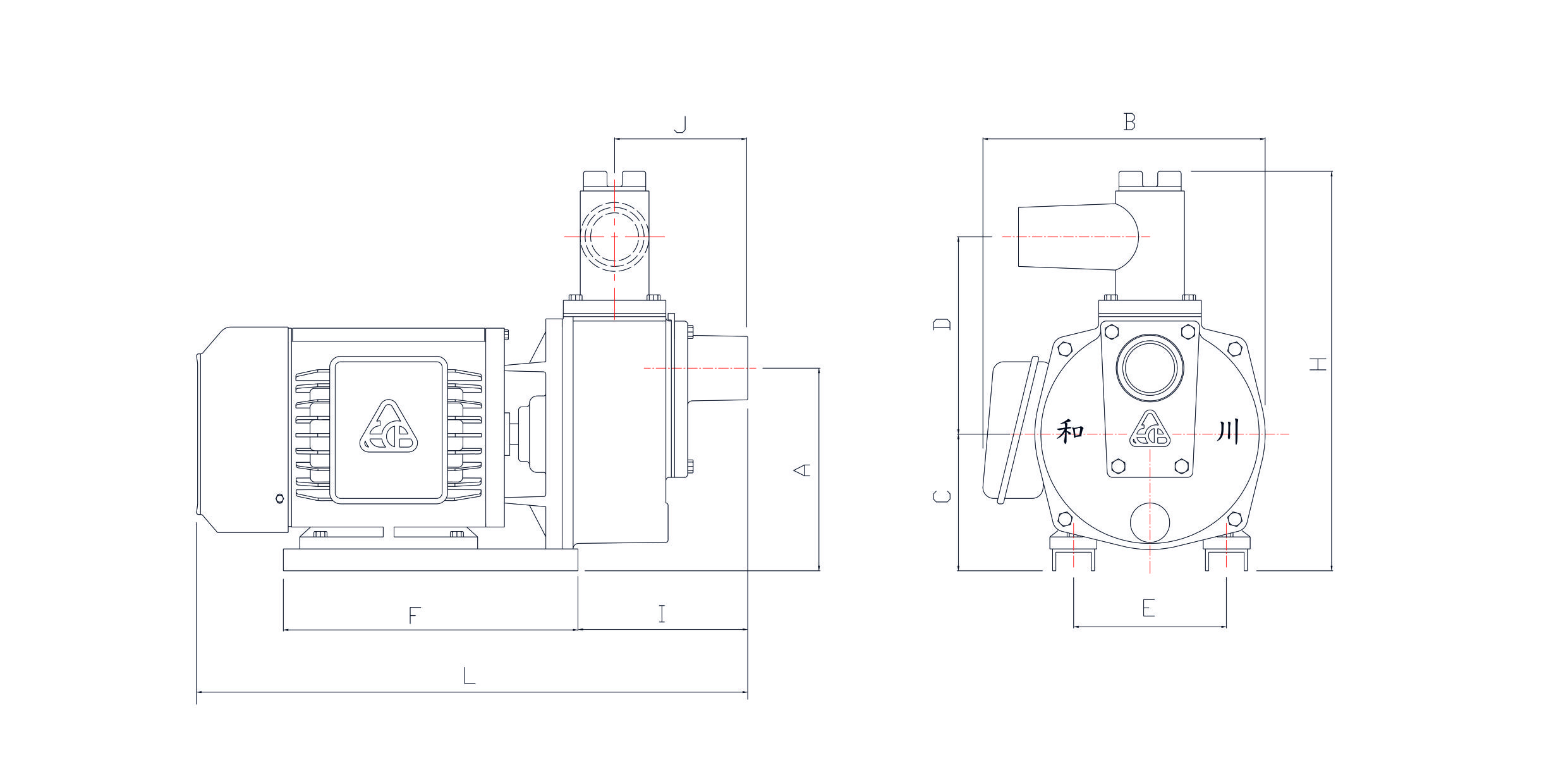

TYPE A B C D E F H I J L
HSP250-1.75 2S 160 255
 120 145 135 270 360 175 125 505
HSP250-11.5 2S 160 270 140 140 140 270 355 185 130 520
HSP280-11.5 2S 190 265 155 220 140 300 435 210 135 545
HSP280-12.2 2S 190 265 155 220 140 300 435 205 140 540
HSP250-1.75 2 150 250 130 150 140 270 350 170 120 500
HSP250-11.5 2
 160 260 130 150 140 270 350 170 125 500
HSP280-11.5 2 190 255 130
 245 140 300 435 200 135 540
HSP280-12.2 2 195 260 155 230 145 300 440 210 140 540
HSP280-13.7 2 185 285 160 135 190 300 295 230 140 580
TYPE A B C D E F H I J L
HSP250-1.75 265 160 255
 120 145 135 270 360 175 125 505
HSP250-11.5 265 160 270 140 140 140 270 355 185 130 520
HSP280-12.2 265 190 265 155 220 140 300 435 205 140 540
HSP280-13.7 2O5 185 285 160 135 190 300 295 230 140 580
