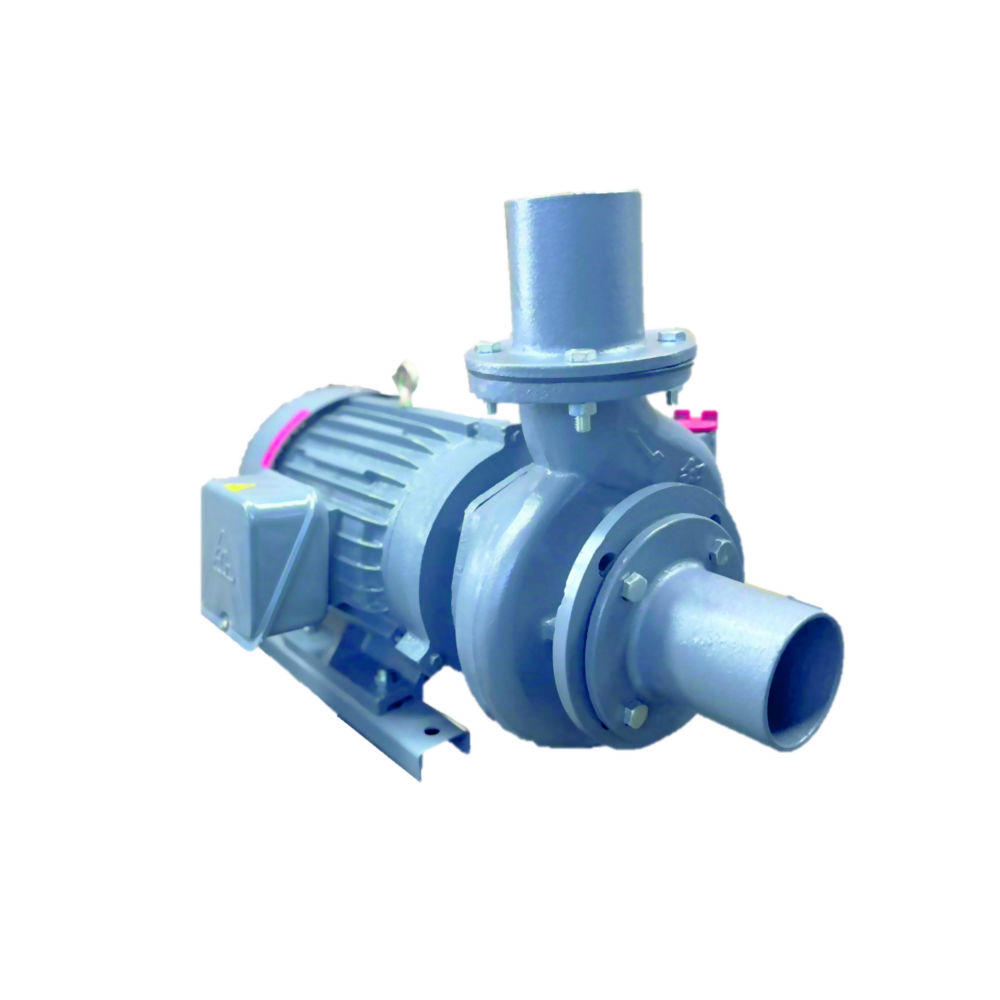

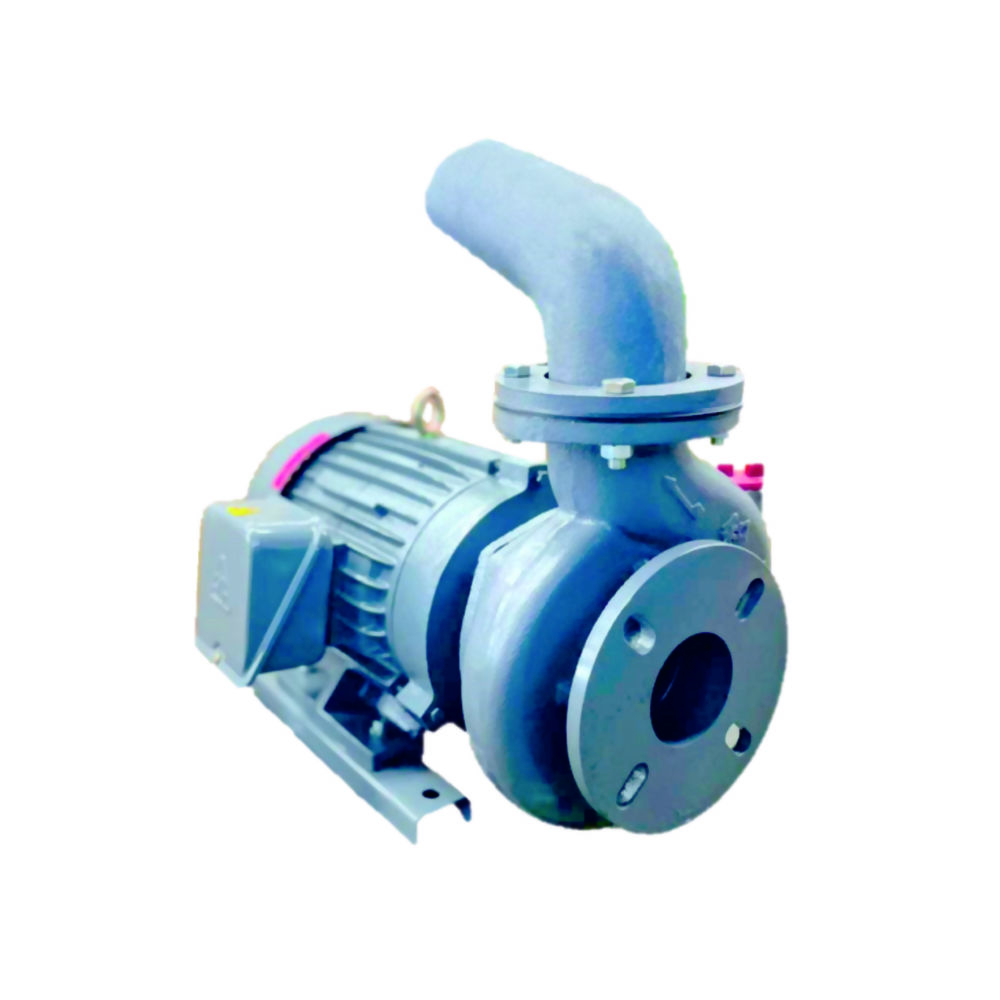

Irrigation pump

Model : YVP series


手風琴選單
  • Agricultural use (irrigation, drainage)
  • Well water extraction
  • Water for animal husbandry
  • Environmental water treatment
  • Water distribution for aquaculture industry

  • This model is compact and strong, does not take up space, and has good water absorption performance.
  • Solid ideal fluid design enables high-efficiency water supply and large water pumping volume.
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: +4°C~+40°C
  • Applicable liquids: non-corrosive, non-containing liquids with solid particles and properties close to water, groundwater, and well water.
手風琴選單

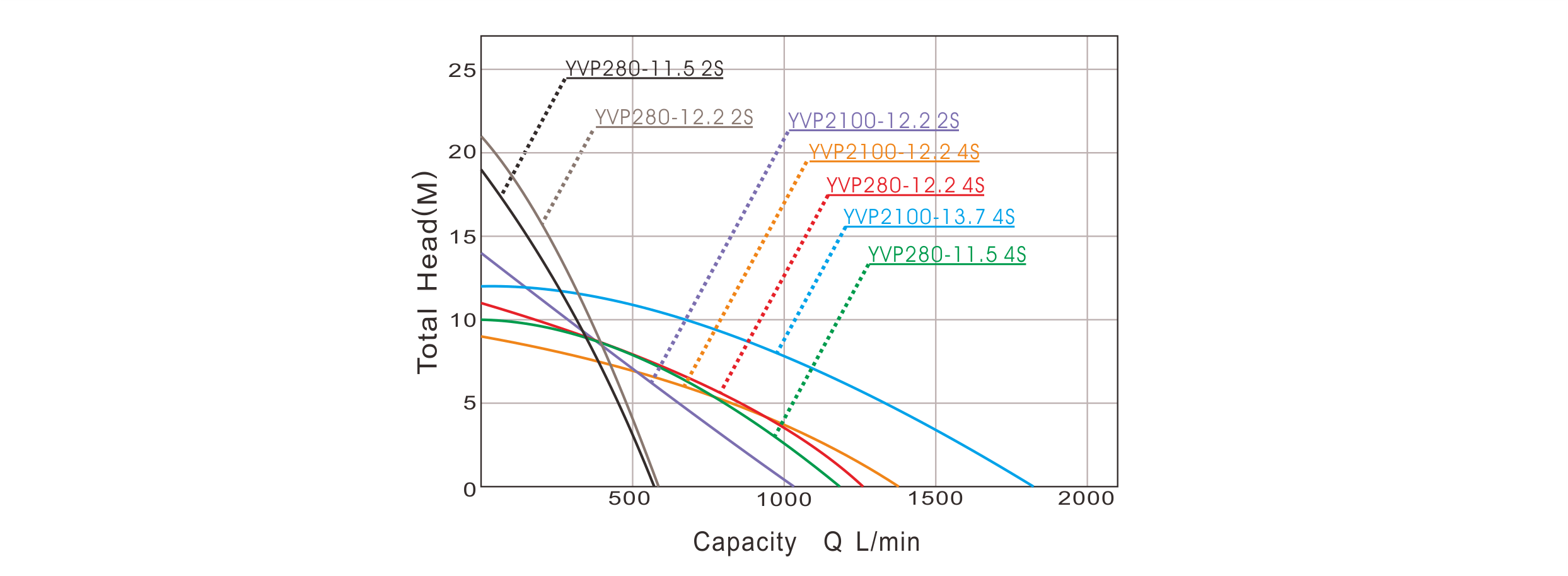

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT
HP(KW) Inch(mm) ∅ L/min M KG
YVP280-11.5 4S 2 (1.5) 3" (80)
 1 1182 10 48
YVP280-12.2 4S 3 (2.2) 3" (80) 1   ❘   3  1264 11 53
YVP2100-12.2 4S 3 (2.2) 4" (100) 1   ❘   3 1385 9 60
YVP2100-13.7 4S 5 (3.7) 4" (100) 1   ❘   3
 1828 12 70
YVP280-11.5 2S 2 (1.5) 3" (80) 1 576 19 45
YVP280-12.2 2S
 3 (2.2) 3" (80) 1   ❘   3
 586 21 50
YVP2100-12.2 2S 3 (2.2) 4" (100) 1   ❘   3
 1043 14 52

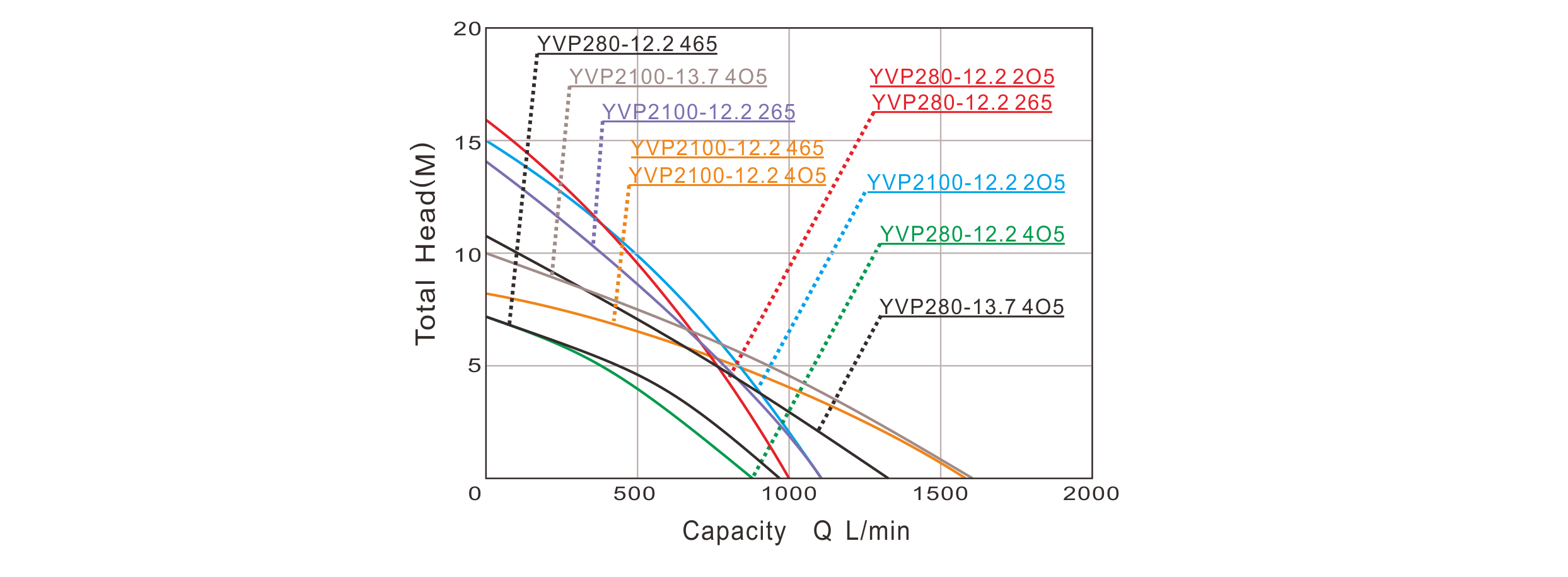

TYPE POWER BORE VOLTAGE MAX CAPACITY MAX HEAD WEIGHT
HP(KW) Inch(mm) V L/min M KG
YVP280-12.2 265 3 (2.2) 3" (80)
 200-240 1000 16 50
YVP2100-12.2 265 3 (2.2) 4" (100) 200-240 1135 14 52
YVP280-12.2 2O5 3 (2.2) 3" (80) 380-460 1000 16 50
YVP2100-12.2 2O5 3 (2.2) 4" (100) 380-460 1135 15 52
YVP280-12.2 465 3 (2.2) 3" (80) 200-240 956 7 53
YVP2100-12.2 465
 3 (2.2) 4" (100) 200-240 1587 8 60
YVP280-12.2 4O5 3 (2.2) 3" (80) 380-460
 847 7 48
YVP2100-12.2 4O5 3 (2.2) 4" (100) 380-460 1587 8 50
YVP280-13.7 4O5 5 (3.7) 3" (80) 380-460 1350 11 55
YVP2100-13.7 4O5 5 (3.7) 4" (100) 380-460 1606 10 70
手風琴選單

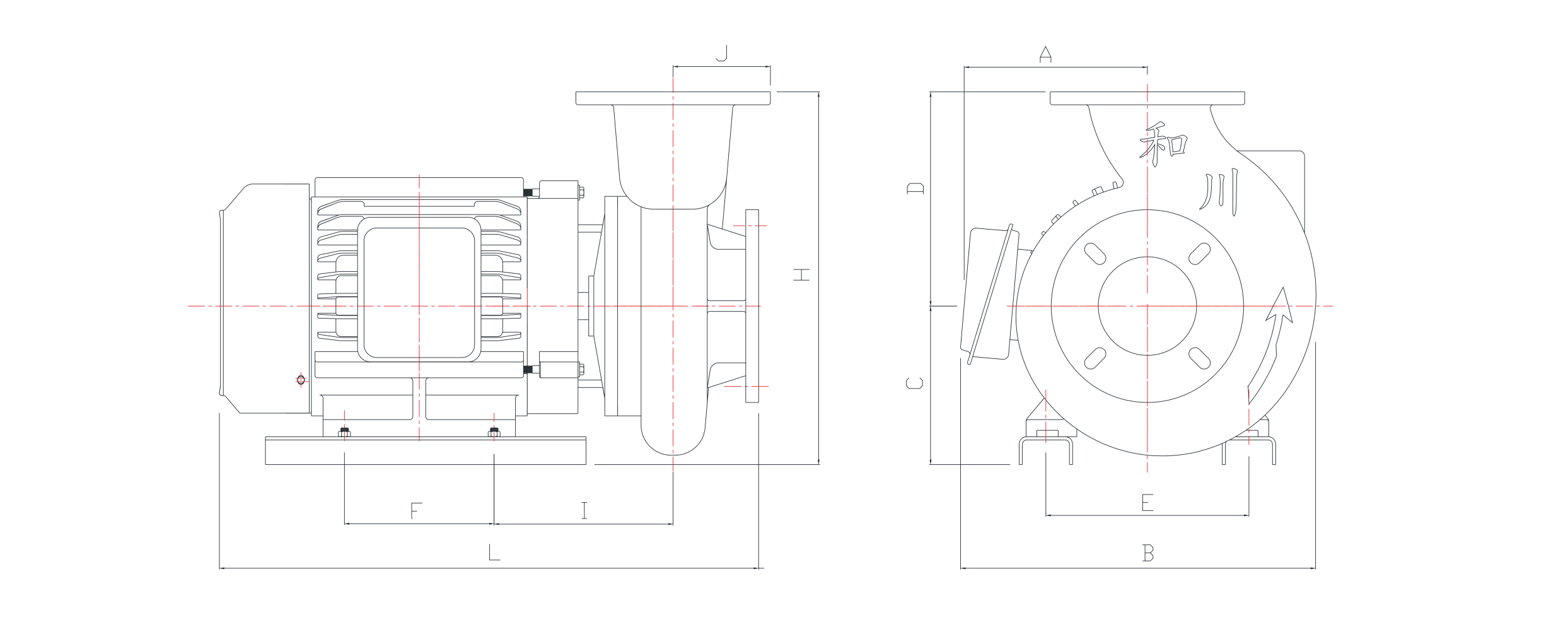

TYPE A B C D E F H I J L
YVP280-11.5 4S 160 290
 165 170 160 140 335 145 80 475
YVP280-12.2 4S 170 295 180 155 190 145 335 210 80 490
YVP2100-12.2 4S 170 295 170 185 190 140 335 240 90 500
YVP2100-13.7 4S 170 295 160
 215 185 145 375
 165 95 540
YVP280-12.2 4  170 295 180 155 190 145 335 210 80 480
YVP2100-12.2 4
 170 295 170 185 190 145 335 240 90 490
YVP2100-13.7 4 160 290 160
 215 185 145 375
 165 95 540
YVP280-11.5 2S 150 265 150 155 140 130 305 160 80 480
YVP280-12.2 2S 150 265 155 145 140 130 300 150 80 495
YVP2100-12.2 2S 150 270 155 150 140 125 305 160 90 490
YVP280-12.2 2 150 260 145 145 140 125 290 160 80 475
YVP2100-12.2 2 150 270 155 150 140 125 295 160 90 480
