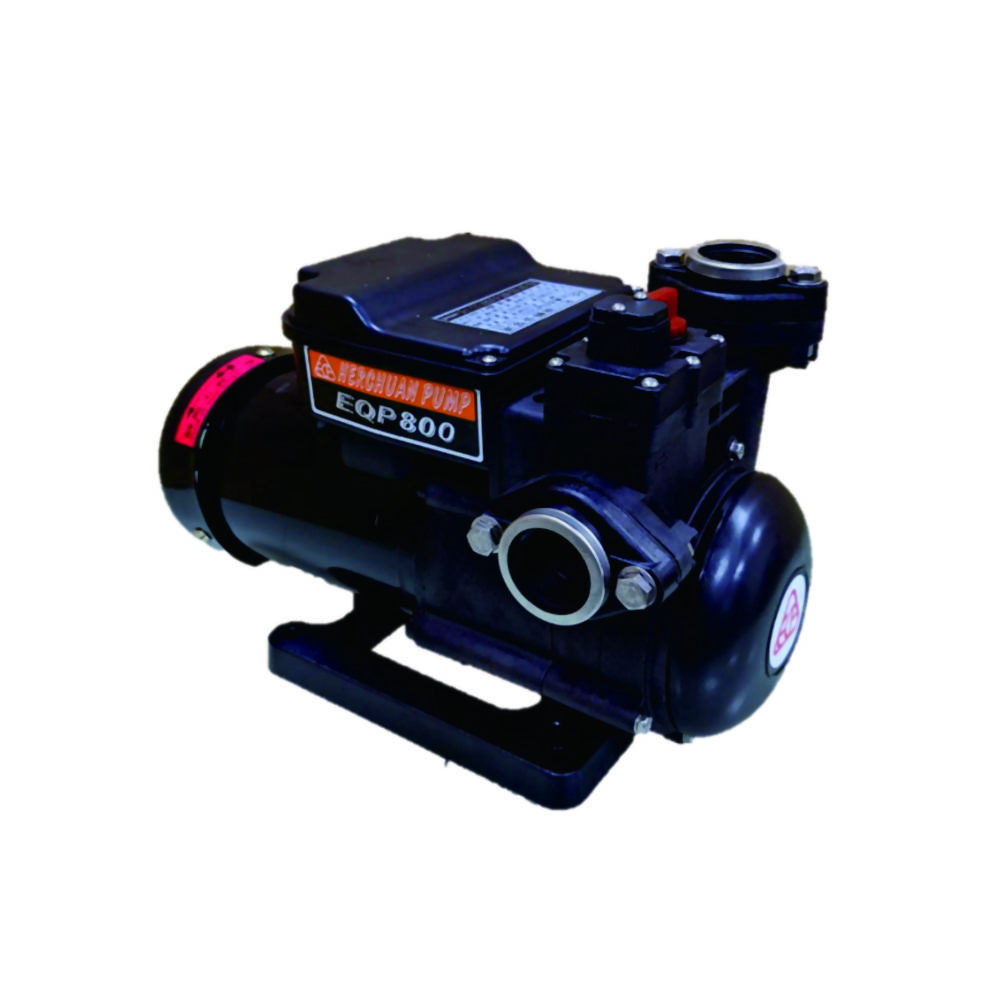

Silent Centrifugal Pump
Model :
EQP series
-
Suitable for conveying clean water without impurities. General applications include:
- Apartment
- Residential water supply
- Pumping system
- Drinking water system
- Sprinkler system
- The pump has a built-in temperature protection switch to prevent the pump from idling when the water source is insufficient. When the water temperature exceeds 55°C, the pump automatically cuts off power.
- The impeller adopts a centrifugal multi-stage design, which is quiet and low-noise during use.
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+40°C
- Applicable liquid: clean water; or non-corrosive liquid without solid particles and similar in nature to water.
- Suction lift: Max.6m

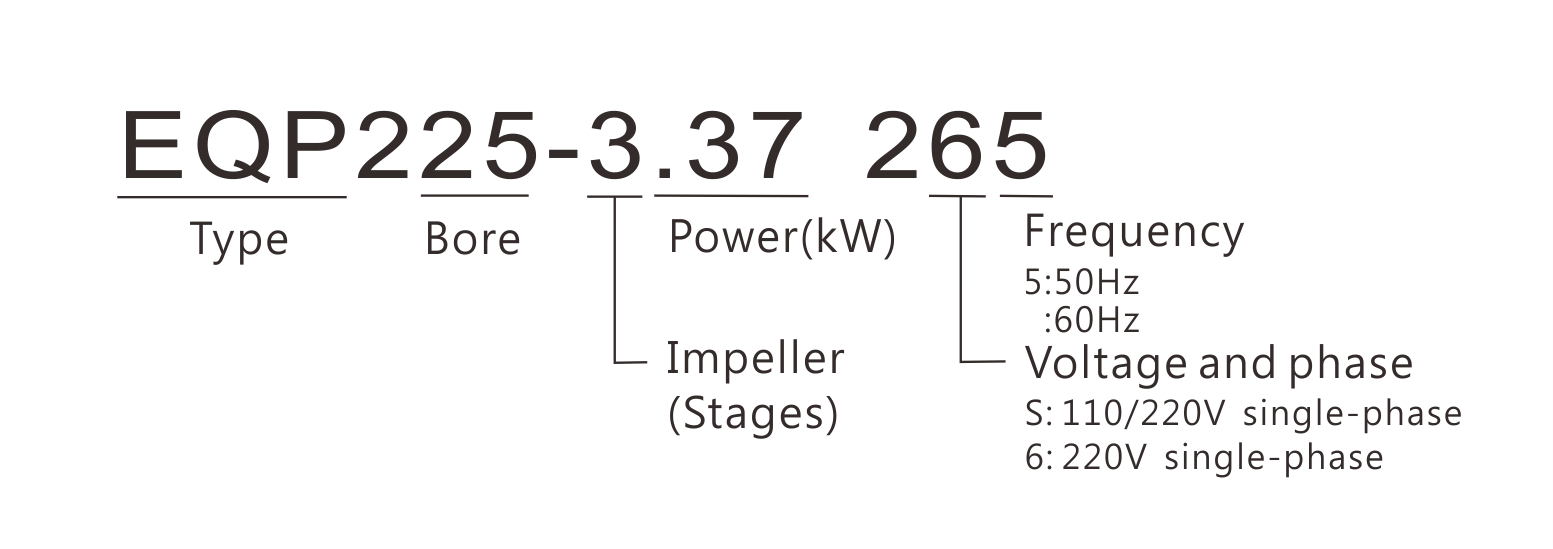

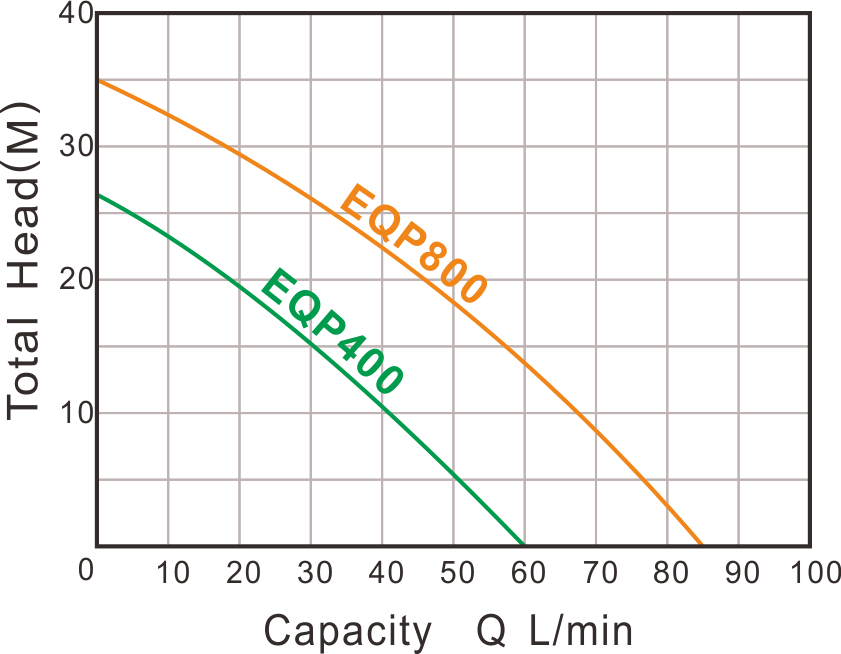

| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT | SERIES |
|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | ||
| EQP220-2.37 2S | ½(0.37) | ¾”(20) | 1 | 60 | 26 | 9 | EQP400 |
| EQP225-3.75 2S | 1(0.75) | 1”(25) | 1 | 85 | 35 | 10.5 | EQP800 |

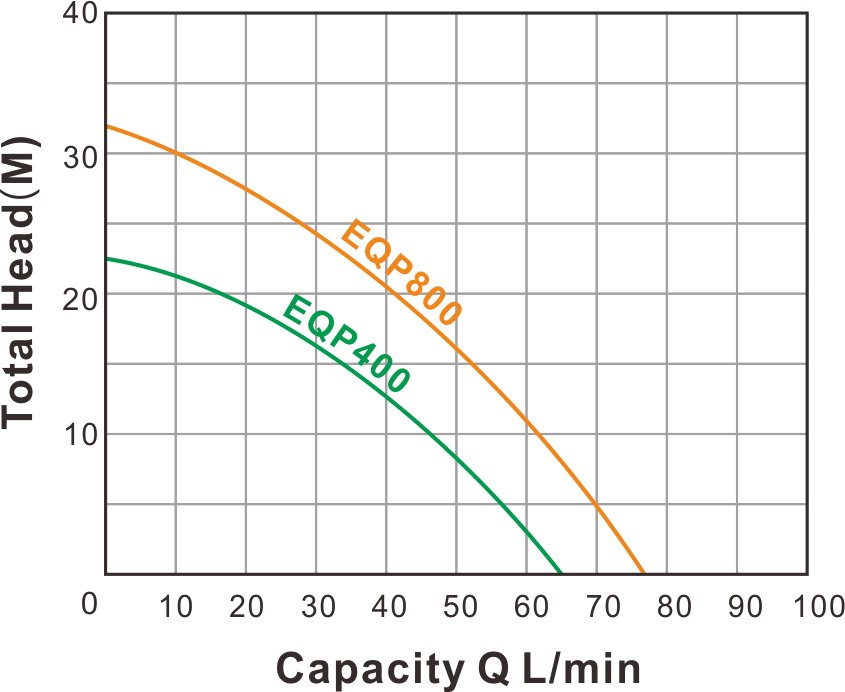

| TYPE | POWER | BORE | VOLTAGE | MAX CAPACITY | MAX HEAD | MAX AMPS | SERIES |
|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | V | L/min | M | KG | ||
| EQP220-3.37 265 | ½(0.37) | ¾”(20) | 220-240 | 64 | 23 | 2.6 | EQP400 |
| EQP225-4.75 265 | 1(0.75) | 1”(25) | 220-240 | 76 | 32 | 3.8 | EQP800 |
| TYPE | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| EQP220-2.37 2S | 260 | 320 | 185 | 158 | 230 | 151 |
| EQP225-3.75 2S | 285 | 345 | 185 | 158 | 230 | 151 |
| TYPE | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| EQP220-2.37 265 | 280 | 365 | 185 | 158 | 230 | 151 |
| EQP225-4.75 265 | 280 | 390 | 185 | 158 | 230 | 151 |
