• Submersible stainless steel pump

Submersible stainless steel pump

Model : SWS series

手風琴選單

  • General deep well water withdrawal
  • Industrial supplies
  • Underground engineering
  • Water supply for high-rise buildings
  • Water supply for agriculture and fisheries
  • High pressure water pump
  • Gardening landscaping fountains and water supplies can be used to use water on hillsides.

  • No fine sand is entrained, and the motor will not be damaged by overheating.
  • High lift, large water volume and low power consumption.
  • Economical, durable and easy to maintain.
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: +4°C~+40°C
  • Applicable liquids: non-corrosive liquids, clean water, groundwater (including fine sand)
手風琴選單
手風琴選單

TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 0  60 70 80 90 100 120 140 160 181
m3/h 0 3.6 4.2 4.8 5.4 6.0 7.2 8.4 9.6 10.8 LENGTH WEIGHT
HP(KW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

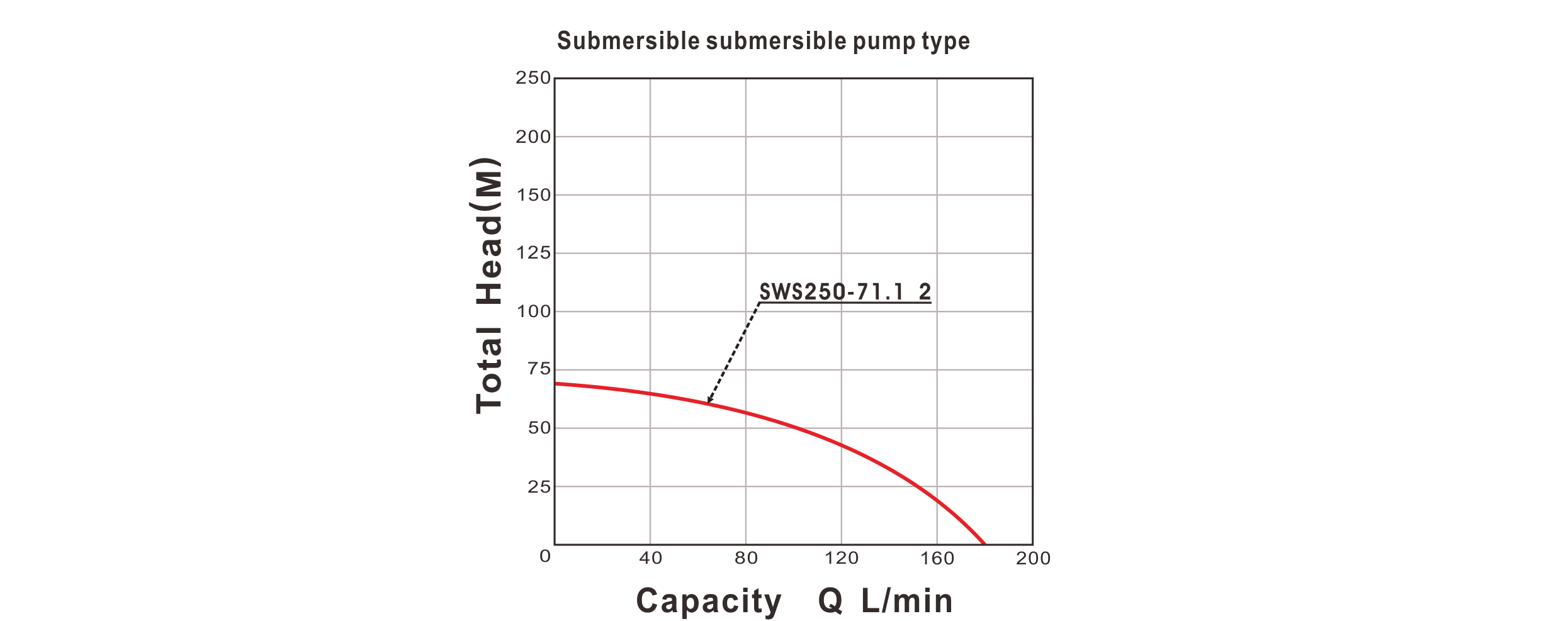

SWS250-71.1 2

1.1 (1.5) 2”（50） 1 - 3 H(M) 69 61 60 58 57 52 43 31 17
414 3.5


TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 0  70 80 90 100 120 140 160 180 200 220 240 260
m3/h 0 4.2 4.8 5.4 6.0 7.2 8.4 9.6 10.8 12 13.2 14.4 15.6 LENGTH WEIGHT
HP(KW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

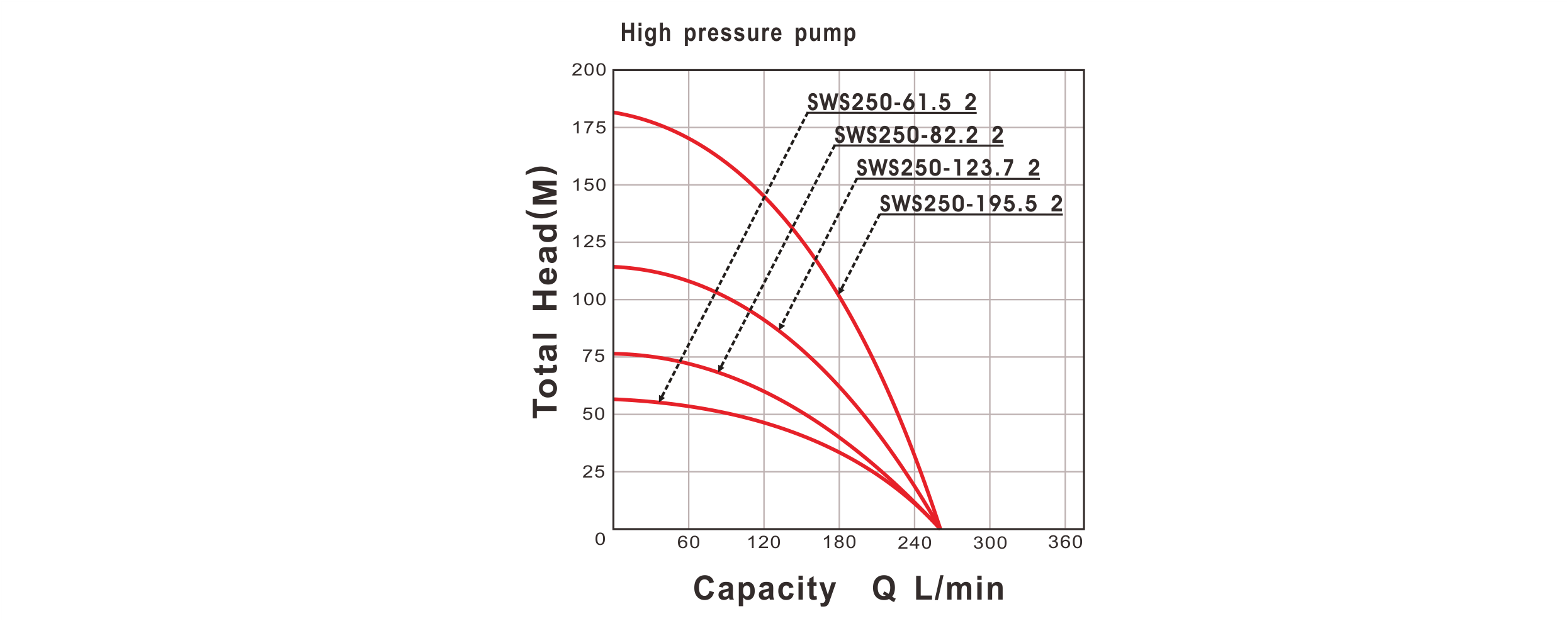

SWS250-61.5 2

2 (1.5) 2”（50） 1 / 3 H(M) 57 52 51 50 48 46 42 38 35 32 29 25 21 462 3.7

SWS250-82.2 2

3  (2.2) 2”（50） 1 / 3 76 67 66 65 63 60 56 52 47 43 40 35 28 560 4.5

SWS250-123.7 2

5 (3.7) 2”（50） 3 114 105 101 98 96 91 84 77 71 66 60 53 45 759 6.0

SWS250-195.5 2

7.5 (5.5) 2”（50） 3 182 164 161 158 154 145 135 125 116 107 99 90 76 1140 9.0

TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 0  100 120 140 160 180 200 220 240 260 280 300
m3/h 0 6.0 7.2 8.4 9.6 10.8 12 13.2 14.4 15.6 16.8 18 LENGTH WEIGHT
HP(KW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

SWS250-72.2 2

3 (2.2) 2"(50) 1 / 3 H(M) 64 55 53 51 48 44 39 36 32 28 23 18 503 4.6

SWS250-93.0 2

4 (3.0) 2"50) 3 84 73 71 68 64 60 54 49 45 40 34 27 603 5.5

SWS250-124.0 2

5½(4.0) 2"(50) 3 112 99 95 92 86 80 73 66 62 54 47 38 790 6.8

TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 0  200 400 600 800 1000 1100 1200
m3/h 0 12 24 36 48 60 66 72 LENGTH WEIGHT
HP(kW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

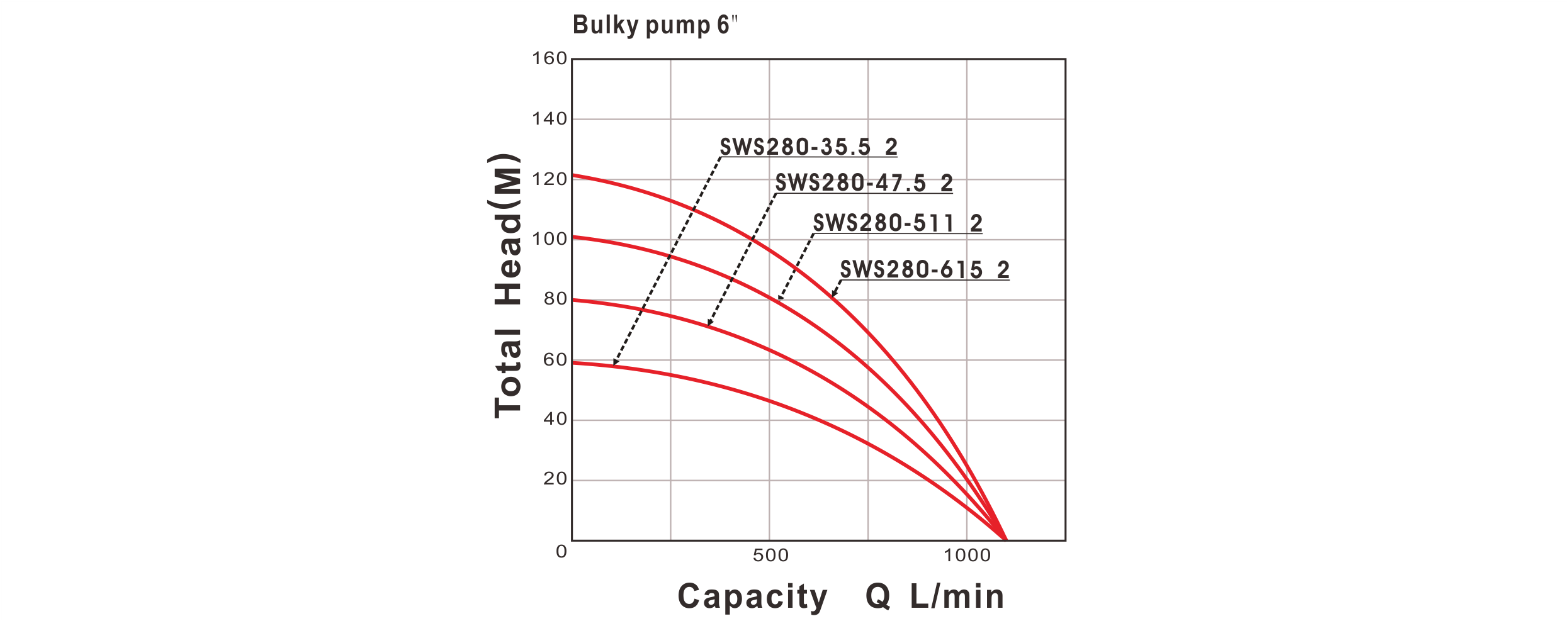

SWS280-35.5 2

7½(5.5) 3”（80） 3 H(M) 59 53 48 42 36 25 17
576 9

SWS280-47.5 2

10(7.5) 3”（80） 3 80 73 65 57 50 33 22
714 11

SWS280-511 2

15(11) 3”（80） 3 101 92 82 73 65 45 31
852 13

SWS280-615 2

20(15) 3”（80） 3 122 110 98 87 76 51 35
1032 16

手風琴選單

TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 50 60 70 80 90 100 120 140 160
m3/h 3.0 3.6 4.2 4.8 5.4 6.0 7.2 8.4 9.0 LENGHT WEIGHT
HP(KW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

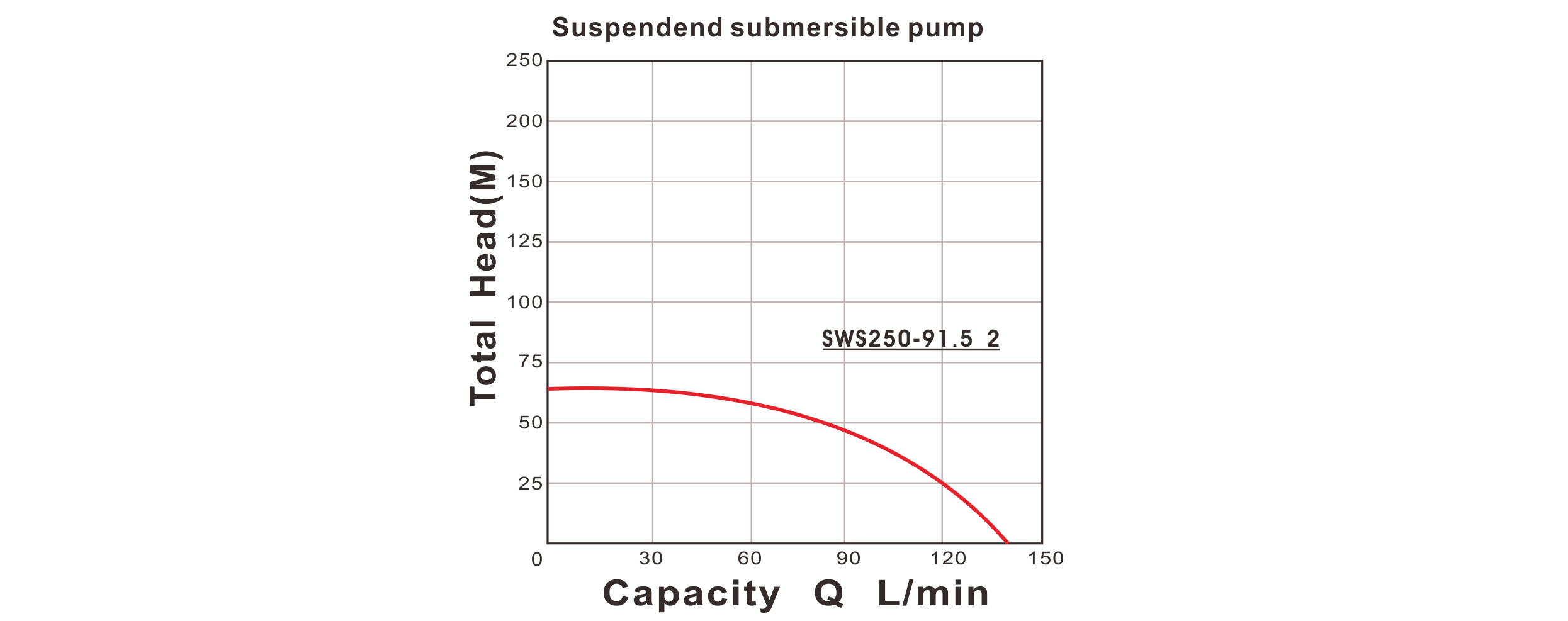

SWS250-91.5 2

2 (1.5) 2"(50) 1 / 3 H(M) 64 57 56 53 52 47 40 28 13 414 3.5


TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 0  70 80 90 100 120 140 160 180 200 220 240 260
m3/h 0 4.2 4.8 5.4 6.0 7.2 8.4 9.6 10.8 12 13.2 14.4 15.6 LENGHT WEIGHT
HP(KW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

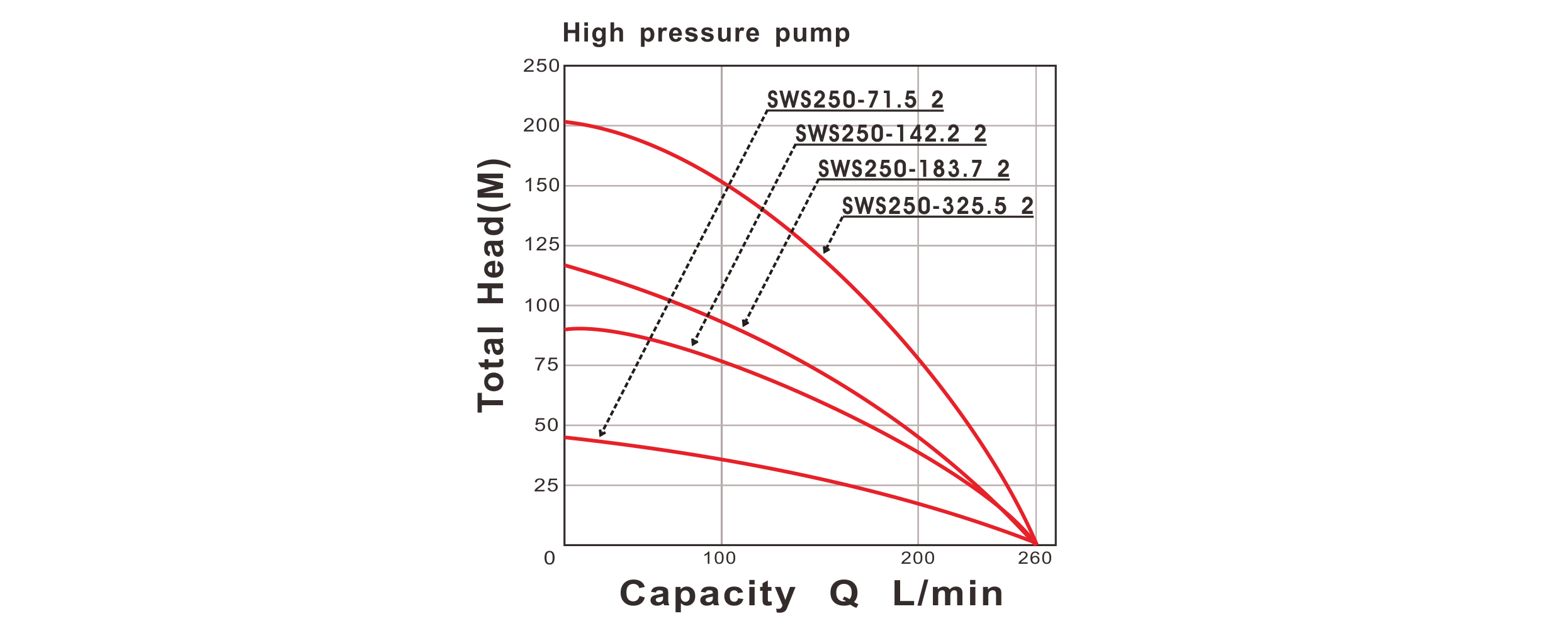

SWS250-71.5 2

2 (1.5) 2"(50) 1 / 3 H(M) 45 40 39 38 36 33 29 26 23 20 15 10 5 511 4.1

SWS250-142.2 2

3  (2.2) 2"(50) 1 / 3 90 78 76 73 70 64 57 52 47 40 30 20 10 858 6.8

SWS250-183.7 2

5 (3.7) 2"(50) 3 117 105 100 97 93 85 77 68 62 52 41 28 12 1091 8.6

SWS250-325.5 2

7½ (5.5) 2"(50) 3 204 178 173 168 160 147 132 119 106 92 72 50 38 1787 14.3

TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 0  100 120 140 160 180 200 220 240 260
m3/h 0 6.0 7.2 8.4 9.6 10.8 12 13.2 14.4 15.6 LENGTH WEIGHT
HP(KW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

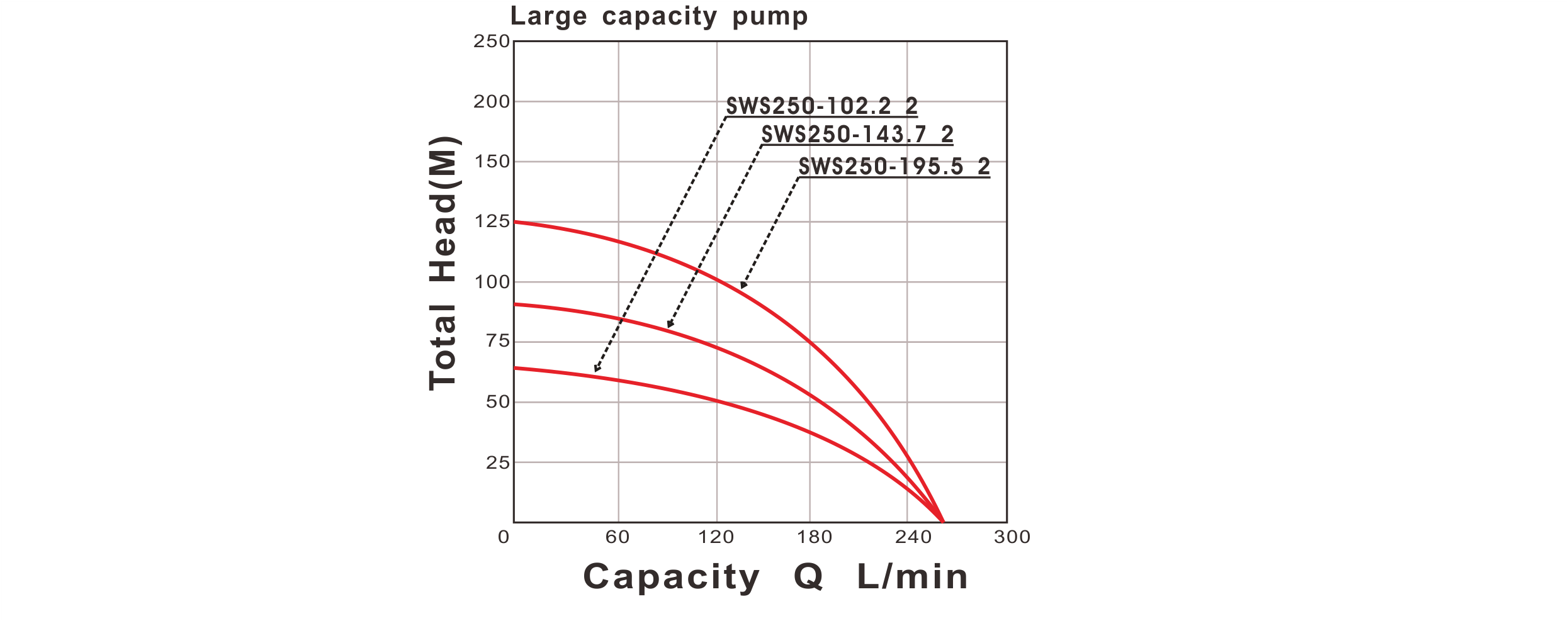

SWS250-102.2 2

3 (2.2) 2"(50) 1 / 3 H(M) 64 54 52 47 43 38 33 28 23 17 683 6.0

SWS250-143.7 2

5 (3.7) 2"(50) 3 91 78 74 69 62 56 50 43 35 26 930 8.0

SWS250-195.5 2

7½(5.5) 2"(50) 3 125 108 104 97 87 79 71 63 53 40 1190 10.5

TYPE

POWER

BORE

PHASE

CAPACITY

PUMP
DIMENSION

L/min 0  200 300 400 500 600 700 800 900 1000
m3/h 0 12 18 24 30 36 42 48 54 60 LENGTH WEIGHT
HP(KW)
 (mm) ∅ TOTAL HEAD (mm) (kg)

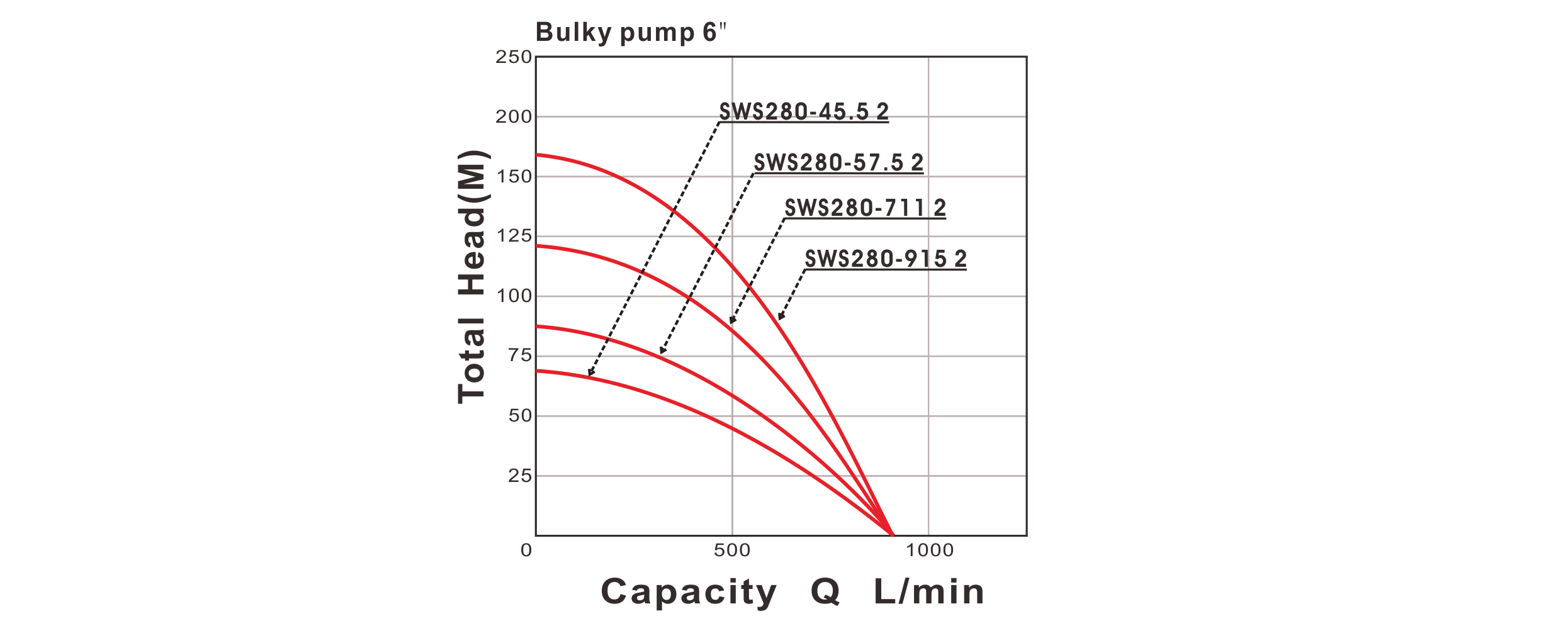

SWS280-45.5 2

7½(5.5) 3"(80) 3 H(M) 55 50 46 42 40 37 32 26 16
714 11

SWS280-57.5 2

10 (7.5) 3"(80) 3 70 62 58 53 50 47 42 33 21
852 13

SWS280-711 2

15 (11) 3"(80) 3 97 86 80 73 69 65 56 43 27
1176 18

SWS280-915 2

20 (15) 3"(80) 3 127 113 105 95 90 85 75 58 38
1447 22
