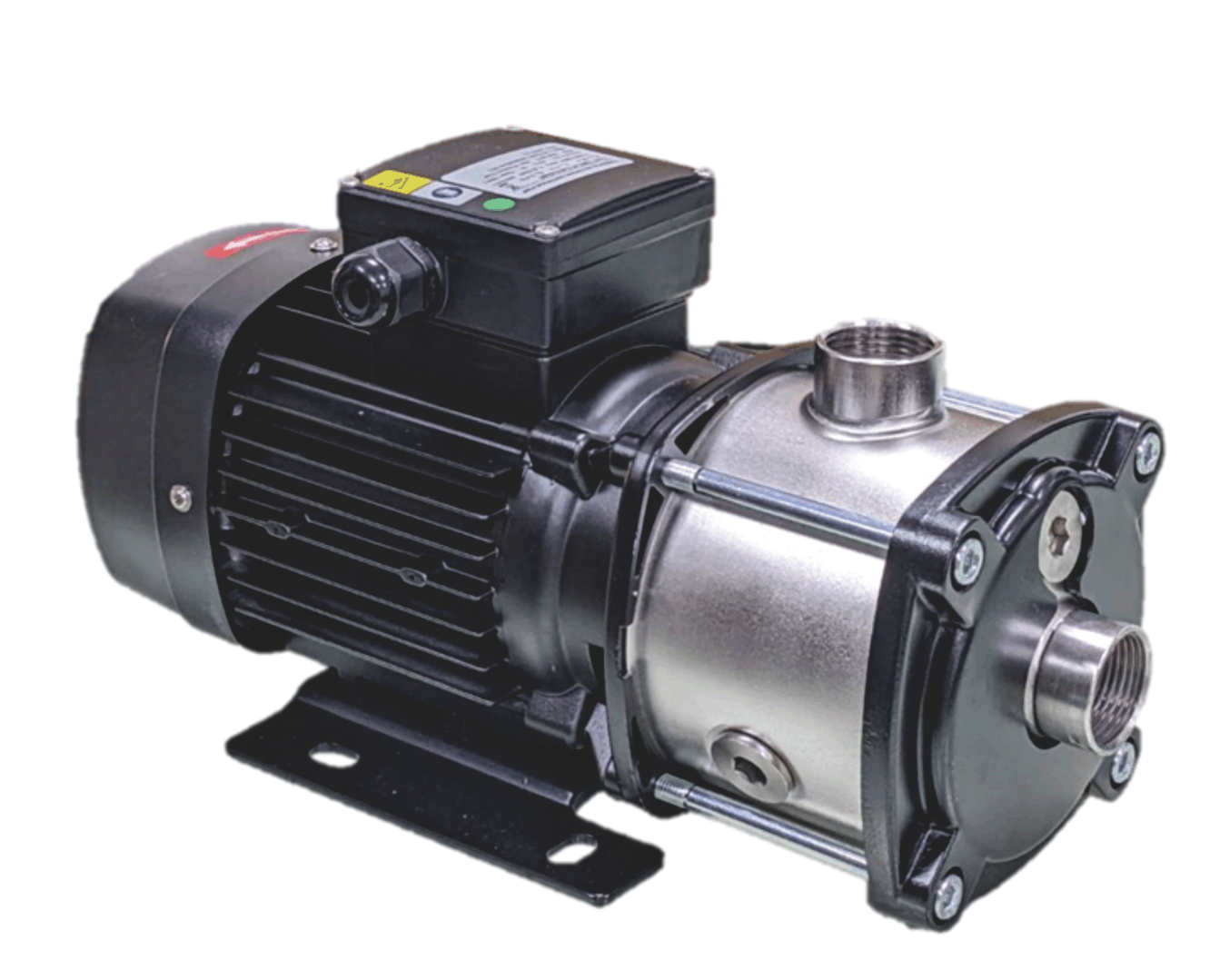

Horizontal multi-stage pump

Model : HMH series

HMC Horizontal Multistage Pump

手風琴選單
  • Water and pressurization (drinking water and water containing trace amounts of chlorine)
  • Water treatment
  • Industrial cleaning machines and dishwashers
  • pressurized water
  • Industrial heating and cooling
  • Air conditioning system
  • Air freshening and heating equipment

  • Equipped with extended shaft motor; compact structure design.
  • Aluminum alloy motor casing, excellent heat dissipation.
  • Stainless steel multi-section pump blades and guide vanes are designed to be wear-resistant. (The greater the number of pump blade segments, the greater the outlet pressure)
  • The main liquid contact surface is made of stainless steel to ensure clean (rust-free) water and peace of mind.
  • Ambient temperature: MAX.+50°C
  • Liquid temperature: Standard shaft seal temperature resistant -20°C~+70°C / Heat resistant shaft seal -20°C~+104°C
  • Working pressure: max.+1.0Mpa
  • Take water under positive pressure (water source is higher than the pump). If the water tank (water source) is lower than the pump, the suction height should not exceed 3M, and a check valve must be installed.
  • Applicable liquids: • Clean, non-flammable and explosive liquids that do not contain solid particles or fibers. • Transports mineral water, soft water, pure water, edible vegetable oil and other light chemical media. • When the density or viscosity of the conveyed liquid is greater than water, a high- power motor must be used.
手風琴選單

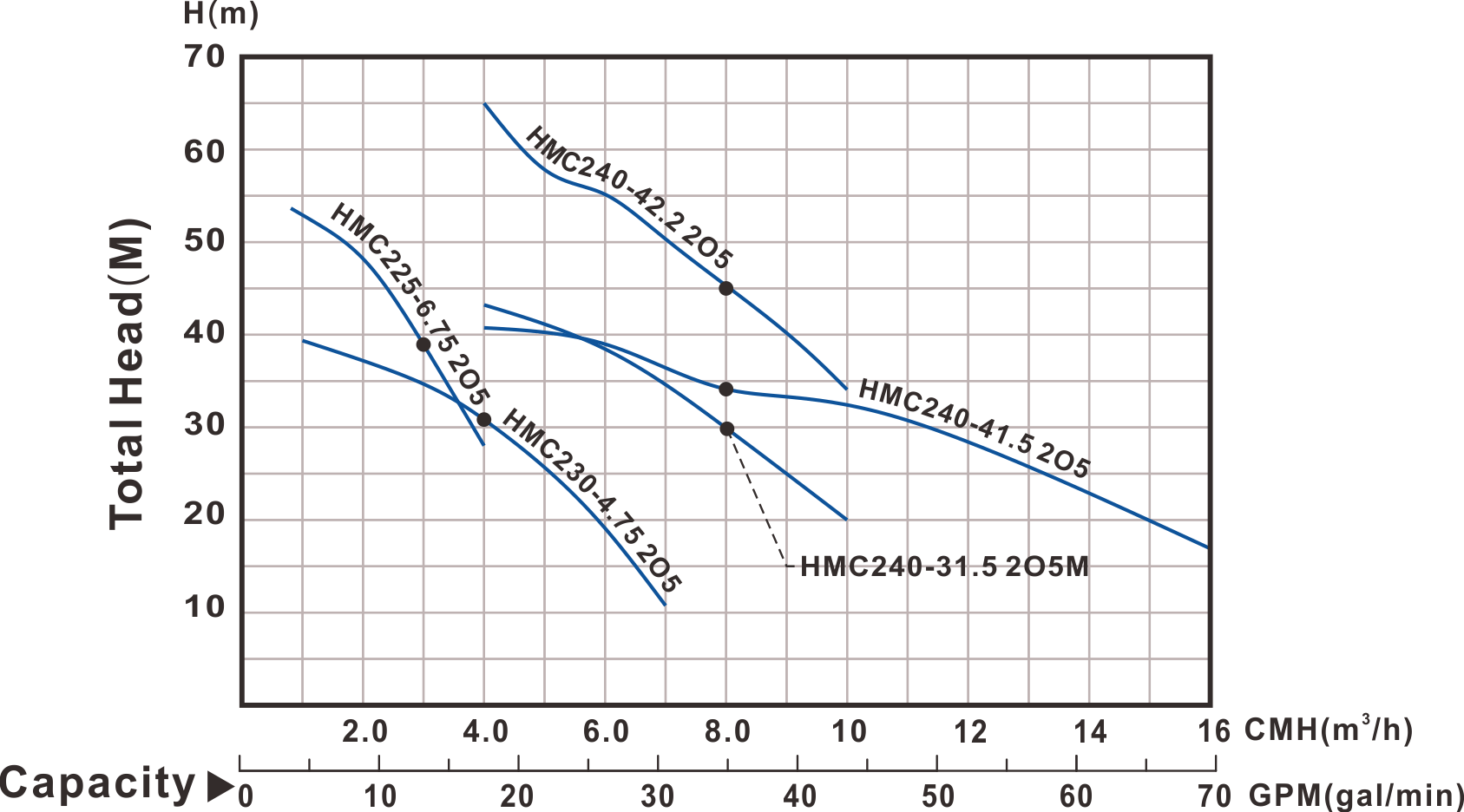

TYPE POWER BORE PHASE Q
( m3/h ) 		0.8 1.2 1.6 2.0 2.4 2.8 3.0 3.2 3.6 4.0 CURVE CODE
HP(kW) Inch ∅
HMC225-6.75 2O5 1 (0.75) 1" / 1" 3 H (m) 53 51.5 49 47 44 43 42 37 32 27 A
TYPE POWER BORE PHASE Q
( m3/h ) 		1.0 2.0 3.0 4.0 4.5 5.0 6.0 7.0 CURVE CODE
HP(kW) Inch ∅
HMC230-4.75 2O5 1 (0.75) 1¼" / 1" 3 H (m) 39 37 34.5 31 29 26 19 11 B

TYPE POWER BORE PHASE Q m3/h 4.0 5.0 6.0 7.0 8.0 9.0 10 CURVE CODE
HP(kW) Inch ∅
HMC240-31.5 2O5M 2 (1.5) 1½" / 1½" 3 H (m) 43 40 38 34 30 25 20 C
HMC240-42.2 2O5 3 (2.2) 1½" / 1½" 3 65 57.5 57 50 45 42 34 E
TYPE POWER BORE PHASE Q m3/h 4.0 6.0 8.0 10 12 14 16 CURVE CODE
HP(kW) Inch ∅
HMC240-41.5 2O5 2 (1.5) 1½" / 1½" 3 H (m) 41 39 34 33 28 23 17 D

手風琴選單

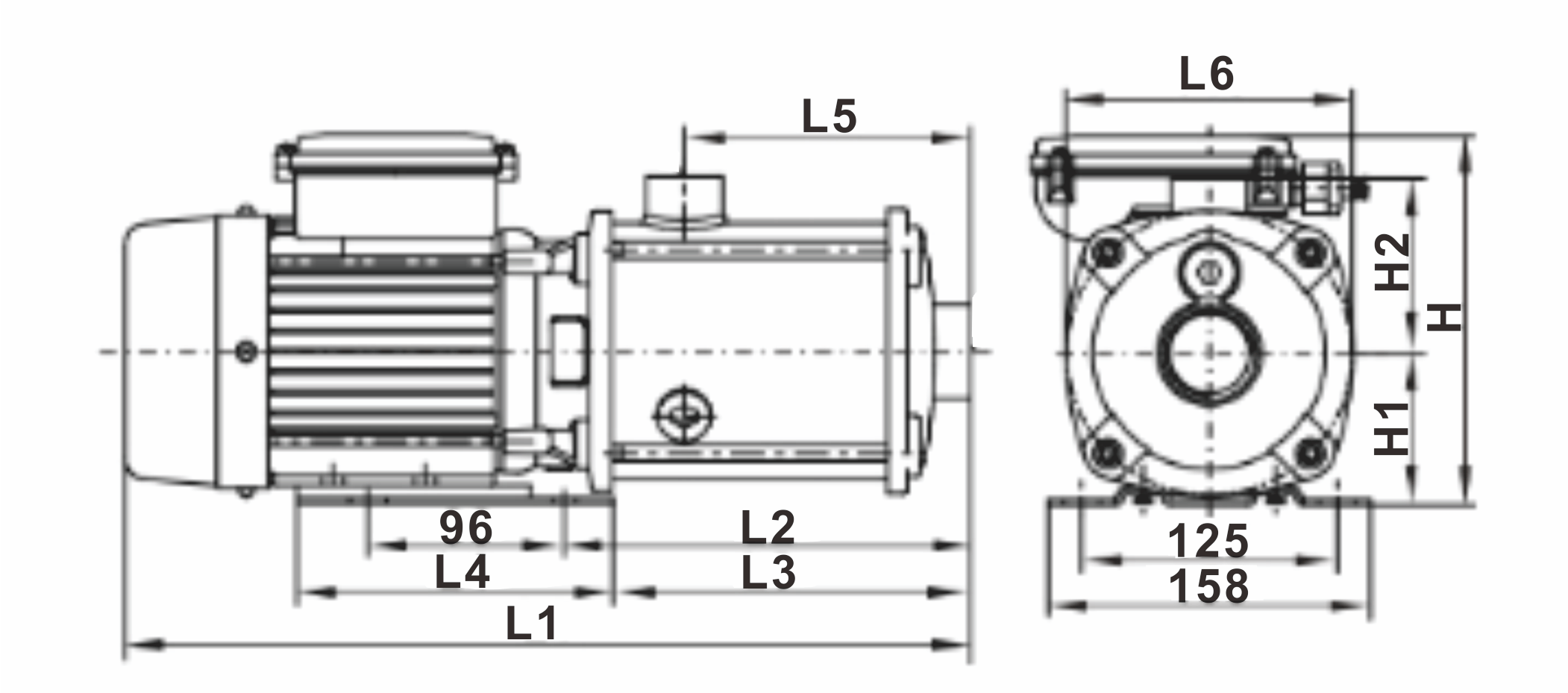

TYPE L1 L2 L3 L4 L5 L6 H H1 H2
HMC225-6.75 2O5 416 203 179 155 144 140 165 75 90
HMC230-4.75 2O5 360 145 121 155 86 140 188 75 86
HMC240-31.5 2O5M 408 408 - - 100 182 217 100 -
HMC240-41.5 2O5 438 438 - - 130 182 217 100 -
HMC240-42.2 2O5 438 438 - - 130 182 217 100 -
