Exquisite gear pressure pump
Model :
HCF series
- General household use of water
- Well water extraction
- mountain spring water
- catering industry
- Water spray cooling device
- Automatic water supply for buildings
- water tower
- Use water equipment
- This model has special water flow design and excellent liquid transportation.
- The motor is equipped with a protective device to prevent the motor from burning.
- Automatically pressurizes water supply when using water, and automatically stops operation when no water is used.
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+40°C
- Applicable liquid: clean water; or non-corrosive, solid-particle-free liquid with properties close to water.
- Suction lift : Max.6m
- Suction lift: It must be less than the set pressure of the pressure switch (ON).

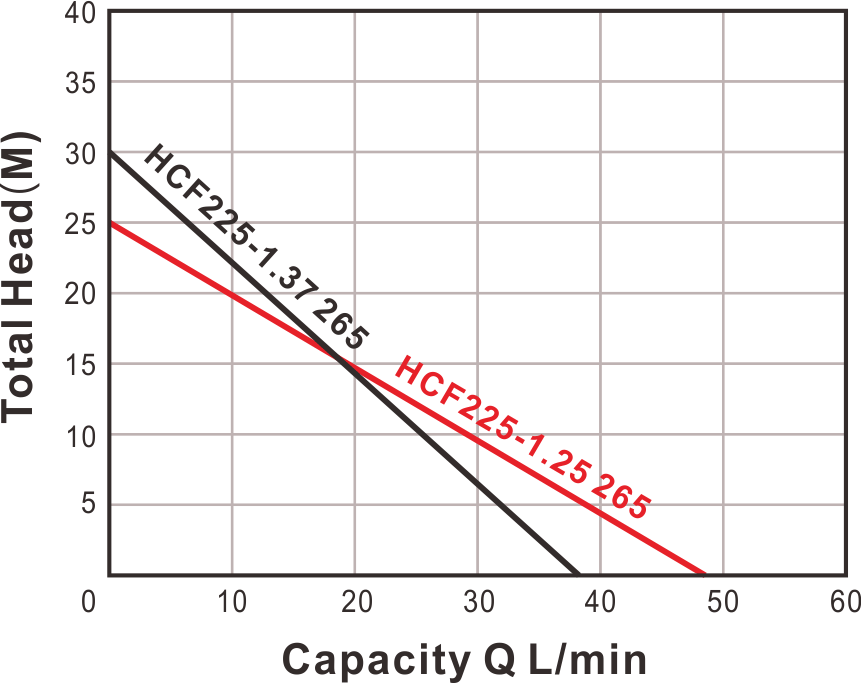

| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT |
|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | |
| HCF225-1.25 265 | ⅓ (0.25) | 1"(25) | 1 | 48 | 25 | 11 |
| HCF225-1.37 265 | ½ (0.37) | 1"(25) | 1 | 38 | 30 | 11 |

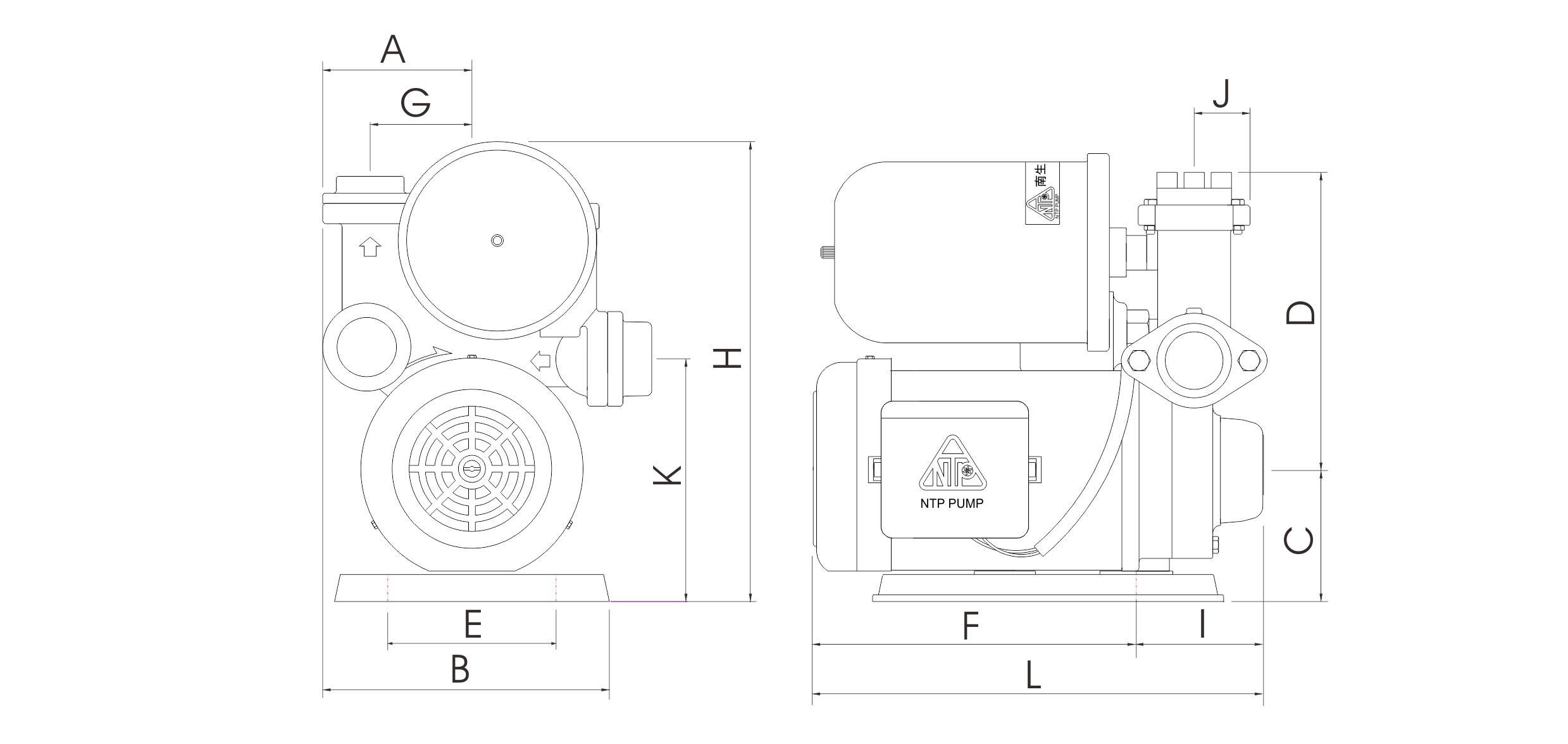

| TYPE | A | B | C | D | E | F | H | I | J | L | G | K |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| HCF225-1.25 265 | 100 | 190 | 90 | 130 | 100 | 185 | 410 | 65 | 45 | 250 | 45 | 250 |
| HCF225-1.37 265 | 100 | 195 | 90 | 135 | 100 | 200 | 410 | 65 | 45 | 265 | 45 | 265 |
