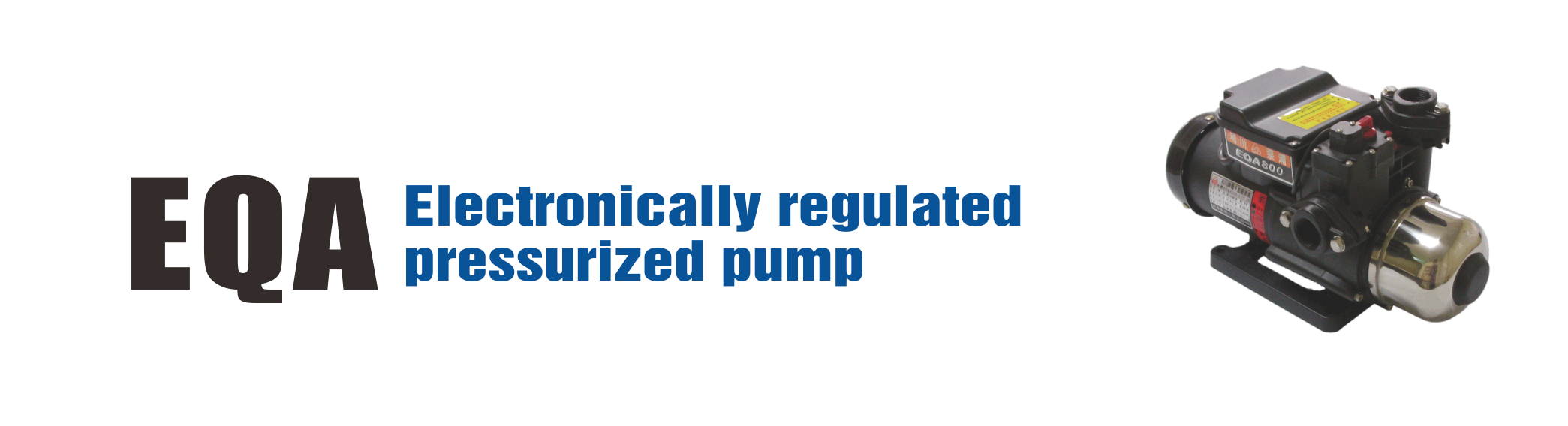

Electronic voltage stabilization and pressure pump
Model :
EQA series
-
Suitable for conveying clean water without impurities. General applications include:
- Apartment
- Residential water supply
- Automatic boosting system
- Pumping system
- Drinking water system
- Sprinkler system
- When using water, the press will run automatically when the faucet is opened. It operates quietly and maintains a stable water flow with a large water output.It won't be big or small suddenly, and the pressurizer will stop automatically when the water is turned off.
- This pump is designed with computer control circuit.
- This pump has a built-in protection switch.
- Ambient temperature：MAX.+40°C
- Liquid temperature：+4°C~+40°C
- Inlet pressure: needs to be less than the pressure switch activation value
- Inlet pressure: must be less than the pressure switch start value
- Installation: The water tower needs to be 0.5m higher than the pump
| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | WEIGHT | SERIES |
|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | KG | ||
| EQA220-2.18 2S | ¼ (0.18) |
¾" (20) |
1 | 55 | 22 | 8 | EQA200 |
| EQA225-2.37 2S | ½ (0.37) | 1" (25) | 1 | 70 | 26 | 9 | EQA400 |
| EQA225-3.75 2S | 1 (0.75) | 1" (25) | 1 | 85 | 35 | 10.5 | EQA800 |
| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | MAX AMPS | SERIES |
|---|---|---|---|---|---|---|---|
| HP(KW) | Inch(mm) | ∅ | L/min | M | A | ||
| EQA220-3.18 265 | ¼ (0.18) |
¾" (20) |
1 | 48 | 19 | 2.0 | EQA200 |
| EQA225-3.37 265 | ½ (0.37) | 1" (25) | 1 | 64 | 23 | 2.6 | EQA400 |
| EQA225-4.75 265 | 1 (0.75) | 1" (25) | 1 | 76 | 32 | 3.8 | EQA800 |
| TYPE | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| EQA220-2.18 2S | 260 | 375 | 185 | 158 | 230 | 151 |
| EQA225-2.37 2S | 260 | 375 | 185 | 158 | 230 | 151 |
| EQA225-3.75 2S | 285 | 400 | 185 | 158 | 230 | 151 |
| TYPE | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| EQA220-3.18 265 | 280 | 400 | 185 | 158 | 230 | 151 |
| EQA225-3.37 265 | 280 | 400 | 185 | 158 | 230 | 151 |
| EQA225-4.75 265 | 330 | 450 | 185 | 158 | 230 | 151 |
