Differential pressure high-speed pressurization pump
Model :
HTA series
- building
- School
- Gardening
- Car wash
- Cleaning equipment
- Architecture
- Temporary water use for the project
- Animal husbandry
- Suitable high-speed pumps can be matched according to needs.
- Using differential pressure switch control, the pressure switch can set the starting pressure value and stop pressure value.
- Ambient temperature: MAX.+40°C
- Liquid temperature: +4°C~+40°C
- Applicable liquids: It is better to transport clean water; or liquids with no chemical substances, no solid particles, and properties close to water.

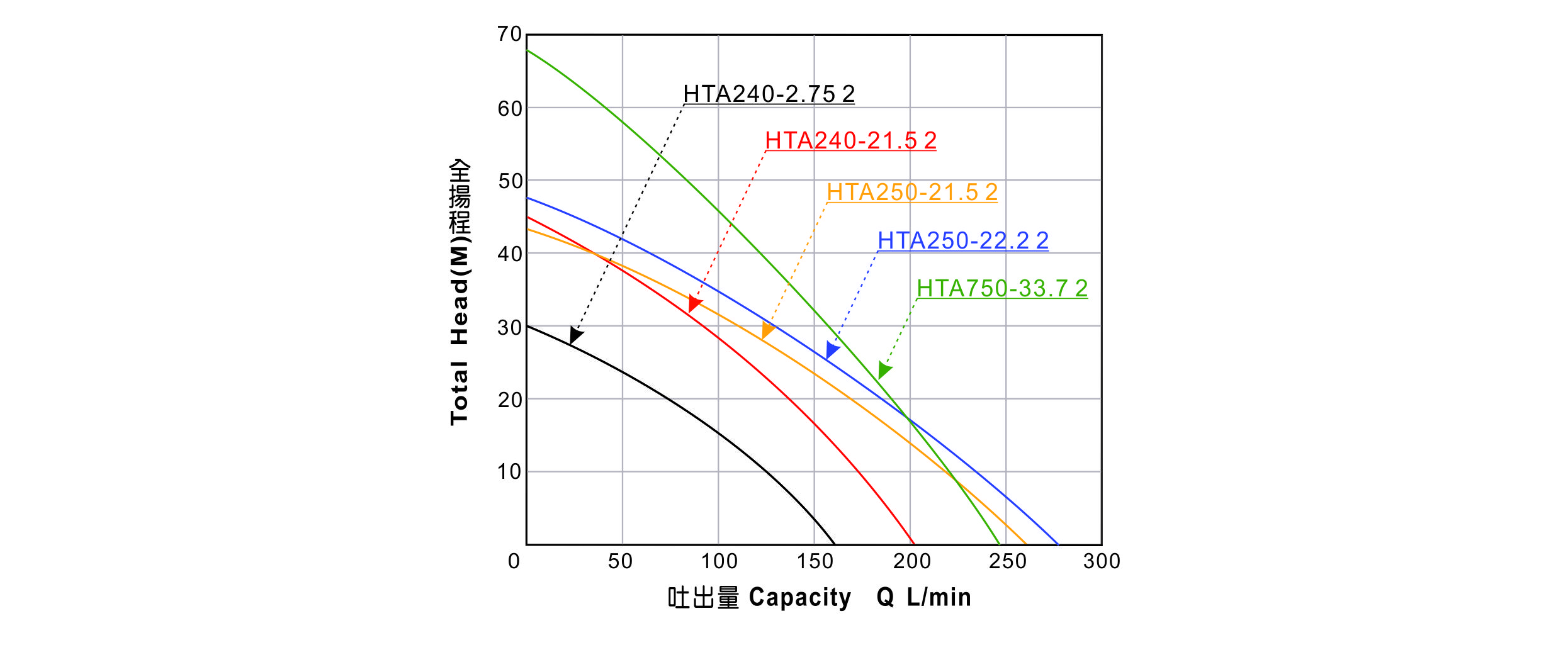

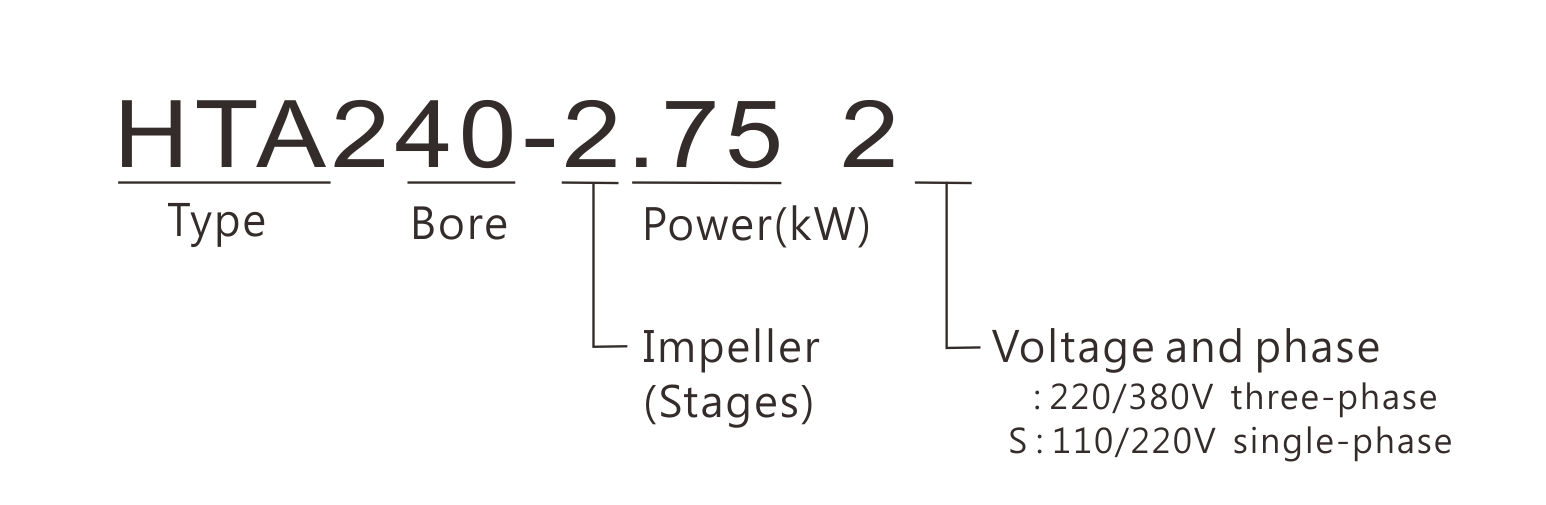

| TYPE | POWER | BORE | PHASE | MAX CAPACITY | MAX HEAD | PRESSURE |
|---|---|---|---|---|---|---|
| HP(kW) | Inch(mm) | ∅ | L/min | M | Kg/cm2 | |
| HTA240-2.75 2 | 1 (0.75) | 1½" (40) | 3 | 162 | 30 | 3.0 |
| HTA240-21.5 2 |
2 (1.5) |
1½" (40) | 3 | 203 | 45 | 3.5 |
| HTA250-21.5 2 | 2 (1.5) |
2" (50) |
3 | 264 | 43 | 3.5 |
| HTA250-22.2 2 | 3 (2.2) |
2" (50) |
3 | 275 | 47 | 4.5 |
| HTA750-33.7 2 |
5 (3.7) |
2" (50) |
3 | 245 | 68 | 6.0 |
| TYPE | A | B | C | D | E |
|---|---|---|---|---|---|
| HTA240-2.75 2 | 550 | 160 | 291 | 400 | 690 |
| HTA240-21.5 2 | 550 | 160 | 300 | 410 | 740 |
| HTA250-21.5 2 | 550 | 160 | 300 | 410 | 740 |
| HTA250-22.2 2 | 600 | 210 | 300 | 400 | 740 |
| HTA750-33.7 2 | 630 | 210 | 326 | 435 | 785 |
