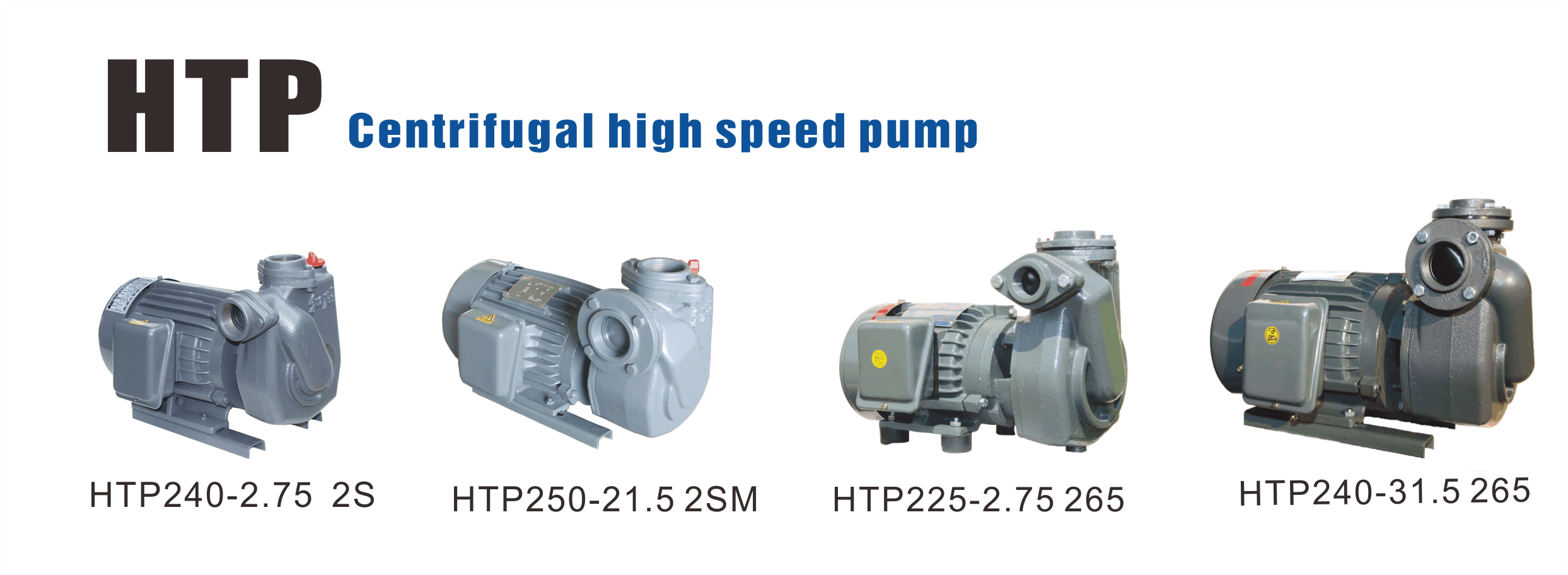

• High speed pump

High speed pump

Model : HTP series


手風琴選單
  • household water
  • Orchard sprinkler equipment
  • Building
  • School
  • Gardening
  • Amusement park
  • Car wash
  • Cleaning equipment
  • Well water extraction
  • General water use
  • Industrial water
  • Construction project

  • The water absorption depth can reach 8.5 meters, suitable for pumping well water.
  • Can be operated alone or in parallel for interactive operation.
  • Using mechanical shaft seal, it does not damage the shaft center, does not leak, and has a long service life.
  • Depending on the lift and water volume requirements, single, double or three-stage impeller designs are adopted.
  • Ambient temperature: MAX.+40°C
  • Liquid temperature: +4°C~+40°C
  • Applicable liquids: Non-corrosive, non-containing solid particles, liquids with properties close to water, groundwater, and well water
手風琴選單

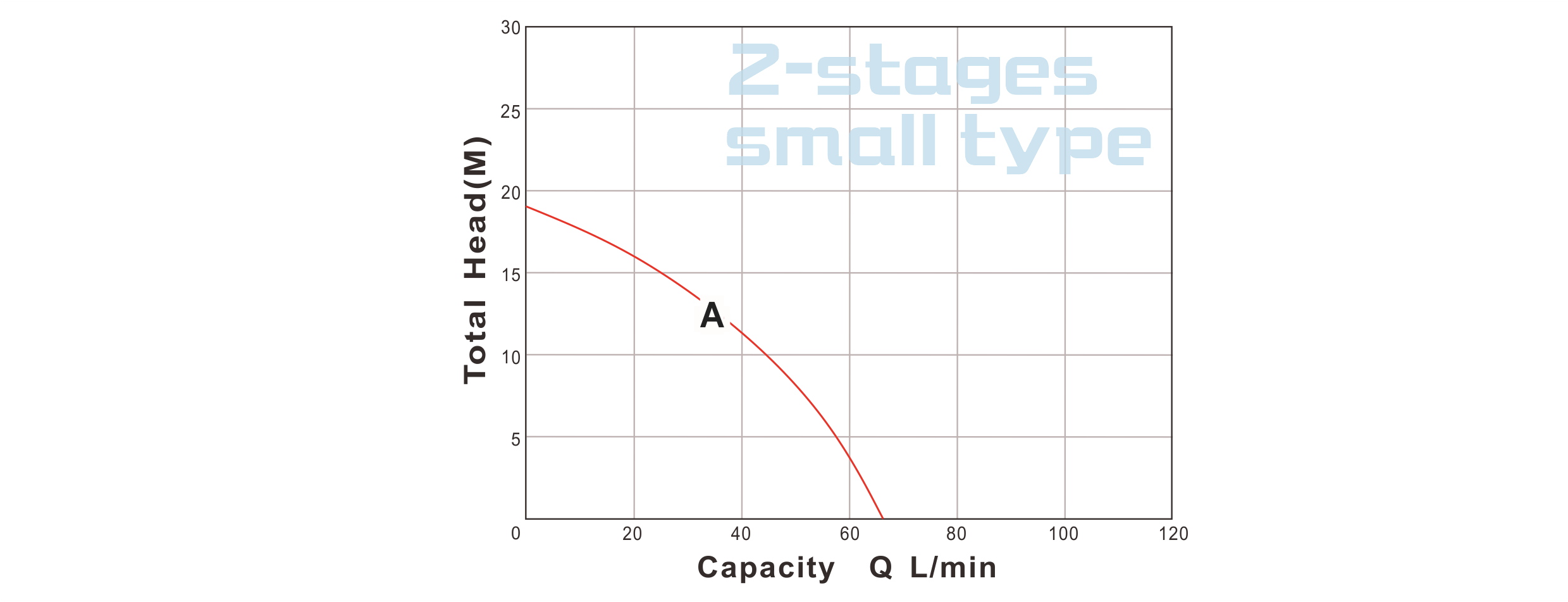

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT CURVE CODE
HP(kW) Inch(mm) ∅ L/min M Kg
HTF225-2.75 2S 1 (0.75) 1" (25) 1 102 29 20 A

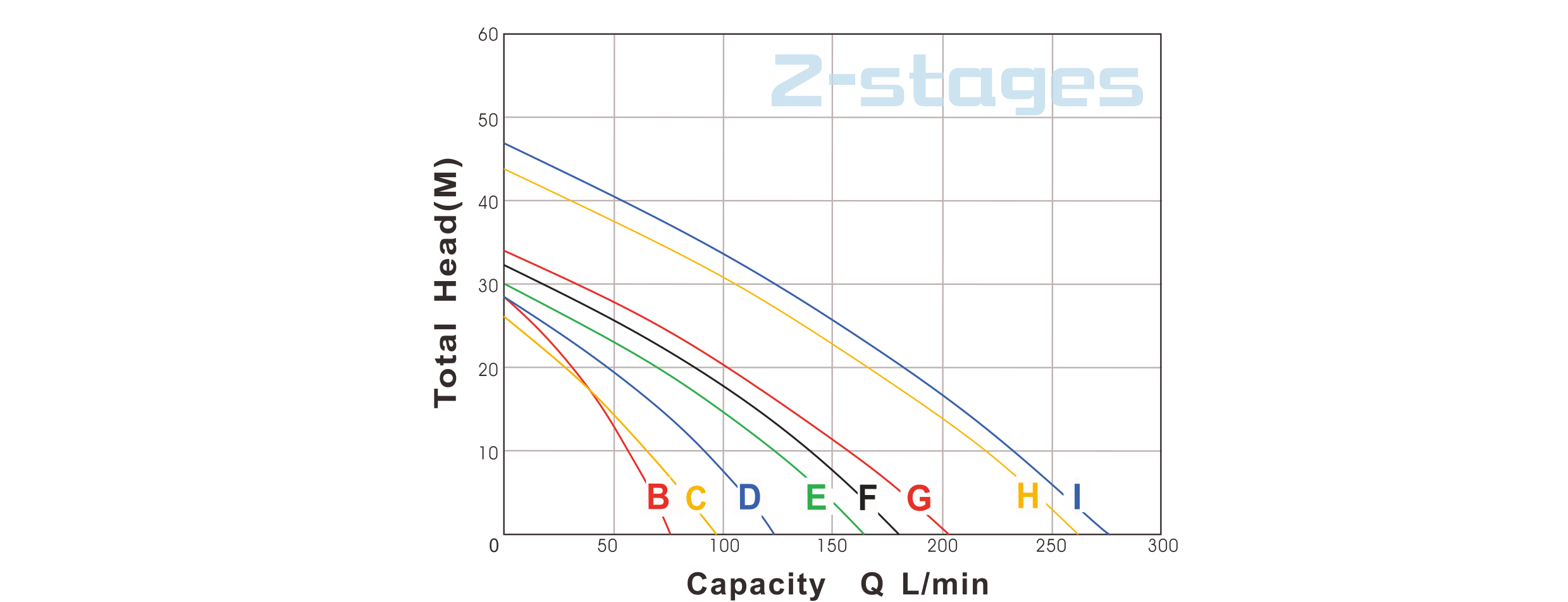

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT CURVE CODE
HP(kW) Inch(mm) ∅ L/min M Kg
HTP220-2.37 2S ½ (0.37) ¾" (20) 1 75 28 23 B
HTP225-2.37 2S ½ (0.37)
 1" (25) 1 / 3 94 26 23 C
HTP225-2.75 2S 1 (0.75) 1" (25)
 1 / 3 120 28 30 D
HTP240-275 2S 1 (0.75) 1½" (40)
 1 / 3 162 30 37 E
HTP240-21.1 2S 1½ (1.1)
 1½" (40)
 1 177 32 40 F
HTP250-21.5 2SM 2 (1.5) 2" (50) 1 / 3 203 33 42 G
HTP250-21.5 2S 2 (1.5) 2" (50) 1 / 3 264 43 42 H
HTP250-22.2 2S 3 (2.2) 2" (50) 1 / 3 275 47 45 I

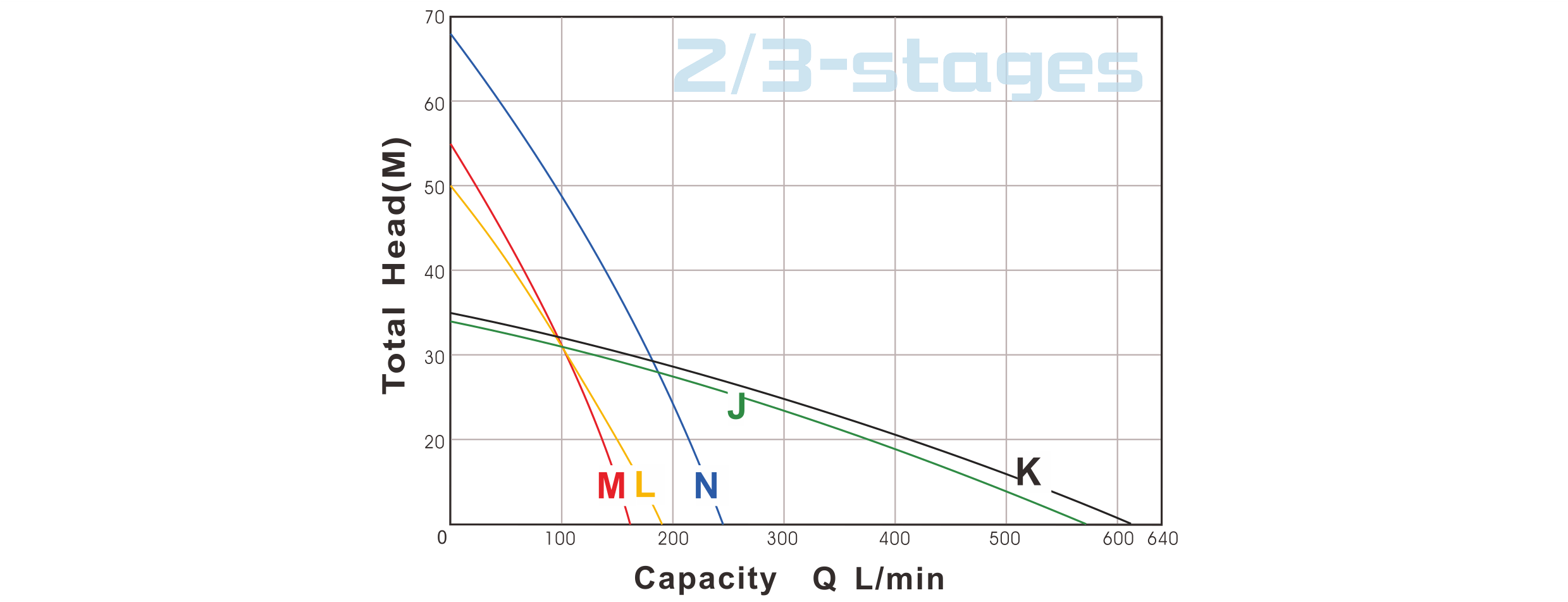

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT CURVE CODE
HP(kW) Inch(mm) ∅ L/min M Kg
HTP280-22.2 2S 3 (2.2) 3" (80) 1 565 33 64 J
HTP280-23.7 2 5 (3.7)
 3" (80) 3 610 37 64 K
HTP740-31.5 2S 2 (1.5) 1½" (40)
 1 / 3 192 50 38 L
HTP750-32.2 2S 3 (2.2) 2" (50)
 1 / 3 162 55 45 M
HTP750-33.7 2S 5 (3.7)
 2" (50)
 1 / 3 245 68 57 N

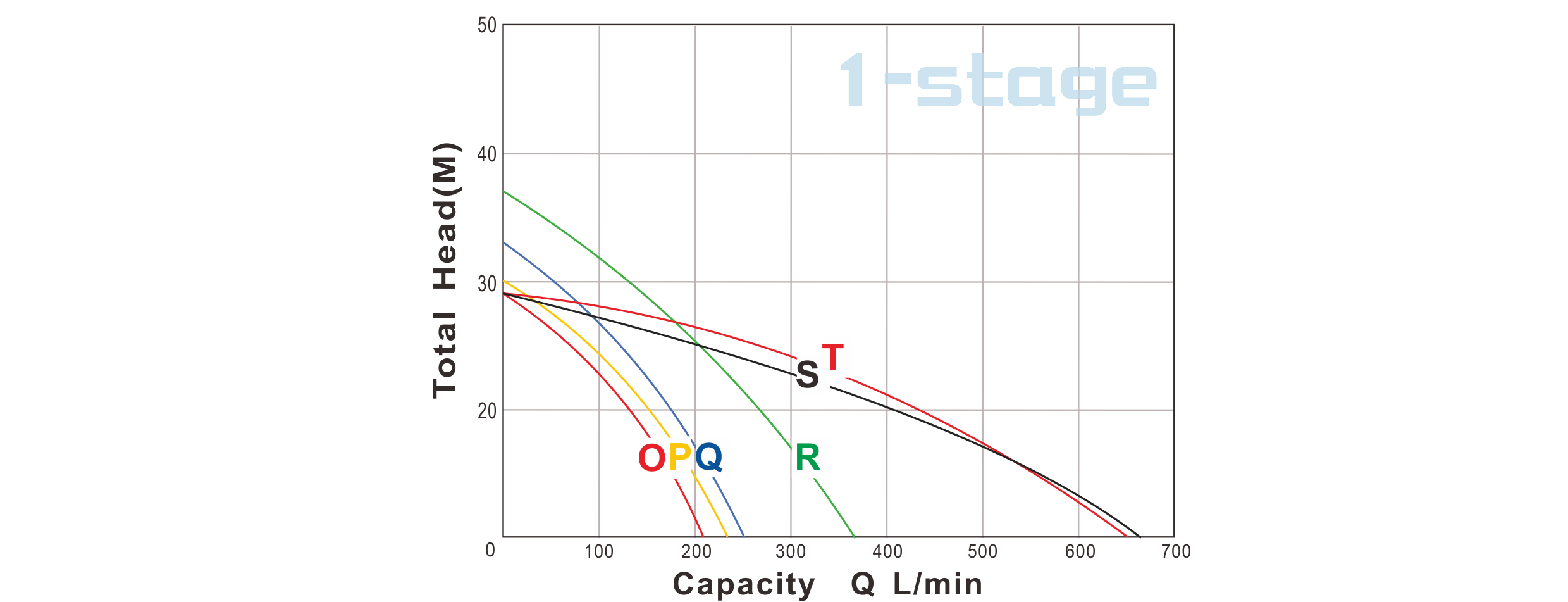

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT CURVE CODE
HP(kW) Inch(mm) ∅ L/min M Kg
HTP240-1.75 2S 1 (0.75) 1½" (40) 1 / 3 232 29 37 O
HTP240-11.1 2S 1½ (1.1)
 1½" (40) 1 / 3 239 30 40 P
HTP250-11.5 2S 2 (1.5) 2" (50)
 1 / 3 251 33 42 Q
HTP250-12.2 2S 3 (2.2) 2" (50)
 1 / 3 365 37 55 R
HTP280-12.2 2S 3 (2.2)
 3" (80)
 1 / 3 597 29 64 S
HTP280-13.7 2S 5 (3.7) 3" (80)
 1 / 3
 663 31 64 T

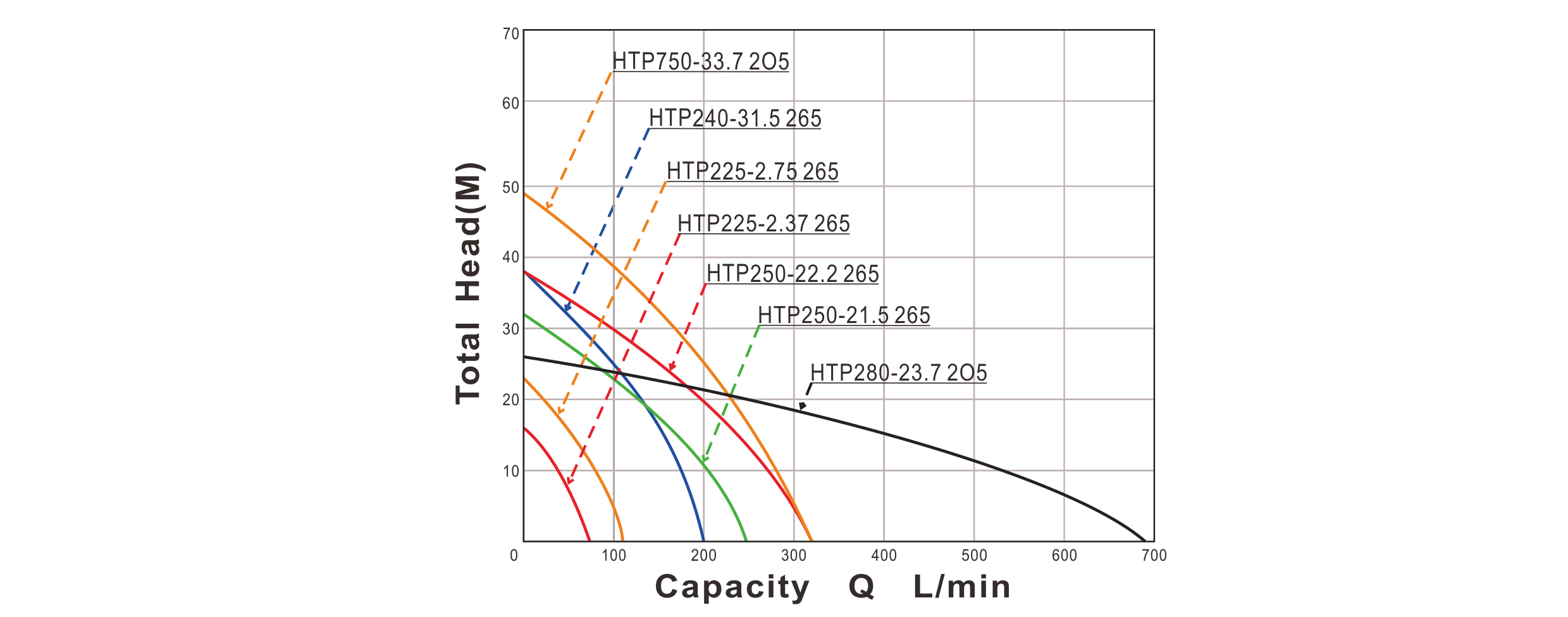

TYPE POWER BORE VOLTAGE MAX CAPACITY MAX HEAD WEIGHT
HP(kW) Inch(mm) V L/min M Kg
HTP225-2.37 265 ½ (0.37) 1" (25) 200-240 75 16 23
HTP225-2.75 265 1 (0.75) 1" (25) 200-240 109 23 30
HTP240-31.5 265 2 (1.5) 1½" (40) 200-240 193 38 40
HTP250-21.5 265 2 (1.5) 2" (50) 200-240 245 32 42
HTP250-22.2 265 3 (2.2) 2" (50) 200-240 320 38 45
HTP750-33.7 2O5 5 (3.7) 2" (50) 380-480 320 49 57
HTP280-23.7 2O5 5 (3.7) 3" (80) 380-480 686 26 64

手風琴選單

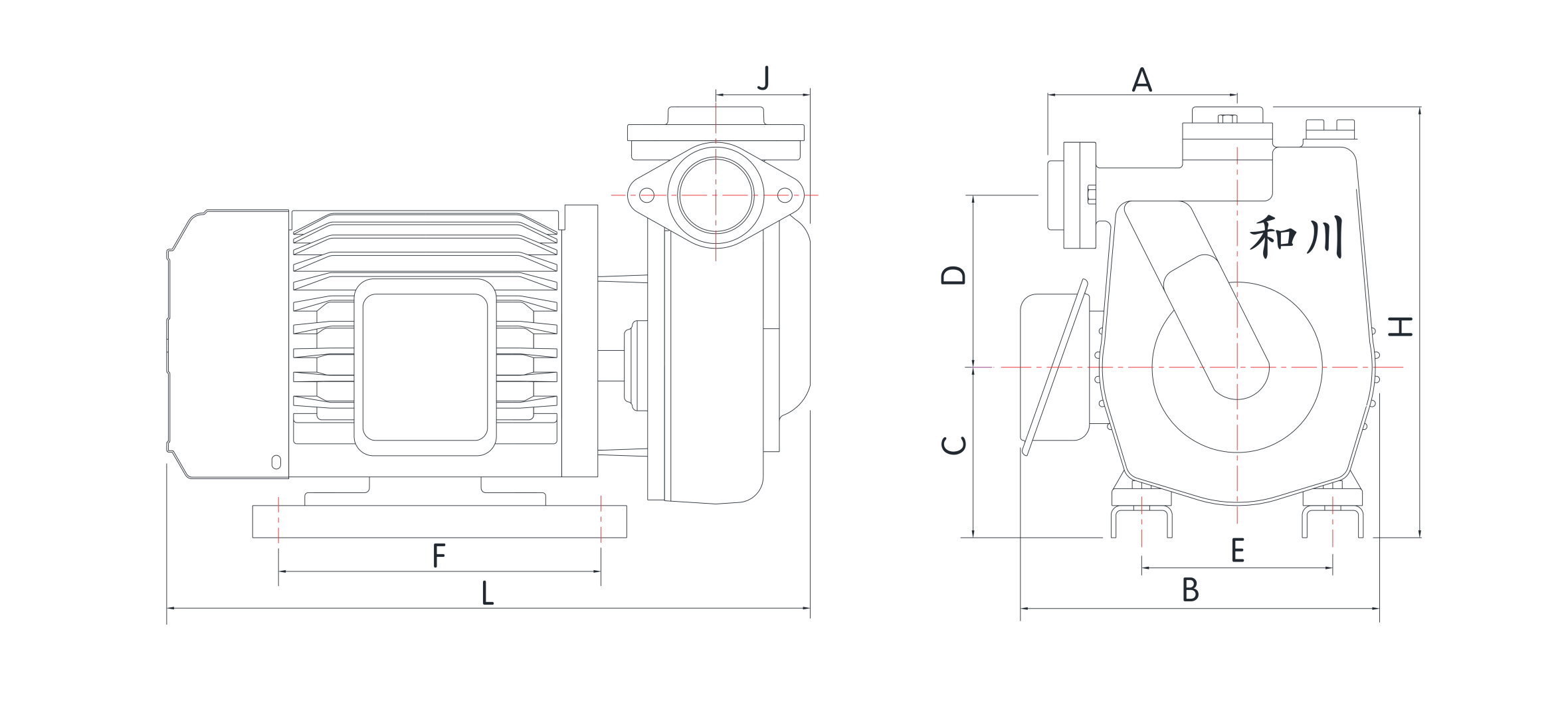

TYPE A B C D E F H J L
HTF225-2.75 2S 120 220 100 100 110 206 255 51 345
HTP225-2.37 2SM 120 235 95 106 125 206 245 51 325
HTP225-2.37 2S 120 235 95 106 125 206 245 51 360
HTP225-2.75 2S 120 230 100 106 125 206 260 51 370
HTP240-2.75 2S 120 270 110 106 140 245 275 55 415
HTP240-21.1 2S 120 270 110 106 140 245 275 55 415
HTP740-31.5 2S 125 275 110 110 140 245 295 80 465
HTP250-21.5 2SM 121 270 110 110 140 245 290 70 430
HTP250-21.5 2S 145 275 110 125 140 245 305 95 455
HTP250-22.2 2S 145 275 110 125 140 245 300 95 470
HTP750-32.2 2S 145 275 110 135 140 245 325 105 505
HTP280-22.2 2S - 325 140 91 190 266 330 90 535
HTP280-23.7 2 - 330 140 91 190 266 330 90 535
HTP750-33.7 2S 145 320 150 135 190 266 360 105 535
HTP250-12.2 2S 135 270 115 125 140 245 300 68 450


TYPE A B C D E F H I J L
HTP225-2.37 265 115 225 130 75 130 100 260 130 50 370
HTP225-2.75 265 115 225 130 85 130 100 260 130 50 385
HTP240-31.5 265 110 265 135 90 140 130 305 155 85 480
HTP250-21.5 265 140 260 130 120 140 125 320 140 60 480
HTP250-22.2 265 140 275 130 105 140 125 300 145 70 510
HTP750-33.7 2O5 125 285 170 120 190 140 370 145 105 535
HTP280-23.7 2O5 80 295 180 70 195 140 340 160 110 535
