• Gear pressure pump

Gear pressure pump

Model : HCA series



  • General household use of water
  • Well water extraction
  • mountain spring water
  • catering industry
  • Water spray cooling device
  • Automatic water supply for buildings
  • water tower
  • Use water equipment

  • This model has special water flow design and excellent liquid transportation.
  • The motor is equipped with a protective device to prevent the motor from burning.
  • Automatically pressurizes water supply when using water, and automatically stops operation when no water is used.
  • Ambient temperature：MAX.+40°C
  • Liquid temperature：+4°C~+40°C
  • Applicable liquid: clean water; or non-corrosive, solid-particle-free liquid with properties close to water.
  • Suction lift : Max.6m
  • Suction lift: It must be less than the set pressure of the pressure switch (ON).


手風琴選單

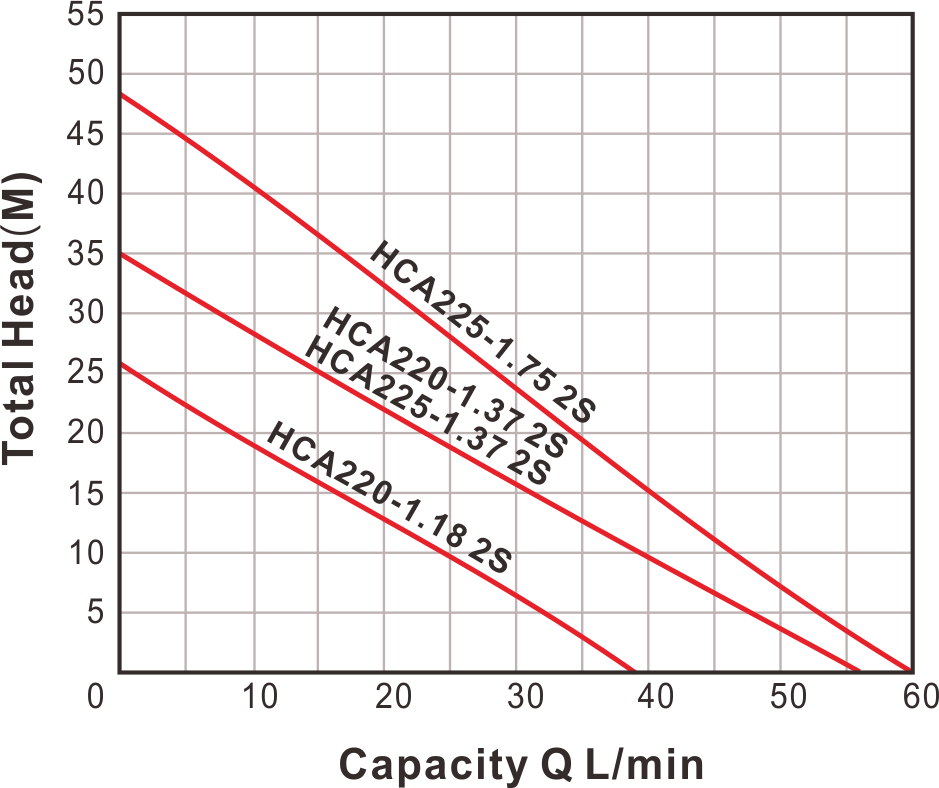

TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT
HP(KW) Inch(mm) ∅ L/min M KG
HCA220-1.18 2S ¼(0.18) ¾”(20) 1 39 26 9.5
HCA220-1.37 2S ½(0.37) ¾”(20) 1 56 35 12
HCA225-1.37 2S ½(0.37) 1”(25) 1 56 35 12
HCA225-1.75 2S 1 (0.75) 1"(25) 1 60 48 19.5




TYPE POWER BORE PHASE MAX CAPACITY MAX HEAD WEIGHT
HP(KW) Inch(mm) ∅ L/min M KG
HCA225-1.25 265 ⅓(0.25) 1"(25) 1 35 26 9.5
HCA225-1.37 265 ½(0.37) 1"(25) 1 45 36 12
HCA225-1.75 265 1 (0.75) 1”(25) 1 54 41 19.5
手風琴選單

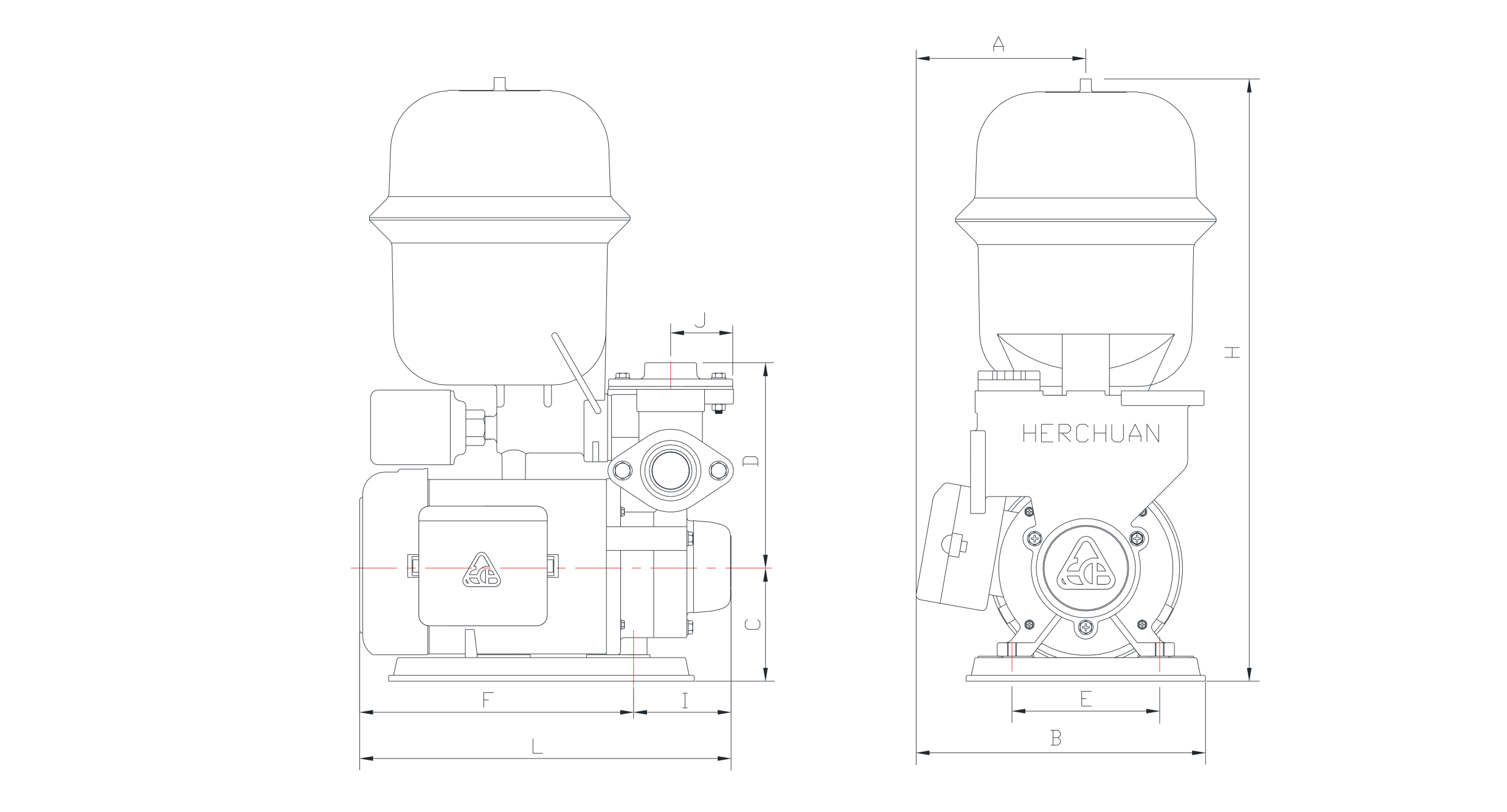

TYPE A B C D E F H I J L
HCA220-1.18 2S 100 190 90 130 100 185 410 65 45 250
HCA220-1.37 2S 100 195 90 135 100 200 410 65 45 265
HCA225-1.37 2S 100 195 90 135 100 200 410 65 45 265
HCA225-1.75 2S 130 205 115 145 115 175 445 120 45 305


TYPE A B C D E F H I J L
HCA225-1.25 265 100 190 90 135 100 185 410 65 45 250
HCA225-1.37 265 100 195 90 135 100 200 410 65 45 265
HCA225-1.75 265 130 205 115 145 115 175 445 120 45 305
