Belt-driven Gear Pump (Oil type)

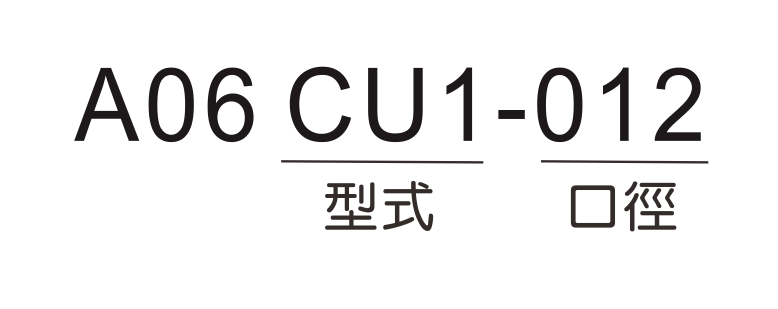

Model : CU series

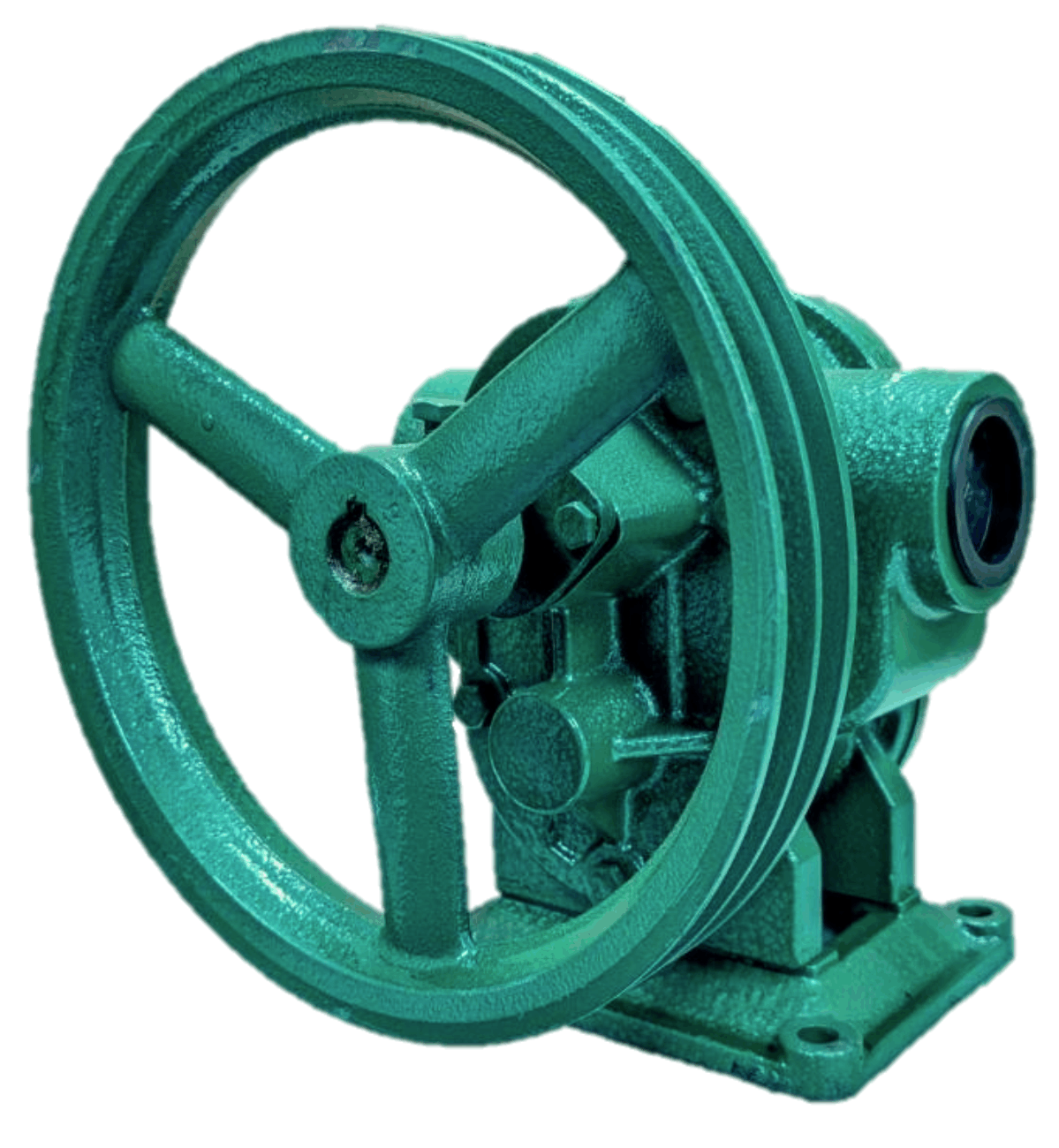

CU Belt-driven Gear Pump

手風琴選單
  • Petroleum
  • Natural gas industry
  • Power generation
  • Lubrication system
  • Other industrial applications that require moving or transferring oil
  • Cast iron type oil machine - it is prohibited to transport clean water

  • Belt oil engines are driven by a belt connected to an external power source, usually an electric motor. The belt transmits the rotational motion from the motor to the pump to make the pump deliver oil. Belt driven oil pumps are usually positive displacement pumps such as gear pumps or vane pumps. They are known for their high pressure, durability and Known for efficiency. They are commonly used in industrial and commercial applications requiring high pressure and/or high flow rates.
  • It can automatically vacuum liquid, has a simple structure and is easy to maintain.
  • The output is stable, the volumetric efficiency is high, and it is economical and durable.
手風琴選單
TYPE POWER BORE SPEED CAPACITY PRESSURE
HP Inch(mm) rpm L/min Kg/cm2
A06 CU1-012 ½ ½" (12) 450 14 3
A06 CU1-020 ½ - 1 ¾" (20) 430 35 4
A06 CU1-025 1 - 2 1" (25) 430 48 4
A06 CU1-030 1 - 3 1¼" (30) 430 56 4
A06 CU1-040 2 - 5 1½" (40) 430 95 4
A06 CU1-050 3 - 5 2" (50) 430 150 4
A06 CU1-080 10 3" (80) 350 260 4
A06 CU1-100 10 4" (100) 450 740 2



手風琴選單 手風琴選單

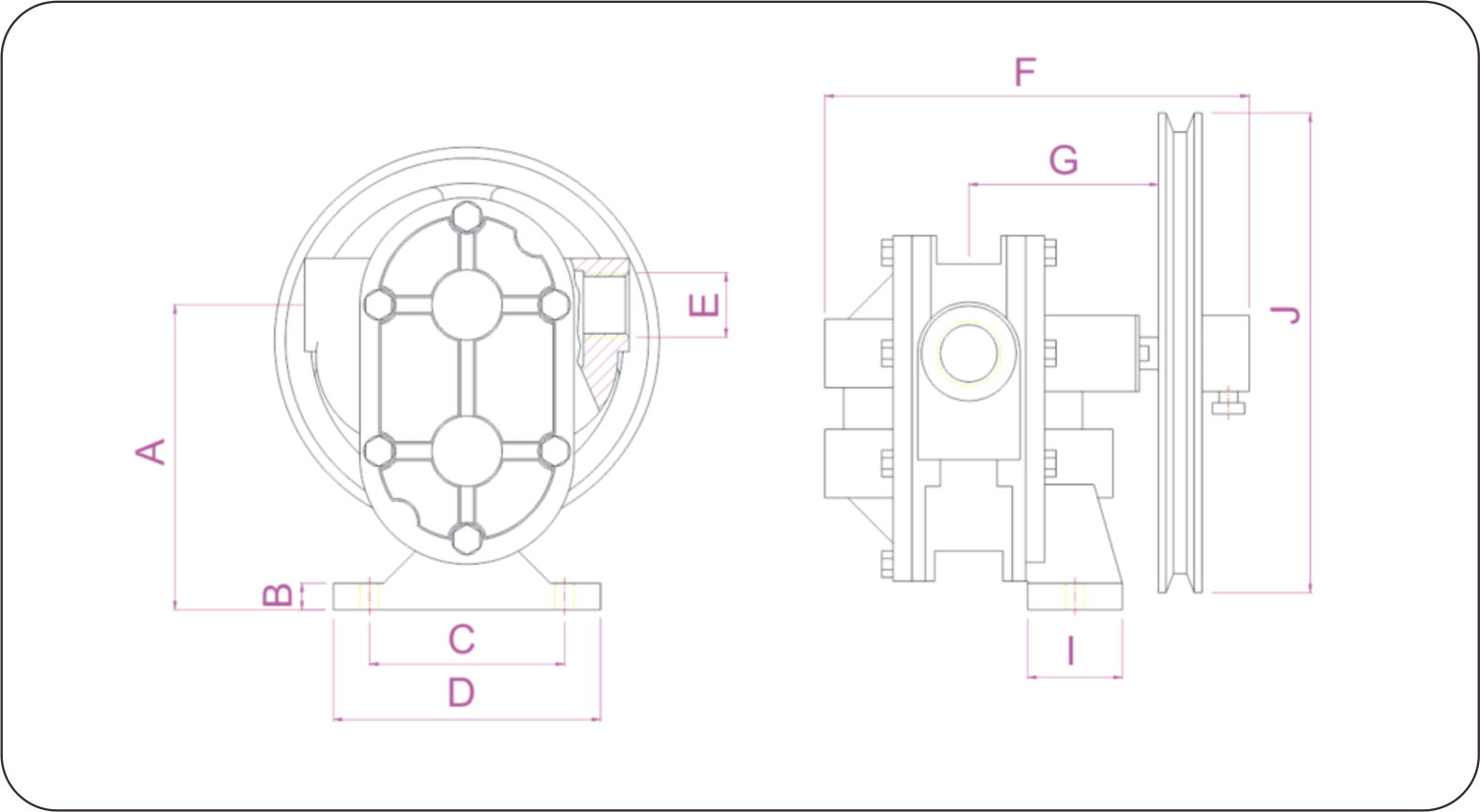

型號 A B C D E F G I J shaft
diameter 		Number
of grooves

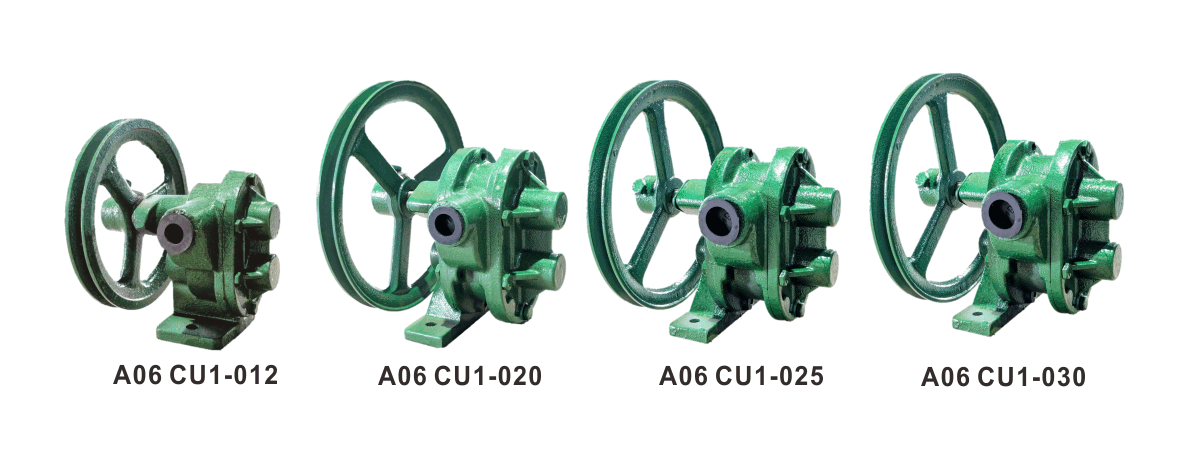

A06 CU1-012 102 10 55 85 21 160 72 65 178(7") 14 1A
A06 CU1-020 130 12 101 140 27 202 93 50 255(10") 17 1B
A06 CU1-025 130 12 101 140 33 209 100 50 255(10") 17 1B
A06 CU1-030 130 13 101 140 42 209 130 47 255(10") 17 1B

手風琴選單 手風琴選單

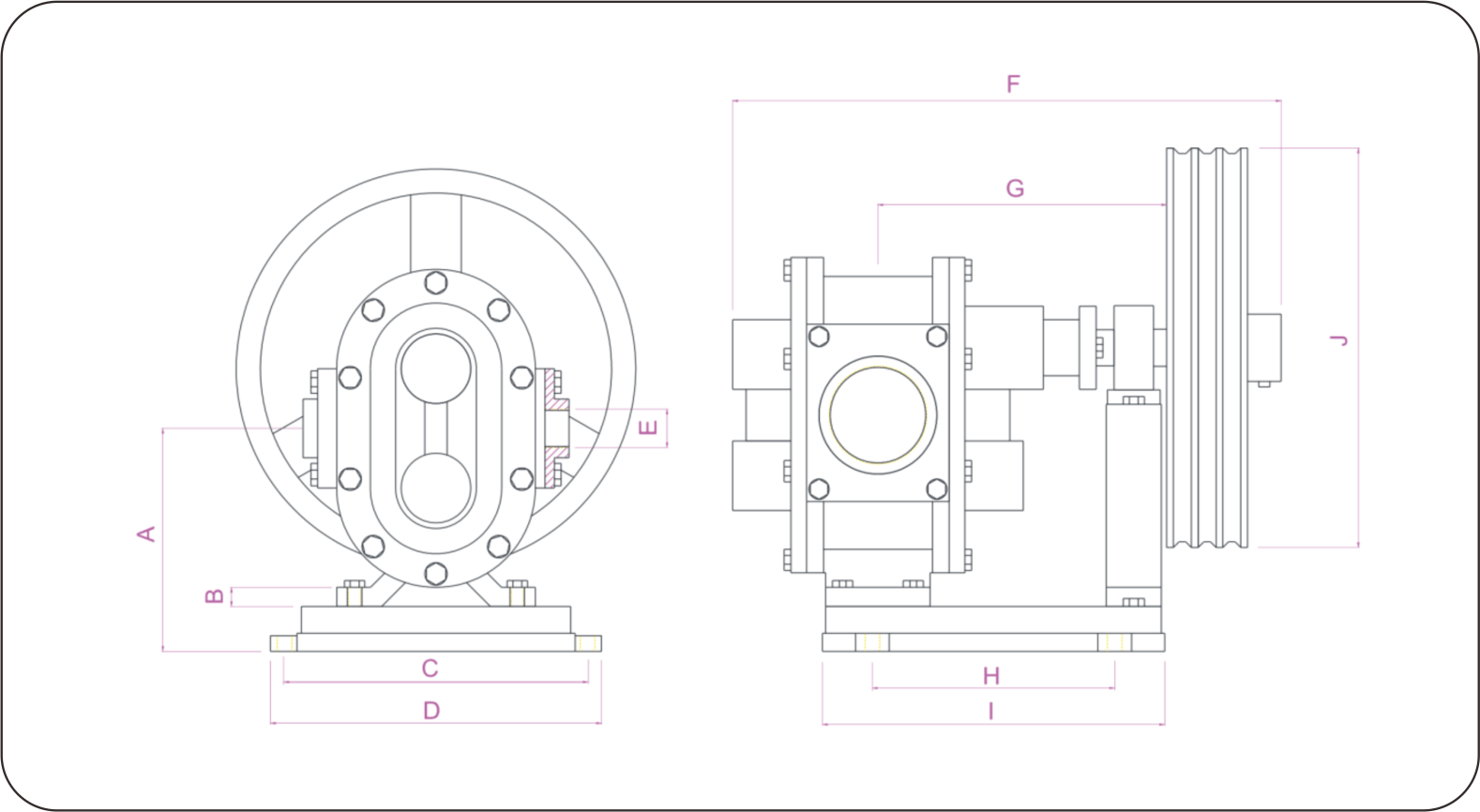

TYPE A B C D E F G H I J shaft
diameter 		Number
of grooves

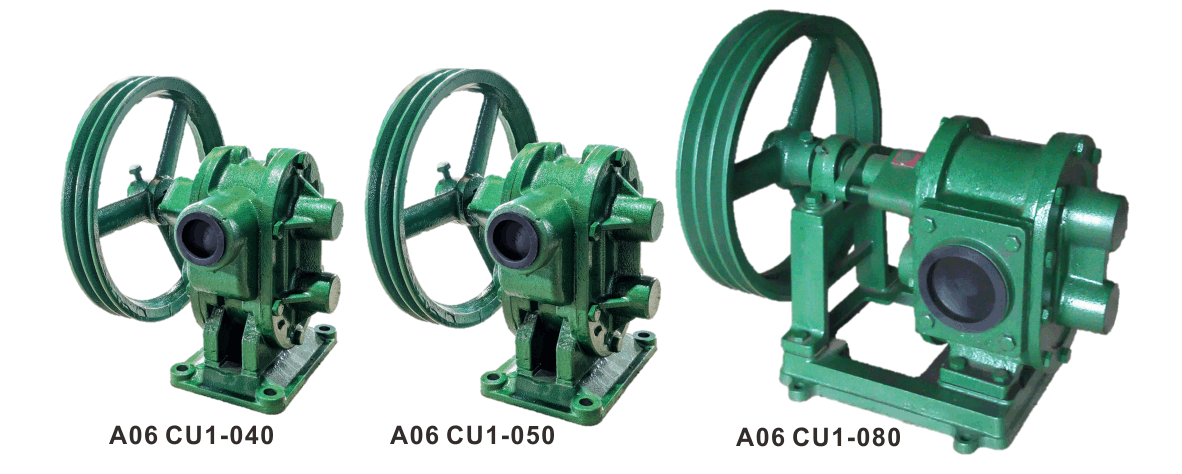

A06 CU1-040 190 18 172 203 48 273 120 110 140 305(12") 24 2B
A06 CU1-050 205 18 177 208 60 309 135 129 158 305(12") 24 2B
A06 CU1-080 195 - 270 295 89 447 245 218 305 356(14") 30 3B
