Amphibious Pump
Model :
MSF series

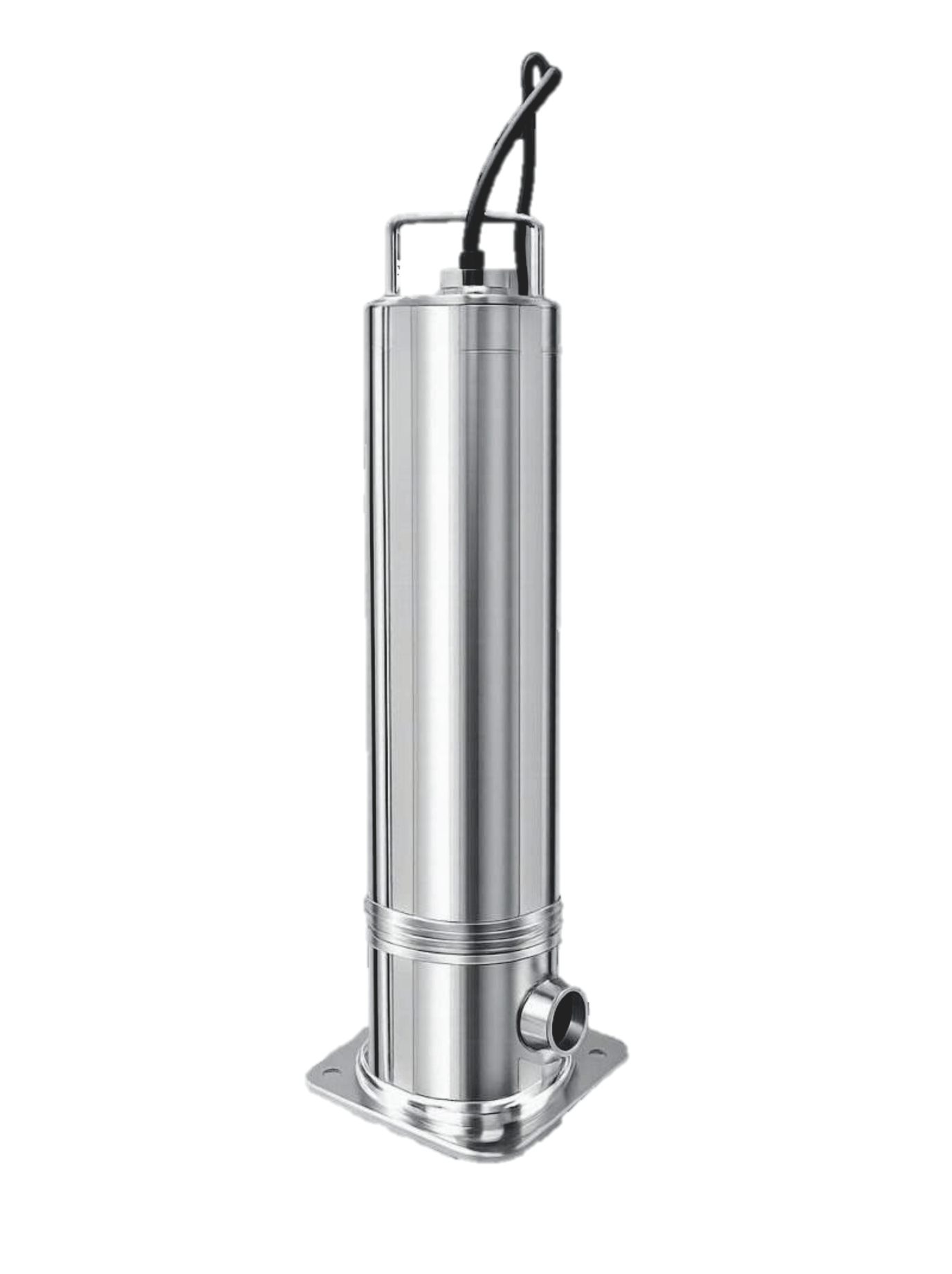

MSF Amphibious Pump

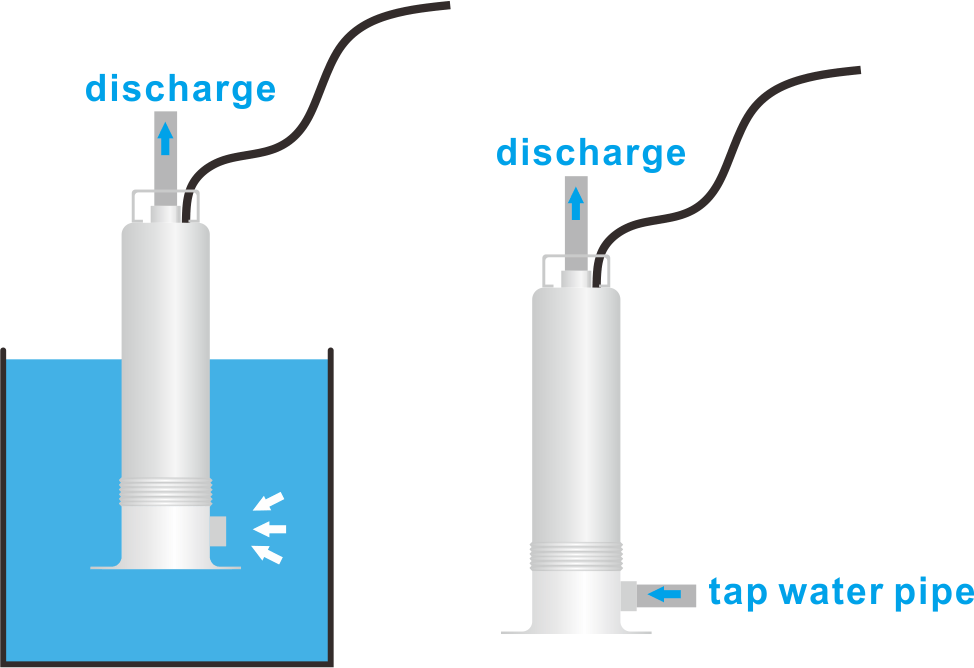

- Water storage tanks and water tanks transport clean water
- Small scale irrigation water
- Clean vehicle
- Italian double machanical seal - Enhances sealing performance,prevents leakage,and extends pump service life.
- Sound-absorbing noise-reduction technology - With patented design,effectively reduces operating noise and ensures a quiet operating environment.
- High-performance GE-PPO material - The impeller and diffuser are made of GE-PPO,providing high head,excellent efficiency and superior durability.
- Ambient temperature:MAX+40oC
- Liquid temperature:+4oC~+40oC
- Applicable liquids:Clean water or non-corrosive liquids without solid particles,with properties similar to water.
|

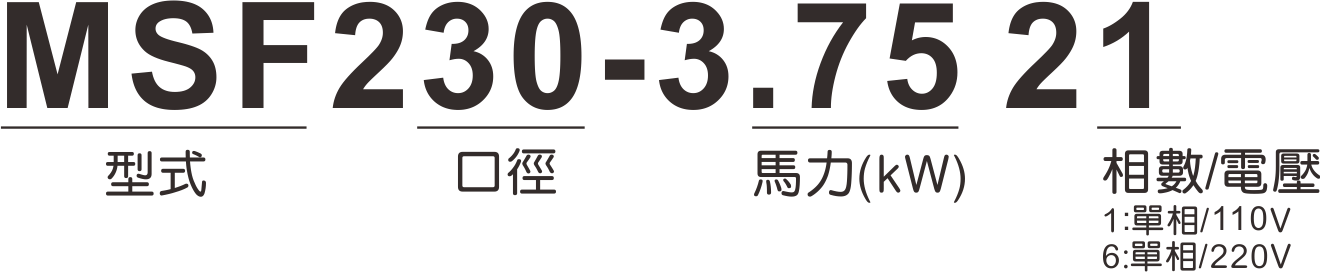

TYPE |
POWER |
BORE |
PHASE |
CAPACITY |
CURRENT |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L/min | 0 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | ||||||
| m3/h | 0 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 110 | 220 | ||||
|
HP(KW) |
(mm) | ∅ | HEAD | V | V | |||||||||
|
MSF230-3.50 265 |
0.67 (0.5) | 1¼”（30） | 1 | H(M) | 39 | 36 | 34 | 31 | 28 | 25 | 21 | 17 | 8.7 |
|
|
MSF230-3.60 265 |
0.8 (0.6) | 1¼”（30） | 1 | H(M) | 52 | 48 | 45 | 42 | 38 | 33 | 28 | 22 |
|
4.5 |
|
MSF230-3.80 265 |
1 (0.8) | 1¼”（30） | 1 | H(M) | 65 | 60 | 56 | 52 | 47 | 41 | 35 | 28 | 14 |
|
|
MSF230-31.0 265 |
1.3 (1) | 1¼”（30） | 1 | H(M) | 78 | 72 | 68 | 62 | 56 | 50 | 42 | 33 |
|
7.2 |
|
MSF230-31.2 265 |
1.6 (1.2) | 1¼”（30） | 1 | H(M) | 91 | 84 | 79 | 73 | 66 | 58 | 49 | 39 |
|
8.6 |

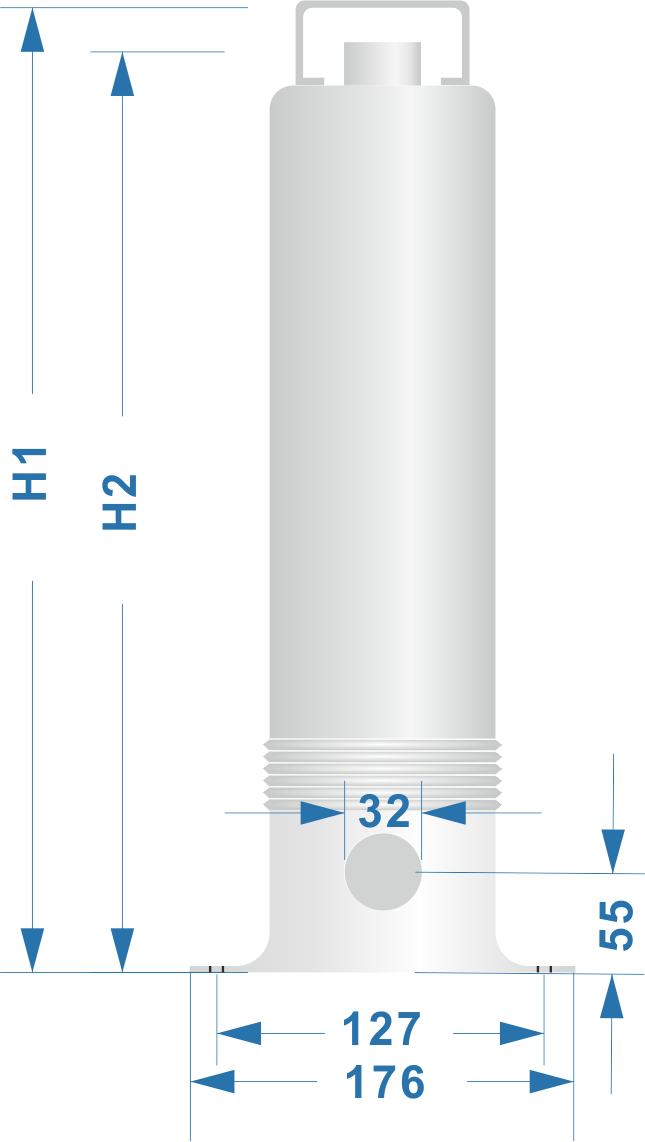

| Type | H1 | H2 |
|---|---|---|
| MSF230-3.50 265 | 532 | 507 |
| MSF230-3.60 265 | 595 | 569 |
| MSF230-3.80 265 | 571 | 545 |
| MSF230-31.0 265 | 610 | 585 |
| MSF230-31.2 265 | 662 | 633 |
| MSF230-31.5 26 | 597 | 633 |
